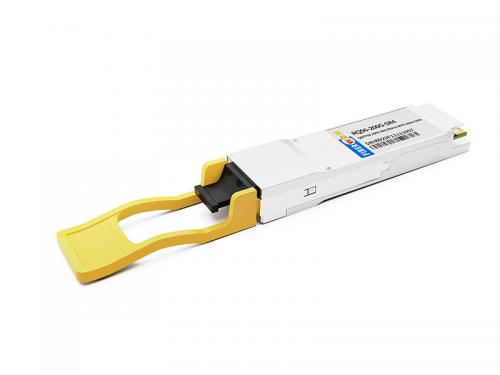

Features QSFP56 Serial Optical Interface 4x50G PAM4 retimed 200GAUI-4 C2M electrical interface MPO-12 connector 4 channel VCSEL array and 4 channels PIN photodetector array >Maximum link length of 70m on OM3 or 100m on OM4 QSFP MSA Compliant Hot Pluggable QSFP56 form factor Compliant with SFF8636 Rev 2.10a Support Protocol Compliant with IEEE 802.3cd Low Power Consumption Less than 5W in temperature range of 0 to 70℃ Applications 200GBASE-SR4200G Ethernet Data center

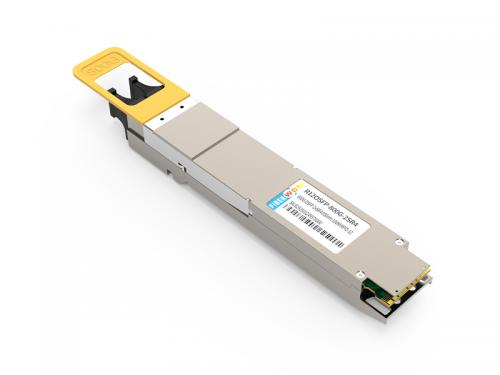

Features OSFP Serial Optical Interface 8x100G PAM4 retimed 800GAUI-8 electrical interface Dual MPO-12 APC connector and MPO16 APC connector are provided 8 channel VCSEL arrays and 8 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 14W in temperature range of 0 to 70℃ Applications 800GBASE-SR8 800G Ethernet Data center

Features Form Factor: Hot-pluggable OSFP800 form factor Data Rate: Aggregate data rate of 850 Gb/s and Breakout data rate of 106.25 Gb/s Optical Interface: Compliant to 2×400GBASE-DR4 and 8x100GBASE-DR Electrical Interface: Compliant to 2×400GAUI-4 and 8x100GAUI-1 Management Interface: I2C management interface Reach: Up to 500m over MPO/APC single mode fiber Power consumption: 16 W max Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Rev 5.0  Optical: IEEE802.3cd /IEEE802.3bs  Electrical: IEEE802.3ck  Firmware: CMIS 5.2  Environment: RoHS  Stability: GR-468-CORE Applications 800Gb/s Ethernet  Data Center

Features OSFP Serial Optical Interface 4x100G PAM4 retimed 400GAUI-4 electrical interface Active Optical cable 4 channel VCSEL arrays and 4 channels PIN photo detector arrays Maximum link length of 60m on OM3 or 100m on OM4 OSFP MSA Compliant Hot Pluggable OSFP form factor Compliant to OSFP Module Specification Rev 5.0 Compliant with CMIS 5.2 Support Protocol Compliant with IEEE 802.3db Compliant to IEEE 802.3ck Low Power Consumption Less than 8W in temperature range of 0 to 70℃ Applications 400GBASE-SR4 400G Ethernet Data center

Features Form Factor: Hot-pluggable OSFP form factor  Data Rate: Aggregate data rate of 425 Gb/s and Breakout data rate of 106.25 Gb/s  Optical Interface: Compliant to 400GBASE-DR4 and 4x100GBASE-DR Transmitter: EML 1310nm transmitter  Electrical Interface: Compliant to 400GAUI-4 and 4x100GAUI-1 Receiver: PIN and TIA array on the receiver side Management Interface: I2C management interface Reach: Up to 500m over MPO-12/APC single mode fiber  Power consumption: 9 W max  Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Optical: IEEE802.3bs Electrical: IEEE802.3ck Firmware: CMIS Environment: RoHS Stability: GR-468-CORE Applications 400Gb/s Ethernet Data Center  InfiniBand

Features QSFP-DD Serial Optical Interface 8x50G PAM4 retimed 400GAUI-8 electrical interface MPO-12 connector with 8° angled end-face Up to 500m on SMF with FEC QSFP-DD MSA Compliant Hot Pluggable QSFP-DD form factor Compliant with CMIS5.2 Support Protocol IEE802.3.bs 400GBASE-DR4 Specification compliant Low Power Consumption Less than 10.5W in temperature range of 0 to 70℃ Applications 400Gb/s Ethernet Data Center InfiniBand interconnects

Features IEEE 802.3bs Specification compliant QSFP-DD MSA compliant 4x106.25 Gbps PAM4 optical interface 8x53.125 Gbps PAM4 electrical interface I2C interface with integrated DDM Up to 2km transmission distance on single mode fiber (SMF) with FEC up ply voltage: 3.3 V Maximum power consumption: 12 W MTP/MPO-12 connector Operating case temperature: 0 to 70 °C RoHS compliant Applications 400G Ethernet Datacenter enterprise networking
