The 40ch 50Ghz DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. And we also provide EXP port to expand H14~H61 in the future.
The 48ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜7.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.
Dual Fiber 48CH C14-C61 50GHz DWDM MUX DEMUX, With EXP Port For Expanding
H14-H61, LC/UPC, 1U Rack

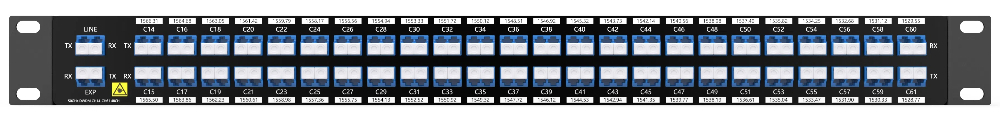

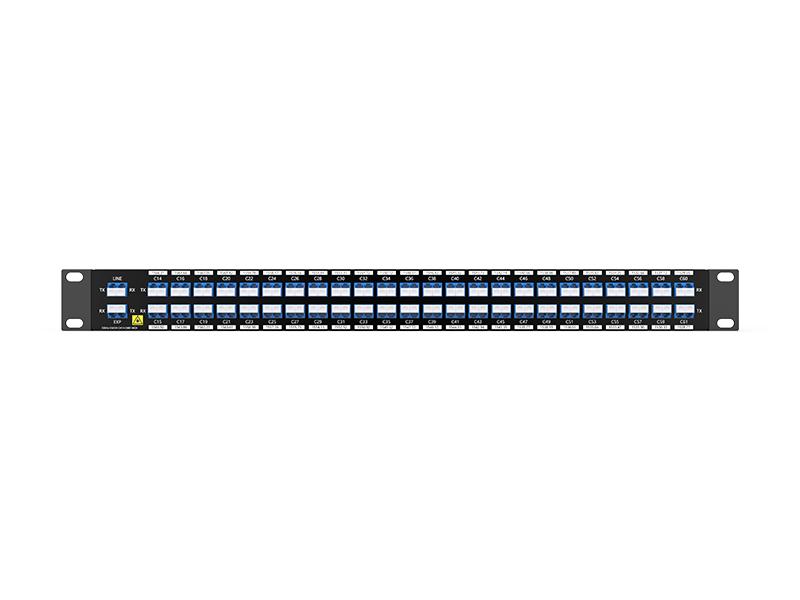

Product Panel
48CH DWDM MUX DEMUX

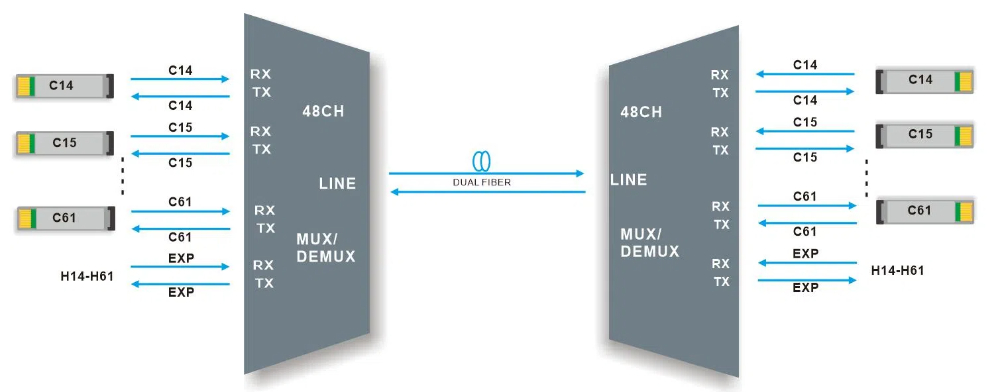

Line Link
40CH DWDM MUX DEMUX Dual fiber transmission
48 Channels DWDM MUX DEMUX , supports 40 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
40channels C21-C60 |
Channel Spacing |
50GHz (0.4nm) |
|
Channel Passband |
±0.11nm |
Technology |
AAWG (Flat-top) |
|
Insertion Loss |
≤ 7.0dB |
Link Loss |
≤ 14dB |
|
Center Wavelength Accuracy |
±0.12nm |
1dB Bandwidth |
≥ 0.3nm |
|
3dB Bandwidth |
≥ 0.5nm |
20 dB bandwidth |
≤ 1.3nm |
|
Return Loss |
≥ 40dB |
Ripple |
≤ 0.1dB |
|
Insertion Loss Uniformity |
≤ 1.5dB |
Polarization Mode Dispersion |
≤ 0.5ps |
|
Polarization Dependent Loss |
≤ 0.8dB |
Total Crosstalk |
≥ 19dB |
|
Chromatic Dispersion |
±0.19dB |
Channel Isolation |
Adjacent ≥ 22dB |
|
Channel Isolation |
Non-adjacent ≥ 27dB |
Temperature |
Operating -5 to 65°C、Storage -40 to 85°C |
|
Net Weight |
|

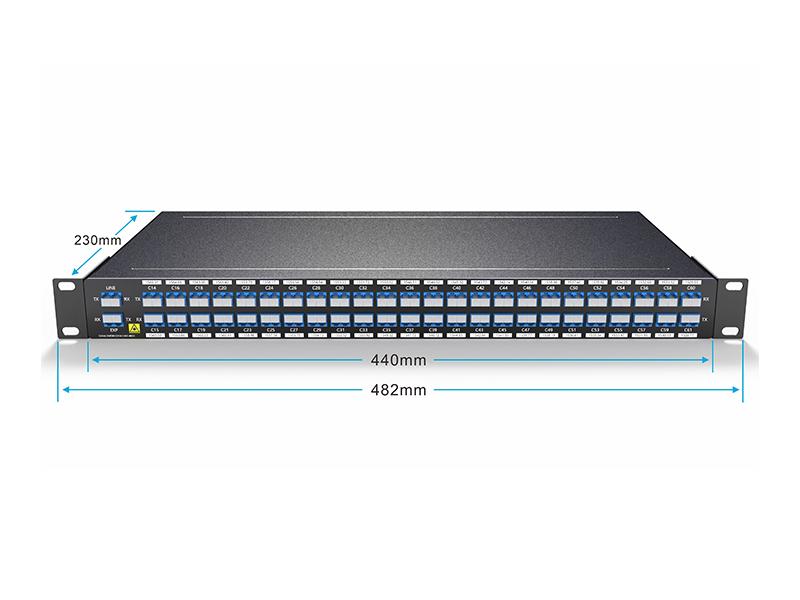

Dimensions (HxWxD) |
|
Note: Specified with connectors.
Package Information

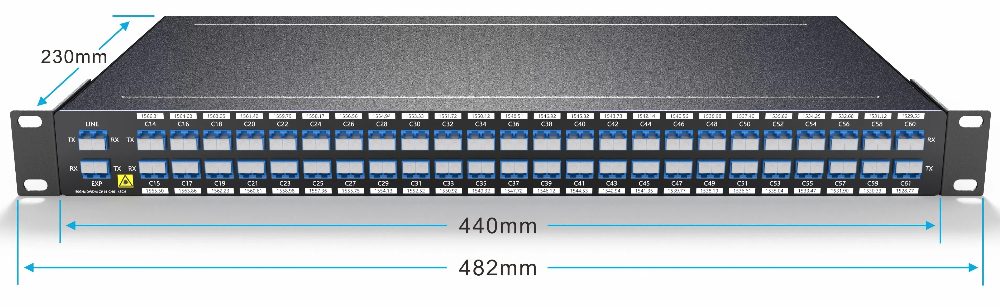

19” Inch 1U Rack
Order Information
|
Product No. |
Product description |
|
50G-DMD48-1U01-C1461 |
50GHz DWDM MUX DEMUX 48CH (C14-C61) With EXP Port for expand H14-H61 , Dual fiber, LC/UPC , 1U Rack |
Note: We Support Customized Design, please contact us by email.
