The 8ch(16waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28, TX C44 to C51; And in side B, the waves are: RX C44 to C51, TX C21 to C28. it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber.

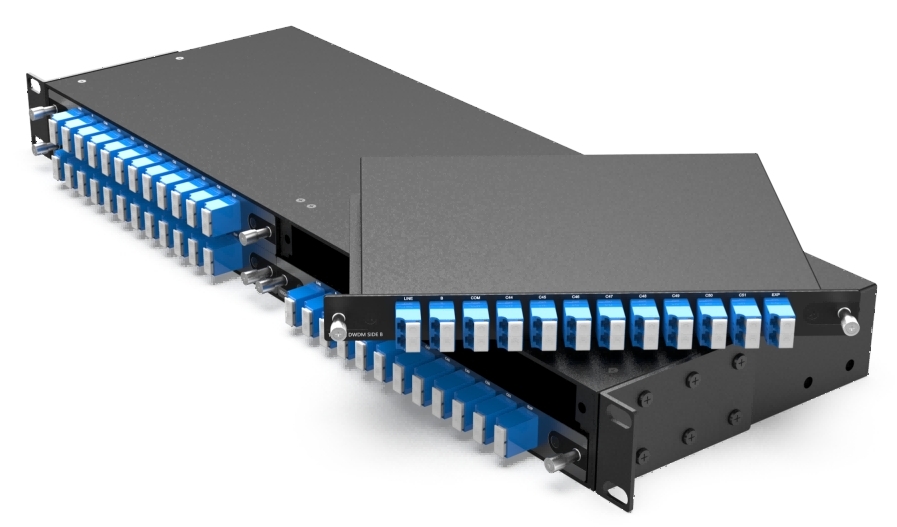

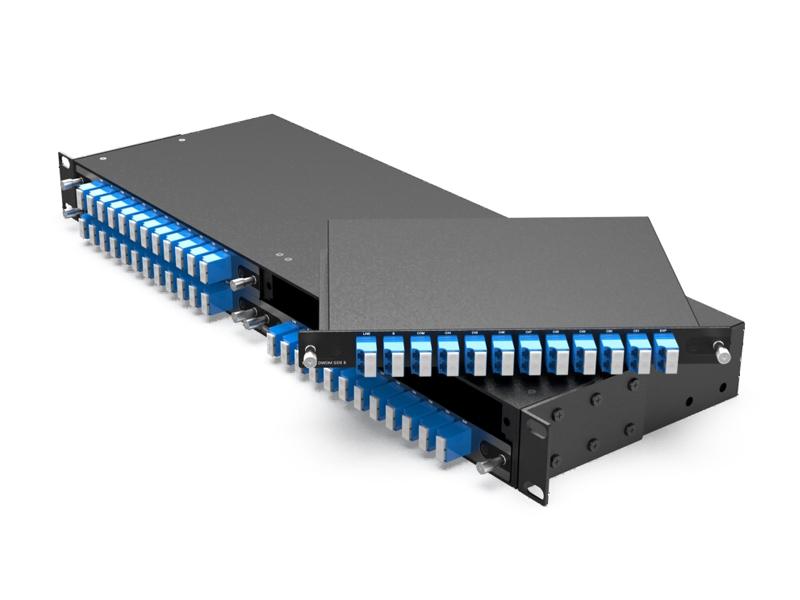

And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*8channels in the system.
Single Fiber 8CH 16 Waves DWDM MUX/ DEMUX, With EXP Port, and R/B Filter LC/UPC, LGX Box, and 4 Slots 1U Rack
The 8ch(16waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28, TX C44 to C51; And in side B, the waves are: RX C44 to C51, TX C21 to C28. it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber.
And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*8channels in the system.

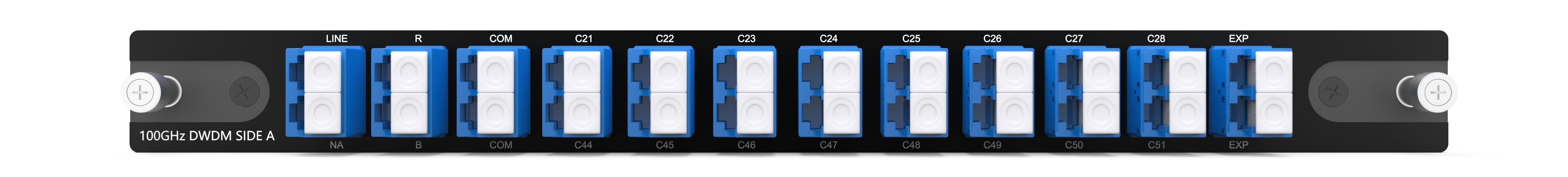

Product Panel

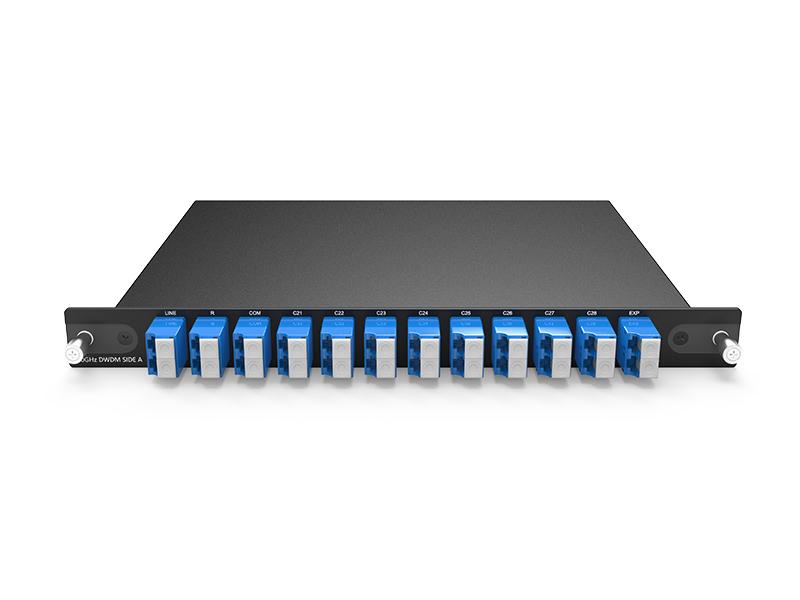

8CH DWDM MUX/ DEMUX Single Fiber Side A

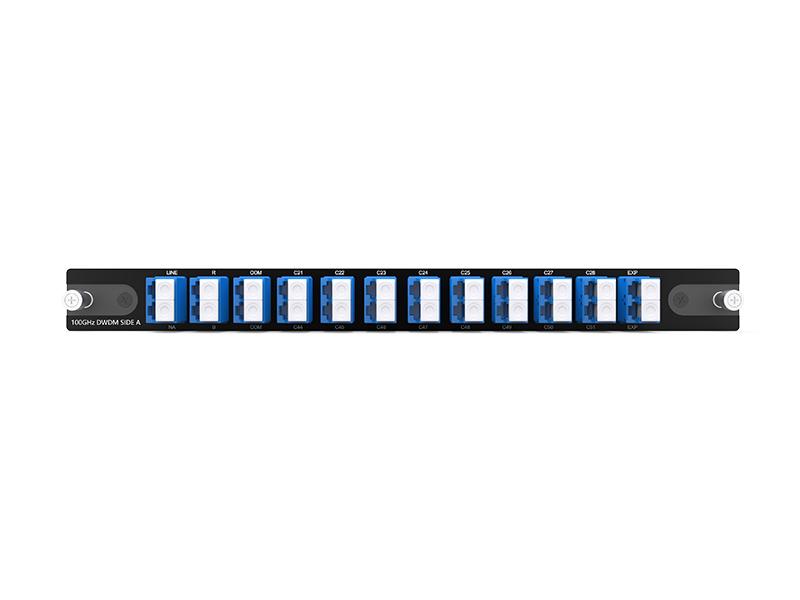

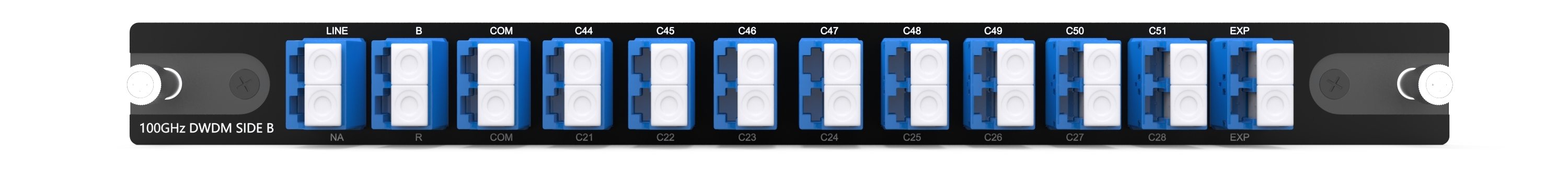

8CH DWDM MUX/ DEMUX Single Fiber Side B

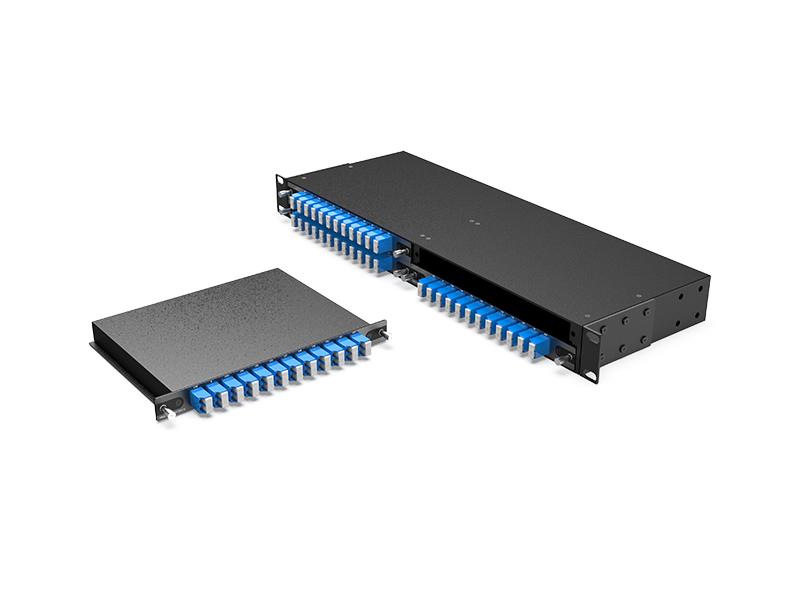

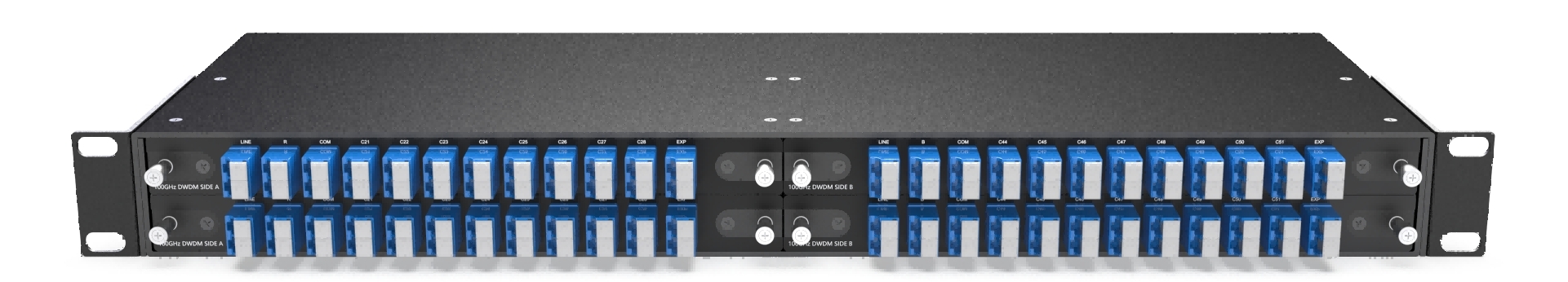

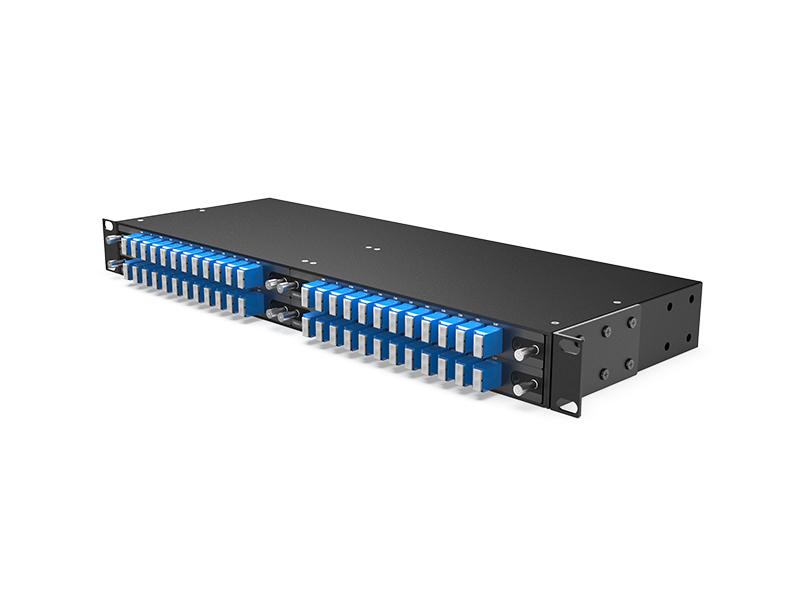

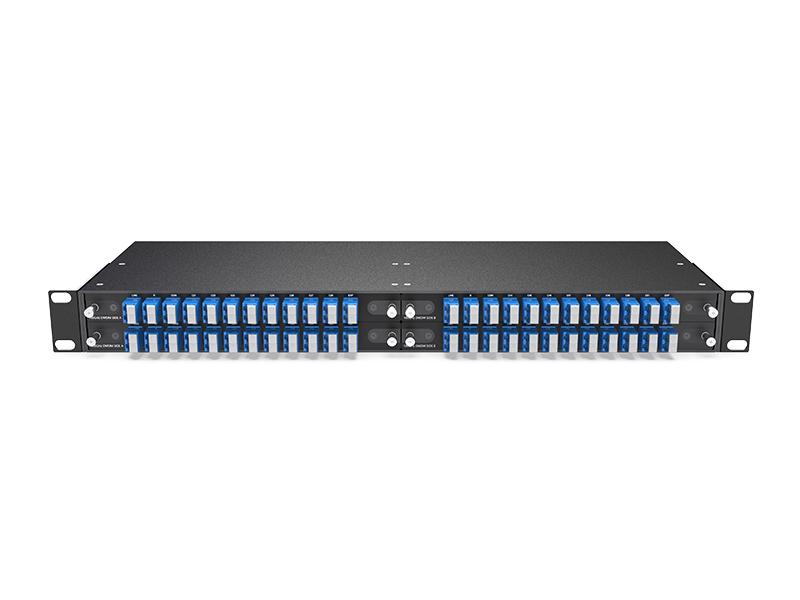

4-Slot 1U rack
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

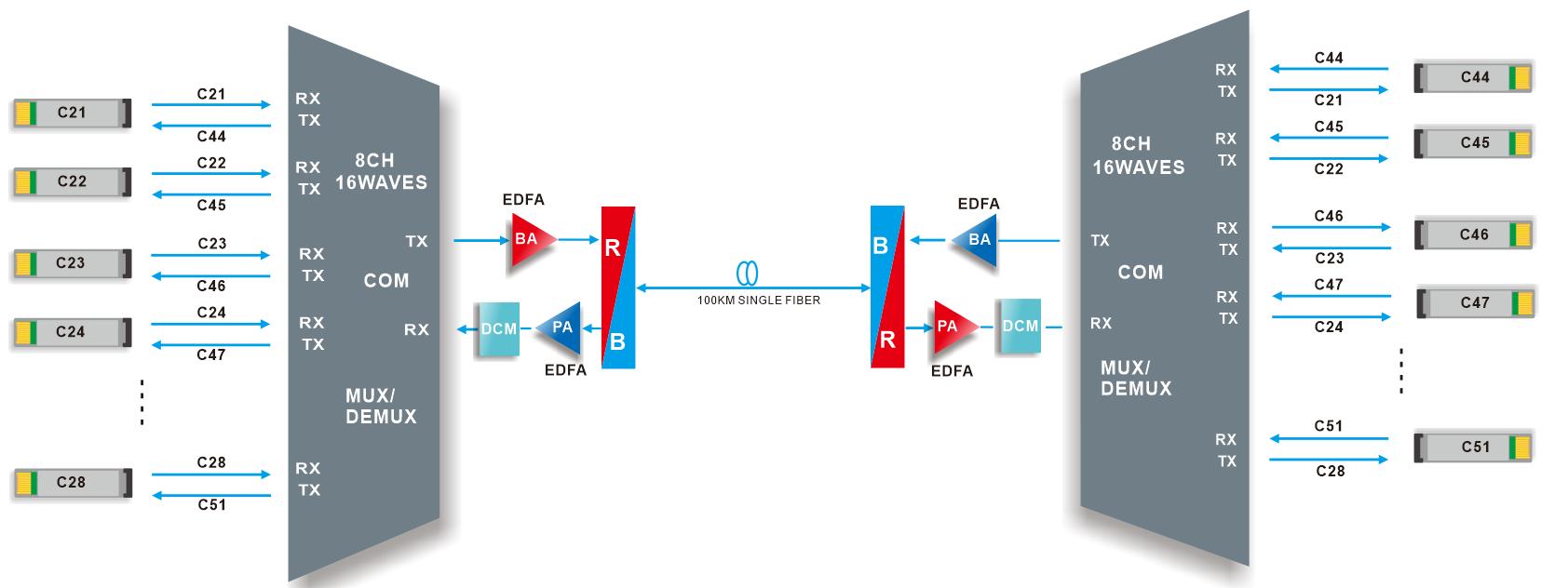

8CH DWDM MUX/ DEMUX Single fiber transmission
8 Channels DWDM MUX/ DEMUX supports 8 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
8ch 16 wavesC21-C28/C44-C51 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
≤ 3.5dB |
Link Loss |
≤ 4.5dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Insertion Loss@R/B |
PASS:≤ 0.6dB Reflect:≤0.8dB |
Isolation@R/B |
PASS:≥ 30dB Reflect:≥15dB |
|
Net Weight |
LGX Box: 0.5KG 4slot 1U Rack: 1.5KG |
Dimensions (HxWxD) |

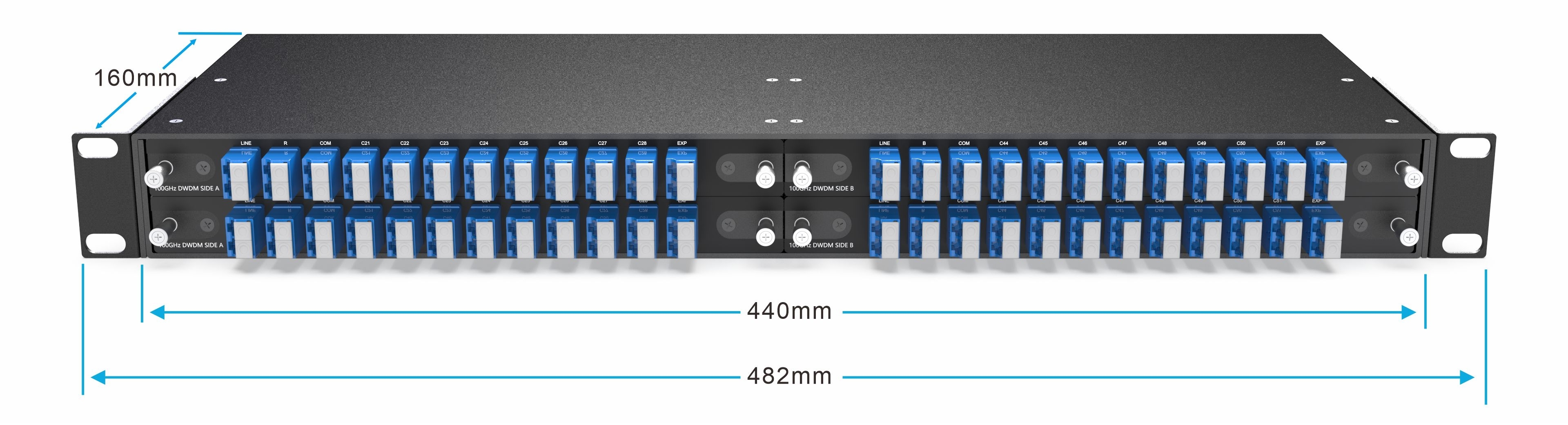

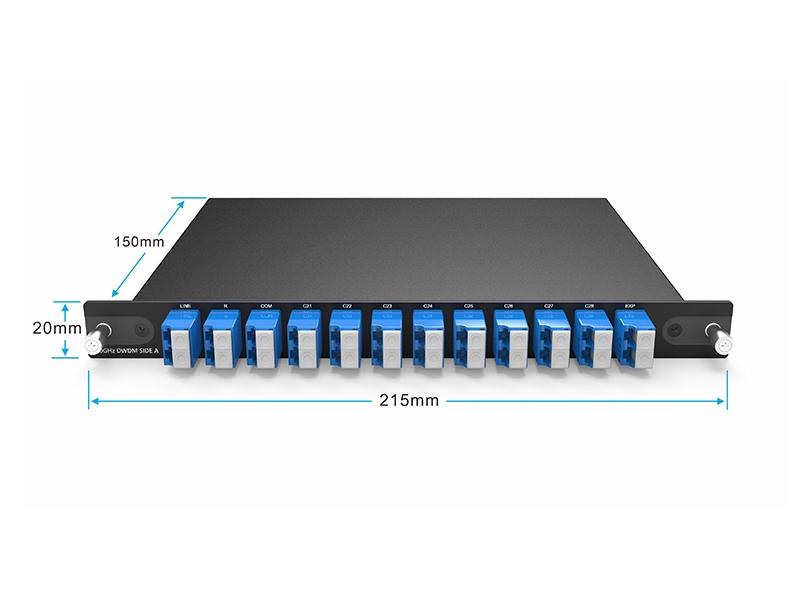

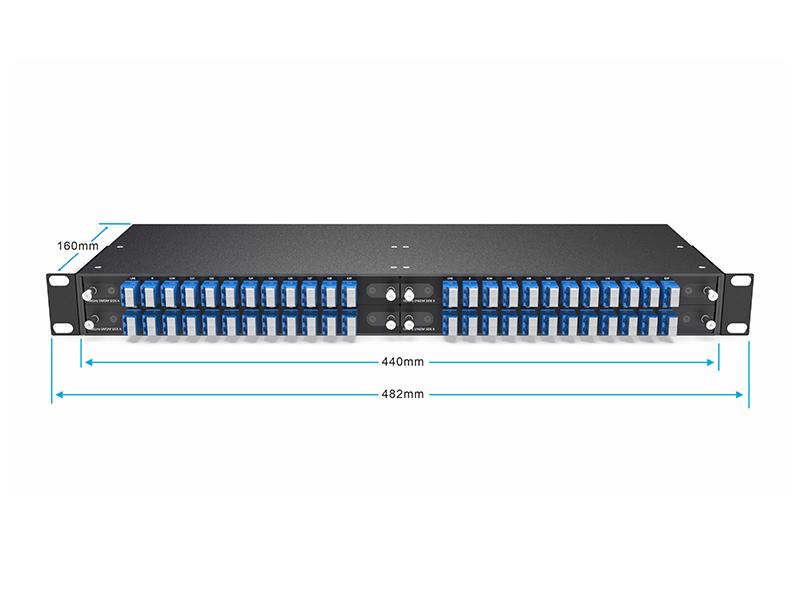

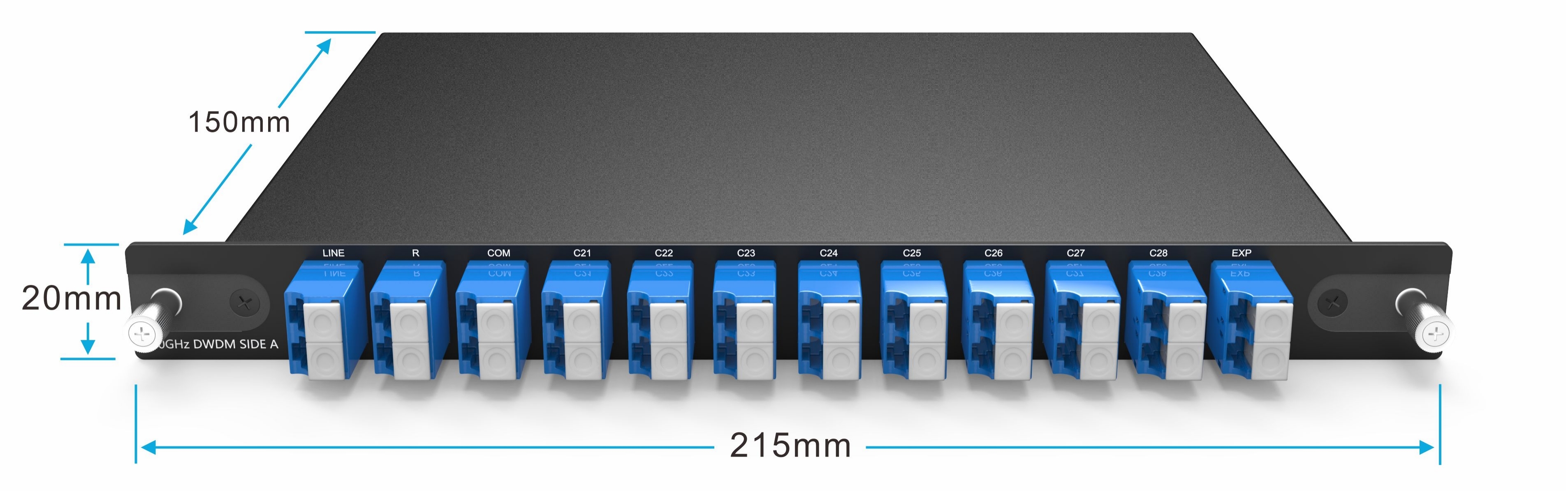

LGX Box: 20*215*150mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information
LGX BOX Plug in 4-Slot 1U Rack
4-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
DM8-LGX01-C2151-RB-A |
DWDM MUX//DEMUX 8CH 16Waves (RX C21-C28/TX C44-C51) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box 20*215*150mm, Side A |
|
DD8-LGX01-C2151-RB-B |
DWDM MUX/ DEMUX 8CH 16Waves (RX C44-C51/TX C21-C28) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box 20*215*150mm, Side B |
|
1U-4LGX02 |
19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
