The 4ch(8waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C24, TX C45 to C48; And in side B, the waves are: RX C45 to C48, TX C21 to C24. it conjunct with the DWDM amplifiers and DCM device, the 4ch DWDM transfer system can support a long distance transmission in one fiber.

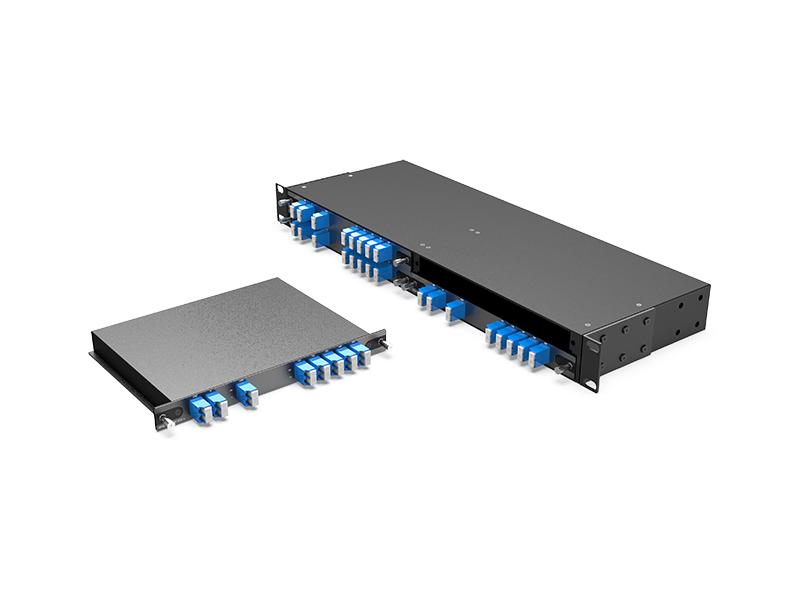

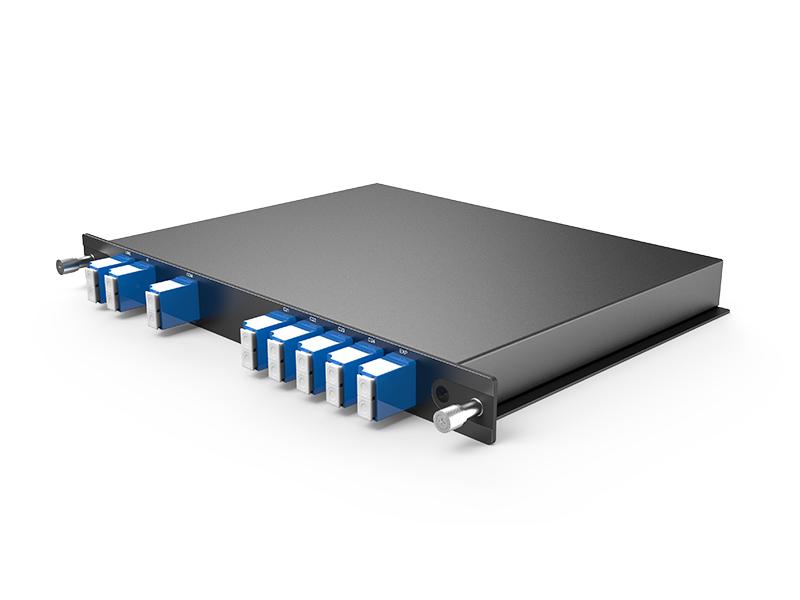

And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*4channels in the system.
Single Fiber 4CH 8 Waves DWDM MUX/ DEMUX, With EXP Port, and R/B Filter LC/UPC, LGX Box, and 4 Slots 1U Rack
The 4ch(8waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C24, TX C45 to C48; And in side B, the waves are: RX C45 to C48, TX C21 to C24. it conjunct with the DWDM amplifiers and DCM device, the 4ch DWDM transfer system can support a long distance transmission in one fiber.
And it is LGX box Plug-in designed, so it can plug in the 4-Slot 1U rack, Max capacity support 4*4channels in the system.

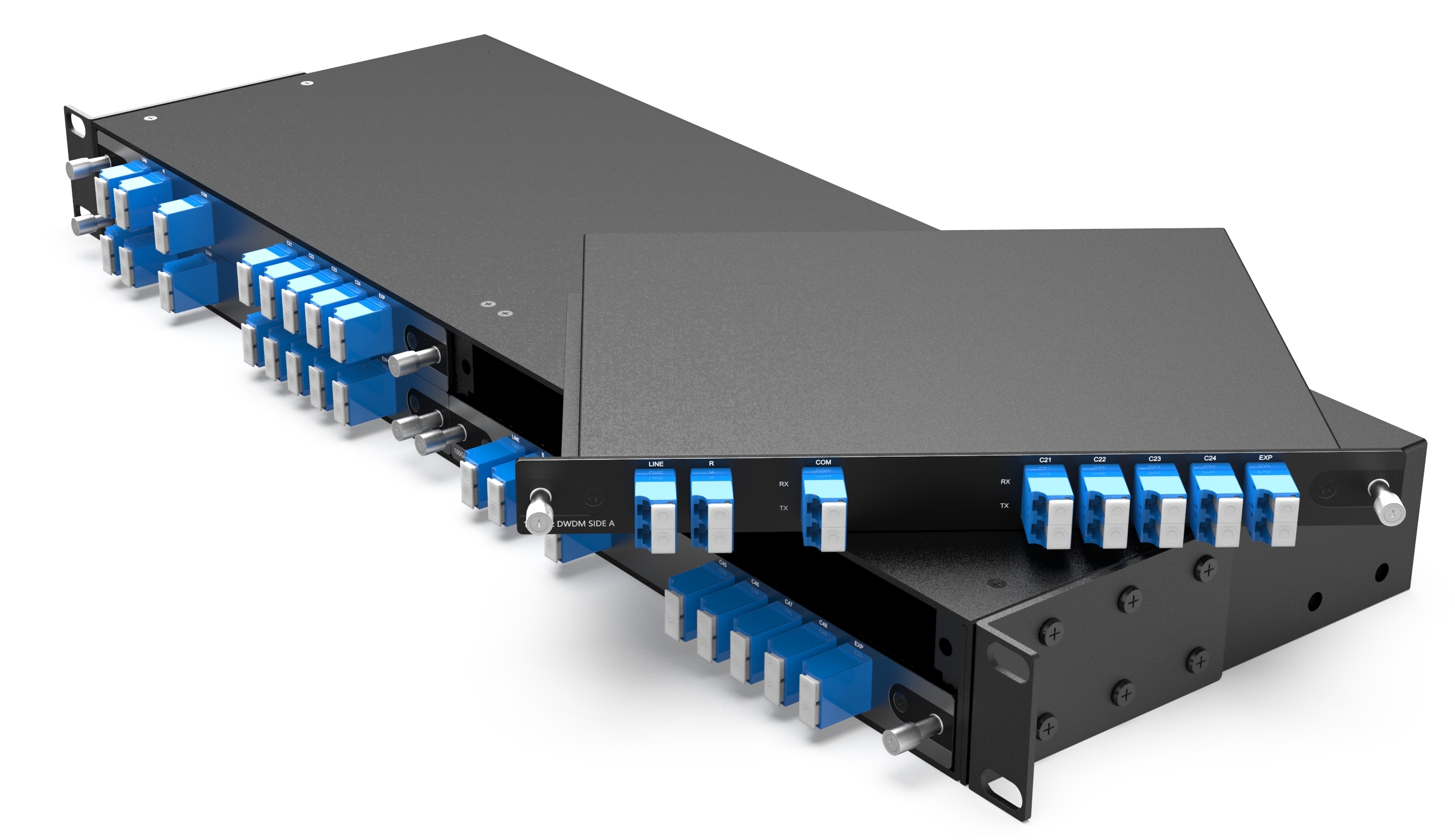

Product Panel

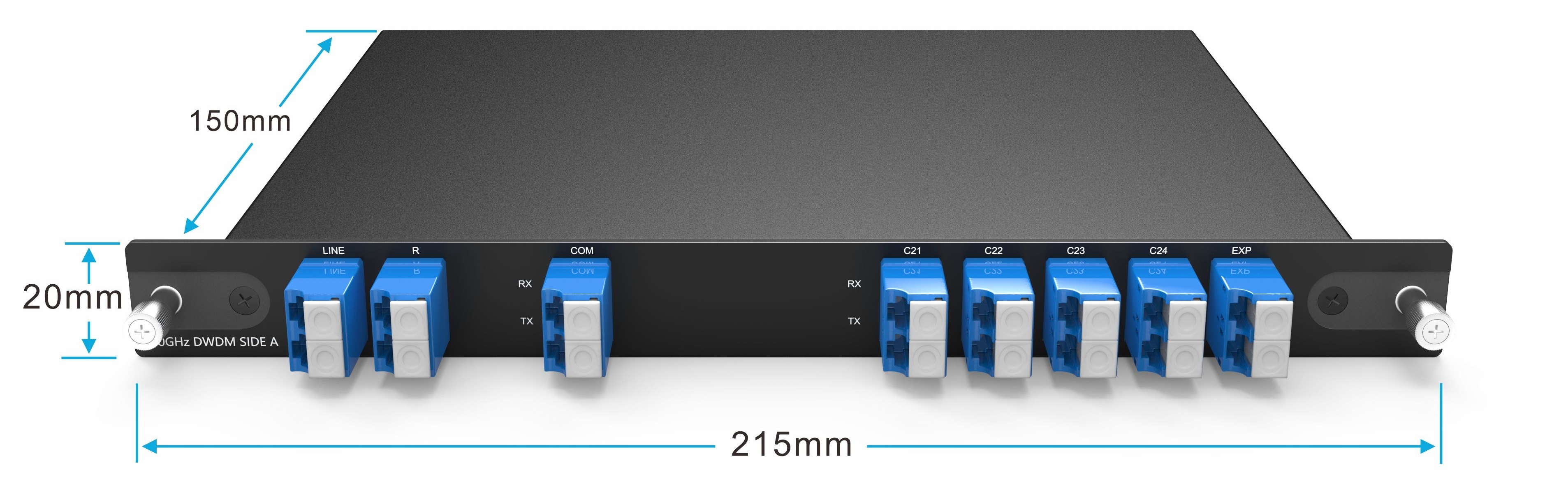

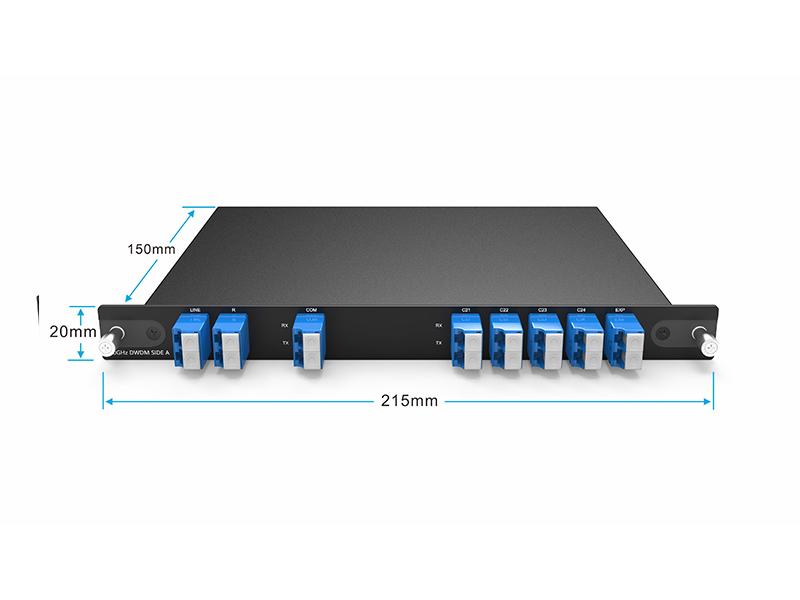

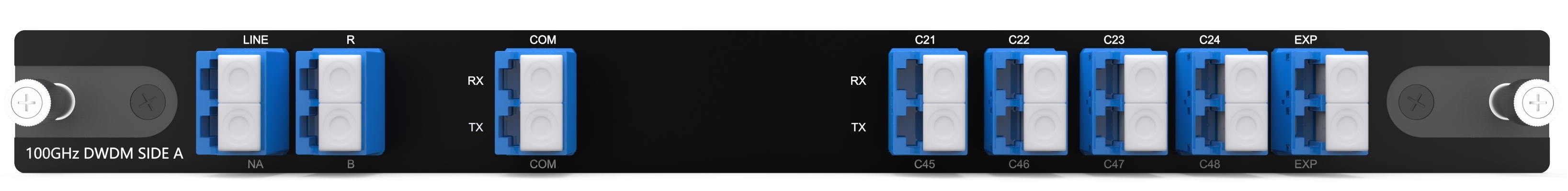

4CH DWDM MUX/ DEMUX Single Fiber Side A

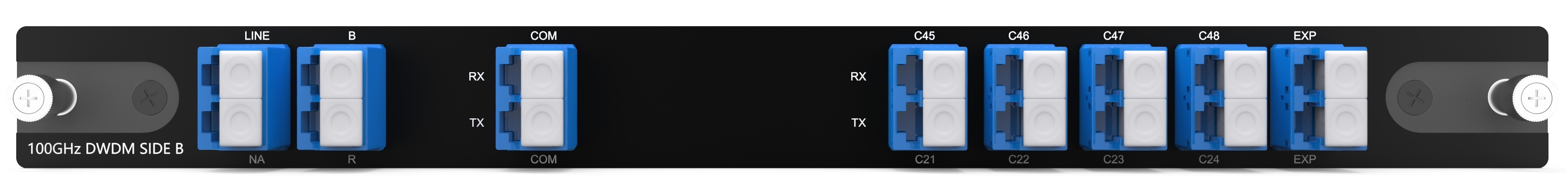

4CH DWDM MUX/ DEMUX Single Fiber Side B

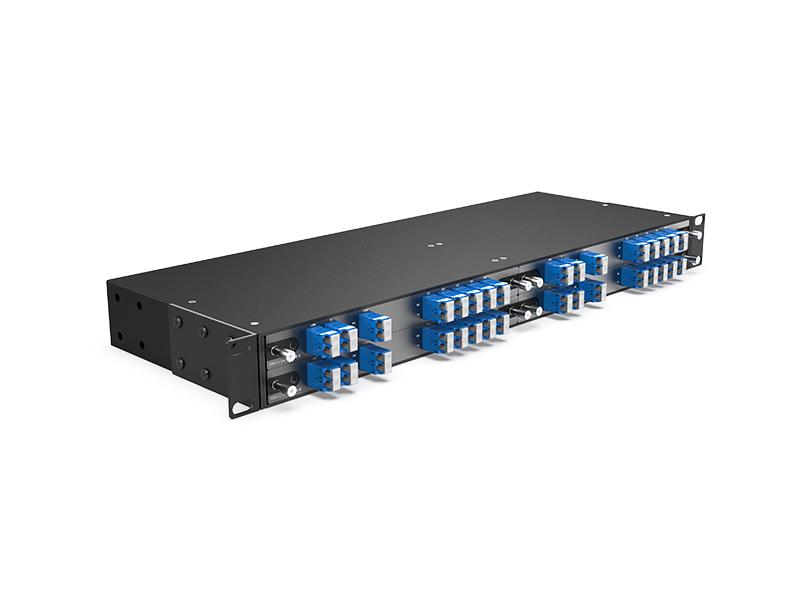

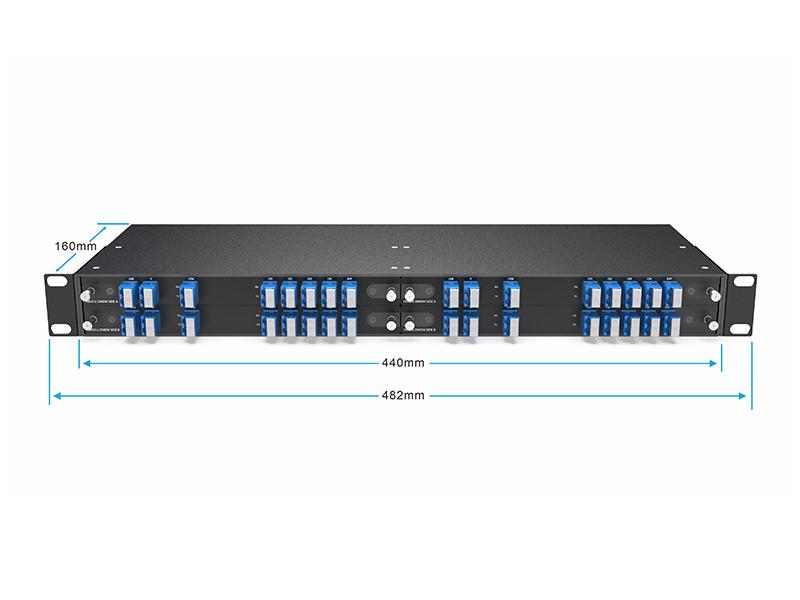

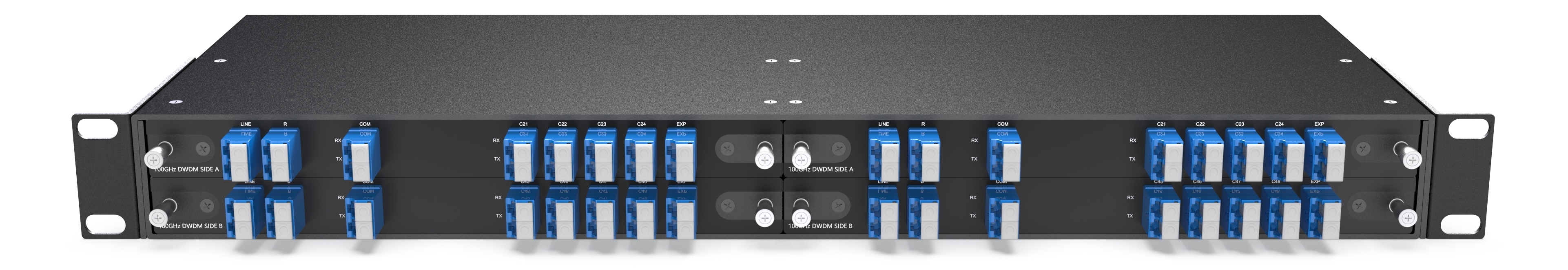

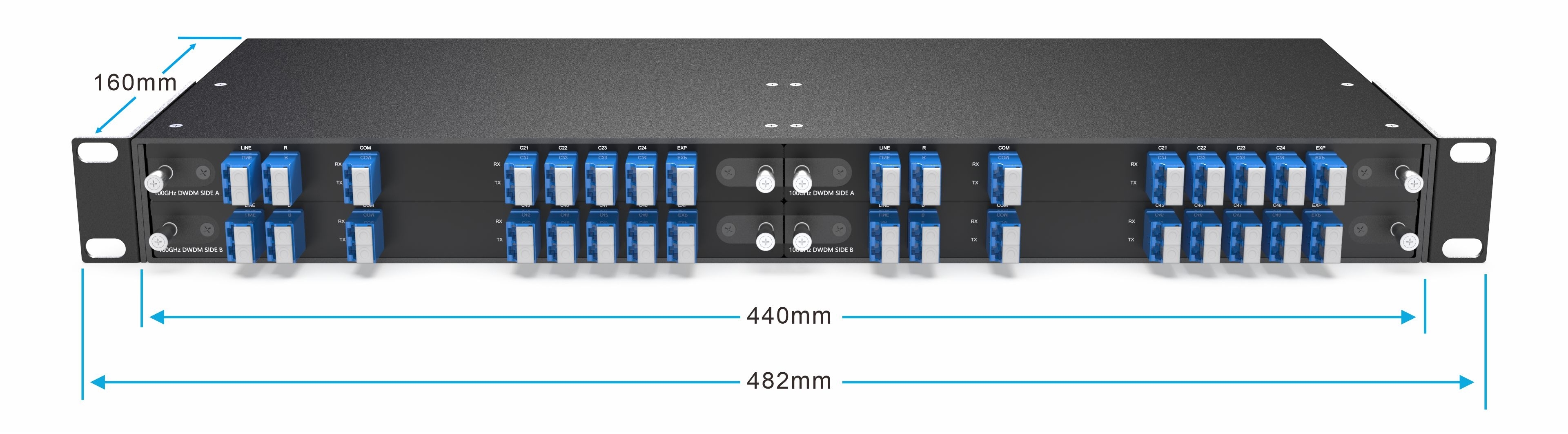

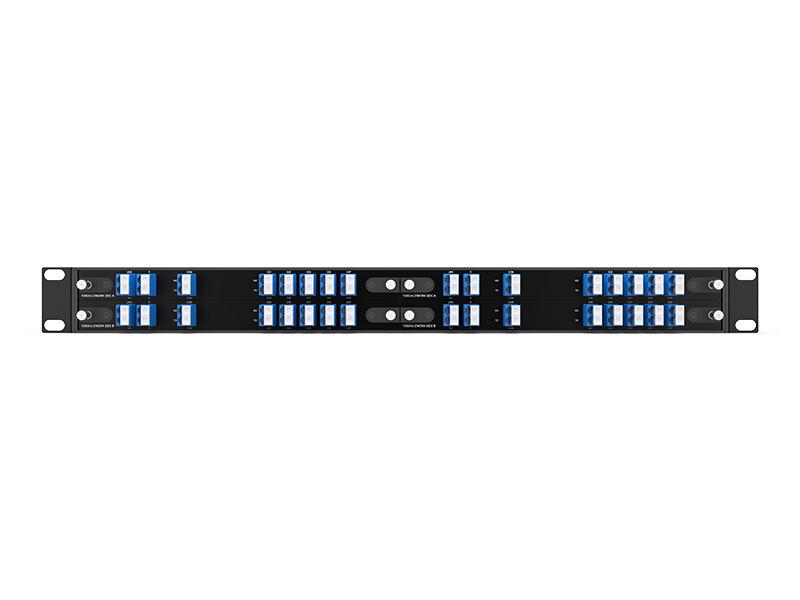

4-Slot 1U rack
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

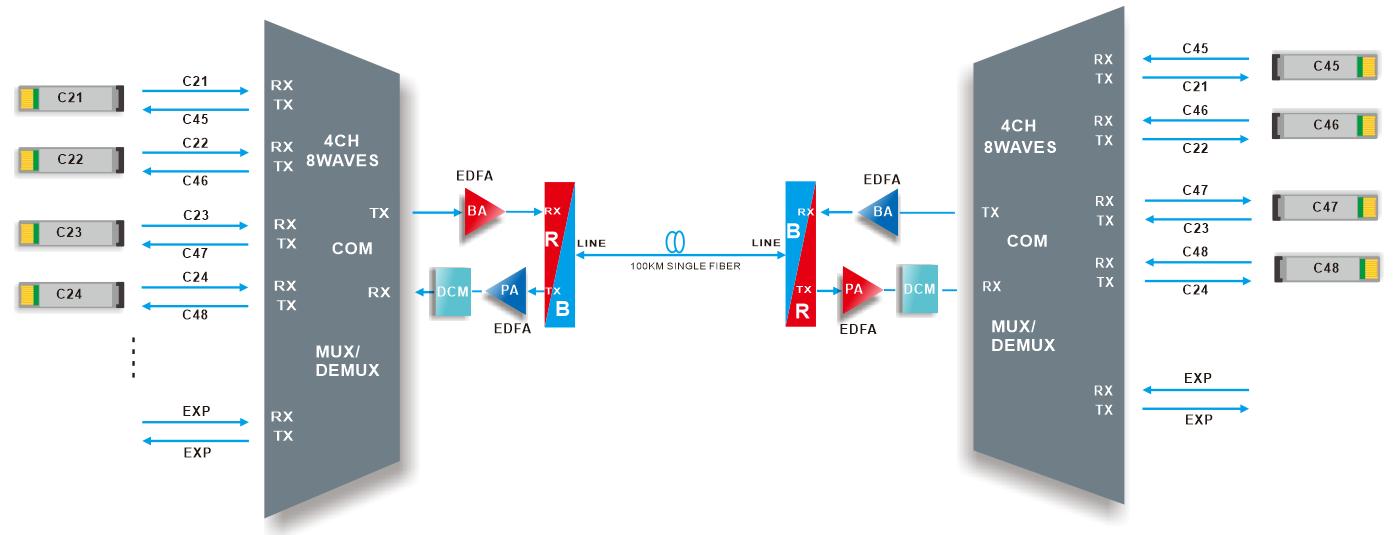

4CH DWDM MUX/ DEMUX Single fiber transmission
4 Channels DWDM MUX/ DEMUX supports 4 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
4ch 8 wavesC21-C24/C45-C48 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
≤ 2.4dB |
Link Loss |
≤ 3.5dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Insertion Loss@R/B |
PASS:≤ 0.6dB Reflect:≤0.8dB |
Isolation@R/B |
PASS:≥ 30dB Reflect:≥15dB |
|
Net Weight |
LGX Box: 0.5KG 4slot 1U Rack: 1.5KG |
Dimensions (HxWxD) |
LGX Box: 20*215*150mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information
LGX BOX Plug in 4-Slot 1U Rack
4-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
DM4-LGX01-C2148-RB-A |
DWDM MUX//DEMUX 4CH 8Waves (RX C21-C24/TX C45-C48) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box 20*215*150mm, Side A |
|
DD4-LGX01-C2148-RB-B |
DWDM MUX/ DEMUX 4CH 8Waves (RX C45-C48/TX C21-C24) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box 20*215*150mm, Side B |
|
1U-4LGX02 |
19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
