The DWDM AAWG 101CH MUX/ DEMUX is designed by FIBERWDM, wavelength from C11 to C61(1568.772nm~1528.773nnm), in accordance with the ITU-T G.694.1 50GHZ grid, it maximizes the capacity of the C-band range. It’s totally passive DWDM device, and support low insertion loss( wavelength ports＜6.5dB).

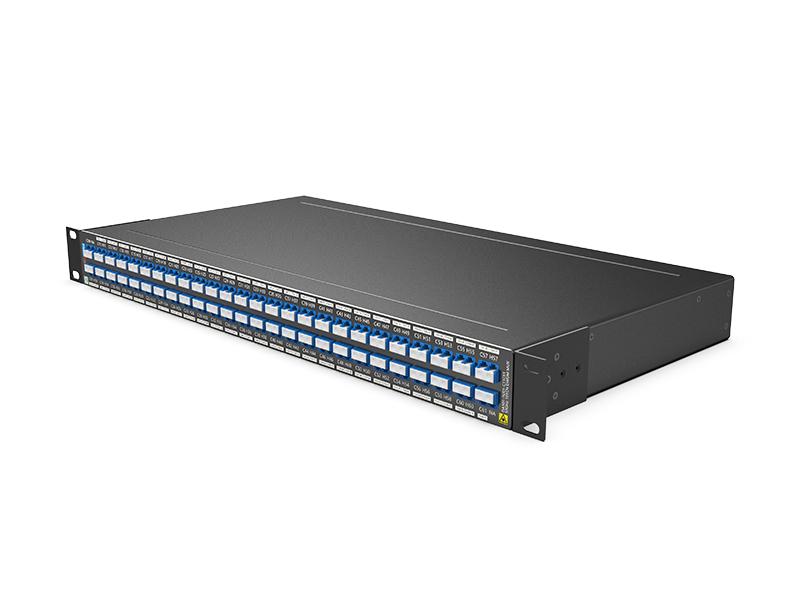

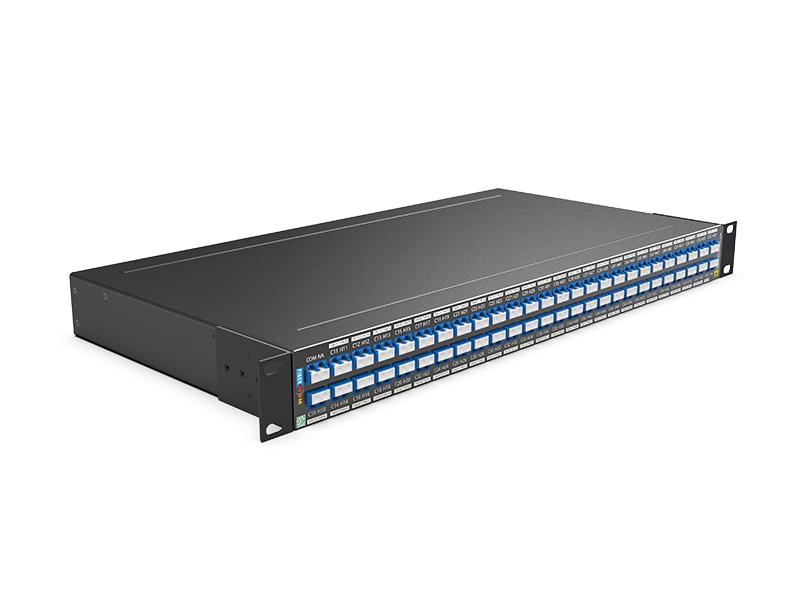

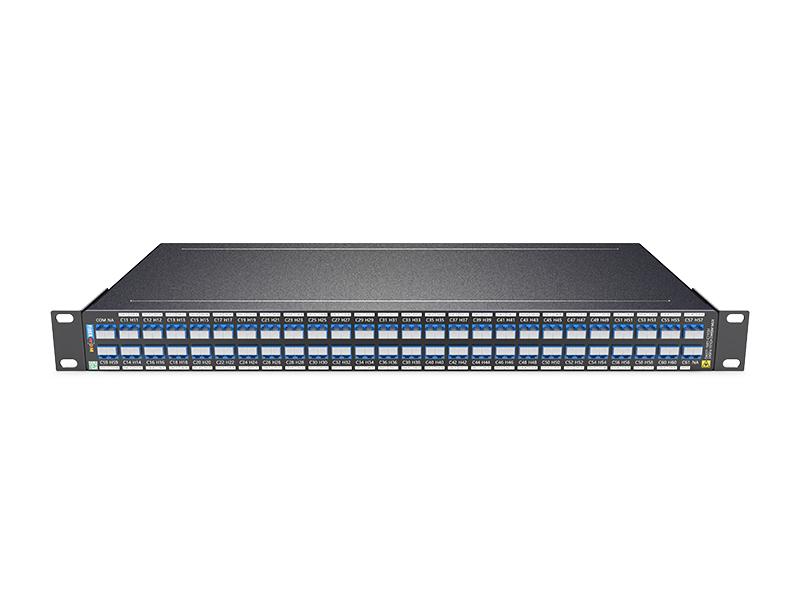

Single fiber 101CH C11-C61 DWDM MUX/DEMUX, 50GHZ AAWG, LC/UPC 1U Rack

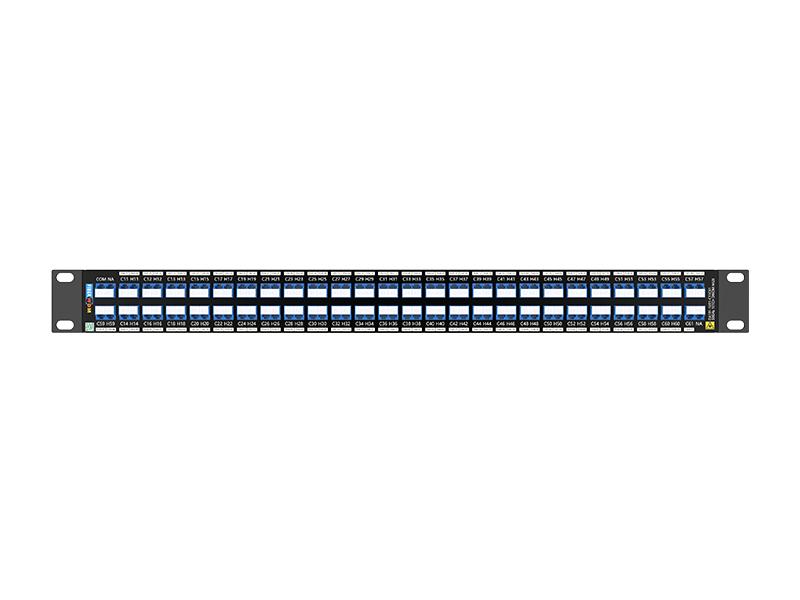

Product Panel
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Parameters |
Notes |
Specifications |
Units |
|
|
Min |
Max |
|||
|
Channels |
101 |
Ch |
||
|
Channel Spacing |
50 |
GHz |
||
|
Wavelength |
1528.773 |
1568.772 |
nm |
|
|
Reference Pass-bandRelative to ITU Grid |
Relative to ITU Grid |
± 6.25 |
GHz |
|
|
ITU Frequency |
See Table 2 Below |
THz |
||
|
ITU Wavelength |
See Table 2 Below |
nm |
||
|
Center Frequency Accuracy |
Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels |
-0.05 |
+0.05 |
nm |
|
Insertion Loss |
Maximum of the insertion loss at the ITU wavelength over all channels |
6.5 |
dB |
|
|
Insertion Loss Uniformity |
Maximum insertion loss variance across all channels |
1.5 |
dB |
|
|
Ripple |
Maximum of the loss variance across the ITU pass-band over all channels |
0.7 |
dB |
|
|
1dB Bandwidth |
1dB from min Insertion Loss, full width, average polarization |
0.2 |
nm |
|
|
3dB Bandwidth |
3dB from min Insertion Loss, full width, average polarization |
0.26 |
nm |
|
|
20dB Bandwidth |
20dB from min Insertion Loss, full width, average polarization |
0.7 |
nm |
|
|
Adjacent Channel Isolation |
Maximum insertion loss difference between the highest power channel and two adjacent channels overall operating conditions such as temperature, average polarization at ITU. |
25 |
dB |
|
|
Non-Adjacent Channel Isolation |
Maximum insertion loss difference between the highest power channel and non-adjacent channels overall operating conditions such as temperature, average polarization at ITU. |
30 |
dB |
|
|
Total Crosstalk |
Total cumulative average insertion loss difference between the highest power channel and all other channels overall operating conditions such as temperature, average polarization at ITU. |
21 |
dB |
|
|
Polarization Dependent Loss |
Maximum ratio of transmissions over all polarization states, over the ITU pass-band |
0.7 |
dB |
|
|
Polarization Mode Delay |
In Reference Passband over all channels |
0.5 |
ps |
|
|
Return Loss |
40 | dB | ||
|
Continuousoptical power |
500 | mw | ||

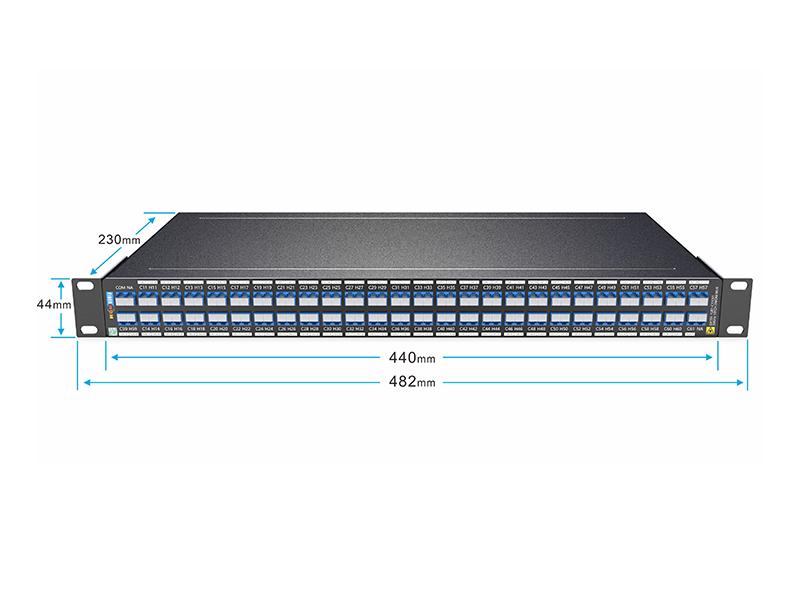

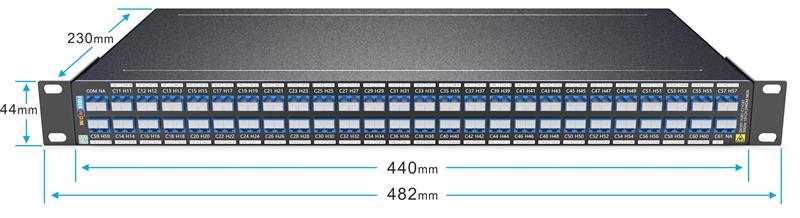

Package Information
101CH DWDM 1U RACK
Order Information
|
Product No. |
Product description |
|
DA101-1U01-C11C61 |
50Ghz DWDM AAWG MUX/ DEMUX 101CH (C11-C61) Single fiber, LC/UPC , 1U Rack |
Note: We Support Customized Design, please contact us by email.
Channels List
|
No |
Frequency(THz) |
Wavelength(nm) |
No |
Frequency(THz) |
Wavelength(nm) |
|
C11 |
191.10 |
1568.772 |
H36 |
193.65 |
1548.115 |
|
H11 |
191.15 |
1568.360 |
C37 |
193.70 |
1547.715 |
|
C12 |
191.20 |
1567.952 |
H37 |
193.75 |
1547.316 |
|
H12 |
191.25 |
1567.540 |
C38 |
193.80 |
1546.917 |
|
C13 |
191.30 |
1567.133 |
H38 |
193.85 |
1546.518 |
|
H13 |
191.35 |
1566.723 |
C39 |
193.90 |
1546.119 |
|
C14 |
191.40 |
1566.314 |
H39 |
193.95 |
1545.720 |
|
H14 |
191.45 |
1565.905 |
C40 |
194.00 |
1545.322 |
|
C15 |
191.50 |
1565.496 |
H40 |
194.05 |
1545.322 |
|
H15 |
191.55 |
1565.087 |
C41 |
194.10 |
1544.526 |
|
C16 |
191.60 |
1564.679 |
H41 |
194.15 |
1544.128 |
|
H16 |
191.65 |
1564.271 |
C42 |
194.20 |
1543.730 |
|
C17 |
191.70 |
1563.863 |
H42 |
194.25 |
1543.333 |
|
H17 |
191.75 |
1563.455 |
C43 |
194.30 |
1542.936 |
|
C18 |
191.80 |
1563.047 |
H43 |
194.35 |
1542.539 |
|
H18 |
191.85 |
1562.640 |
C44 |
194.40 |
1542.142 |
|
C19 |
191.90 |
1562.233 |
H44 |
194.45 |
1541.746 |
|
H19 |
192.95 |
1561.826 |
C45 |
194.50 |
1541.349 |
|
C20 |
192.00 |
1561.419 |
H45 |
194.55 |
1540.953 |
|
H20 |
192.05 |
1561.013 |
C46 |
194.60 |
1540.557 |
|
C21 |
192.10 |
1560.606 |
H46 |
194.65 |
1540.162 |
|
H21 |
192.15 |
1560.200 |
C47 |
194.70 |
1539.766 |
|
C22 |
192.20 |
1559.794 |
H47 |
194.75 |
1539.371 |
|
H22 |
192.25 |
1559.389 |
C48 |
194.80 |
1538.976 |
|
C23 |
192.30 |
1558.983 |
H48 |
194.85 |
1538.581 |
|
H23 |
192.35 |
1558.578 |
C49 |
194.90 |
1538.186 |
|
C24 |
192.40 |
1558.173 |
H49 |
194.95 |
1537.792 |
|
H24 |
192.45 |
1557.768 |
C50 |
195.00 |
1537.397 |
|
C25 |
192.50 |
1557.363 |
H50 |
195.05 |
1537.003 |
|
H25 |
192.55 |
1556.959 |
C51 |
195.10 |
1536.609 |
|
C26 |
192.60 |
1556.555 |
H51 |
195.15 |
1536.216 |
|
H26 |
192.65 |
1556.151 |
C52 |
195.20 |
1535.822 |
|
C27 |
192.70 |
1555.747 |
H52 |
195.25 |
1535.429 |
|
H27 |
192.75 |
1555.343 |
C53 |
195.30 |
1535.036 |
|
C28 |
192.80 |
1554.940 |
H53 |
195.35 |
1534.643 |
|
H28 |
192.85 |
1554.537 |
C54 |
195.40 |
1534.250 |
|
C29 |
192.90 |
1554.134 |
H54 |
195.45 |
1533.858 |
|
H29 |
192.95 |
1553.731 |
C55 |
195.50 |
1533.465 |
|
C30 |
193.00 |
1553.329 |
H55 |
195.55 |
1533.073 |
|
H30 |
193.05 |
1552.926 |
C56 |
195.60 |
1532.681 |
|
C31 |
193.10 |
1552.524 |
H56 |
195.65 |
1532.290 |
|
H31 |
193.15 |
1552.122 |
C57 |
195.70 |
1531.898 |
|
C32 |
193.20 |
1551.721 |
H57 |
195.75 |
1531.507 |
|
H32 |
193.25 |
1551.319 |
C58 |
195.80 |
1531.116 |
|
C33 |
193.30 |
1550.918 |
H58 |
195.85 |
1530.725 |
|
H33 |
193.35 |
1550.517 |
C59 |
195.90 |
1530.334 |
|
C34 |
193.40 |
1550.116 |
H59 |
195.95 |
1529.944 |
|
H34 |
193.45 |
1549.715 |
C60 |
196.00 |
1529.553 |
|
C35 |
193.50 |
1549.315 |
H60 |
196.05 |
1529.163 |
|
H35 |
193.55 |
1548.915 |
C61 |
196.10 |
1528.773 |
|
C36 |
193.60 |
1548.515 |
