The 8ch(16waves) DWDM MUX/ DEMUX, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28(1560.61nm~1554.94nm), TX C29 to C36(1554.13nm~1548.51nm); And in side B, the waves are: RX C29 to C36(1554.13nm~1548.51nm), TX C21 to C28(1560.61nm~1554.94nm). it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber.
And it is LGX box Plug-in designed, so it can plug in the 2-Slot 1U rack, Max capacity support 2*8channels in the system.
Single Fiber 8CH 16 Waves DWDM MUX/ DEMUX, With EXP,1310nm and Monitor Port, LC/UPC, LGX Box, and 2 Slots 1U Rack
The 8ch(16waves) DWDM MUX/ DEMUX, is used in pairs, designed by FIBERWDM, in side A, the waves are: RX C21 to C28(1560.61nm~1554.94nm), TX C29 to C36(1554.13nm~1548.51nm); And in side B, the waves are: RX C29 to C36(1554.13nm~1548.51nm), TX C21 to C28(1560.61nm~1554.94nm). it conjunct with the DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission in one fiber.
And it is LGX box Plug-in designed, so it can plug in the 2-Slot 1U rack, Max capacity support 2*8channels in the system.
Product Panel

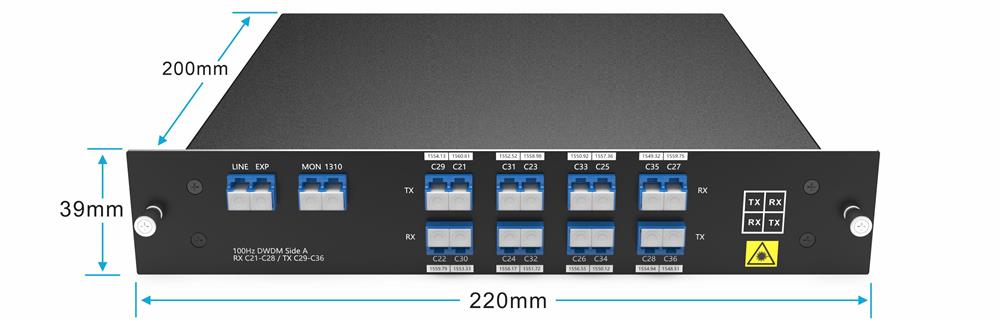

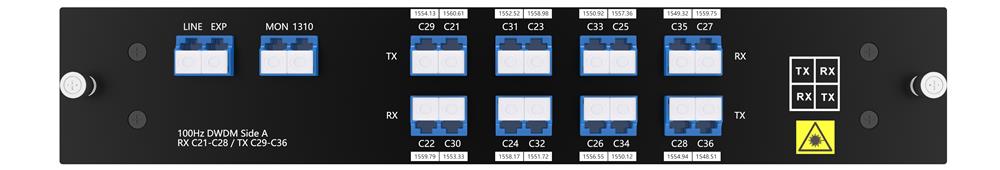

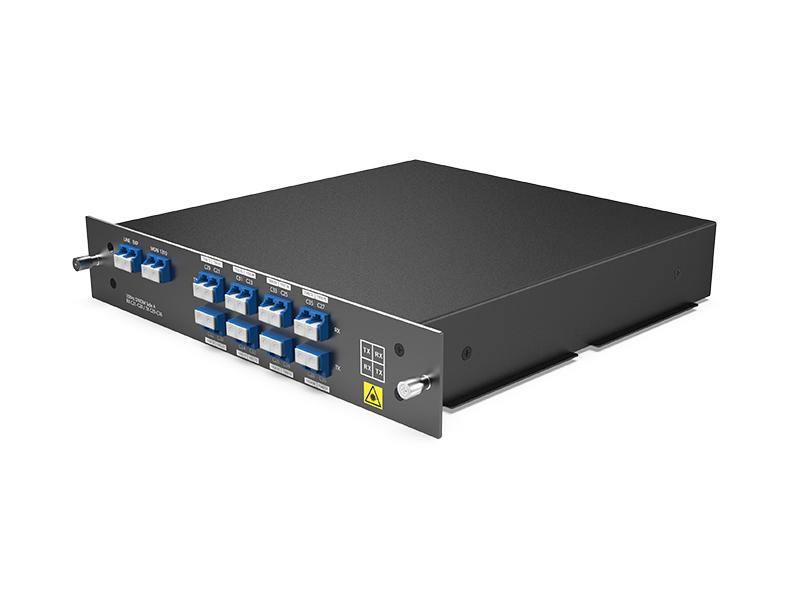

8CH DWDM MUX/ DEMUX Single Fiber Side A

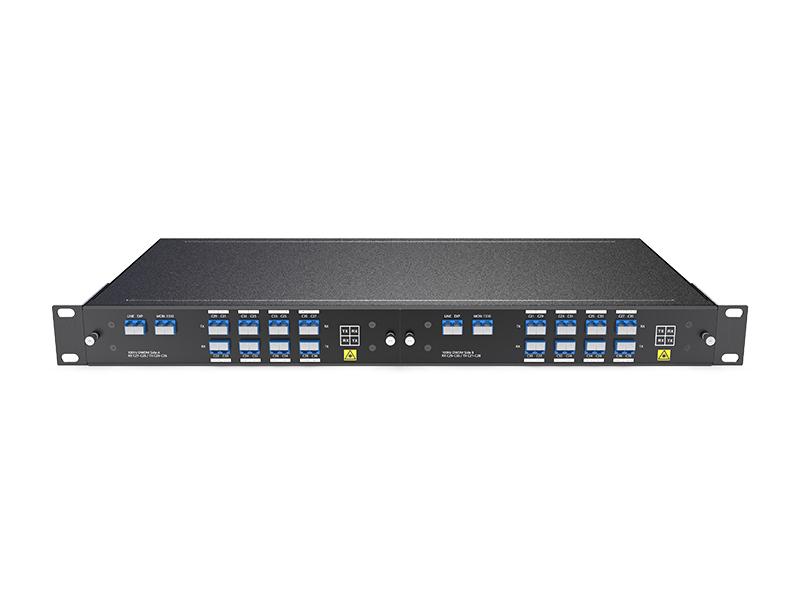

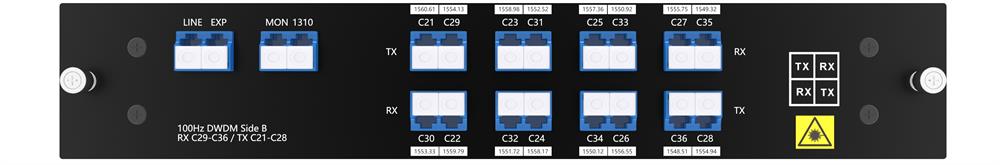

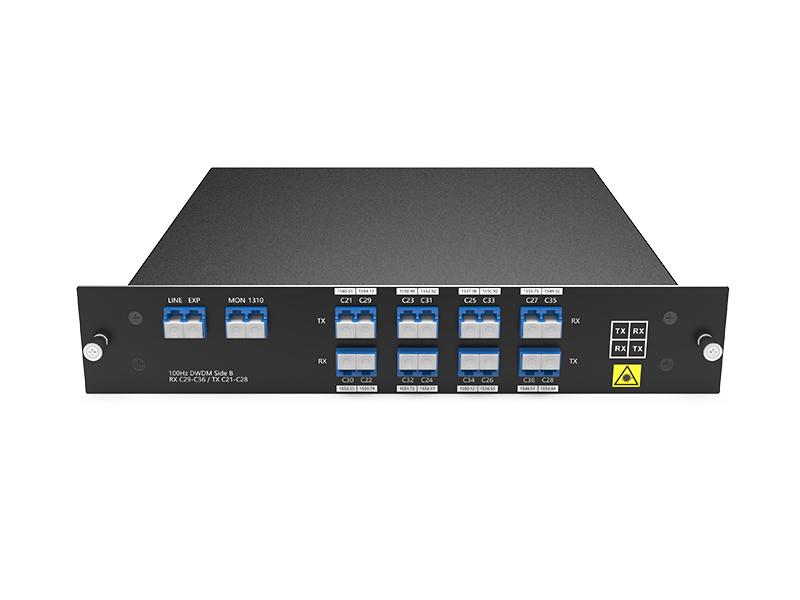

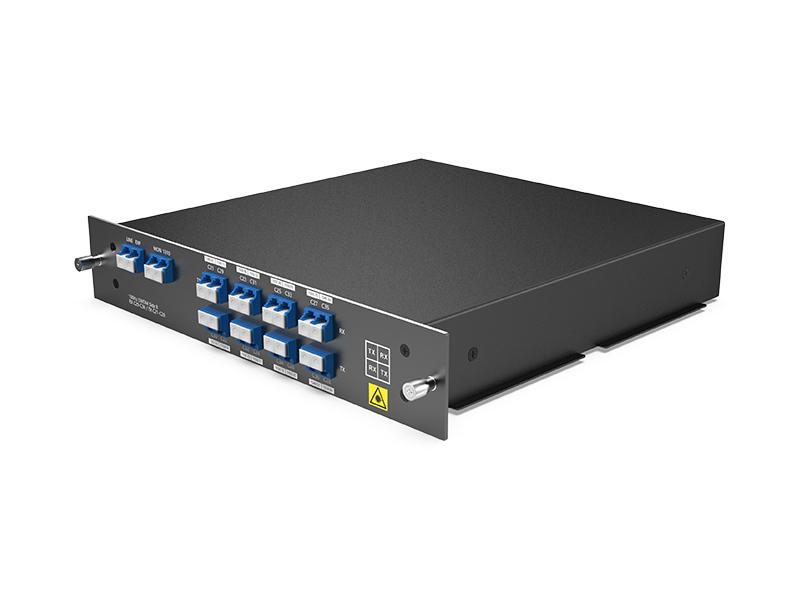

8CH DWDM MUX/ DEMUX Single Fiber Side B 2-Slot 1U rack
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

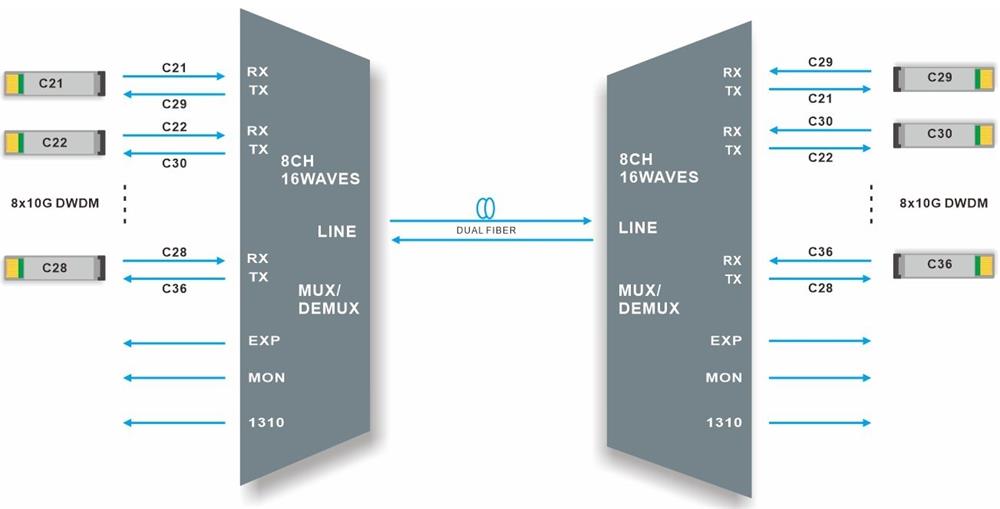

8CH DWDM MUX/ DEMUX Single fiber transmission
8 Channels DWDM MUX/ DEMUX supports 8 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
8ch 16 wavesC21-C28/C29-C36 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss@DWDM |
≤ 3.5dB |
Insertion Loss@Monitor |
≤ 26dB |
|
Wavelength@1310 |
1260~1360nm |
Insertion Loss@1310 |
≤ 0.8dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.5KG |
Dimensions (HxWxD) |
LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

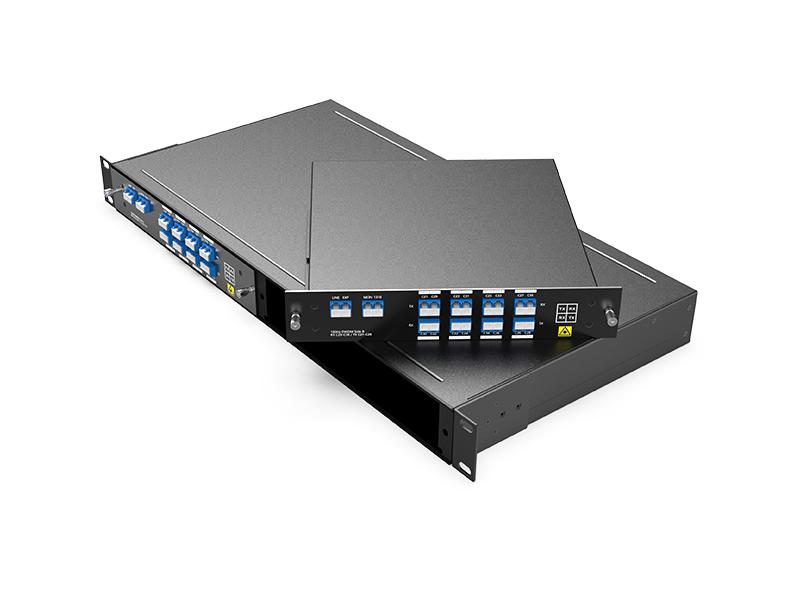

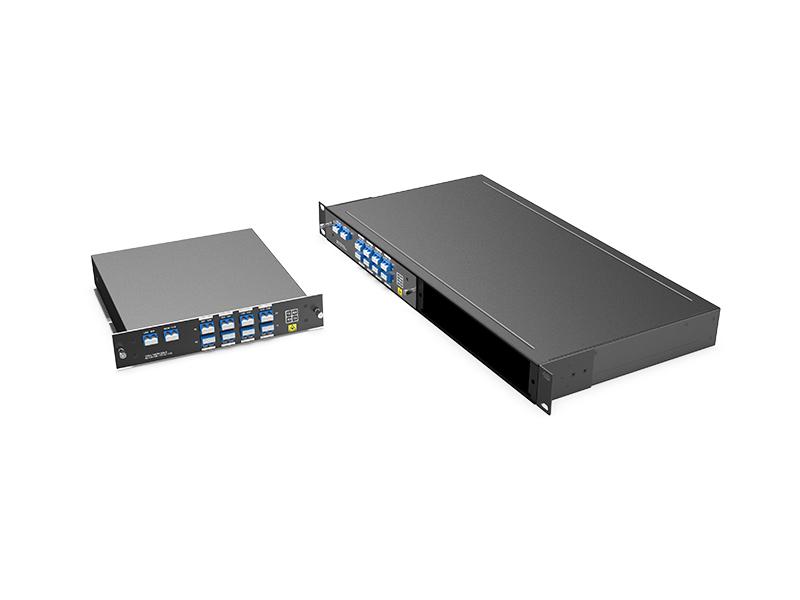

LGX BOX Plug in 2-Slot 1U Rack

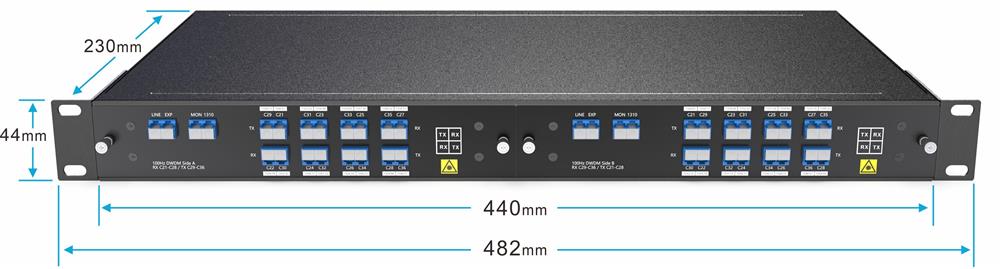

2-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
DM16-LGX01-C2136-31MA |
DWDM MUX/DEMUX 8CH 16Waves (RX C21-C28/TX C29-C36) With 1310,Monitor and EXP Port , Single fiber, LC/UPC , Plug-in LGX Box, Side A |
|
DD16-LGX01-C2136-31MB |
DWDM MUX/ DEMUX 8CH 16Waves (RX C29-C36/TX C21-C28) With 1310, Monitor and EXP Port , Single fiber, LC/UPC , Plug-in LGX Box, Side B |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
