The 8ch DWDM MUX/ DEMUX is designed by FIBERWDM, wavelength from C21 to C28(1560.61nm~1554.94nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The single fiber 8ch DWDM MUX is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is: wavelength ports＜2.4dB, line＜3.5dB .
Single Fiber 4CH 8 Waves C21-C28 DWDM MUX/ DEMUX, With EXP,1310nm and Monitor Port, LC/UPC, LGX Box, and 2 Slots 1U Rack
The 8ch DWDM MUX/ DEMUX is designed by FIBERWDM, wavelength from C21 to C28(1560.61nm~1554.94nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The single fiber 8ch DWDM MUX is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is: wavelength ports＜2.4dB, line＜3.5dB .
Product Panel

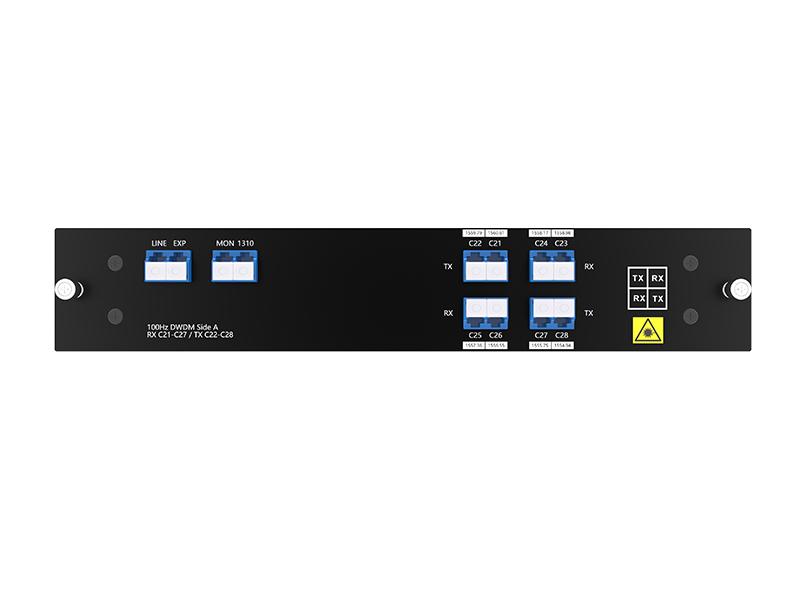

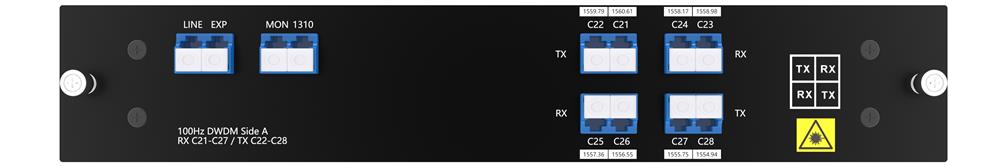

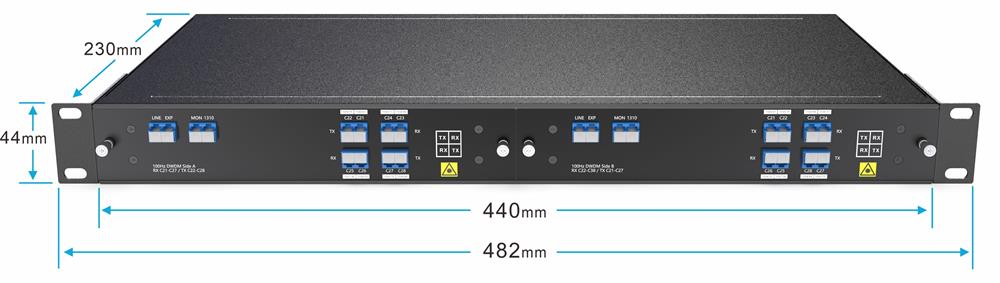

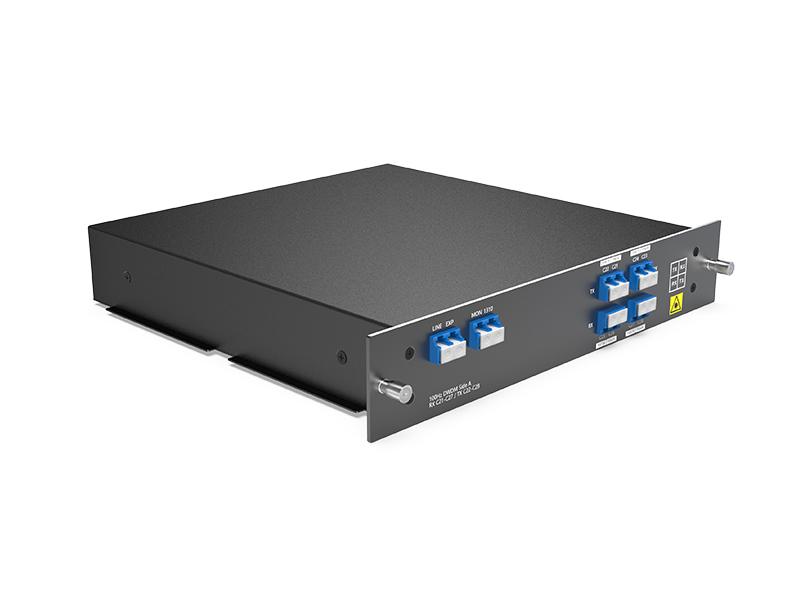

4CH DWDM MUX/ DEMUX Single Fiber Side A

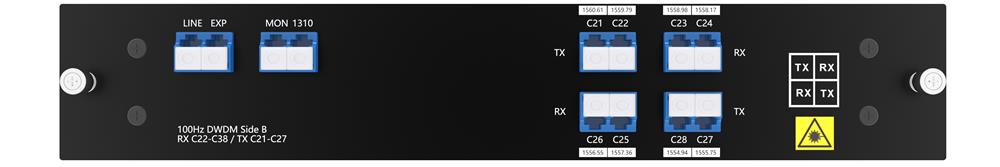

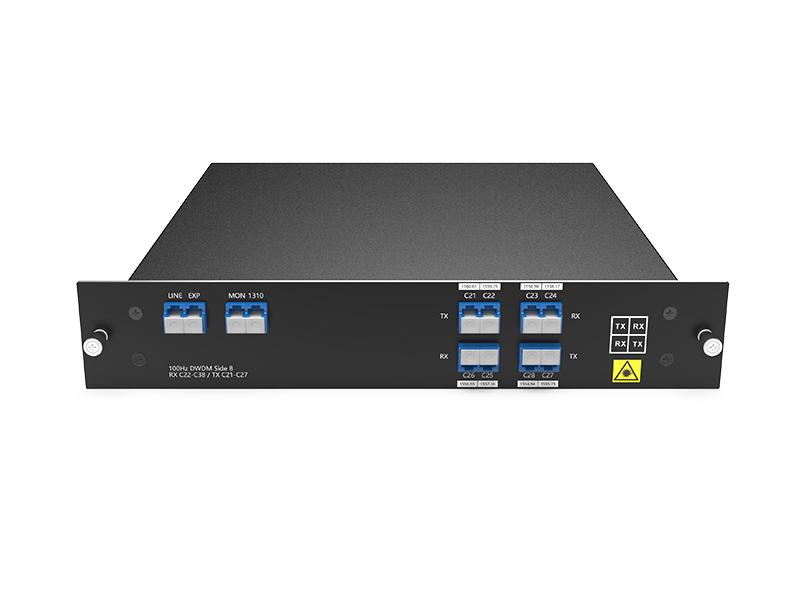

4CH DWDM MUX/ DEMUX Single Fiber Side B

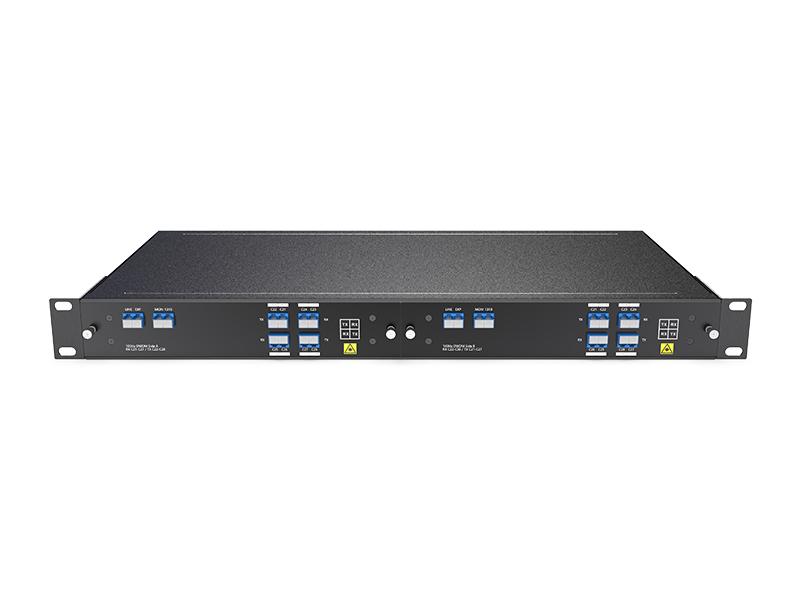

2-Slot 1U rack
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

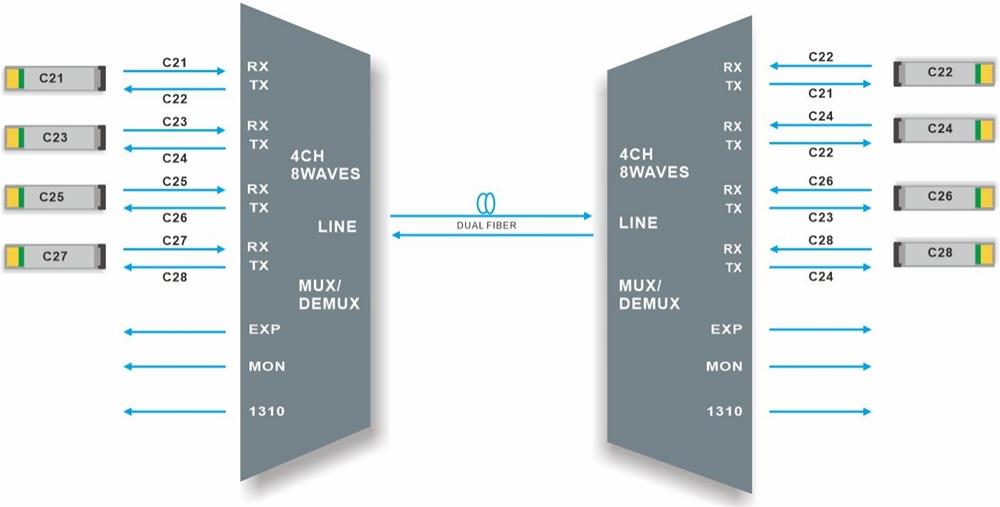

4CH DWDM MUX/ DEMUX Single fiber transmission
4 Channels DWDM MUX/ DEMUX supports 4 channels difference business in one optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
4ch 8 wavesC21-C28 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss@DWDM |
≤ 2.4dB |
Insertion Loss@Monitor |
≤ 26dB |
|
Wavelength@1310 |
1260~1360nm |
Insertion Loss@1310 |
≤ 0.8dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.5KG |
Dimensions (HxWxD) |

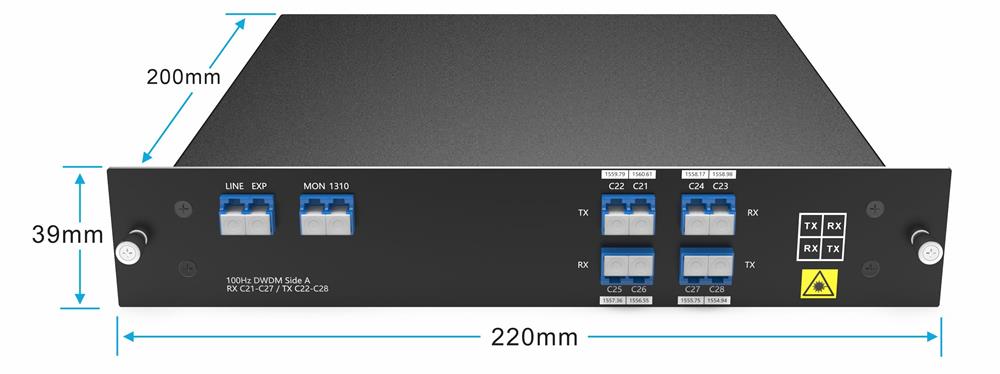

LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

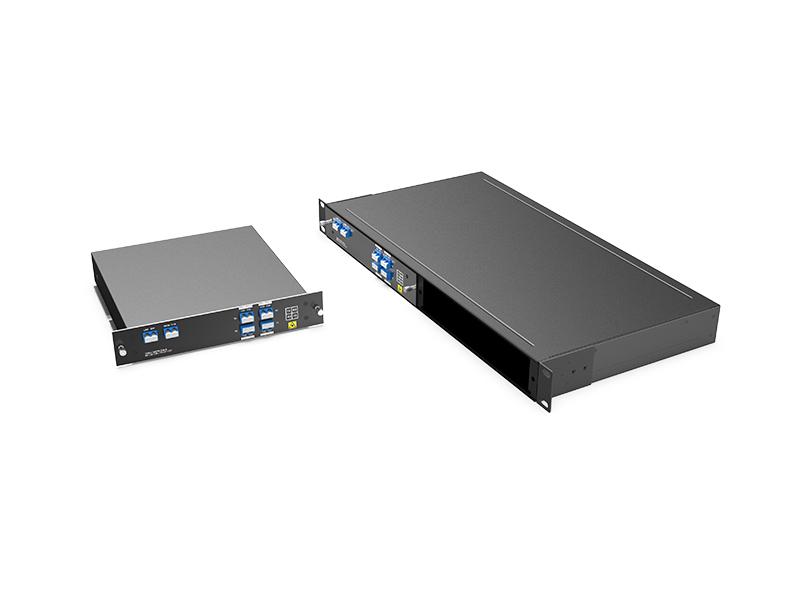

LGX BOX Plug in 2-Slot 1U Rack

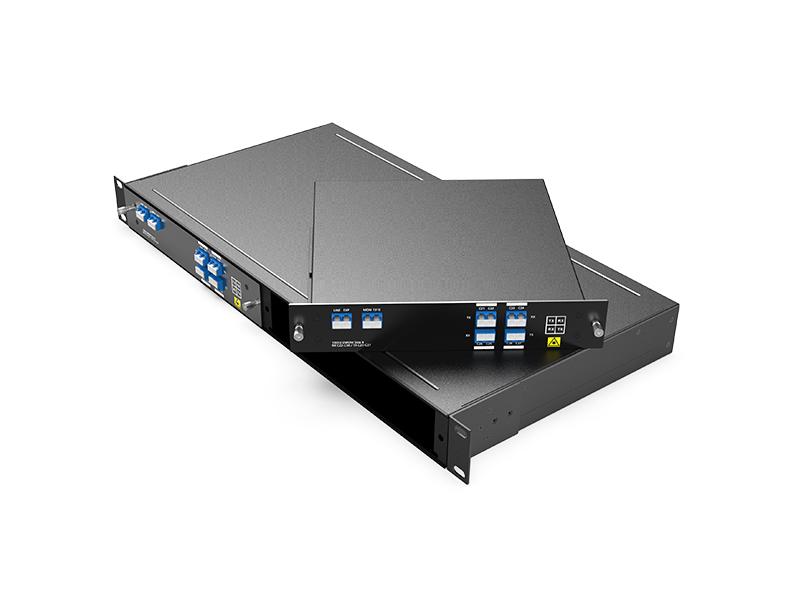

2-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
DM8-1U01-C2128-31M-A |
DWDM MUX//DEMUX 4CH 8Waves (RX C21-C27/TX C22-C28) With EXP,1310nm and Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, Side A |
|
DD8-1U01-C2128-31M-B |
DWDM MUX/ DEMUX 4CH 8Waves (RX C22-C28/TX C21-C27) With EXP,1310nm and Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, Side B |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
