The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C28(1560.61nm~1554.94nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The 8ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜2.4dB. And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

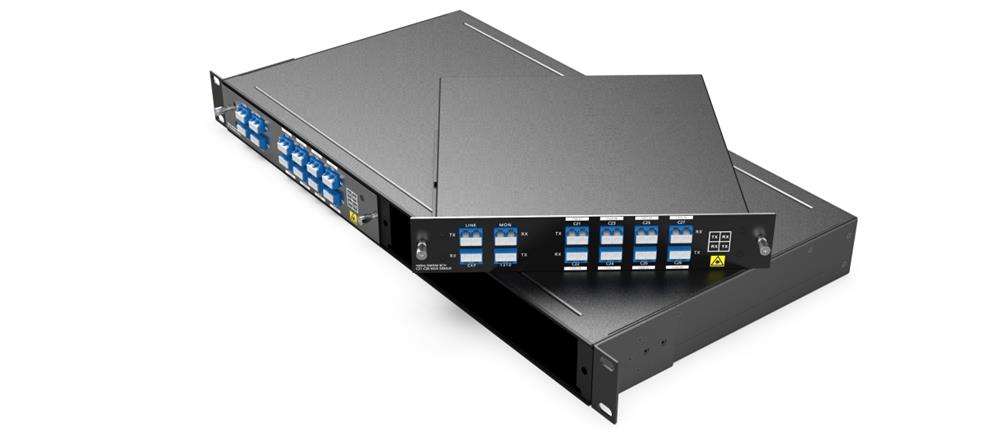

Dual Fiber 8CH C21-C28 DWDM MUX DEMUX With 1310，Monitor And EXP Port, LC/UPC, LGX Box, and 2 Slots 1U Rack

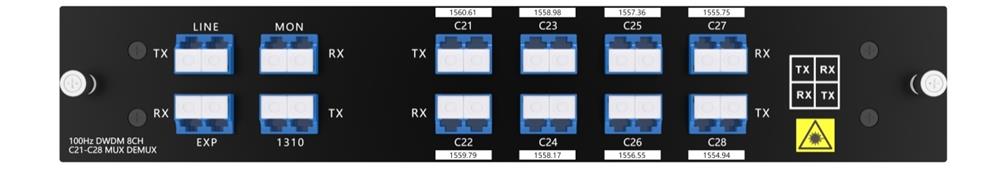

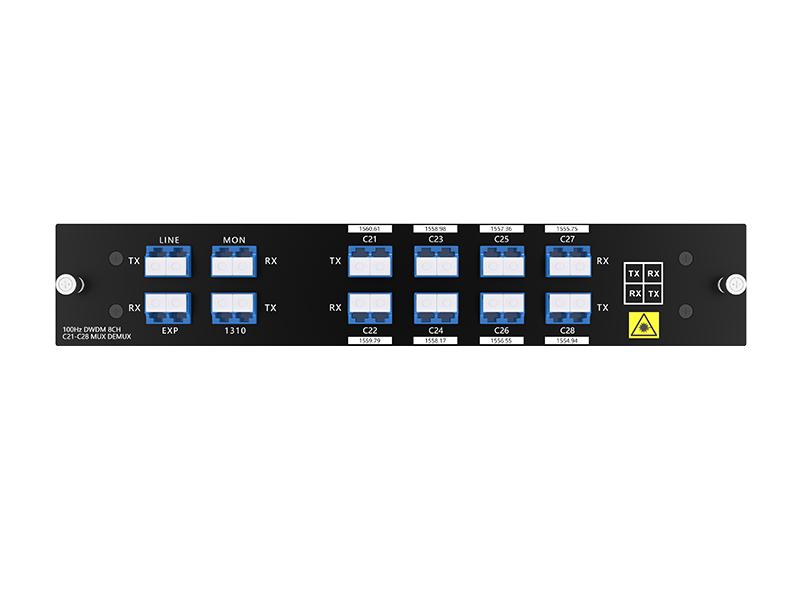

Product Panel
8CH DWDM MUX DEMUX Dual Fiber
Line Link

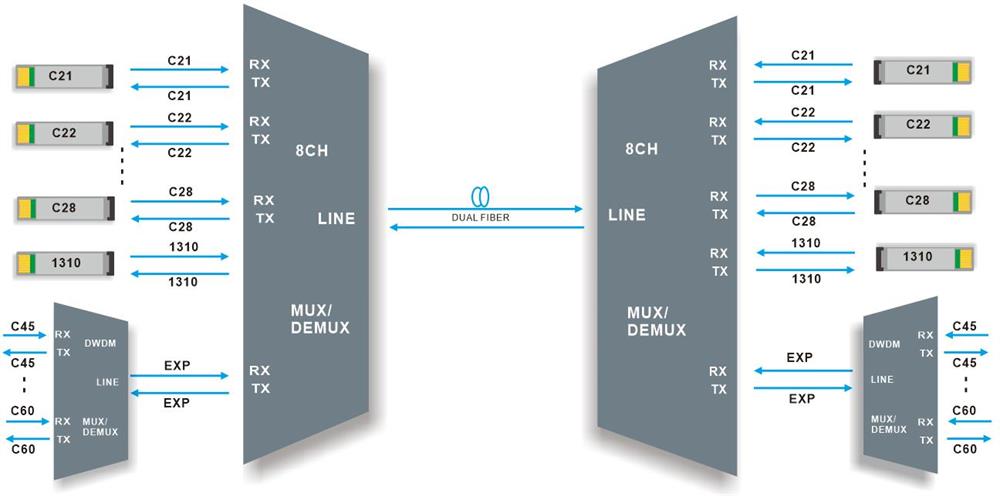

8CH DWDM and 1CH 1310 MUX DEMUX Dual fiber transmission
8Channels DWDM+1CH 1310nm MUX DEMUX, supports 8+1channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
8channels C21-C28 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
≤ 2.4dB |
Center Wavelength Accuracy |
±0.05nm |
|
1310nm Port Pass Band Width |
1260nm~1360nm |
Insertion Loss @ 1% Mon |
≤ 26dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.5KG |
Dimensions (HxWxD) |

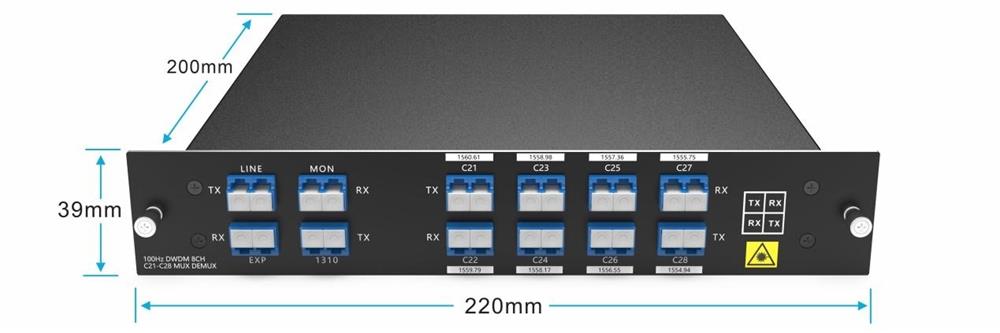

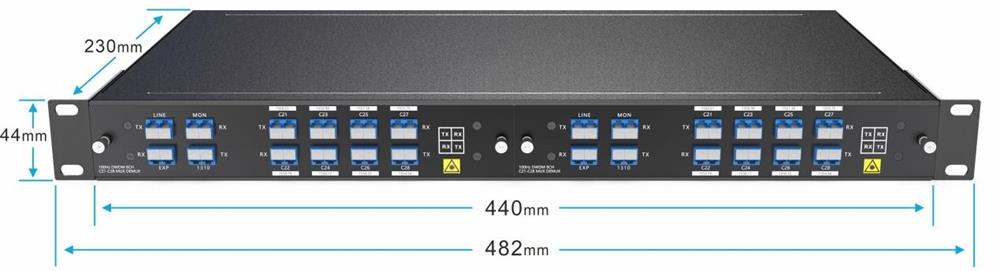

LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information

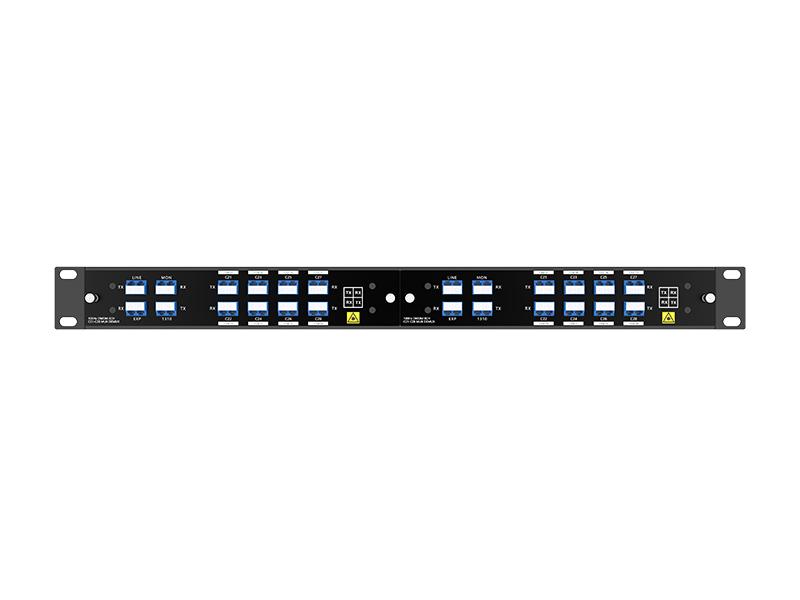

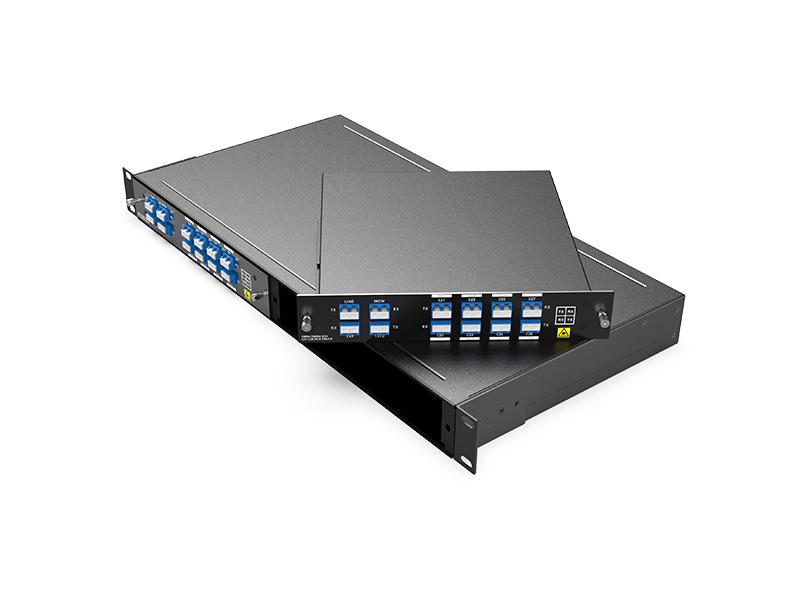

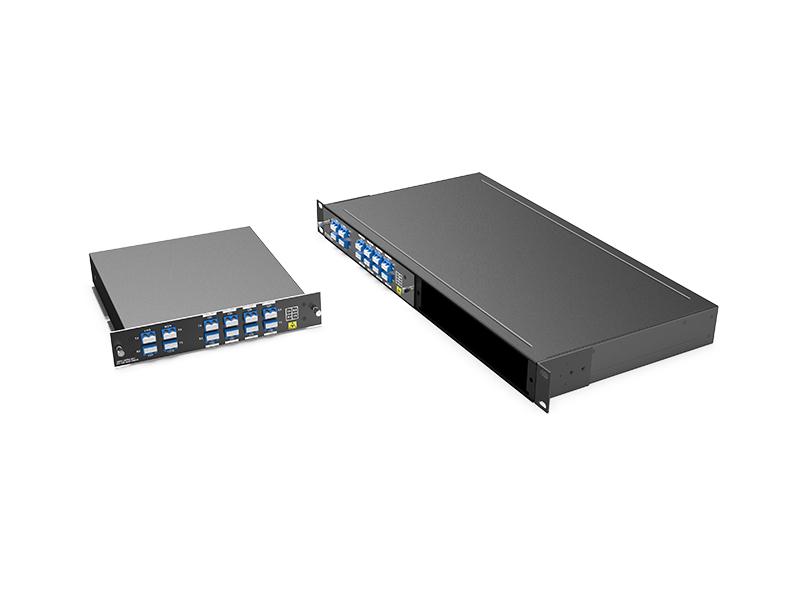

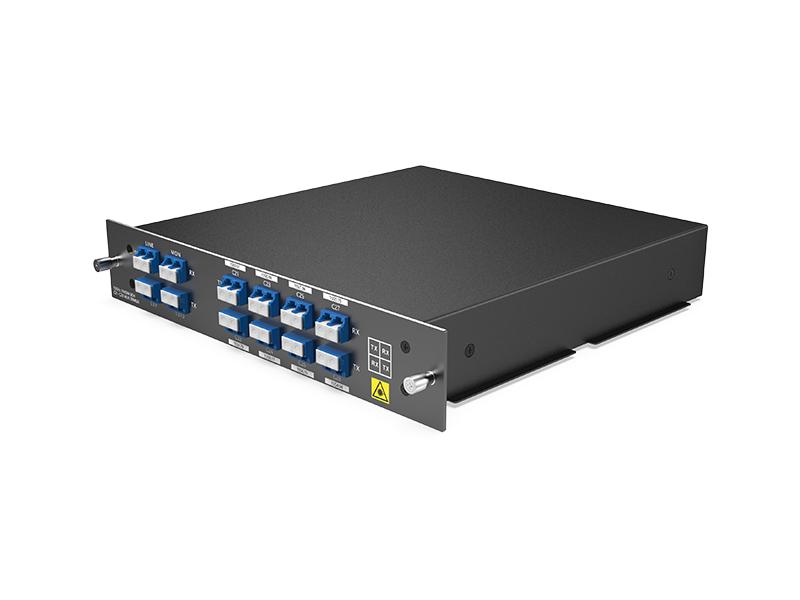

LGX BOX Plug in 2-Slot 1U Rack

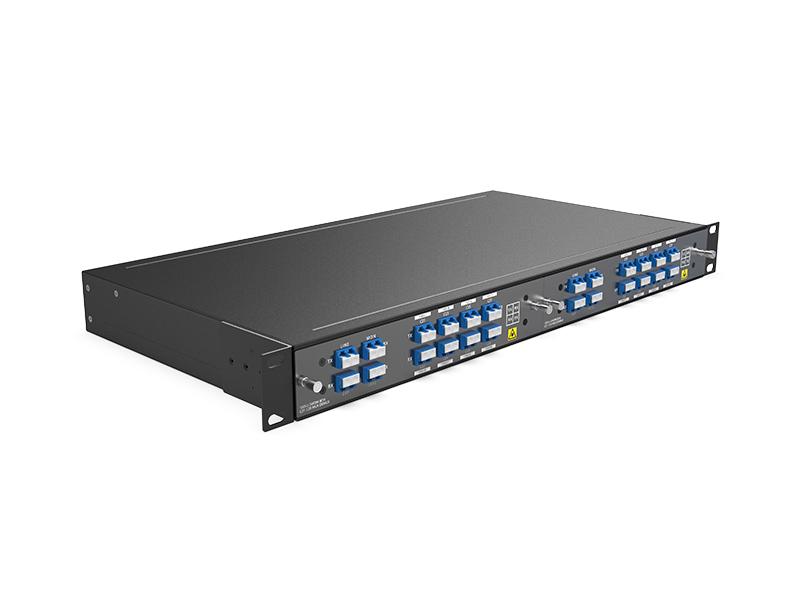

2-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
DMD8-LGX01-C2128-31M |
DWDM MUX DEMUX 8CH (C21-C28) With 1310, Monitor and EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box 220*200*39mm |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note: We Support Customized Design, please contact us by email.
