980/1064nm Polarization Maintaining Filter WDM



FIBERWDM can supply 980/1064nm Polarization Maintaining Filter WDM Filter (PM filter), the PM filter multiplexes PM signals and maintains the output polarization with high extinction ratio using advanced micro-optic filter technology. All input and output fibers are polarization maintaining.



This product can also be used to multiplex other wavelengths. including 980/1030 nm (pulsed laser applications) and 1064/1550 nm (Erbium-Ytterbium pumping). Low power (300 mW, 500 mW) and high power ( up to 20W) handling are available.



It can also be provided with a PM isolator integrated in the same package. They are great used in polarization maintaining fiber amplifiers, fiber lasers, and high speed communication system and instrumentation applications.


Specifications



Parameter

Unit

T980/R1064

T1064/R980

Transmission Wavelength Range

nm

960~990

1020~1080

Reflect Wavelength Range

nm

1020~1080

960~990

Max. Insertion Loss@23℃

Transmission

dB

0.8

Reflect

dB

0.5

Min. Isolation@23℃

Transmission

dB

25

Reflect

dB

12

Min. Extinction Ratio@23℃

dB

20

Min. Channel Flatness

dB

0.3

Min. Return Loss

dB

50

Max. Power Handling (CW)

W

0.3, 0.7, 1, 2,3,5,10,20

Max. Tensile Load(N)

N

≤5

Fiber Type

-

PM980 Panda fiber

Operating Temperature

-5 to +70

Storage Temperature

-40 to +85

Package Dimensions

mm

Ø5.5 x L35

1. Above specifications are for device without connector, and the PM WDM device is both axis working. All parameters are tested at room temperature.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. Power transmits through the connector less than 2W. The default connector key is aligned to slow axis.

3. For >10W high power applications, we will use heat sink package, contact FIBERWDM for details.

4. If there is pulse application, please be sure to inform us of pulse energy and peak power.

5. If need other request, please contact FIBERWDM.



Package Information




PM filter

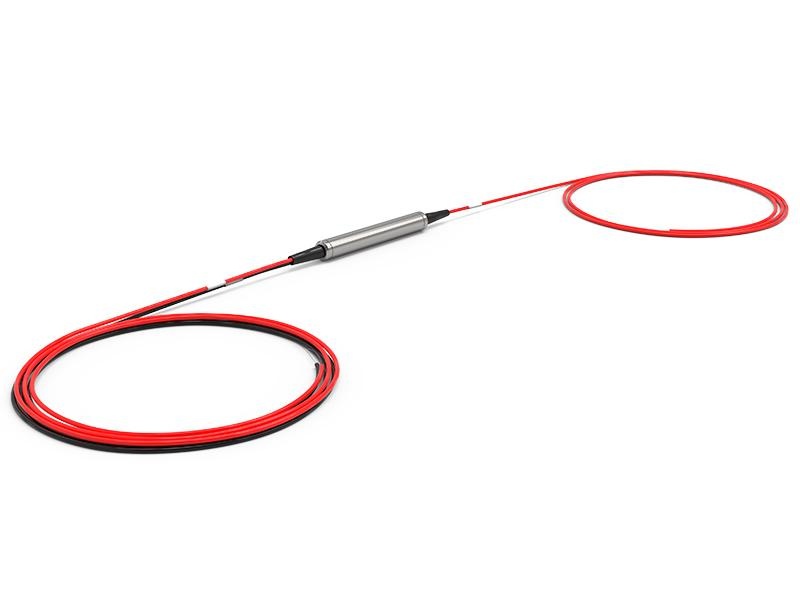

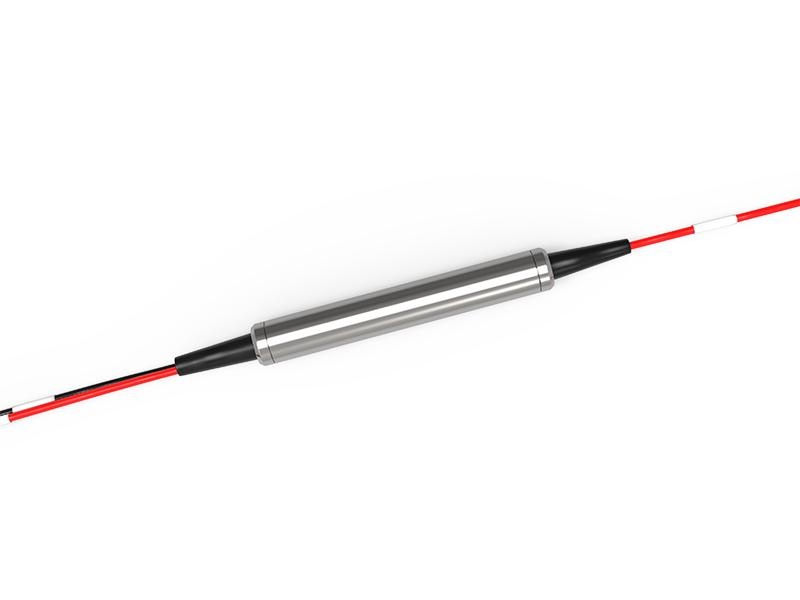

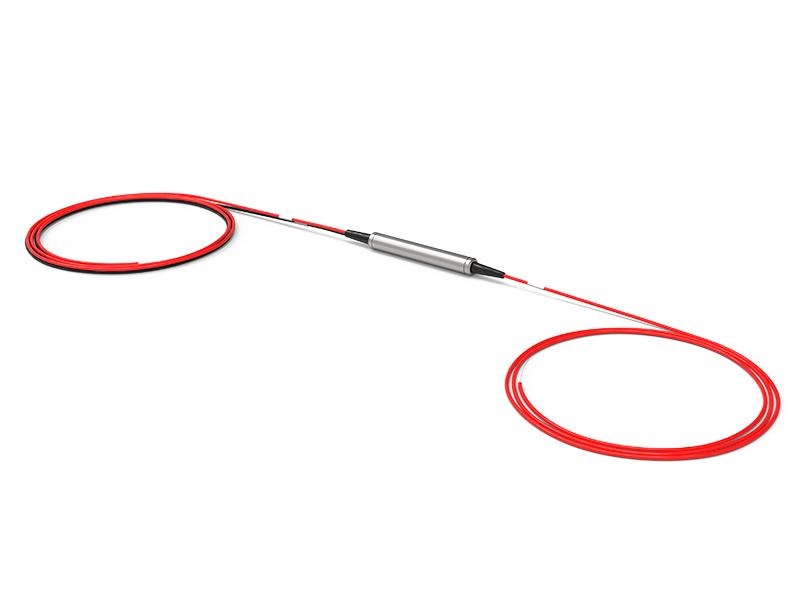

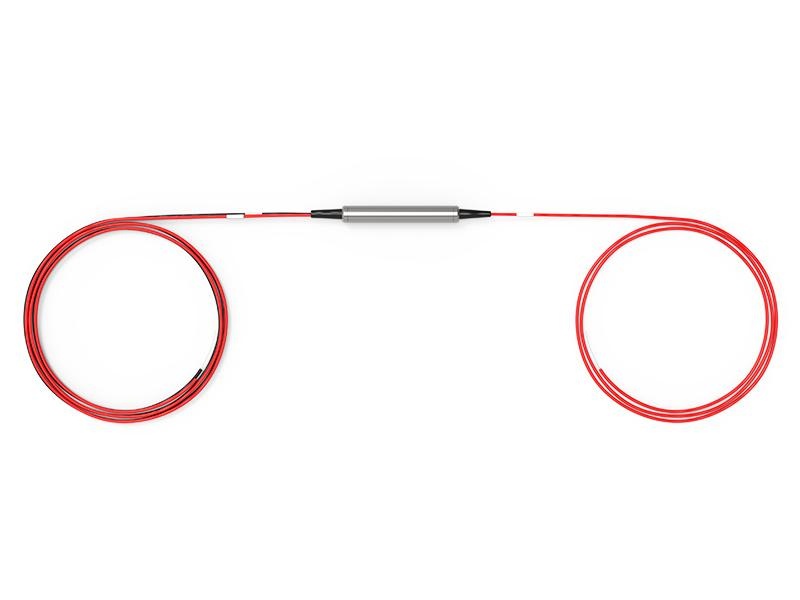

980/1064nm PM Filter WDM Component


Order Information



PMW-

-Channel-

-Package

Connector-

Pigtails Diameter

Fiber Length

Working Axis



96:980nm pass/1064nm reflect

S: steel tube

01U/A: LC/UPC or LC/APC

25:250μm bare fiber

05:0.5m

B:Both axis working



69:1064nm pass/980nm reflect

X: others

02U/A: SC/UPC or SC/APC

90:900μm Loose Tube

10:1.0m

F:Fast axis blocked



93:980nm pass/1030nm reflect



03U/A: FC/UPC or FC/APC

XX: Others

15:1.5m





39:1030nm pass/980nm reflect



04U/A: others



XX: Others



When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.



Part Number Example: PMW-96-S-01A-90-10-B

Description: Polarization Maintaining WDM, TX 980/RX1064nm, LC/APC all ports, 0.9mm 1.0m fiber, Steel tube,Both axis working.



If you need to customize other specifications, please provide detailed description for your requirement, and contact us by email: sales@fiberwdm.com
