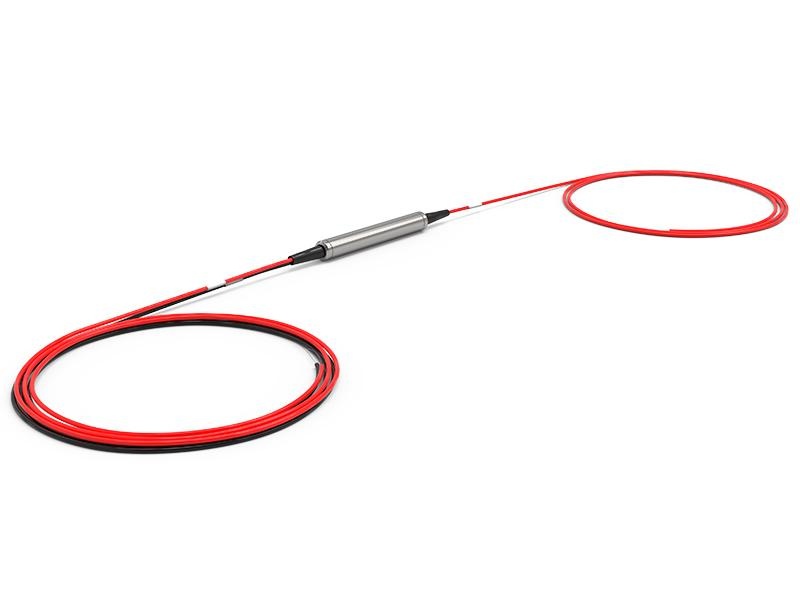

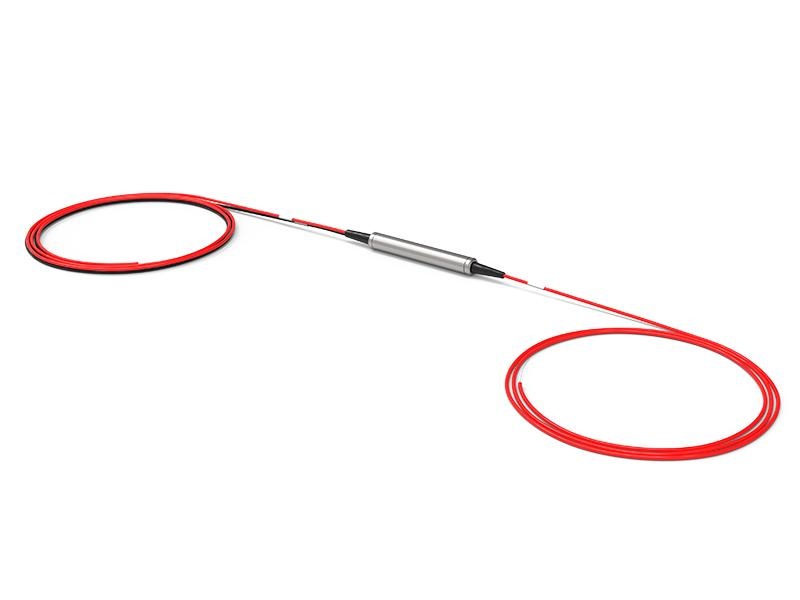

1064/1550nm Polarization Maintaining Filter WDM

  • Low insertion loss
  • High Extinction Ratio
  • High channel isolation
  • High stability and reliability


Inquire now Download
  • Product Detail

1064/1550nm Polarization Maintaining WDM Filter



FIBERWDM can supply 1064/1550nm Polarization Maintaining WDM Filter (PM filter), the PM filter multiplexes PM signals and maintains the output polarization with high extinction ratio using advanced micro-optic filter technology. All input and output fibers are polarization maintaining. This product can support Low power (300 mW, 500 mW) and high power ( up to 20W).



It can also be provided with a PM isolator integrated in the same package. They are great used in polarization maintaining fiber amplifiers, fiber lasers, and high speed communication system and instrumentation applications.


Specifications


Parameter

Unit

T1550/R1064

T1064/R1550

Transmission Wavelength Range

nm

1520~1580

1020~1080

Reflect Wavelength Range

nm

1020~1080

1520~1580

Max. Insertion Loss@23℃

Transmission

dB

0.8

Reflect

dB

0.5

Min. Isolation@23℃

Transmission

dB

25

Reflect

dB

12

Min. Extinction Ratio

dB

20

Min. Channel Flatness

dB

0.3

Min. Return Loss

dB

50

Max. Power Handling(CW)

W

0.3, 0.7, 1, 2,3,10,20

Max. Tensile Load(N)

N

≤5

Fiber Type

-

PM980 for 1064nm port, other PM1550 fiber

Operating Temperature

℃

-5 to +70

Storage Temperature

℃

-40 to +85

Package Dimensions

mm

Ø5.5 x L35

1. Above specifications are for device without connector, and the PM WDM device is both axis working. All parameters are tested at room temperature.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. Power transmits through the connector less than 2W.The default connector key is aligned to slow axis.

3. For >10W high power applications, we will use heat sink package, contact FIBERWDM for details.

4. If there is pulse application, please be sure to inform us of pulse energy and peak power.

5. If need other request, please contact FIBERWDM.



Package Information

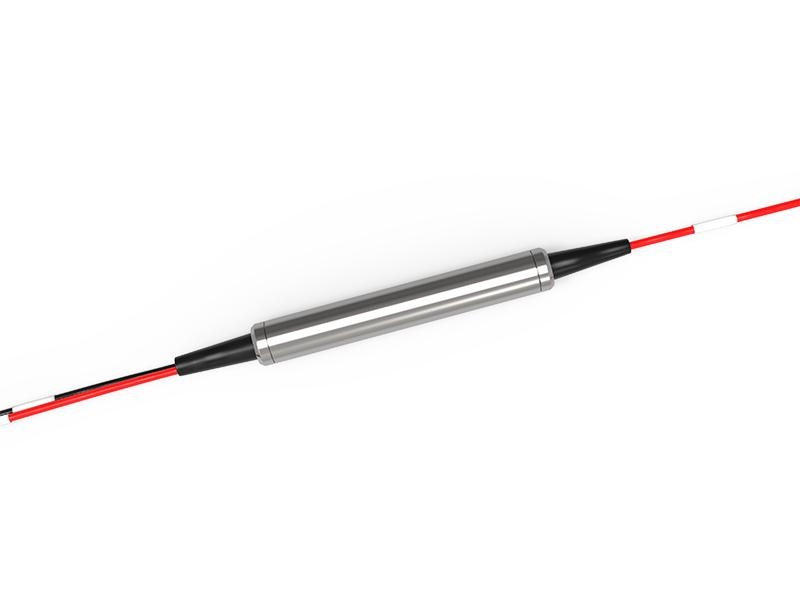

PM filter

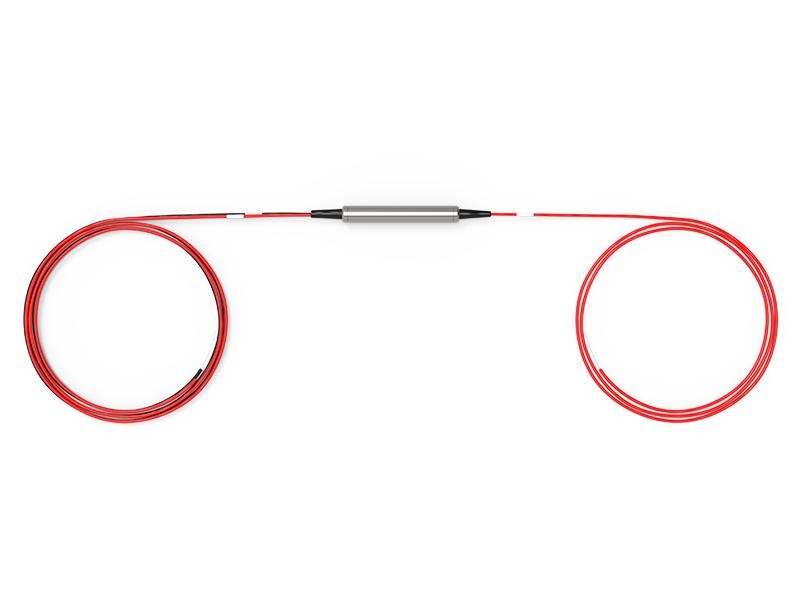

1064/1550nm PM Filter WDM Component



Order Information



PMW-

-Channel-

-Package

Connector-

Pigtails Diameter

Fiber Length

Working Axis



65:1064nm pass/1550nm reflect

S: steel tube

01U/A: LC/UPC or LC/APC

25:250μm bare fiber

05:0.5m

B：Both axis working



56:1550nm pass/1064nm reflect

X: others

02U/A: SC/UPC or SC/APC

90:900μm Loose Tube

10:1.0m

F:Fast axis blocked







03U/A: FC/UPC or FC/APC

XX: Others

15:1.5m









04U/A: others



XX: Others



When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
