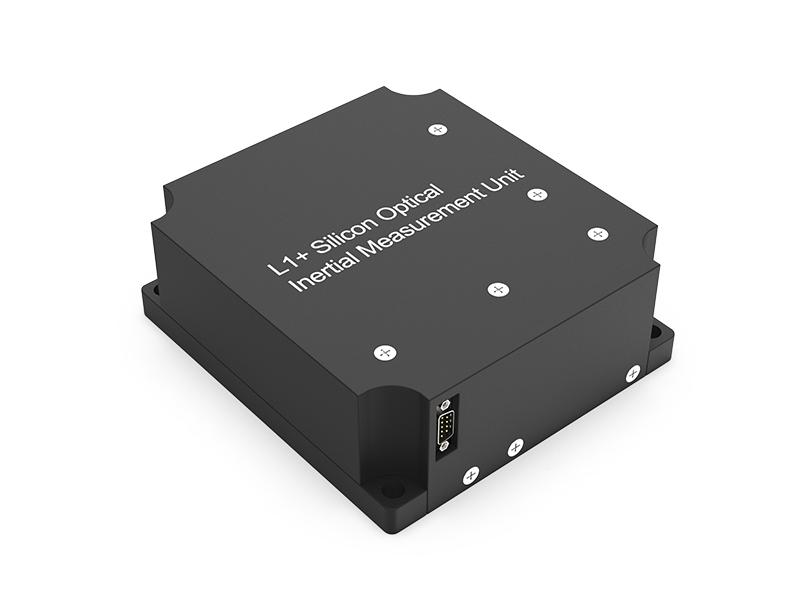

L1+ Silicon Optical Inertial Measurement Unit
L1+ Silicon Optical Inertial Measurement Unit L1+ Silicon Optical Inertial Measurement Unit L1+ Silicon Optical Inertial Measurement Unit L1+ Silicon Optical Inertial Measurement Unit L1+ Silicon Optical Inertial Measurement Unit

L1+ Silicon Optical Inertial Measurement Unit

The L1+ Silicon Optical Inertial Measurement Unit is a dual-parameter silicon photonic sensing product integrating angular velocity and acceleration detection, capable of real-time sensing of both 3-axis angular velocity and 3-axis acceleration simultaneously. It has an angular velocity measurement range of ±800°/s with a full-temperature zero bias stability of ≤1°/h, and an acceleration measurement range of ±30g with a normal-temperature zero bias stability of ≤0.5mg. The product features a bandwidth of ≥400Hz and excellent scale factor performance, supporting customizable RS-422 data output with an adjustable 400Hz update rate. Powered by +5V with a steady-state power consumption of ＜6W, it measures 63×63×25mm and weighs 185±15g, with a standardized electrical interface. Combining the merits of small size, light weight and low cost, it can output comprehensive motion inertial parameters.

Inquire now Download
  • Product Detail

L1+ Silicon Optical Inertial Measurement Unit



Description



The L1+ Silicon Optical Inertial Measurement Unit is a dual-parameter silicon photonic sensing product integrating angular velocity and acceleration detection, capable of real-time sensing of both 3-axis angular velocity and 3-axis acceleration simultaneously. It has an angular velocity measurement range of ±800°/s with a full-temperature zero bias stability of ≤1°/h, and an acceleration measurement range of ±30g with a normal-temperature zero bias stability of ≤0.5mg. The product features a bandwidth of ≥400Hz and excellent scale factor performance, supporting customizable RS-422 data output with an adjustable 400Hz update rate. Powered by +5V with a steady-state power consumption of ＜6W, it measures 63×63×25mm and weighs 185±15g, with a standardized electrical interface. Combining the merits of small size, light weight and low cost, it can output comprehensive motion inertial parameters.



Feature



  • Small Size
  • Light Weight
  • Low Cost
  • Temperature Zero Bias Stability ≤1°/h



Application



  • Unmanned Aerial Vehicle (UAV)
  • Guided Missile, Pod
  • Mobile Satellite Communication
  • Specifications

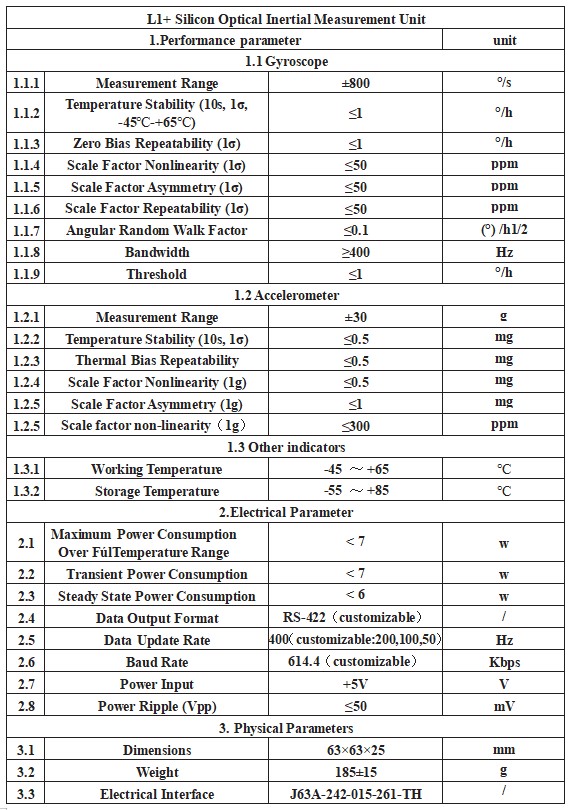

Specifications



L1+ Silicon Optical Inertial Measurement Unit

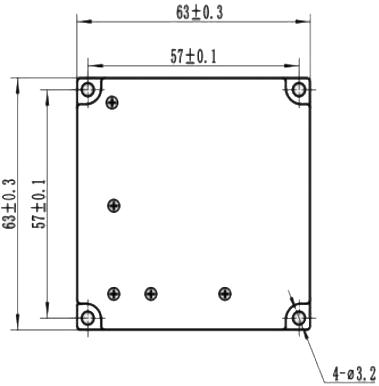

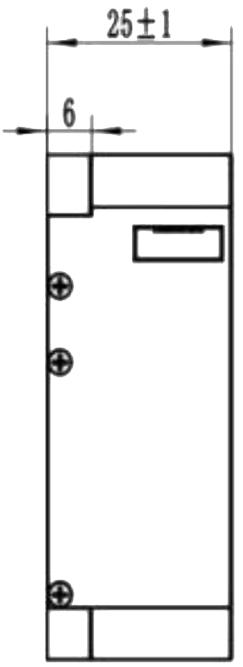

Mechanical Dimension



                                                L1+ Silicon Optical Inertial Measurement Unit            L1+ Silicon Optical Inertial Measurement Unit
