10G ER 40KM SFP+ Optical Transceiver

10G  ER SFP+ optical transceiver module, support 10Gb/s and up to 40km transmission, It works in high-speed IDC connection solutions, 5G network front-haul solution, network switch, PTN, OTN, SONET OC-192 / SDH,

10G Fibre Channel and so on.


Features

  • Supports 9.95 to 11.3Gb/s bit rates
  • Hot-Pluggable
  • Duplex LC connector
  • 1550nm cooled EML transmitter, PIN photo-detector
  • SMF links up to 40km
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1.5W
  • Temperature Range: (Commercial) 0°C~ 70°C /(Industrial)-40°C~85°C
  • RoHS compliant




  • Product Detail

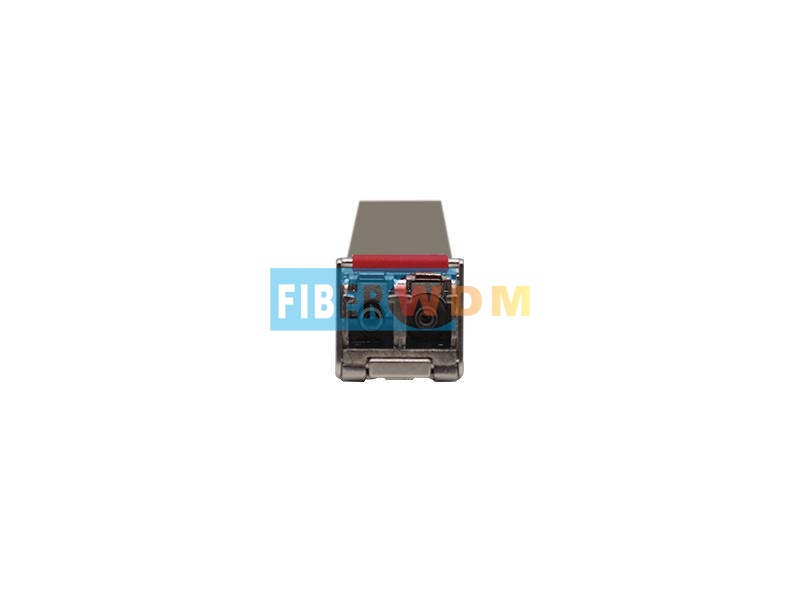

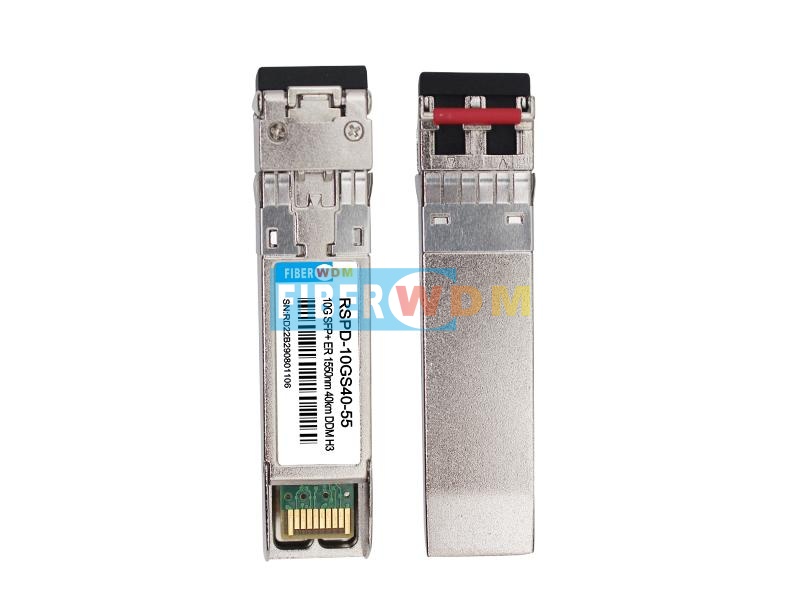

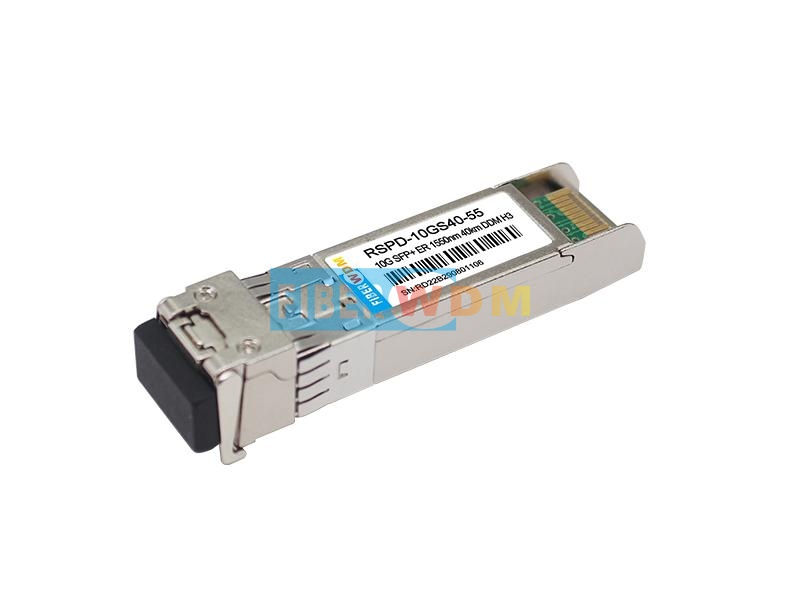

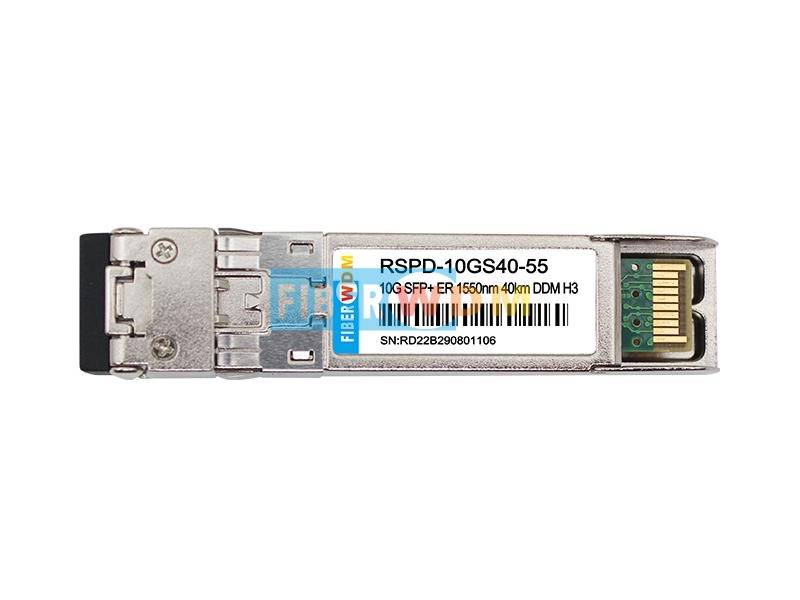

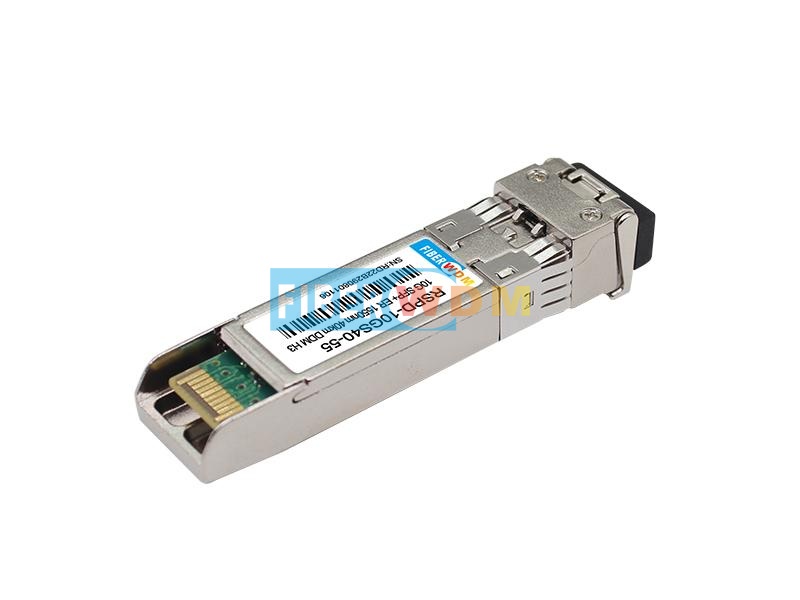

10G ER 40km SFP+ Transceiver Hot Pluggable, Duplex LC, +3.3V, 1550nm EML, Single mode


FIBERWDM's SFP+ 10G ER 40KM RSPD-10GS40-55/I is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The RSPD-10GS40-55/I converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.


The high performance 1550nm cooled EML transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 40km links.



The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.


The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.


Absolute Maximum Ratings


Parameter

Symbol

Min.

Typical

Max.

Unit

StorageTemperature

TS

-40



+85

°C

Case Operating Temperature

Commercial

TA

0



70

°C

Industrial

TA

-40



+85

°C

Maximum Supply Voltage

Vcc

-0.5



4

V

RelativeHumidity

RH

0



85

%


Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)


Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Supply Voltage

Vcc

3.135



3.465

V



Supply Current

Icc





400

mA



Power Consumption

P





1.5

W



Transmitter Section:

Input differential impedance

Rin



100



Ω

1

Tx Input Single Ended DC Voltage Tolerance (Ref VeeT)

V

-0.3



4

V



Differential input voltage swing

Vin,pp

180



700

mV

2

Transmit Disable Voltage

VD

2



Vcc

V

3

Transmit Enable Voltage

VEN

Vee



Vee+0.8

V



Receiver Section:

Single Ended Output Voltage Tolerance

V

-0.3



4

V



Rx Output Diff Voltage

Vo

300



850

mV



Rx Output Rise and Fall Time

Tr/Tf

30





ps

4

LOS Fault

VLOS fault

2



VccHOST

V

5

LOS Normal

VLOS norm

Vee



Vee+0.8

V

5

Note:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Per SFF-8431 Rev 3.0

3. Into 100 ohms differential termination.

4. 20%~80%

5. LOS is an open collector output. Should be pulled up with 4.7k – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.


Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)


Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:

Center Wavelength

λt

1530

1550

1565

nm



spectral width

△λ





0.3

nm



Average Optical Power

Pavg

-1



+4

dBm

1

Optical Power OMA

Poma

-2.1





dBm



Laser Off Power

Poff





-30

dBm



Extinction Ratio

ER

6





dB



Transmitter Dispersion Penalty

TDP





3.0

dB

2

Relative Intensity Noise

Rin





-128

dB/Hz

3

Optical Return Loss Tolerance



20





dB



Receiver Section:

Center Wavelength

λr

1260



1600

nm



Receiver Sensitivity

Sen





-16

dBm

4

Stressed Sensitivity (OMA)

SenST





-14

dBm

4

Los Assert

LOSA

-27



-

dBm



Los Dessert

LOSD





-17

dBm



Los Hysteresis

LOSH

0.5





dB



Overload

Sat

0





dBm

5

Receiver Reflectance

Rrx





-26

dB



Note:

1. Average power figures are informative only, per IEEE802.3ae.

2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.

3. 12dB reflection.

4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.

5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.



Timing Characteristics


Parameter

Symbol

Min.

Typical

Max.

Unit

TX_Disable Assert Time

t_off





10

us

TX_Disable Negate Time

t_on





1

ms

Time to Initialize Include Reset of TX_FAULT

t_int





300

ms

TX_FAULT from Fault to Assertion

t_fault





100

us

TX_Disable Time to Start Reset

t_reset

10





us

Receiver Loss of Signal Assert Time

TA,RX_LOS





100

us

Receiver Loss of Signal Deassert Time

Td,RX_LOS





100

us

Rate-Select Chage Time

t_ratesel





10

us

Serial ID Clock Time

t_serial-clock





100

kHz


Ordering Information


Part Number

Transmitter

Output Power

Receiver

Sensitivity

Reach

Temp

DDM

RoHS

RSPD-10GS40-55

1550nm EML

-1~+4dBm

PIN

< -16dBm

40km

-0 ~ 70 oC

Available

Compliant

RSPD-10GS40-55I

1550nm EML

-1 ~+4dBm

PIN

< -16dBm

40km

-40 ~85 oC

Available

Compliant
