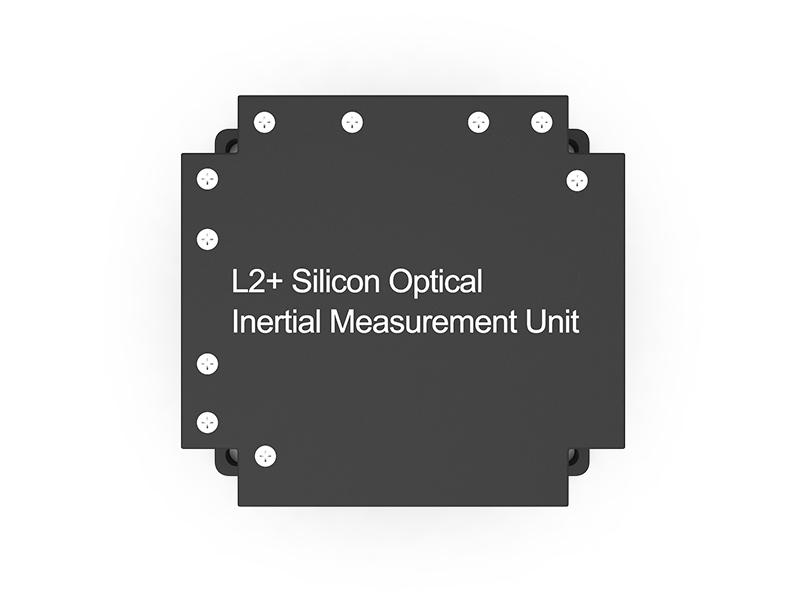

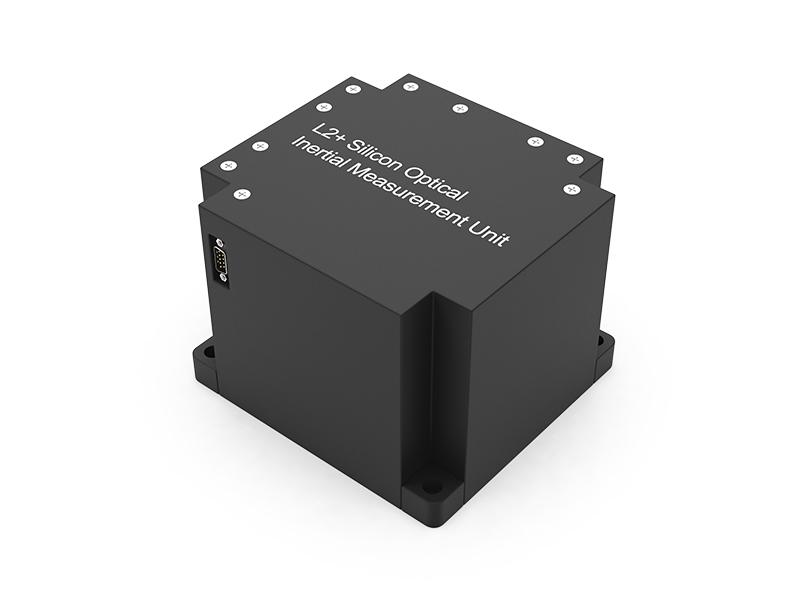

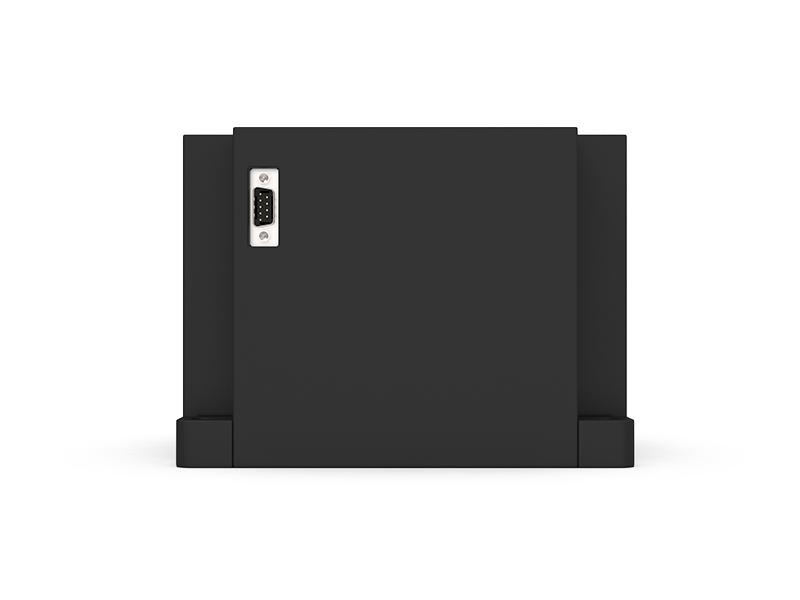

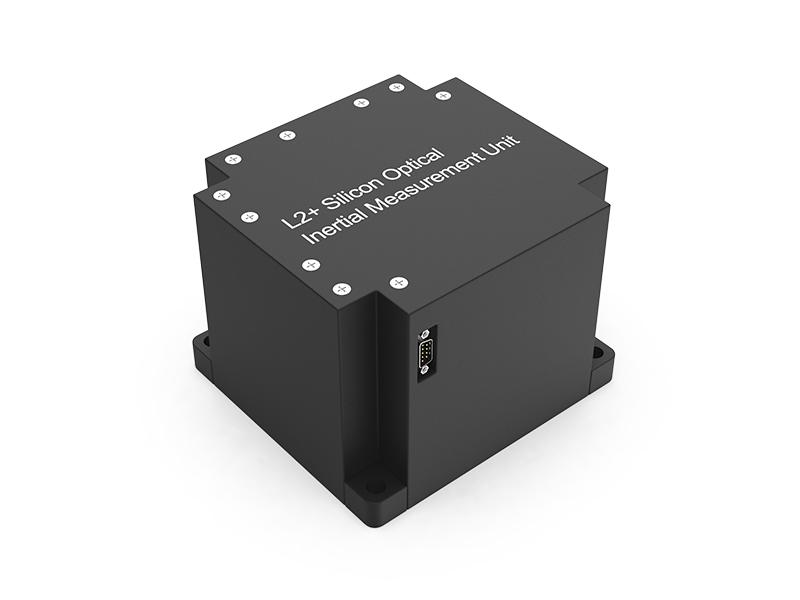

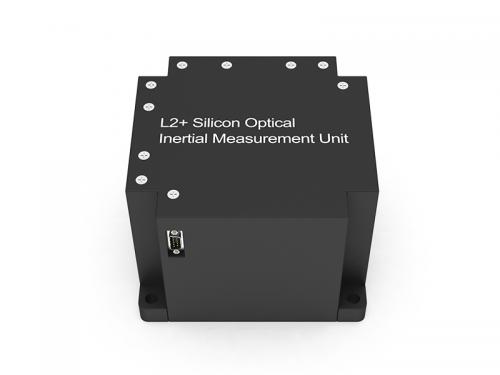

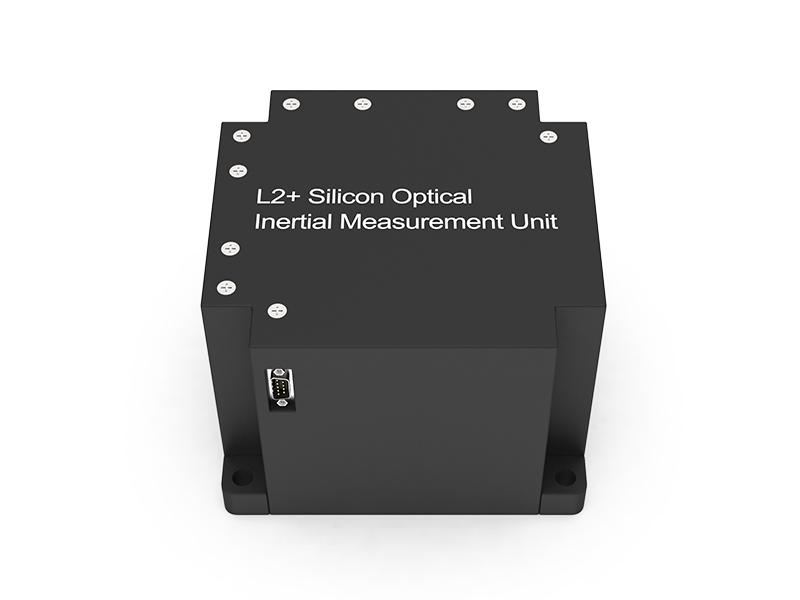

L2+ Silicon Optical Inertial Measurement Unit

L2+ Silicon Optical Inertial Measurement Unit

Description

The L2+ Silicon Optical Inertial Measurement Unit is a high-performance all-parameter motion inertial sensing product, able to realize real-time detection of both high-precision 3-axis angular velocity and 3-axis acceleration at the same time. It has a room-temperature zero bias stability of ≤0.2°/h for angular velocity with a measurement range of -800~+800°/s and an angular random walk factor of ≤0.02(°)/h¹ᐟ²; its acceleration measurement range is ±30g, with a normal-temperature zero bias stability of ≤0.5mg and a full-temperature zero bias stability of ≤1mg. The product features a bandwidth of ≥400Hz and a start-up time of ≤1 minute, with an operating temperature of -40~+60℃ and a wide voltage power supply of +12~+24V. It measures 70±0.3×65±0.3×51.4±1mm and has a maximum weight of 500g, adopting a standardized electrical interface. With outstanding detection accuracy and comprehensive performance, it can meet the motion parameter detection requirements in harsh scenarios.

Feature

Under completely independent conditions without being restricted by specific environments or locations, perceive and obtain real-time three-axis angular velocity and acceleration information of moving objects.

Application

This product is mainly applicable to equipment that requires motion control, such as unmanned vehicles, unmanned aerial vehicles (UAVs),  missiles, aerial surveying and  mapping, navigation for submarines and ships, marine engineering surveying and mapping, and attitude control of spacecraft, etc.Unmanned Surface Vehicle

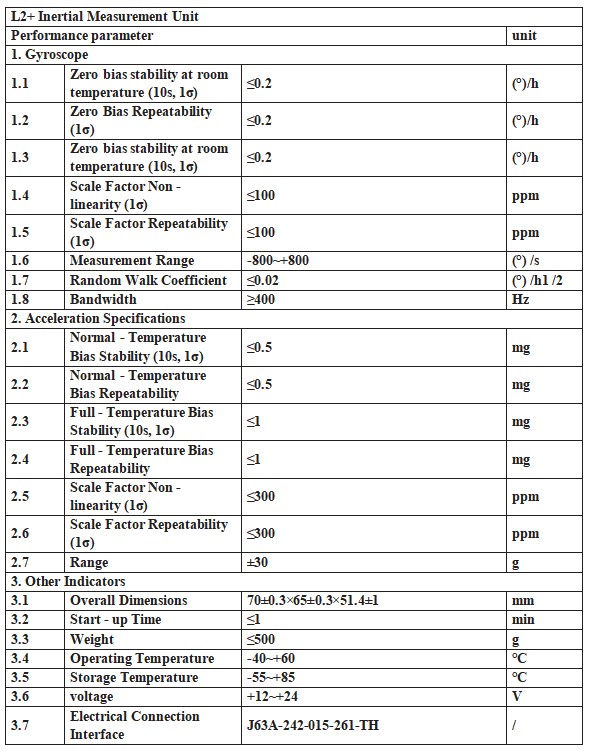

Specifications

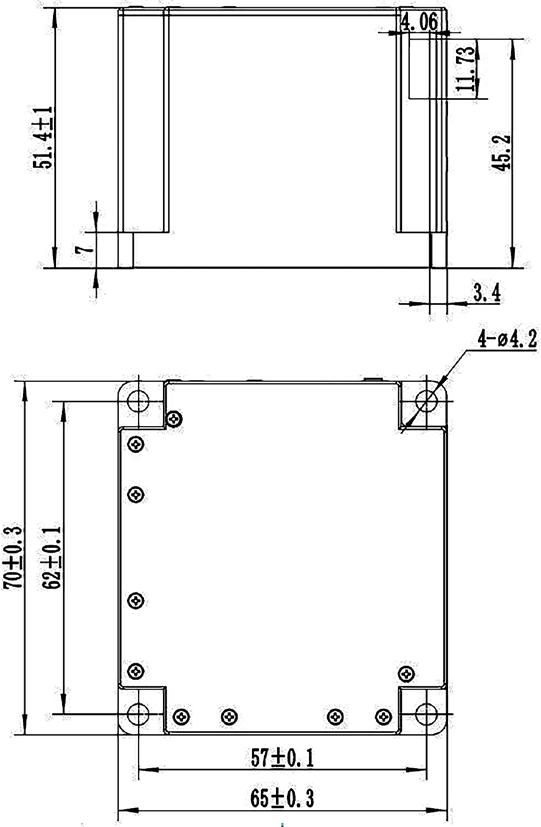

Mechanical Dimension
