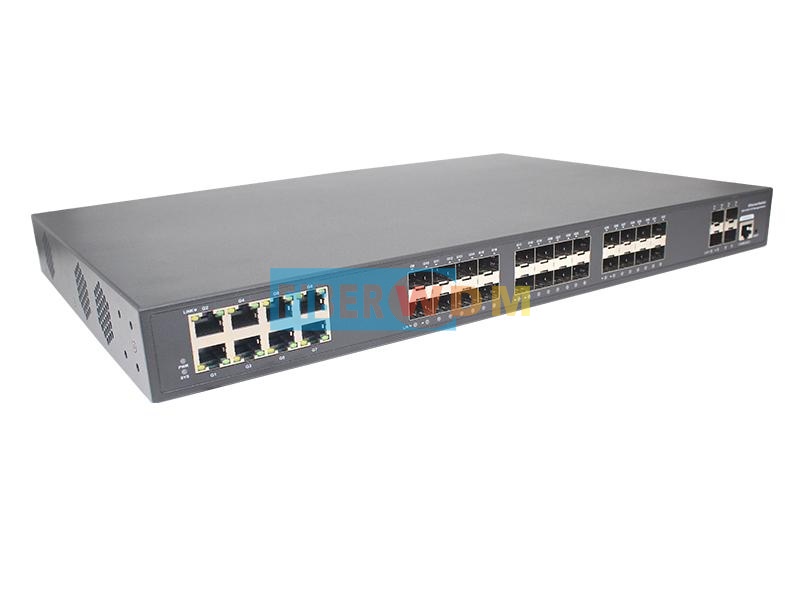

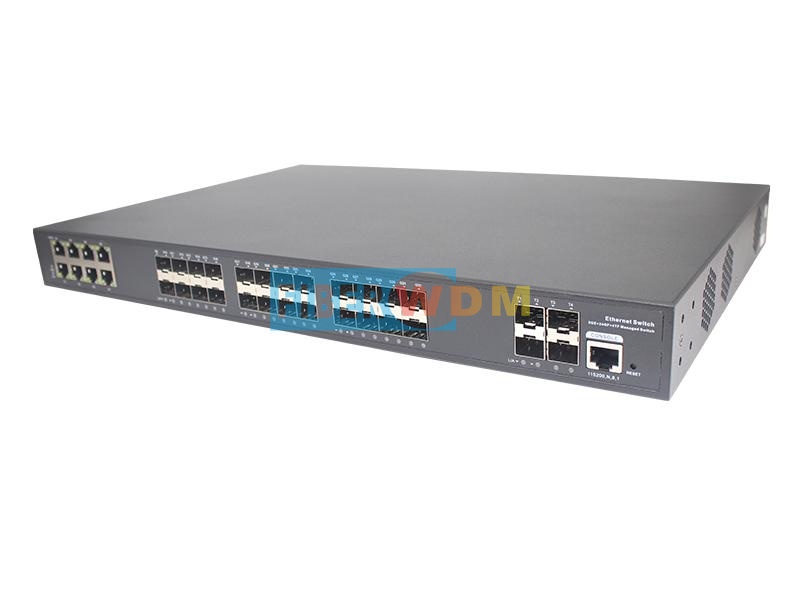

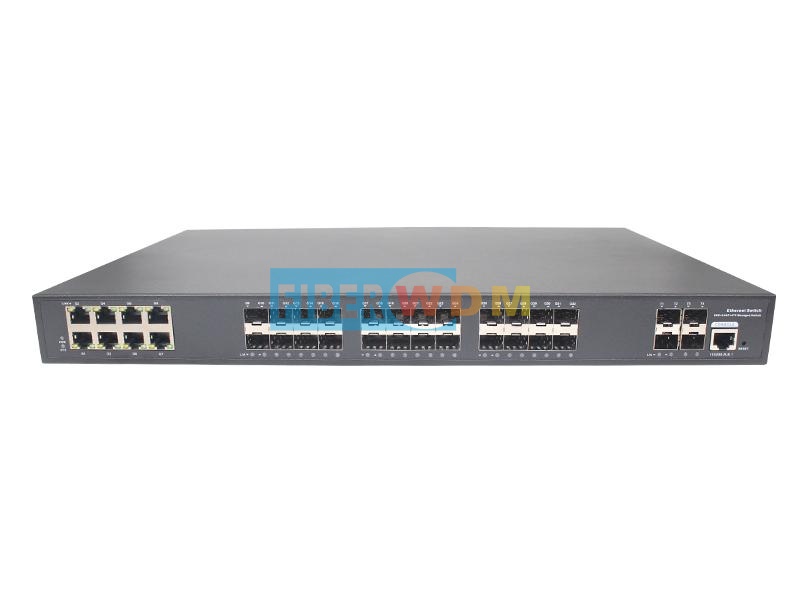

8 *10/100/1000M RJ45 and 24 * GE SFP and 4*10G SFP+ Up Link Port Network Switch

  • Support 8*10/100/1000Base-T RJ45 port and 24*1000M SFP interface and 4*10G SFP+ Up Link port
  • Two-layer commercial Network switch
  • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

  • Product Detail

Network Switch

8*10/100/1000Base-T RJ45 port +24*1000M SFP port+ 4*10G SFP+ port Up Link


FIBERWDM Provide theSW-GX24GE8-4X-10GSFP+ Network Switch is a 10G uplink L2+ managed Ethernet fiber switch. It has8*10/100/1000Base-T RJ45 ports, and 24* SFP optical fiber interface and 4*10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.



The SW-GX24GE8-4X-10GSFP+ Network Switch has L2+ full network management function, supports IPV4/IPV6 management, static route full line rate forwarding,complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.  Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T  G.8032)  ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.

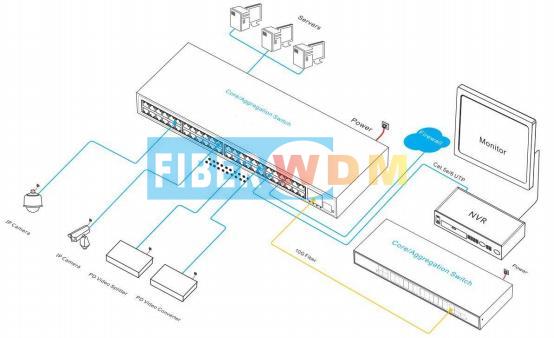

APPLICATION





FEATURE




  • Full Gigabit access, 10G SFP+ fiber port uplink
  • All series supports “Gigabit Ethernet port, GE SFP port and10G SFP+ fiber slot port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.




Strong business processing capability



  • IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.
  • QoS, Priority mode based on 802. 1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
  • ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
  • IGMP V1/V2 and IGMP Snooping.
  • ERPS/STP/RSTP/MSTP.
  • Static and dynamic aggregation.




Security



  • 802.1X authentication.
  • 803Port isolation,Storm control.
  • IP-MAC-VLAN-Port binding.
  • Stable and reliable
  • Low power consumption, galvanized steel casing. The fan active cooling.
  • Self-developed power supply, high redundancy design, providing a long term and stable power output.
  • CCC,CE, FCC, RoHS.
  • The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS,Link,L/A.




Easy operation and maintenance management



  • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
  • HTTPS, SSLV3, and SSHV1/V2.
  • RMON, system log, LLDP, and port traffic statistics.
  • CPU monitoring, memory monitoring, Ping test, and cable diagnose.




TECHNICAL SPECIFICATION


Model

SW-GX24GE8-4X-10GSFP+

Interface Characteristics





Fixed Port

8*10/100/1000Base-T RJ45 ports (Data)

24*1000M SFP optical fiber interface

4*1/10G SFP+ ports (Data)

1*Console RS232 port (115200,N,8,1)



Ethernet Port

Port 1-8 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption



Twisted Pair

Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)





SFP Slot Port

10G SFP+ optical fiber interface, default not matching optical modules   (optional order single-mode /

multi-mode, single fiber / dual fiber optical module. LC)

SFP Port Expansion

Turbo overclocking 2.5G optical module and ring

Optical Cable/

Distance

Multi mode: 850nm / 0 ~ 500M(1.25G), 0-300M / (10G),

single mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM.

Chip Parameter

Network

L2+

Management Type





Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

598Gbps

Forwarding

Rate@64byte

131Mpps

MAC

32K

Buffer Memory

32M

Jumbo Frame

9.6K



LED Indicator

Power: PWR (yellow), System: SYS(yellow), Network: Link (yellow),

Fiber port: L/A (green)

Reset Switch

yes, support one key to restore factory settings

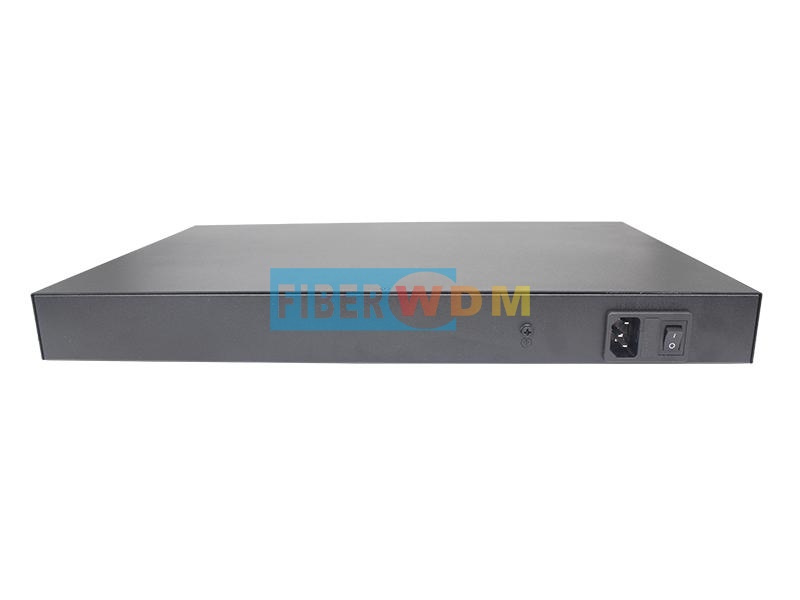

Power Supply

Total PWR / Input

Voltage



60W/(AC100-240V)

Power Consumption

Standby<35W , Full Load<55W

Power Supply

Built-in power supply, AC 100~240V 50-60Hz 1.0A

Physical Parameter

Operation TEMP /

Humidity



-20~+55°C, 5%~90% RH Non condensing

Storage TEMP /

Humidity



-40~+75°C, 5%~95% RH Non condensing

Dimension (L*W*H)

440*290*44.5mm

Net /Gross Weight

<4.4kg / <5.0kg

Installation

Desktop, wall-mounted,19 inch 1U cabinet installation

Certification & Warranty

Lightning protection / protection level



Lightning protection: 4KV 8/20us; Protection level: IP30



Certification

CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS

Warranty

3 years, lifelong maintenance

Network Management Features











Interface

IEEE802.3X (Full-duplex)

Port temperature protection setting

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

The speed limit of the message flow in the access port.

The minimum particle size is 64Kbps.





Features

L2+ network management

IPV4/IPV6 management

L3 routing forwarding

Static route, Default route @ 128 pcs, APR @ 1024 pcs









VLAN

VLAN based on MAC

VLAN based on the protocol

Voice VLAN, QinQ configuration

4K VLAN based on port, IEEE802.1q

Port configuration of Access, Trunk, Hybrid



Port Aggregation

LACP, Static aggregation

Max 26 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d),RSTP (IEEE802 1w),MSTP (IEEE802.1s)

Industrial Ring

Network Protocol

G.8032 (ERPS),Recovery time less than 20ms

255 Ring at most, Max 1024 devices per ring.

Multicast

MLD Snooping v1/v2,Multicast VLAN



IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port Mirroring

Bidirectional data mirroring based on port









QoS

Flow-based Rate Limiting

Flow-based Packet Filtering

8*Output queues of each port

802. 1p/DSCP priority mapping

Diff-Serv QoS,Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)







ACL

Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL  based on

MAC, Destination MAC address, IP Source, Destination IP,

IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.













Security

IP-MAC-VLAN-Port binding

ARP inspection,Anti-DoS attack

AAA & RADIUS,MAC learning limit

Mac black holes,IP source protection

IEEE802.1X & MAC address authentication

Broadcast storm control,Backup for host datum

SSH 2.0,SSL,Port isolation,ARP message speed limit

User hierarchical management and password protection

DHCP

DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay













Management

One-key recovery

Cable Diagnose,LLDP

Web Management (HTTPS)

NTP,System work log,Ping Test

CPU instant utilization status view

Console/AUX Modem/Telnet/SSH2.0 CLI

Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3


DIMENSION
