3G Video SFP Optical Transceiver support 1080P 60HZ Video

3G Video CWDM SFP optical transceiver module, support 1080p 60HZ video  and up to 80 km transmission. It works in optical video transmission.

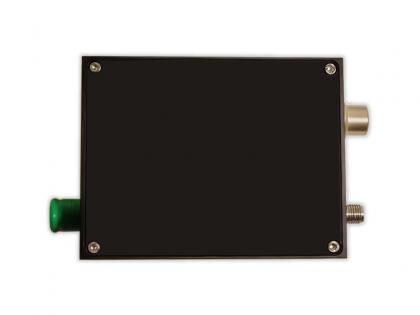

Fiberwdm's APD Avalanche Photodetector is fully domestically produced. Adopting an exclusive temperature compensation technical solution, it achieves high sensitivity. The detector maintains high stability, high gain, and low noise throughout the entire temperature range (-40°C to 80°C). In addition to detectors with standard specifications, customized services are also provided. Various indicators of the detector (such as supply voltage, gain, bandwidth, etc.) can be adjusted according to customer needs to meet specific requirements. Application Fields: Lidar, free-space optical communication, fiber optic sensing systems, optical detection systems, etc.

As 5G, IoT, and cloud computing develop rapidly, bandwidth demand grows. PON technologies (GPON, XGS-PON, NG-PON2+PtP) are evolving, with OTDR for network fault diagnosis and maintenance. 4CH WDM enables their coexistence on the same fiber, boosting network bandwidth and flexibility.

Features Supports single-rate 103.1Gb/s aggregate(100GE); Lane bit rate 25.78 Gb/s 100GbE; Up to 10km transmission on SMF; LAN WDM laser and PIN receiver; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic monitoring; CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 6W; Operating case temperature: -5 to +70 °C; Complies with IEEE802.3bm; Complies with EU Directive 2015/863/EU;   Application 100GBASE-LR4;

800G QSFP-DD DR8++ transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP-DD MSA and IEEE 802.3cu.The optical transceiver is RoHS compliant.

40G QSFP+ SR4 100m 850nm MPO Optical Transceiver，support 40Gb/s and up to 100m transmission on MM fiber, it works in high-speed IDC connection solutions and so on. Features 4 independent full-duplex channels Up to 10.5Gbps data rate per channel MTP/MPO optical connector QSFP MSA (SFF-8436) compliant Digital diagnostic capabilities Capable of over 100m transmission on OM3 multi-mode fiber CML compatible electrical I/O Single +3.3V power supply Operating case temperature: 0~70C XLPPI electric interface (with 1.5W Max power) RoHS-6 compliant

25G SFP28 LWDM optical transceiver module, support 25Gb/s and up to 10 km transmission, it works in high-speed IDC connection solutions, 5G network front-haul solution, and so on.

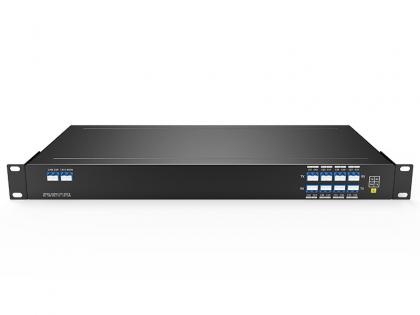

Super C-band 60ch+MON 100GHz DWDM MUX/DEMUX 1U LC/UPC This 60 Channels DWDM Mux Demux has 100GHz channel spacing and performs 60 channel multiplexing or demultiplexing at the ITU wavelengths in Super C-band, greatly expanding the effective working spectrum compared with the traditional C band and extended C band. It offers a combination of low optical insertion loss and high channel isolation along with long term reliability Product Information 60 Channels Super C-band 100GHz with Monitor Port, LC/UPC, Dual Fiber DWDM Mux Demux, 1U Rack Mount Configuration Product Application Optical Specifications Parameter Specification Units Notes Min Type Max Channel Spacing 100 Ghz Technology AAWG (Flat-top) Nos of Channel 60 Channels Channel Frequencies ITU Grid THz Available Channel Frequency Range Odd 190.75 196.650 THz 1524.50-1571.65nm Even 190.7 196.600 THz 1524.89-1572.06 Channel Passband -12.5 +12.5 Ghz -0.10 +0.10 nm Center Wavelength Accuracy -0.05 +0.05 nm Insertion Loss@com 6 6.7 dB @Center Wavelength Insertion Loss@mon 22 dB 1% Passband Ripple 1.0 1.5 nm Full Bandwidth Bandwidth @1.0dB 0.22 nm Bandwidth @3.0dB 0.42 nm Bandwidth @20dB 1.20 nm Insertion Loss Uniformity at ITU 1.20 dB Polarization Dependent Loss 0.5 dB Adjacent Channel Isolation 25 dB Non-Adjacent Channel Isolation 30 dB Total Cross Talk 24 24 dB Directivity 40 dB Return Loss with connectors 40 45 dB Chromatic Dispersion -20 +20 ps/nm PDL 0.5 dB PMD 1.0 ps Optical Power Handling of Common Port 24 dBm Net Weight 3.5 KGS Dimensions (HxWxD) 44x481.8x230mm mm Operating Conditions Parameter Min Max Units Temperature -5 65 ℃ Humidity Non-condensing 0 90 % R.H. Storage Conditions Parameter Min Max Units Temperature -40 85 ℃ Humidity Non-condensing 0 90 % R.H.
