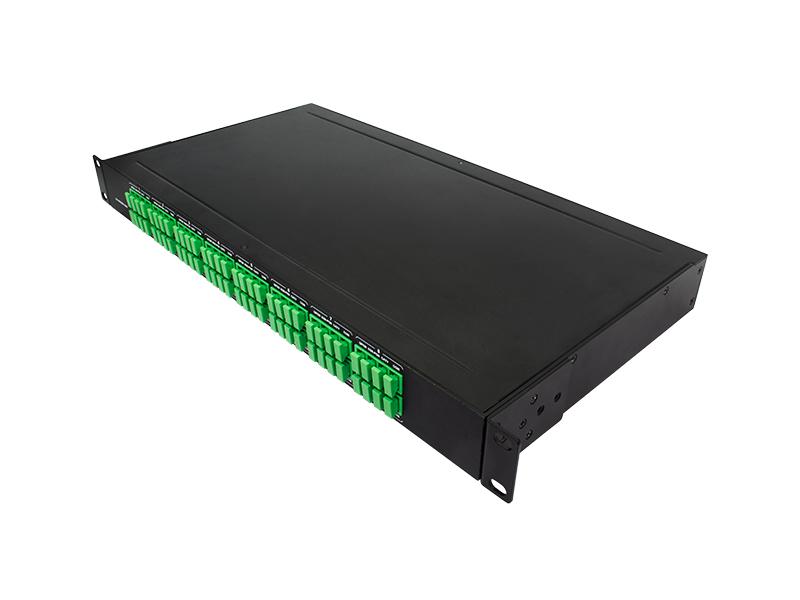

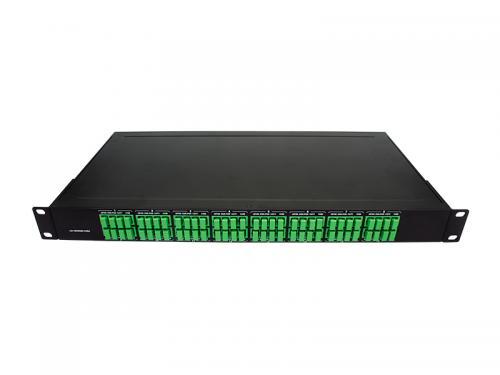

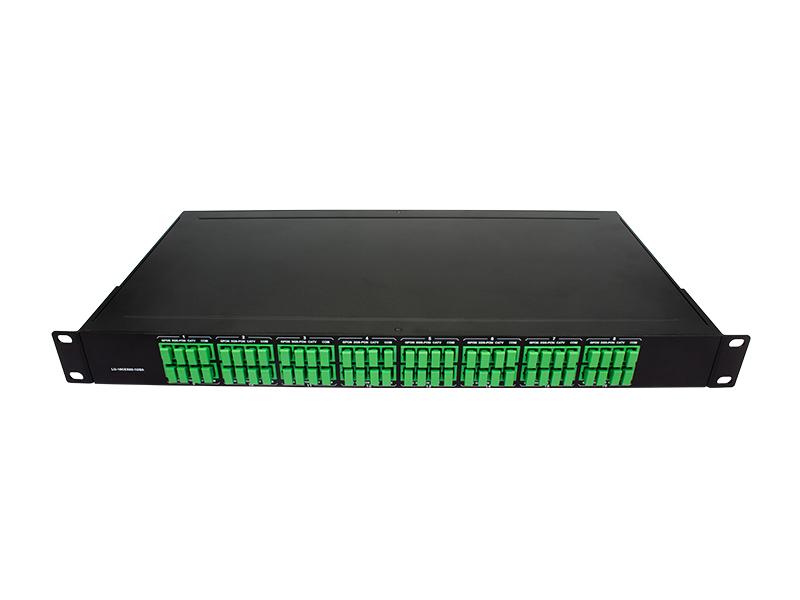

16Channels 3CH WDM GPON XGS-PON And RF Video SC/ACP 1U Rack 440*230*44MM

16Channels 3CH WDM GPON XGS-PON And RF Video SC/ACP 1U Rack 440*230*44MM

GPON (Gigabit-Capable Passive Optical Network)

Features: GPON supports downstream rates of up to 2.5Gbps and upstream rates of up to 1.25Gbps, with split ratios ranging from 1:16 to 1:128. It uses WDM technology to simultaneously transmit video, data, and voice over the same fiber.

Application Scenarios: Ideal for home broadband access, GPON is widely deployed in residential areas to provide reliable internet services. It is also used in enterprise networks and smart city applications, offering a cost-effective solution for high-speed data transmission.

XGS-PON (10G Symmetric PON)

Features: XGS-PON supports symmetrical 10Gbps uplink and downlink rates, with split ratios ranging from 1:16 to 1:256. It uses Time and Wavelength Division Multiplexing (TWDM) technology to coexist with GPON on the same fiber.

Application Scenarios: XGS-PON is designed for applications requiring high-bandwidth symmetrical transmission, such as enterprise networks, data center interconnection, and 5G fronthaul. It is particularly useful in scenarios where both high-speed data and low-latency services are critical.

RF Video

Features: RF Video technology allows the transmission of analog video signals over fiber, enabling the delivery of high-quality video content. It is often used in conjunction with PON technologies to provide integrated video services.

Application Scenarios: RF Video is commonly used in cable TV networks, video-on-demand services, and other applications where high-quality video delivery is essential. It can be seamlessly integrated with PON networks to offer a comprehensive solution for both data and video services.

Advantages

• Bandwidth Increase: By adding wavelength channels, the transmission bandwidth of the fiber is significantly increased.
• Cost-Effective: It increases network capacity without adding extra fibers, reducing deployment costs.
• Flexibility: It supports the coexistence of multiple PON technologies, such as GPON, XGS-PON, RF Video

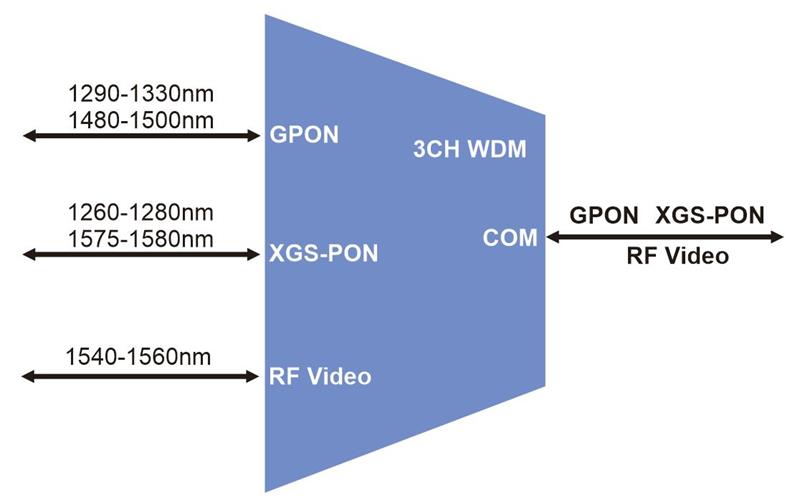

Application

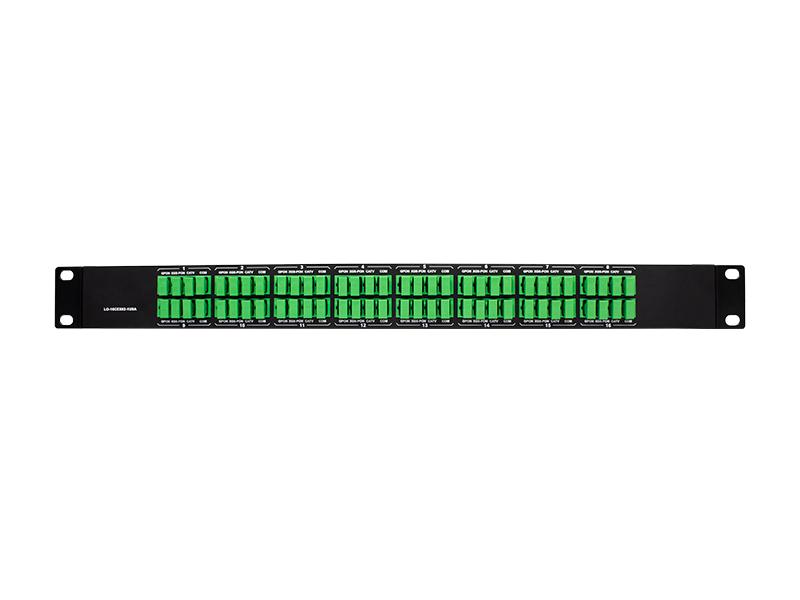

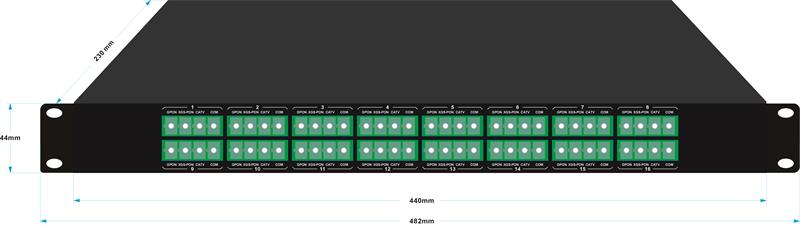

Product Panel

16channel 3CH WDM GPON XGS-PON And RF Video SC/APC 1U Rack

Specifications

Package Information

Order Information

Note: We Support Customized Design, please contact us by email.
