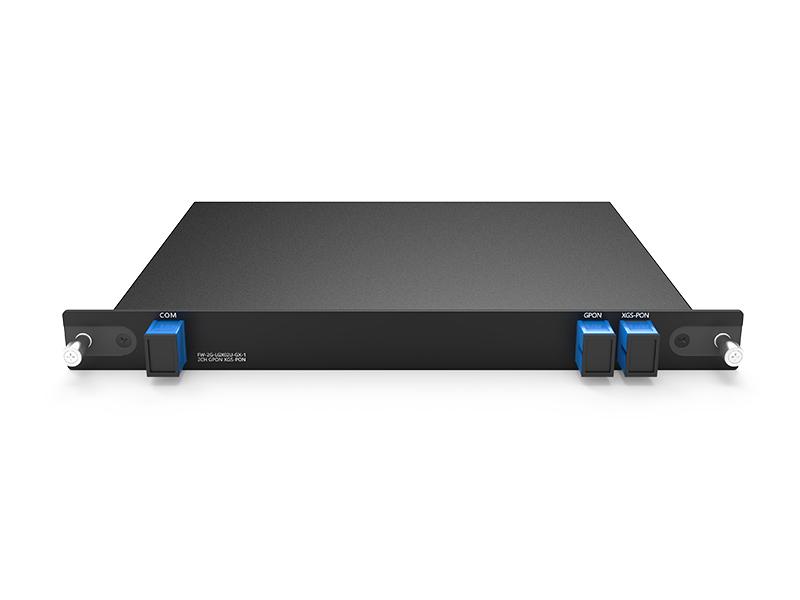

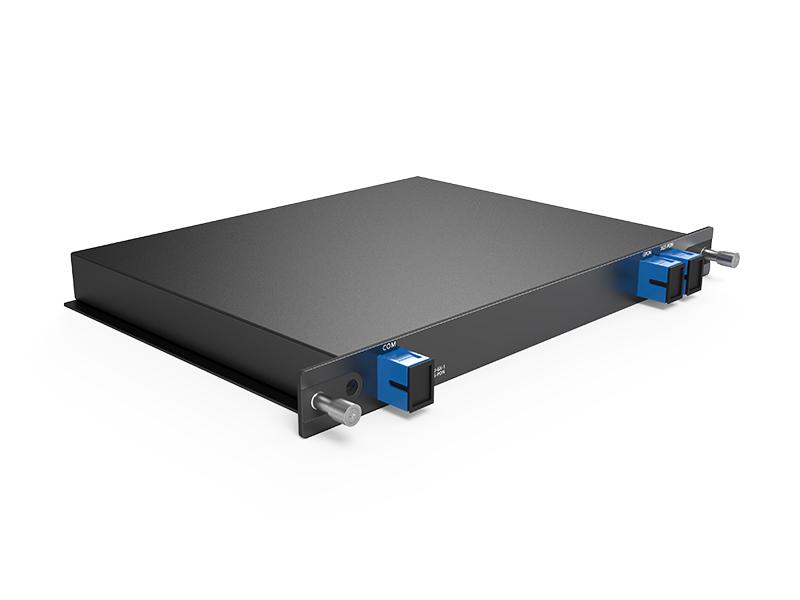

2CH WDM GPON 1310/1490nm And XGS-PON 1270/1577nm Plug-in LGX Box 215*150*20MM

2CH WDM GPON 1310/1490nm And XGS-PON 1270/1577nm Plug-in LGX Box 215*150*20MM FW-2G-LGX02U-GX

GPON (Gigabit-Capable Passive Optical Network)

Features: GPON supports downstream rates of 2.5Gbps and upstream rates of 1.25Gbps, with split ratios ranging from 1:16 to 1:128. It uses WDM technology to simultaneously transmit video, data, and voice over the same fiber.

Application Scenarios: It is widely used in home broadband access, enterprise networks, and smart cities.

XGS-PON (10G Symmetric PON)

Features: XGS-PON supports symmetrical 10Gbps uplink and downlink rates, with split ratios ranging from 1:16 to 1:256. It uses Time and Wavelength Division Multiplexing (TWDM) technology to coexist with GPON on the same fiber.

Application Scenarios: It is suitable for scenarios that require high-bandwidth symmetrical transmission, such as enterprise networks, data center interconnection, and 5G fronthaul.

Advantages

• Bandwidth Increase: By adding wavelength channels, the transmission bandwidth of the fiber is significantly increased.
• Cost-Effective: It increases network capacity without adding extra fibers, reducing deployment costs.
• Flexibility: It supports the coexistence of multiple PON technologies, such as GPON, XGS-PON.

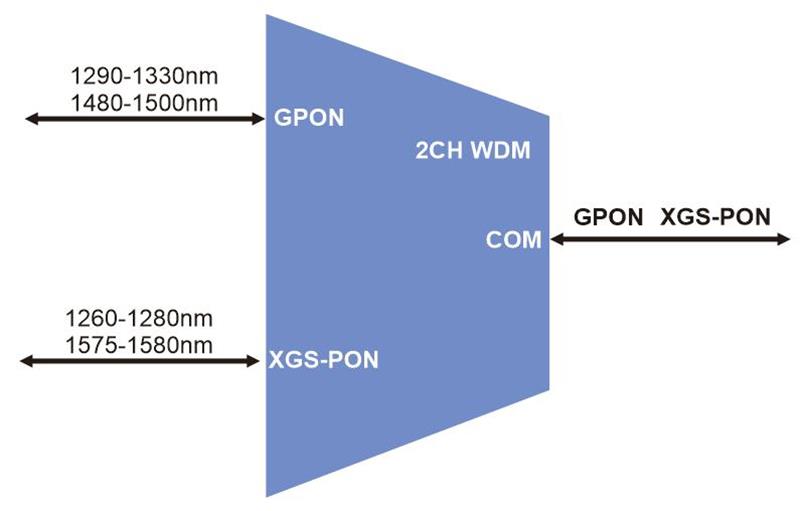

Application

Product Panel

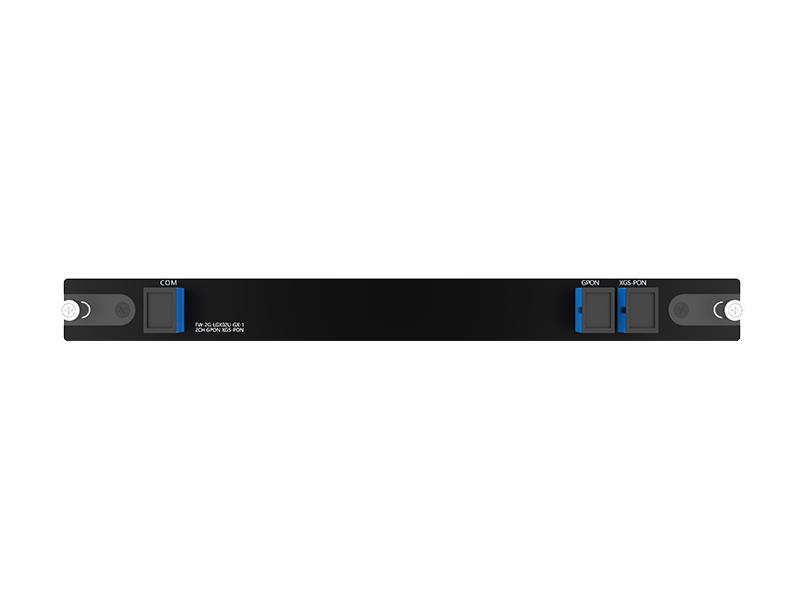

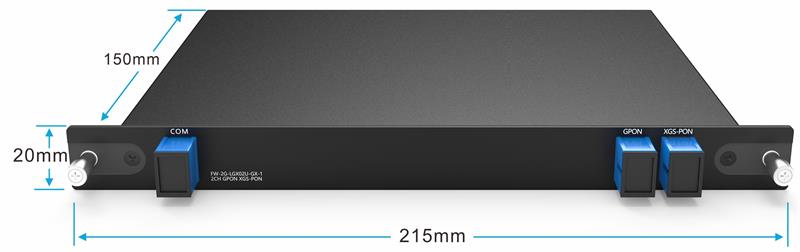

2CH WDM GPON And XGS-PON SC/UPC Plug-in LGX Box 215*150*20MM

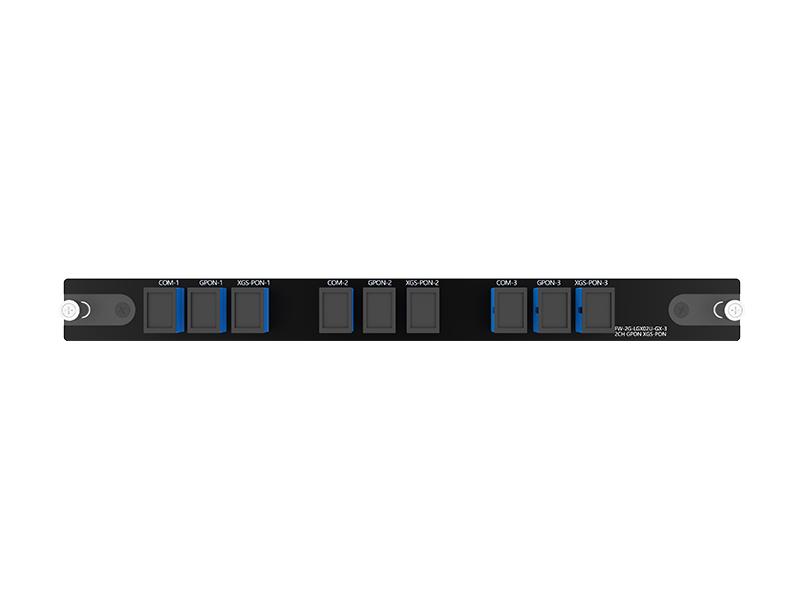

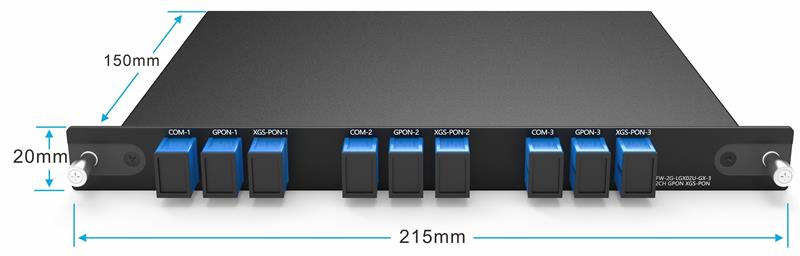

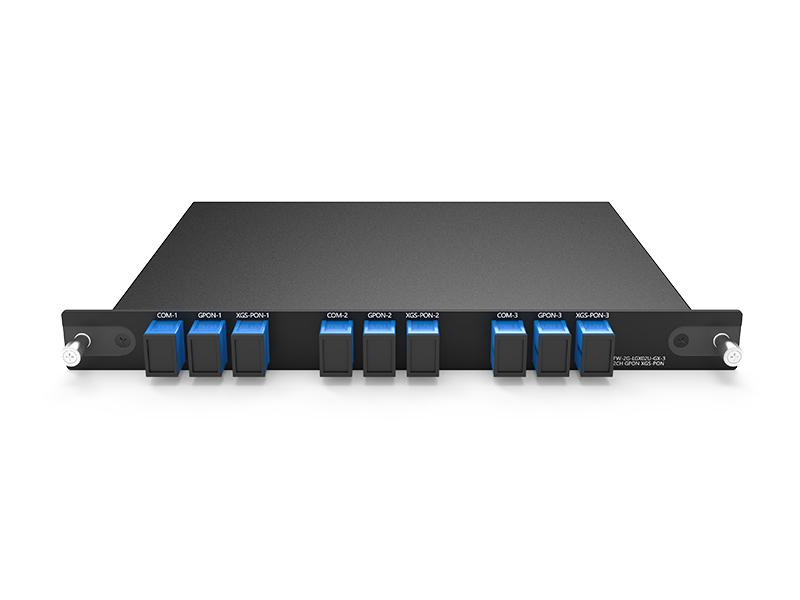

3X2CH WDM GPON And XGS-PON SC/UPC Plug-in LGX Box 215*150*20MM

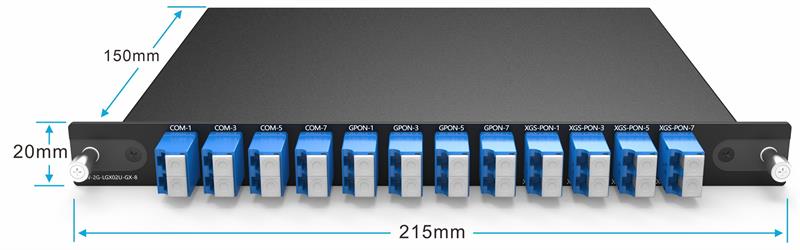

8X2CH WDM GPON and XGS-PON LC/UPC Plug-in LGX Box 215*150*20MM

Specifications

Package Information

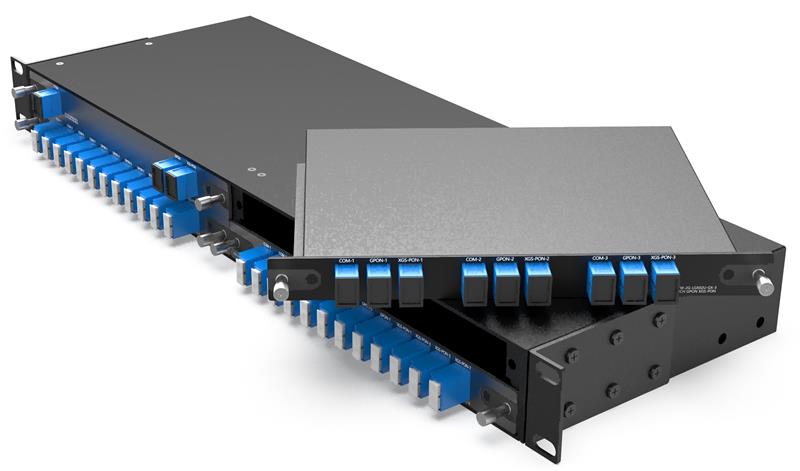

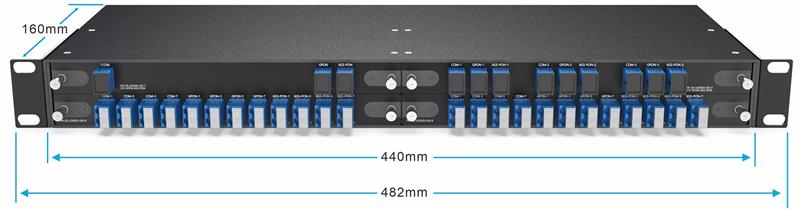

LGX BOX Plug in 4-Slot 1U Rack

2CH WDM

3x2CH WDM

8x2CH WDM

4-Slot 1U Rack for LGX BOX

Order Information

Note: We Support Customized Design, please contact us by email.
