Amid digital transformation, demand for high-speed, reliable, flexible communication networks is unprecedented. Passive Optical Networks (PON) are a cornerstone of modern infrastructure, supporting applications from home broadband to enterprise networks. To meet growing bandwidth needs and future-proof networks, integrating 4CH WDM with GPON, XGS-PON, RF Video, and OTDR delivers a comprehensive solution—maximizing fiber use and boosting service capabilities.

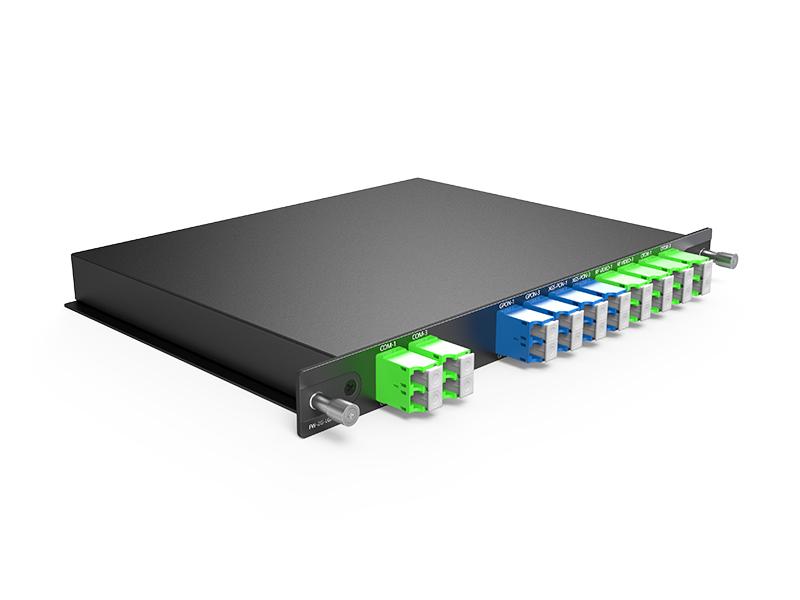

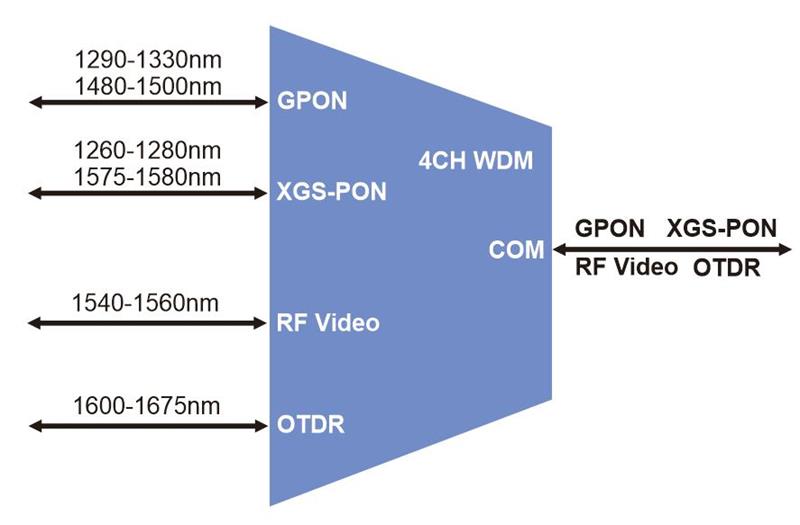

4CH WDM GPON XGS-PON RF Video And OTDR Plug-in LGX Box 215*150*20MM
RF Video
Features: RF Video technology allows the transmission of analog video signals over fiber, enabling the delivery of high-quality video content. It is often used in conjunction with PON technologies to provide integrated video services.
Application Scenarios: RF Video is commonly used in cable TV networks, video-on-demand services, and other applications where high-quality video delivery is essential. It can be seamlessly integrated with PON networks to offer a comprehensive solution for both data and video services.
OTDR (Optical Time Domain Reflectometer)
Features: OTDR is a tool used for fiber optic network fault diagnosis and maintenance, capable of detecting breaks, losses, and reflection points in the fiber.
Application Scenarios: It is widely used in the installation, maintenance, and troubleshooting of fiber optic networks, ensuring the reliability and performance of the network.
Advantages
Application

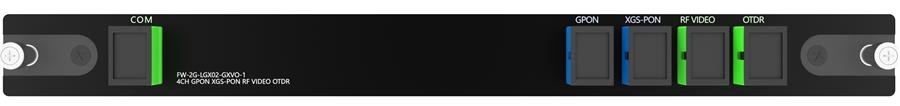

Product Panel

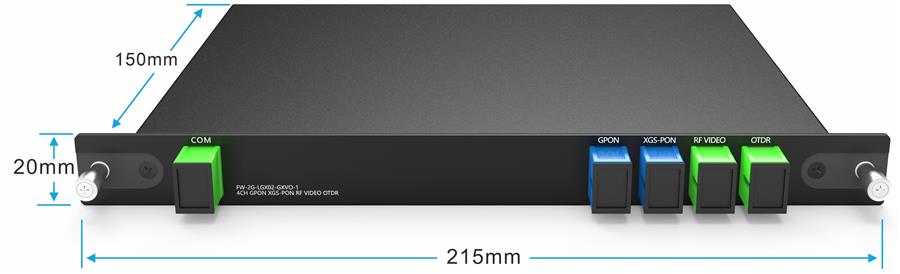

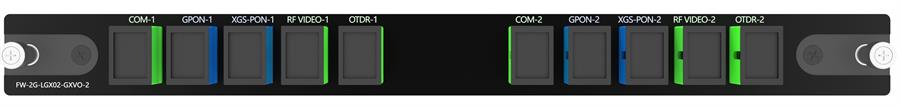

4CH WDM GPON XGS-PON RF Video And OTDR，PON SC/UPC, COM RF Video OTDR SC/APC Plug-in LGX Box 215*150*20MM

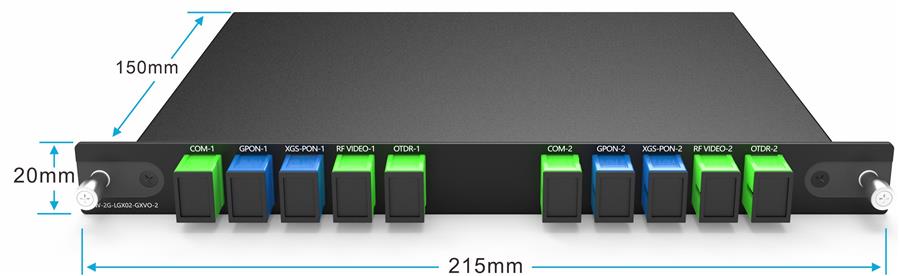

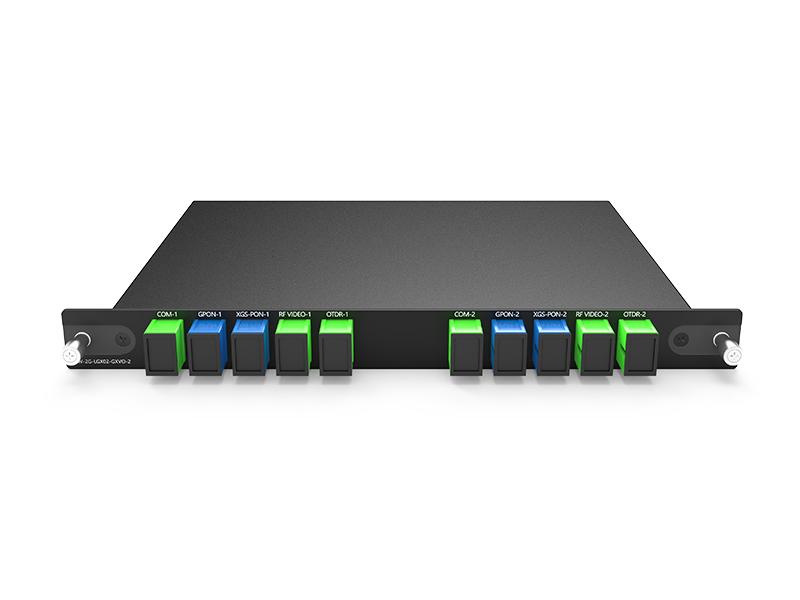

2X4CH WDM GPON XGS-PON RF Video And OTDR，PON SC/UPC, COM RF Video OTDR SC/APC Plug-in LGX Box 215*150*20MM

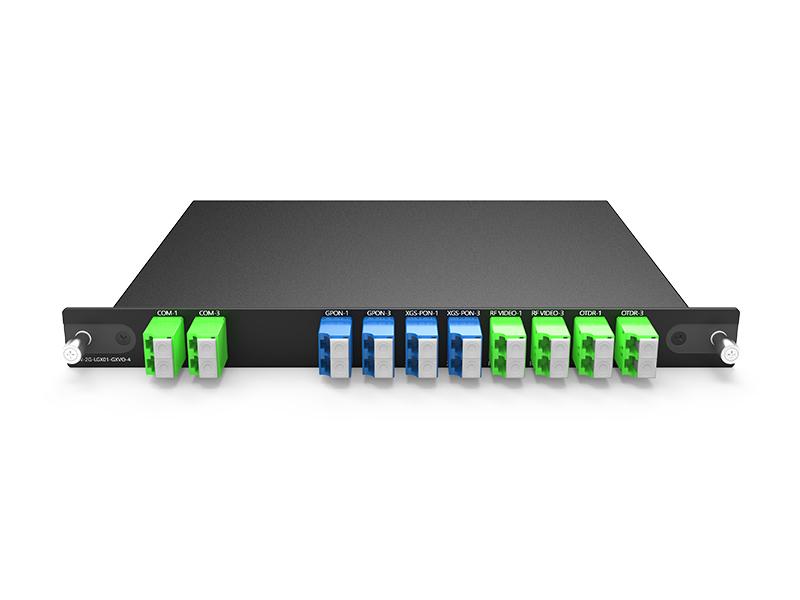

4X4CH WDM GPON XGS-PON RF Video And OTDR，PON LC/UPC, COM RF Video OTDR LC/APC Plug-in LGX Box 215*150*20MM
Specifications
|
Parameter |
Specification |
Unit |
|
|
Bandpass |
GPON |
1290-1330/1480-1550 |
nm |
|
XGS-PON |
1260-1280/1575-1580 |
nm |
|
|
RF-Video |
1540-1560 |
nm |
|
|
OTDR |
1600-1675 |
nm |
|
|
Insertion Loss |
COM - GPON |
<0.9 |
dB |
|
COM - XGS-PON |
<1.1 |
dB |
|
|
COM - RF Video |
<1.3 |
dB |
|
|
COM - OTDR |
<1.5 |
dB |
|
|
Wavelength Isolations |
COM - GPON |
>30 |
dB |
|
COM - XGS-PON |
>30 |
dB |
|
|
COM - RF Video |
>30 |
dB |
|
|
COM - OTDR |
>30 |
dB |
|
|
Unifomit |
<0.8 |
dB |
|
|
Return Loss |
>55 |
dB |
|
|
Directivity |
>55 |
dB |
|
|
PDL (Polarizarion Dependant Loss) |
<0.3 |
dB |
|
|
(Polarization Mode Dispersion) |
<0.2 |
ps | |
|
Optical Power Handing |
<300 |
mW |
|
|
Operating Temperature |
-40 to +85 |
℃ |
|
|
Operating Relative Humidity |
5 to 90 |
% RH |
|
|
Storage Temperature |
-40 to +85 |
℃ |
|
|
Operating Relative Humidity |
5 to 90 |
% RH |
|
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.5KG |
KG | |
|
Dimensions |

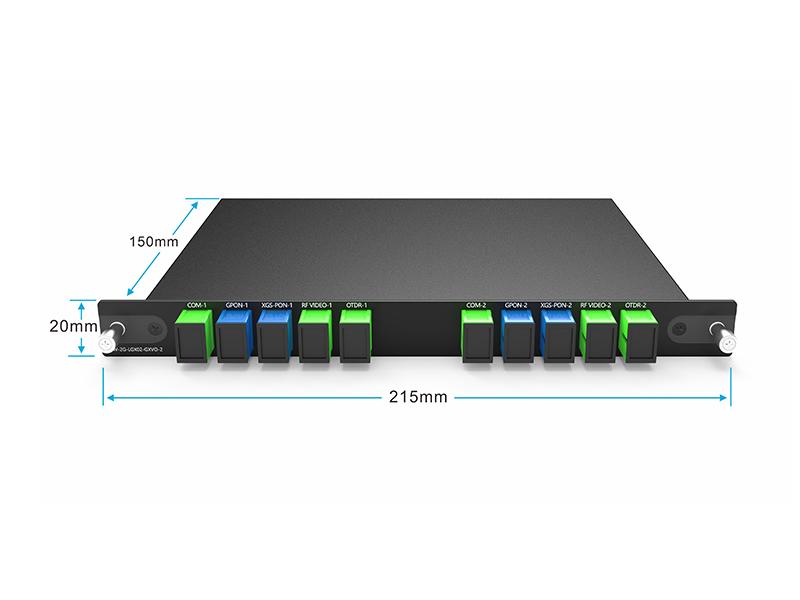

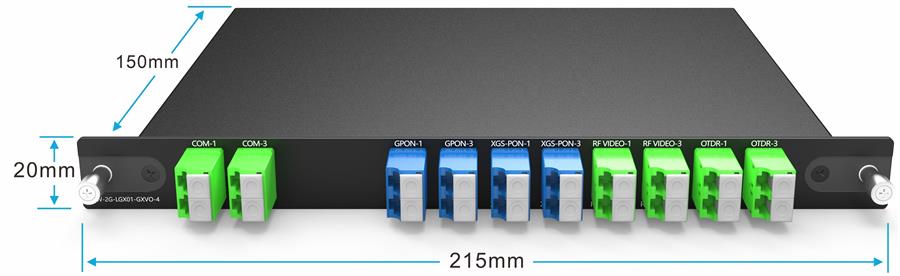

LGX Box: 215*150*20mm 1U Rack : 440*160*44mm |
mm | |
|
Insertion Loss includes WDL, TDL and PDL WITH two sets of mated connectors at both ends. |
|||
Package Information

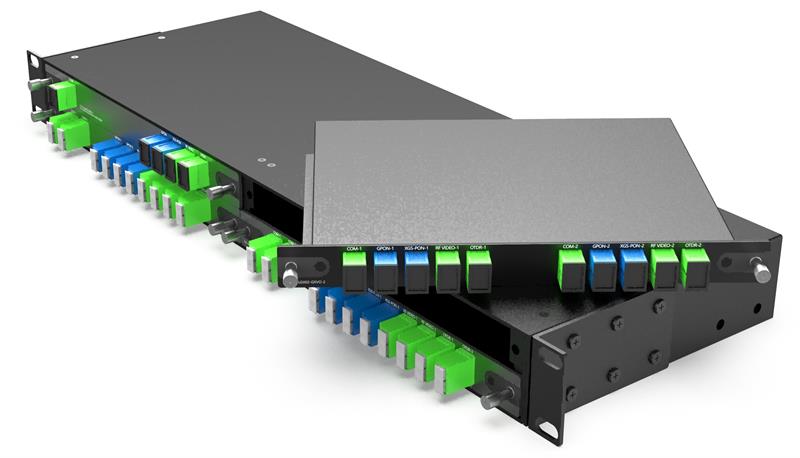

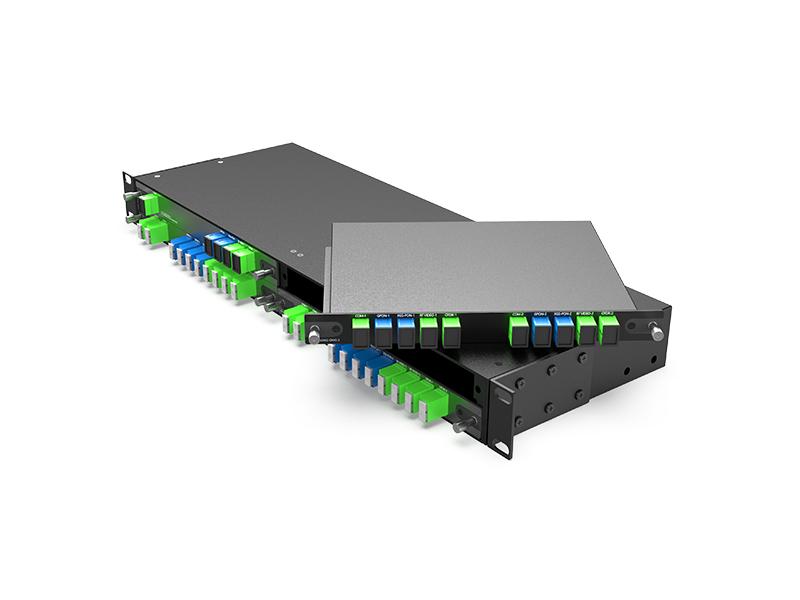

LGX BOX Plug in 4-Slot 1U Rack

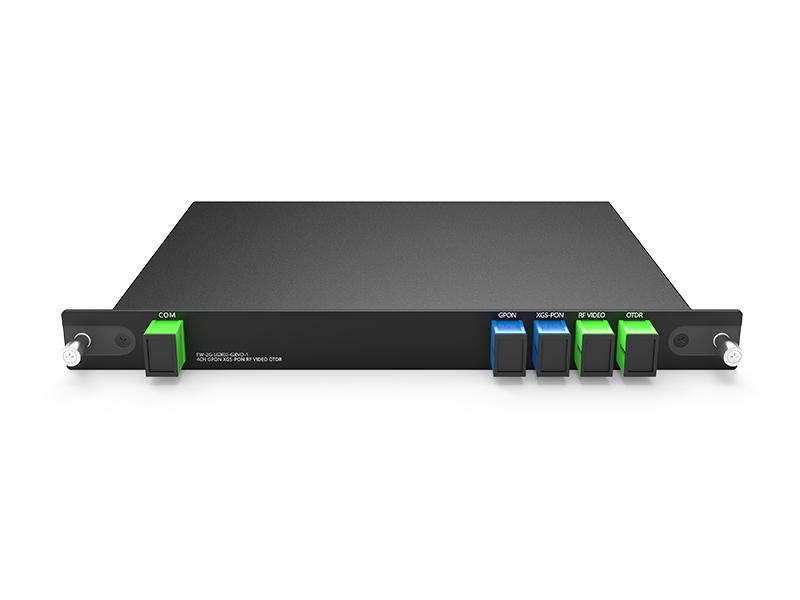

4CH WDM
2x4CH WDM

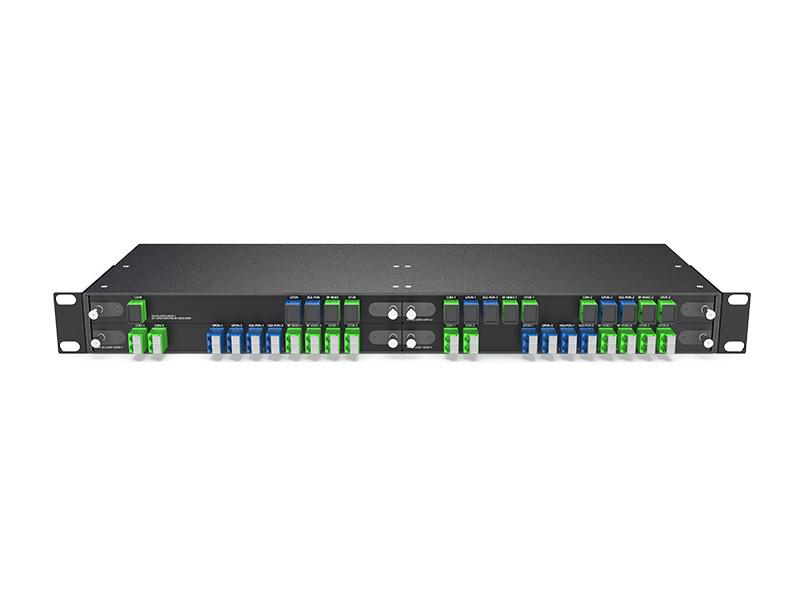

4x4CH WDM

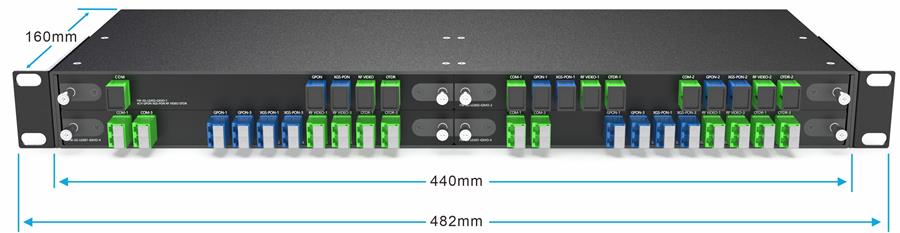

4-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
FW-2G-LGX02-GXVO-1 |
4CH WDM GPON XGS-PON RF Video And OTDR，PON SC/UPC, COM RF Video OTDR SC/APC Plug-in LGX Box 215*150*20MM |
|
FW-2G-LGX02-GXVO-2 |
2x4CH WDM GPON XGS-PON RF Video And OTDR，PON SC/UPC, COM RF Video OTDR SC/APC Plug-in LGX Box 215*150*20MM |
|
FW-2G-LGX01-GXVO-4 |
4x4CH WDM GPON XGS-PON RF Video And OTDR，PON LC/UPC, COM RF Video OTDR LC/APC Plug-in LGX Box 215*150*20MM |
|
1U02-4LGX |
19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
