Dual Fiber 8CH 1470-1610nm CWDM MUX DEMUX With EXP , LC/UPC, Plug-in LGX Box

  • CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair
  • Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
  • Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
  • Applied to Metro, Regional CWDM Networks


  • Product Detail

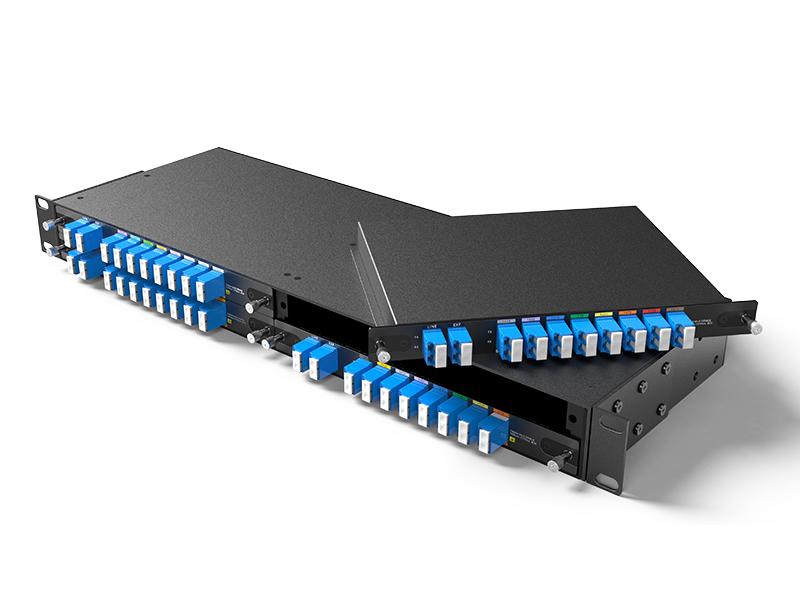

Dual Fiber 8CH 1470-1610nm CWDM MUX DEMUX With EXP ,LC/UPC,Plug-in LGX Box and 4slot 1U Rack



The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1470nm to 1610nm, and it is passive CWDM and plug-in LGX box, can plug in 4slot 1u rack, support 8 channels difference business in two optical fiber for point-to-point transmission.



It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

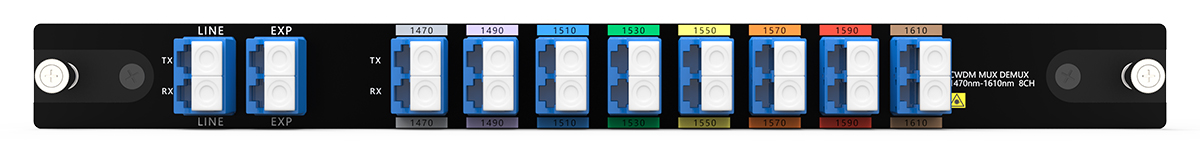

Product Panel




8CH CWDM MUX DEMUX Dual Fiber



Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

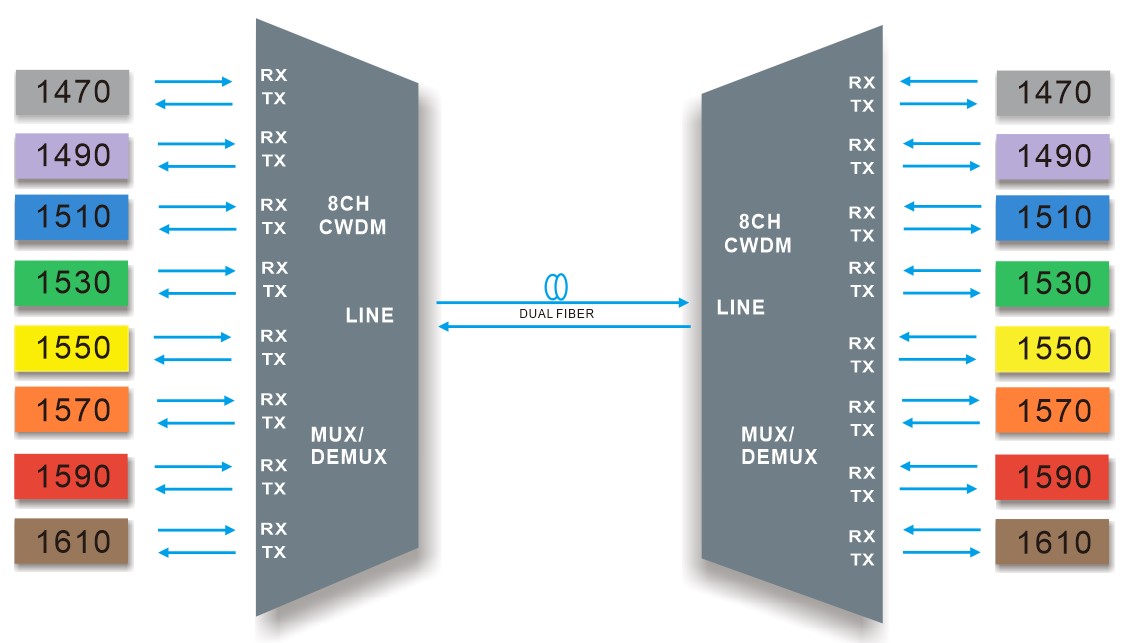

Line Link



8CH CWDM MUX DEMUXDual fiber transmission


8 Channels CWDM MUX DEMUX,support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.



Product Specification



Wavelength

8 channels 1470-1610nm

Channel Spacing

20nm

Channel Passband

±6.5nm

Technology

TFF (Thin Film Filter)

Insertion Loss

Regular :≤ 2.4dB

Link Loss

≤ 2.4dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX BOX  0.5KG

4Slot 1u Rack 1.5KG

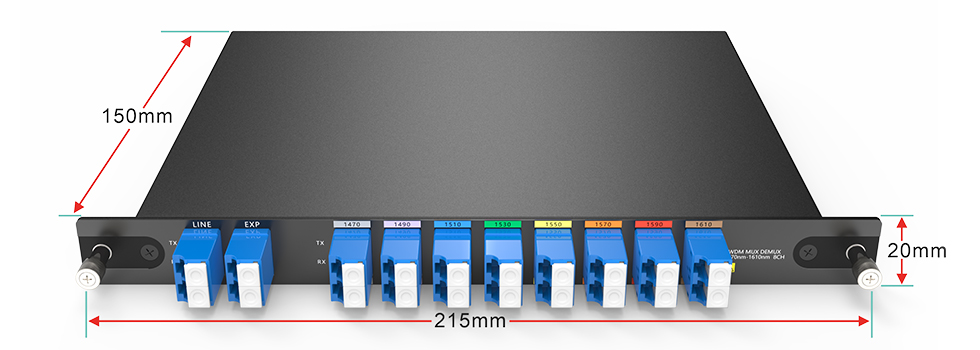

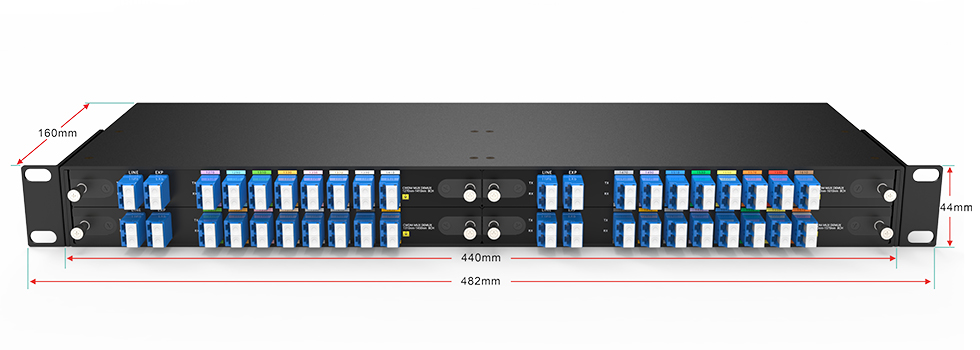

Dimensions (HxWxD)

LGX BOX  190*150*20mm

2Slot 1u Rack 44*440*160mm

Note: Specified with connectors.



Package Information

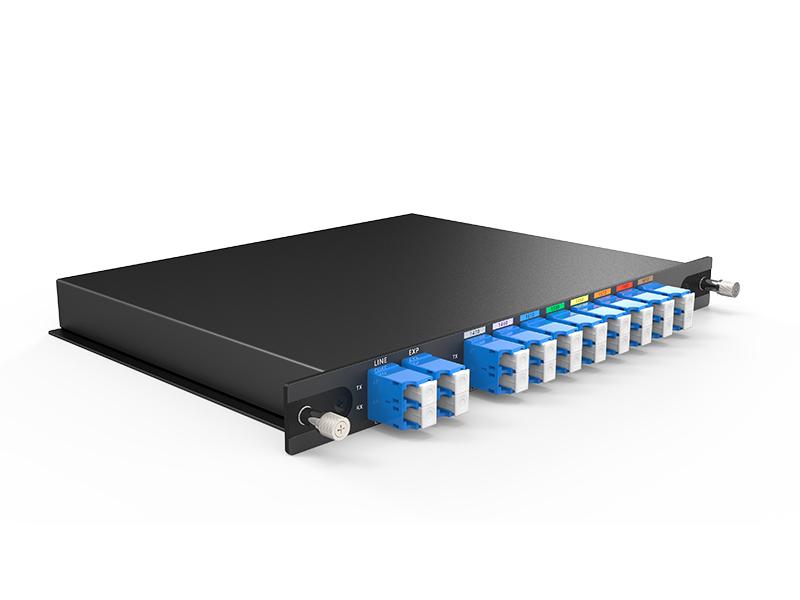

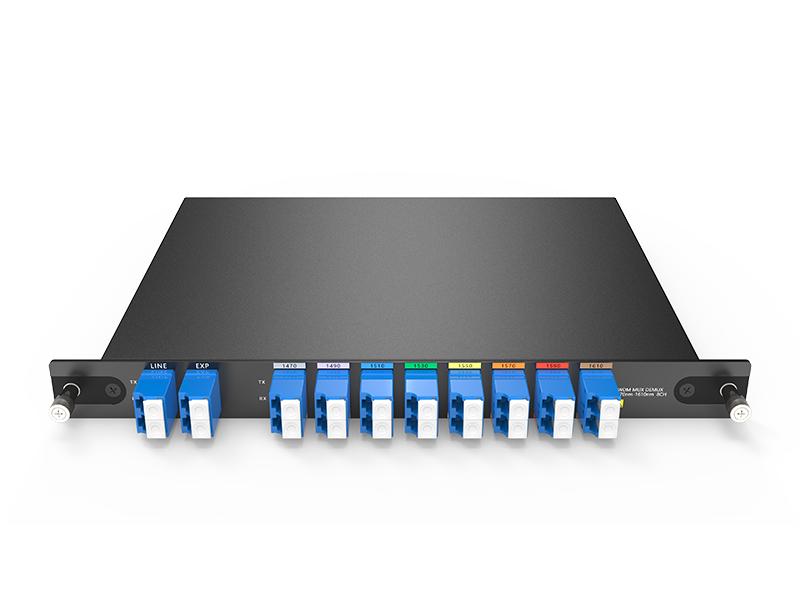

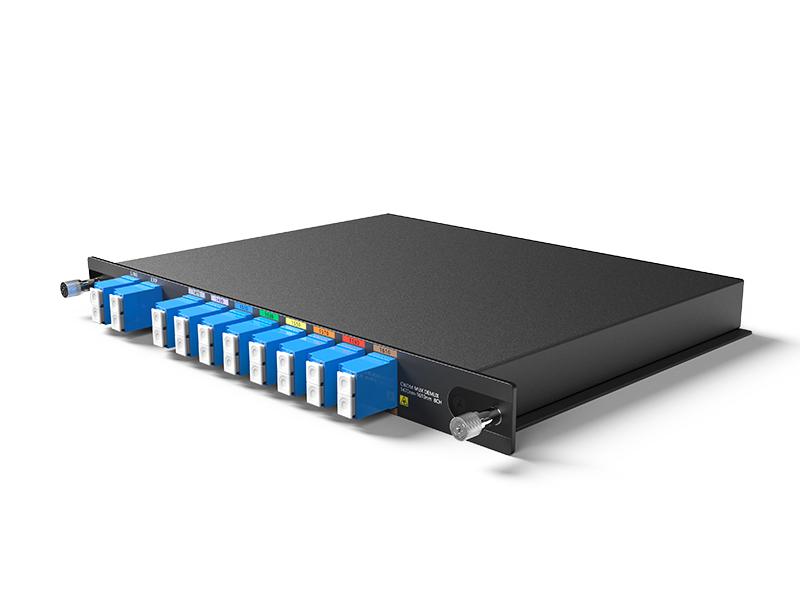

 Plug-in LGX Box

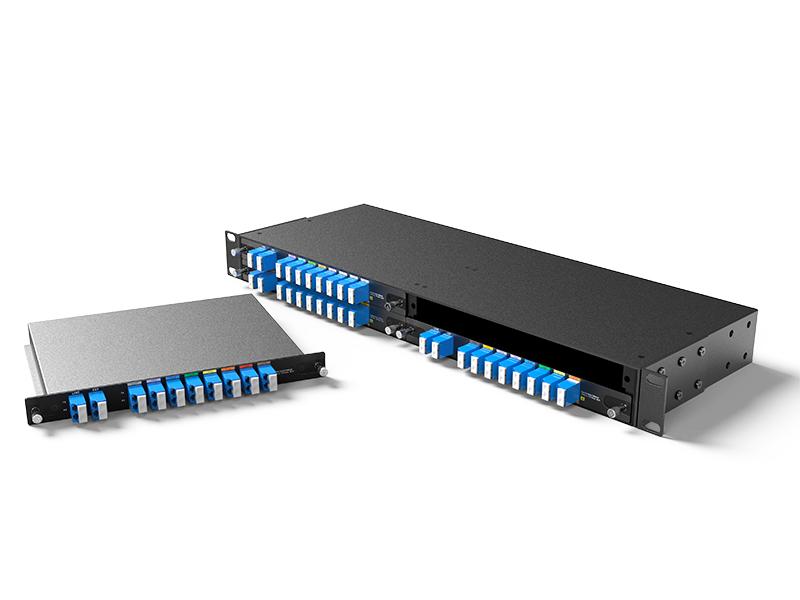

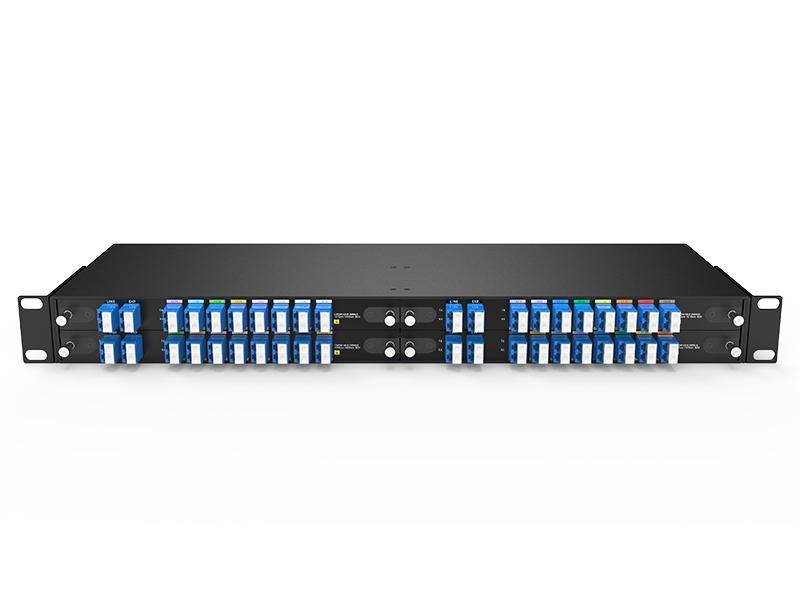

2-Slot 1U Rack for LGX BOX

 Order Information



Product No.

Product description

CMD8-1U01-4761M

CWDM MUX DEMUX 8CH (1470nm~1610nm) With EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box

CMD8-1U01-xxxxM

CWDM MUX DEMUX 8CH (xxxx-xxxx) With EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized)

1U02-4LGX

19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm


Note:We Support Customized Design, please contact us by email.
