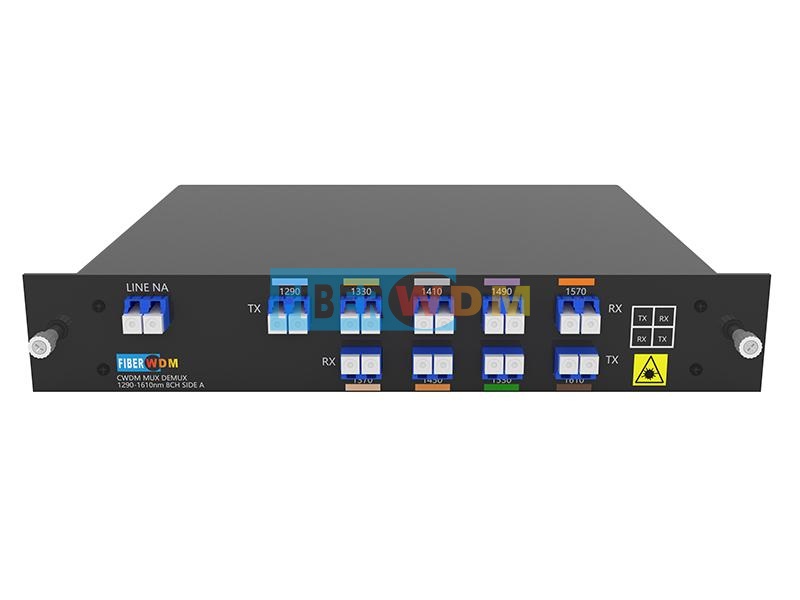

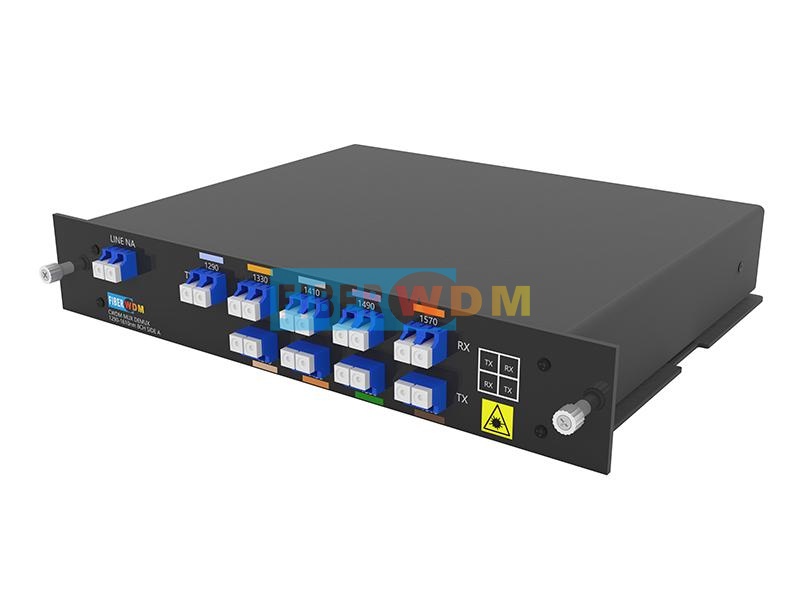

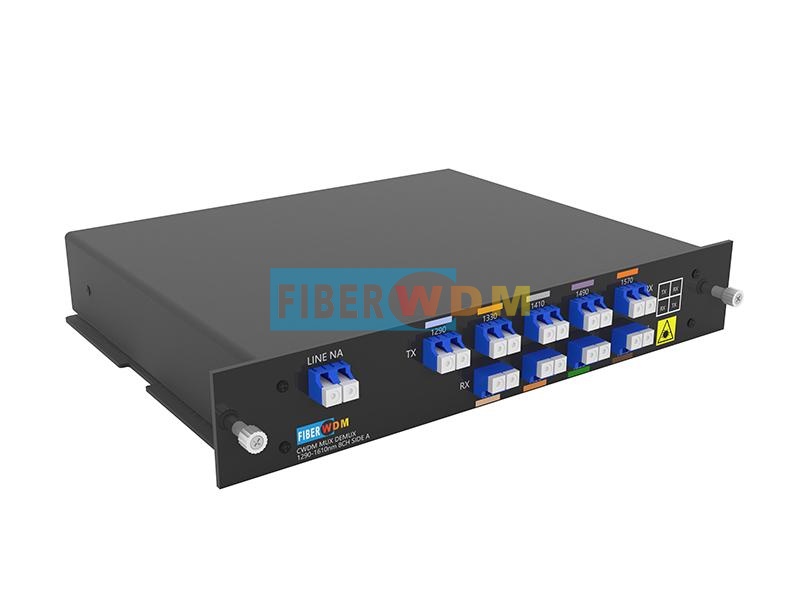

Single Fiber 9Channels(18waves) 1270-1610nm CWDM MUX DEMUX Port, LC/UPC, Plug-in LGX Box and 2slot 1U Rack
The single fiber 9 channels (18 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm, and B side’s waves are:RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm; it is passive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 9 channels difference business in one optical fiber for bi-direction point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.
Product Panel

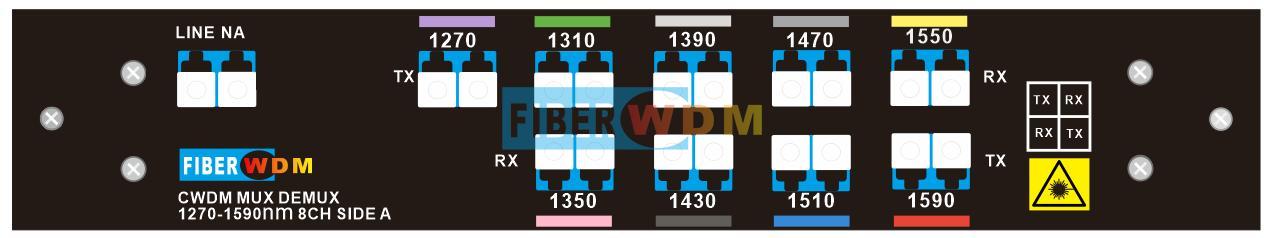

Side A Single Fiber 9CH CWDM MUX/ DEMUX

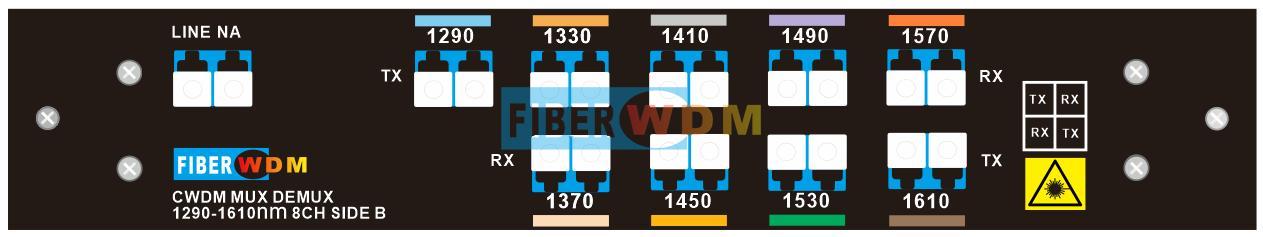

Side B Single Fiber 9CH CWDM MUX/ DEMUX
Line Link
|
|

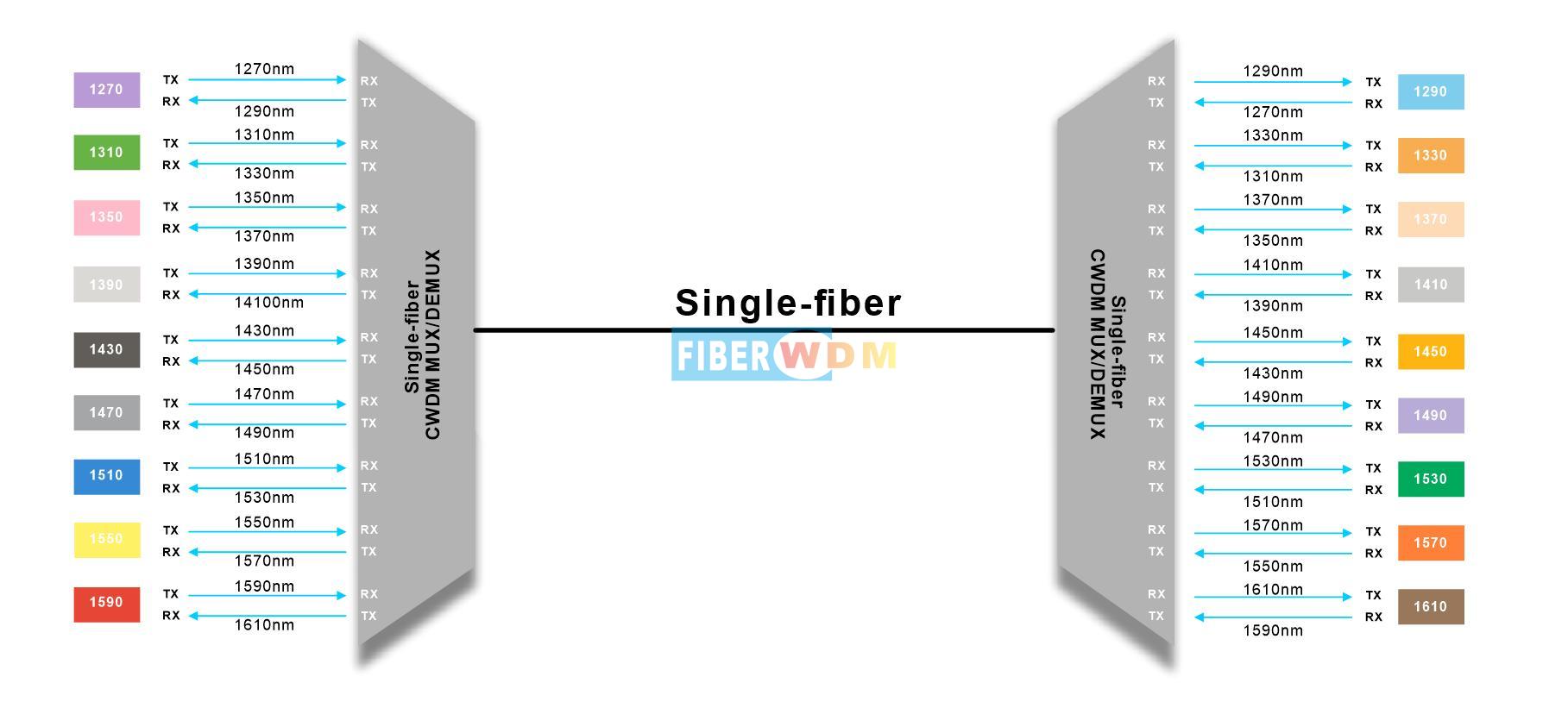

9CH CWDM MUX DEMUX Single fiber transmission
9Channels (18 waves) CWDM MUX/DEMUX,should be used in pairs, which transmits and receives different wavelengths, support 9channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
|
Wavelength |
1270-1610nm |
Channel Spacing |
20nm |
|
Channel Passband |
±6.5nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB) |
Link Loss(A+B) |
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB) |
|
Center Wavelength Accuracy |
±0.05nm |
Return Loss |
≥ 45dB |
|
Directivity |
≥ 45dB |
Polarization Mode Dispersion |
≤ 0.1ps |
|
Polarization Dependent Loss |
≤ 0.3dB |
Channel Isolation |
Adjacent ≥30dB
Non-adjacent ≥45dB
|
|
Connector |
LC/UPC |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX BOX 0.5KG 2Slot 1u Rack 2.5KG |
Dimensions (HxWxD) |

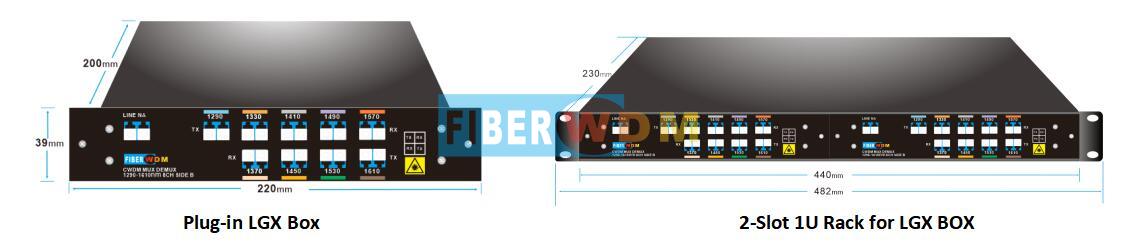

LGX BOX190*200*39mm 2Slot 1u Rack 44*440*230mm |
Note: Specified with connectors.
Package Information
|
|
Order Information
|
Product No. |
Product description |
|
CM18-LGX01-2761-A |
CWDM MUX /DEMUX 9CH 18waves(RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm ) , Single fiber, LC/UPC , Plug-in LGX Box, IL≤ 5.4dB |
|
CD18-LGX01-2761-B |
CWDM MUX /DEMUX 8CH 16waves(RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box IL≤ 5.4dB |
|
CM18-LGX01-27S61-A |
CWDM MUX /DEMUX 8CH 16waves(RX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm/ TX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, IL≤ 3.0dB |
|
CD18-LGX01-27S61-B |
CWDM MUX /DEMUX 8CH 16waves(RX 1290，1330，1370，1410，1450，1490，1530，1570，1610nm/ TX 1270，1310，1350，1390，1430，1470，1510，1550，1590nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box, IL≤ 3.0dB |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note:We Support Customized Design, please contact us by email.
