Dual Fiber 18CH CWDM MUX DEMUX With Monitor Port

  • CWDM MUX DEMUX,Multiplexing up to 18 Channels on Fiber Pair
  • 1% Monitor Port for Signal Analyzing or Troubleshooting
  • Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
  • Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
  • Applied to Metro, Regional CWDM Networks

  • Product Detail

Dual Fiber18CH CWDM MUX DEMUX With Monitor Port,LC/UPC, 1U Rack



The 18ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1270nm to 1610nm, and it is passive CWDM device, support 18channels difference business in two optical fiber for point-to-point transmission.



It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

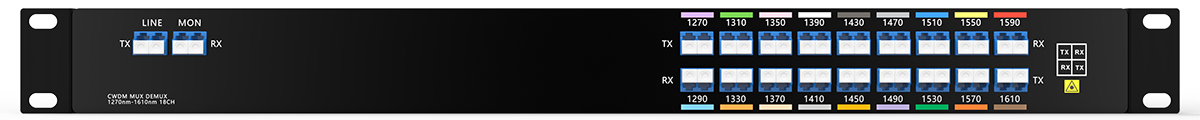

Product Panel

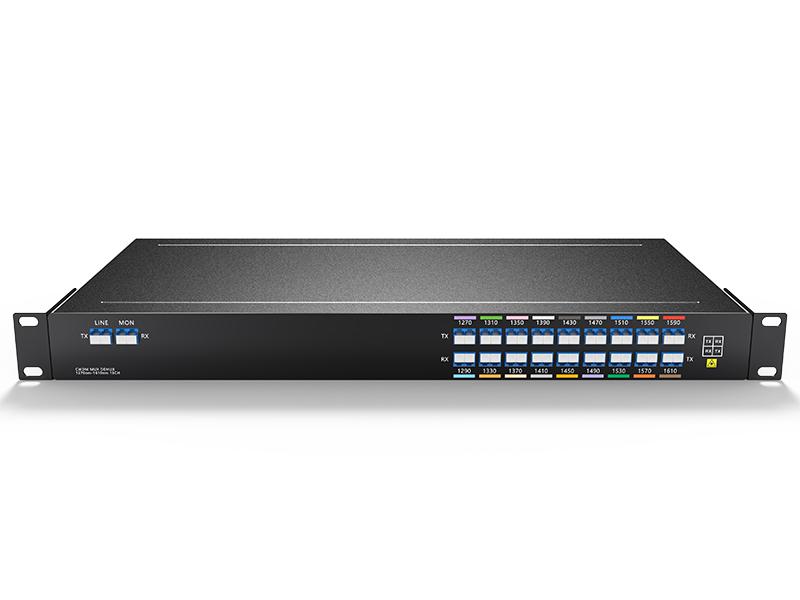

18CH CWDM MUX DEMUX Dual Fiber

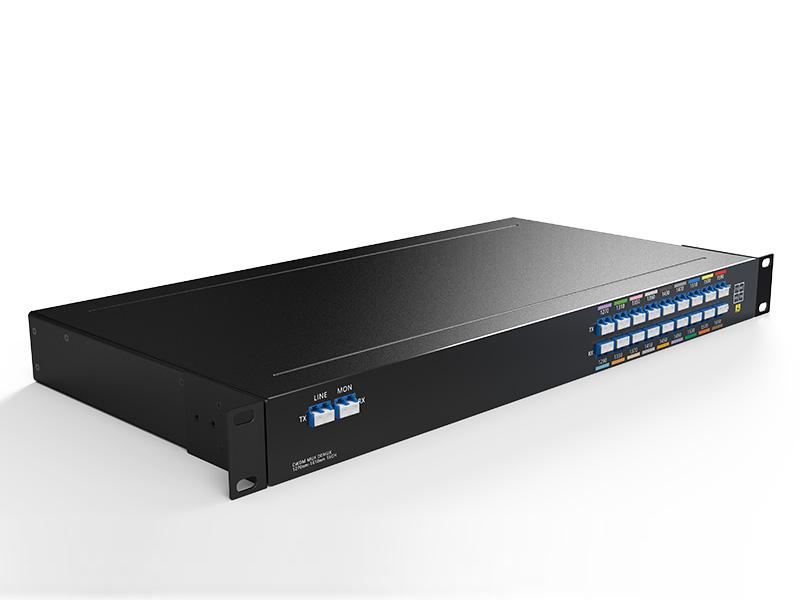

18CH CWDM MUX DEMUX Dual Fiber



Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.



Line Link

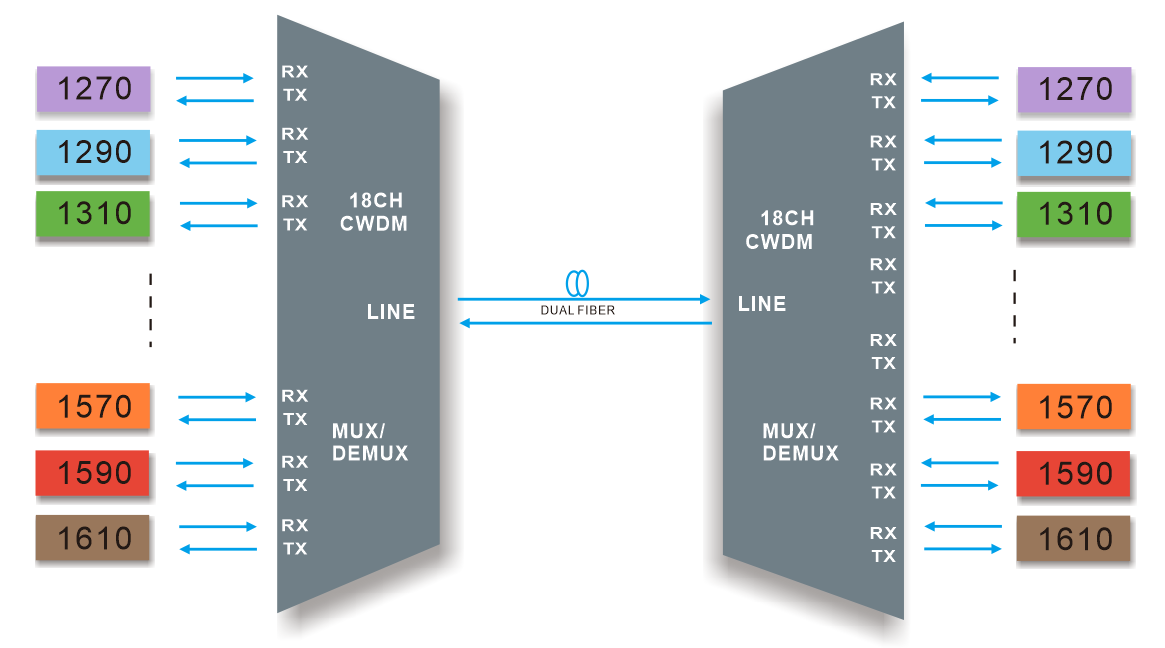

18CH CWDM MUX DEMUX Dual fiber transmission

18CH CWDM MUX DEMUX Dual fiber transmission



18 Channels CWDM MUX DEMUX,support 18 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.



Product Specification



Wavelength

18 channels 1270-1610nm

Channel Spacing

20nm

Channel Passband

±6.5nm

Technology

TFF (Thin Film Filter)

Insertion Loss

Regular :≤ 5.4dB

(With 8 Skip 0:≤3.0dB)

Link Loss

Regular :≤ 6.2dB

(With 8 Skip 0:≤4.0dB)

Insertion Loss @ 1% Mon

≤ 26dB

Center Wavelength

Accuracy

±0.05nm

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

1.5KG

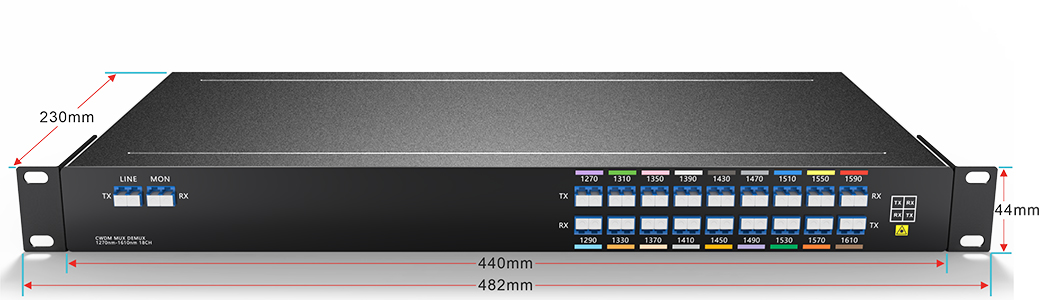

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information

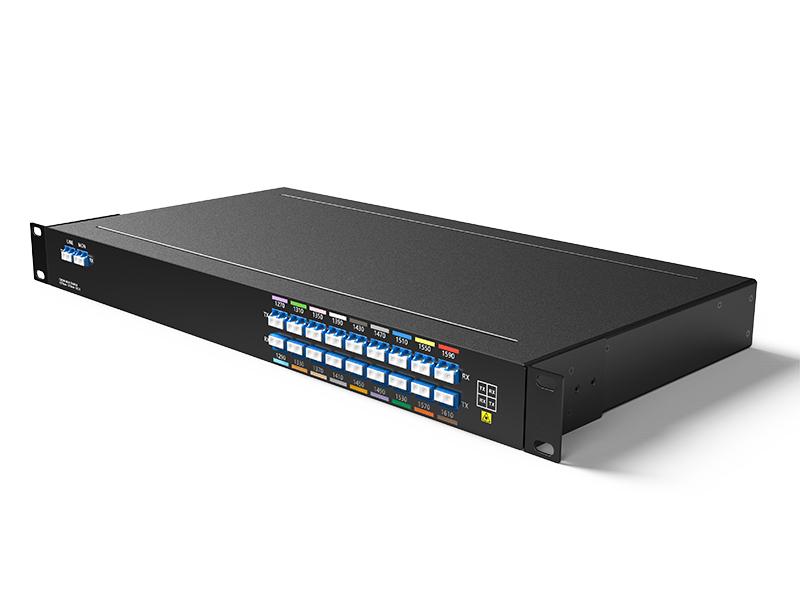

CWDM MUX DEMUX 19” Inch 1U Rack

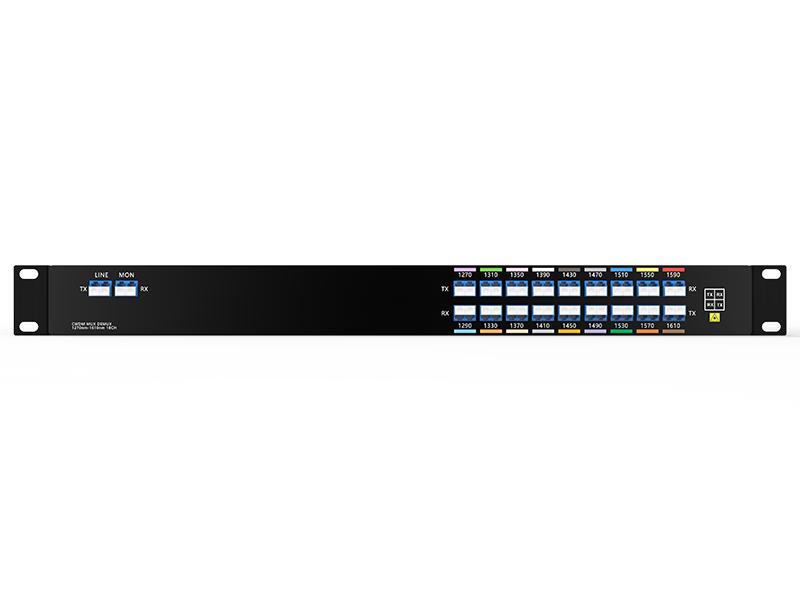

CWDM MUX DEMUX 19” Inch 1U Rack



Order Information



Product No.

Product description

CMD18-1U01-2761M

CWDM MUX DEMUX 18CH 1270nm~1610nm With Monitor Port, Dual fiber, LC/UPC , 1U Rack

CMDXX-1U01-XXXX

CWDM MUX DEMUX XXCH 1XX0nm~1XX0nm With Monitor Port, Dual fiber, LC/UPC , 1U Rack (Customized)

Note:We Support Customized Design, please contact us by email.
