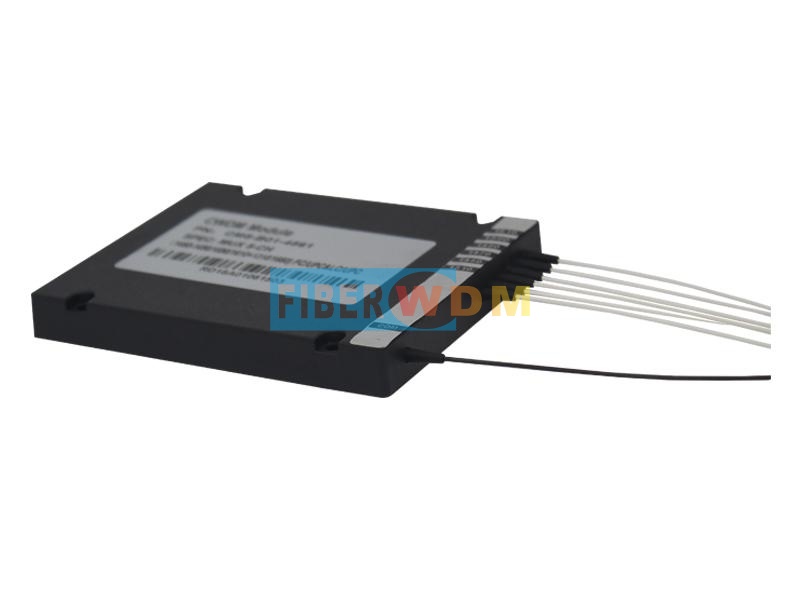

2~18CH CWDM MUX DEMUX ABS BOX MODULE

  • 2-18ch CWDM mux, Low Insertion Loss, High Isolation, Low PDL
  • Wide Operating Wavelength: 1270nm to 1620nm
  • Wide Operating Temperature: -20 to 70°C


  • Product Detail


2-18CH CWDM MUX DEMUX ABS BOX MODULE



CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels,and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.



Product specification


Channels

1x4

1x8

1x16

1x18

Insertion Loss

<1.5dB

<2.4dB

<4.8dB

<5.4dB



Wavelength Range

1270-1610nm

Technology

TFF (Thin Film Filter)

Channel Spacing

20nm

Passband Ripple

≤0.5dB

Channel Passband

ITU±6.5nm

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Polarization Dependent Loss

≤0.2dB

Polarization Mode Dispersion

≤0.1ps

Directivity

≥50dB

Return Loss

≥45dB

Optical Power

Handling

≤500mW

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Fiber Type

SMF-28e+

Connector

LC/SC/FC or other

Net Weight

0.25kg

Package dimensions

100*80*10mm

120*80*18mm

Or other

Notes:

1) FIBERWDM Support Customized Design, please contact us by email sales@fiberwdm.com

2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.



Package Information

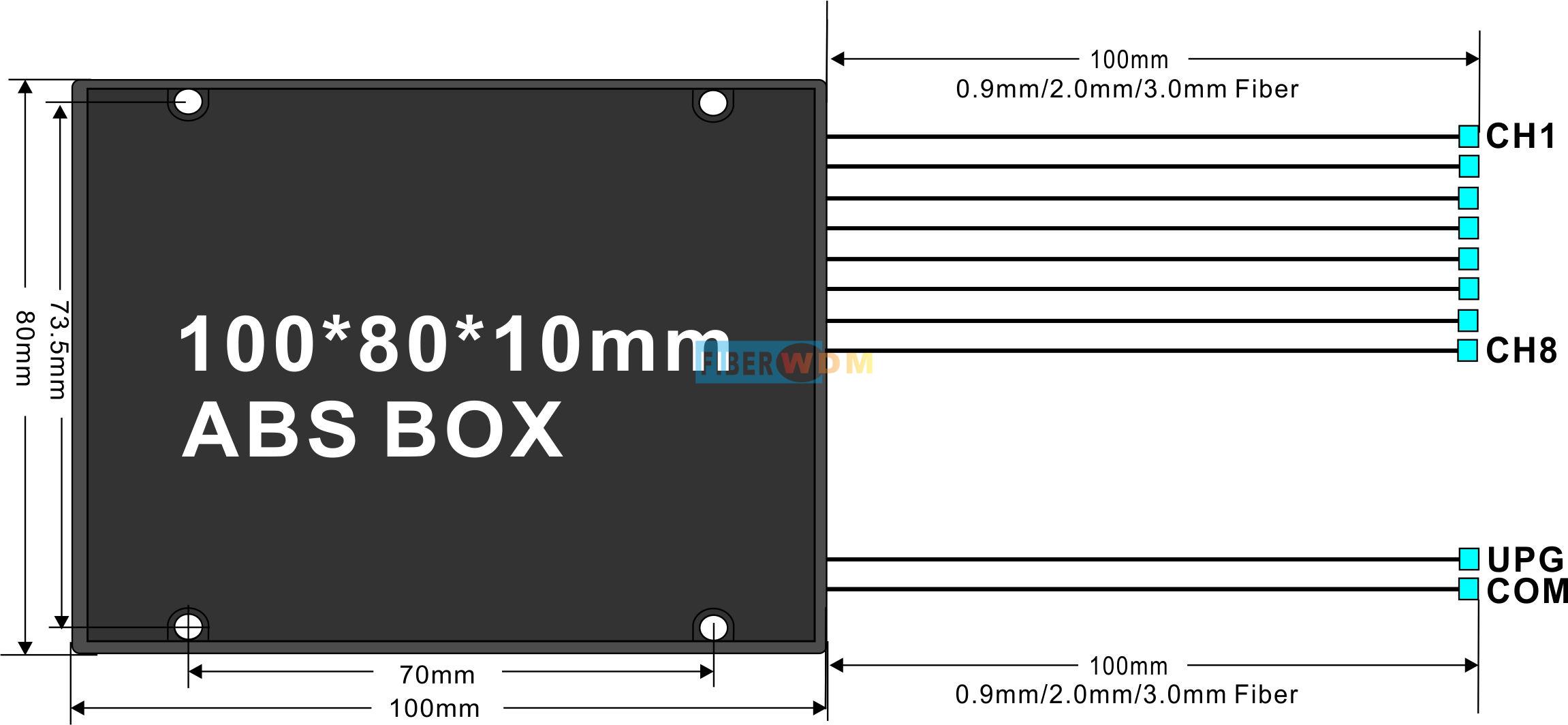

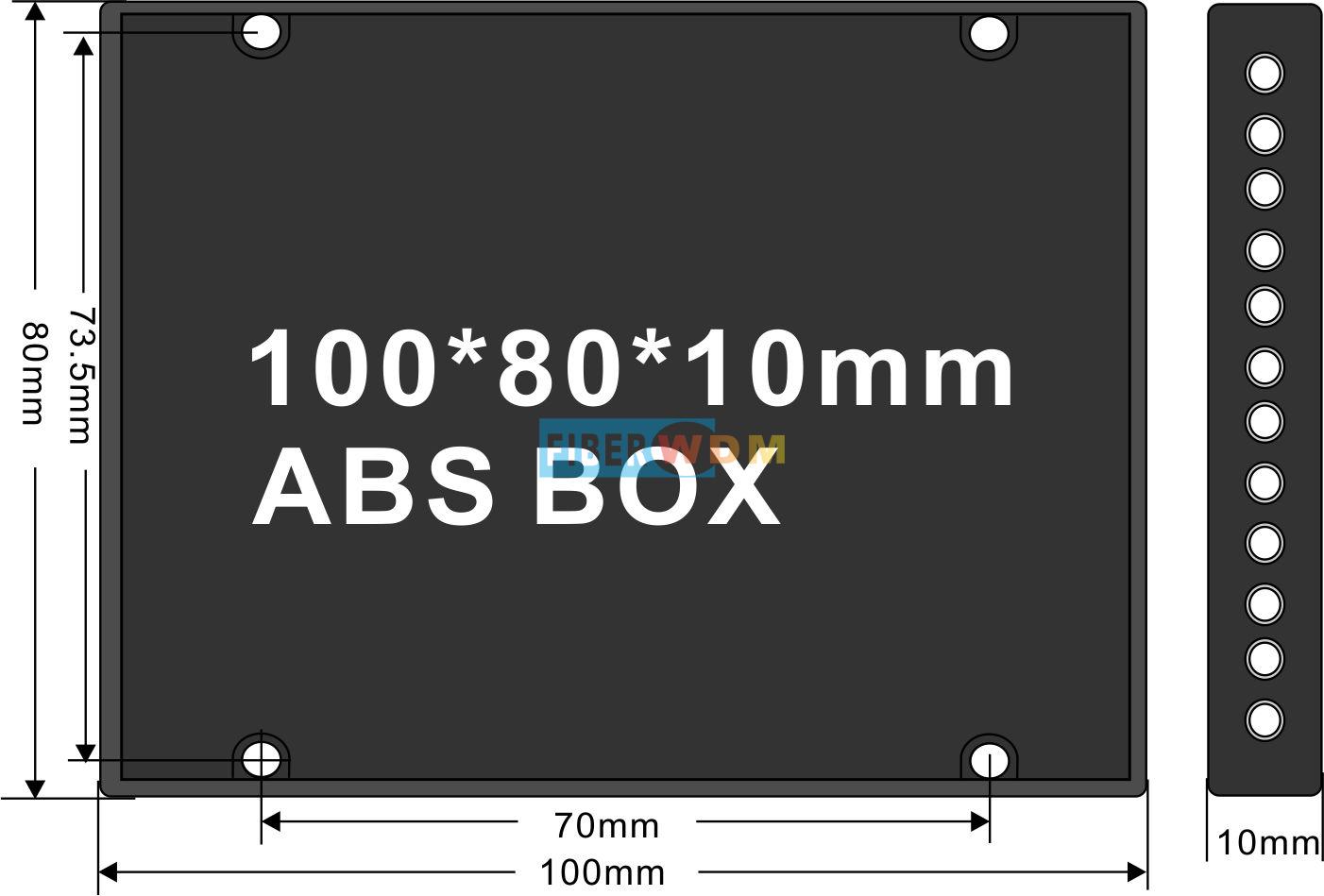

  ABS BOX 100*80*10mm

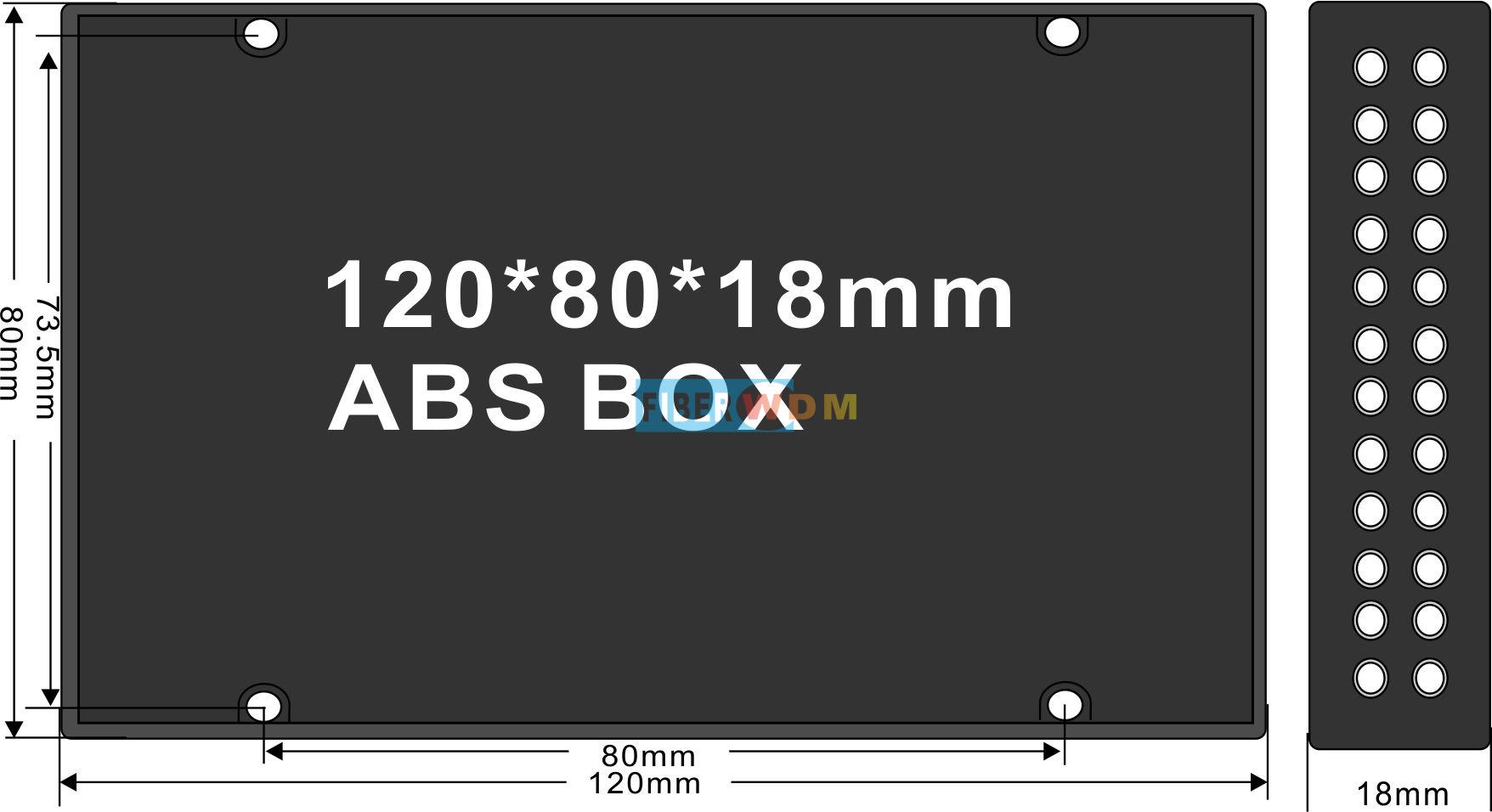

   ABS BOX 120*80*18mm


Fiber Type:





Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
