100G LR ER ZR Dual fiber to Single fiber Converter

Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber

Operation wave 1310nm( 40G/100G LWDM 4 or CWDM 4)

TX/RX LC Connector , LINE SC/APC

Passive device, Low Insertion Loss

  • Product Detail

100G LR ER ZR Dual fiber to Single fiber Converter




With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises. FIBERWDM provides 100G dual-port to single-port converter for bidirectional transmission of 100G LR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.



Dual fiber 100G transceiver in single fiber transmission application:

Dual fiber to single fiber Converter

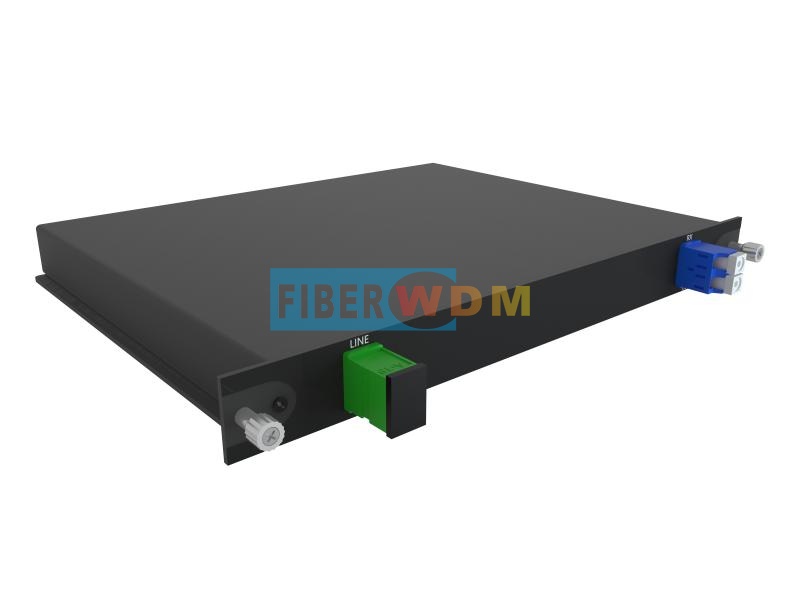

Product Panel






100G Dual fiber to single fiber Converter



Specifications



Wavelength

1310nm

Rate

40G/100G

Insertion Loss

≤ 1dB

Technology

TFF (Thin Film Filter)

Insertion Loss

≤ 2.7dB

Isolation

≥35dB

Polarization Dependent Loss

≤0.1ps

Return Loss

≥ 45dB

TDL (dB)

≤0.15dB

PMD (ps)

≤0.055nm

Return Loss

≥ 45dB

Directivity

≥ 45dB

Power handling

≤500mW

Fiber Type

SMF-28e

Connector

LC/UPC, SC/APC

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX BOX :0.5KG

4Slot 1u Rack: 2.5KG

Dimensions (HxWxD)

LGX BOX  214.5*150*20mm

4Slot 1u Rack 44*440*160mm



Package Information



Order Information



Product No.

Product description

100G-LGX04-D-S

100G LR ER ZR Dual fiber to Single fiber Converter,TX/RX Port LC/UPC, Line Port SC/APC, Plug-in LGX Module

1U02-4LGX

19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm

Note:We Support Customized Design, please contact us by email.
