Dual Fiber 8CH 1270-1450nm(skip 1390/1410nm) CWDM MUX DEMUX With Monitor and EXP , LC/UPC, Plug-in LGX Box

  • CWDM MUX DEMUX,Multiplexing up to 8 Channels on Fiber Pair
  • Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
  • Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
  • Applied to Metro, Regional CWDM Networks


  • Product Detail

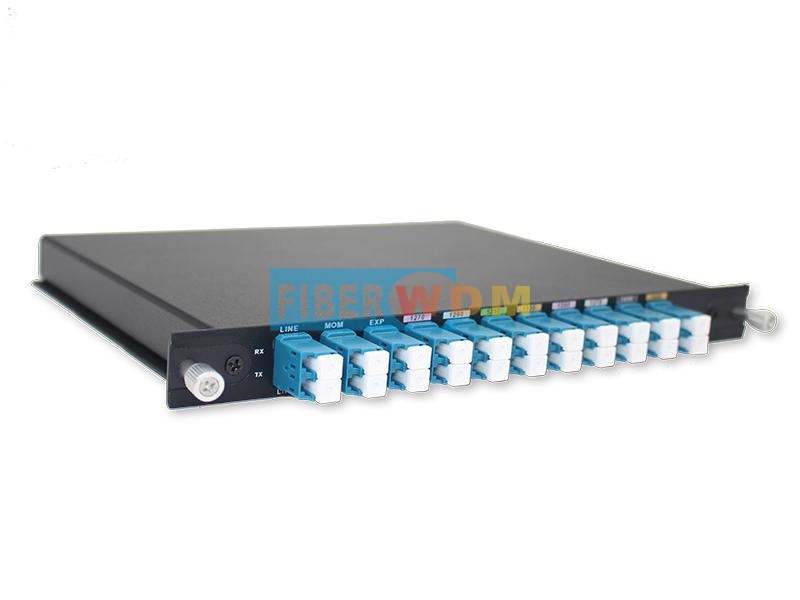

8 Channels 1270-1450nm (Skip 1390, 1410nm), with Monitor and Expansion Port, LC/UPC, Dual Fiber, High Density CWDM Mux Demux, LGX Box Plug-in Module



The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1270nm to 1450nm (Skip 1390/1410nm), the package ishighdensity CWDM Mux Demux,dual fiber,LC/UPC connectors, LGX box Plug-in Module, can plug in 4slot 1u rack.



It support 8channels difference business in two optical fiber for point-to-point transmission.So great worked in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

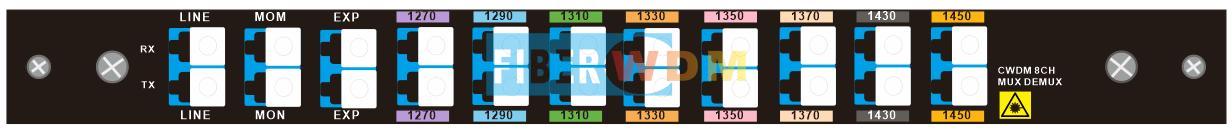

Product Panel

 8CH CWDM MUX DEMUX Dual Fiber

8CH CWDM MUX DEMUX Dual Fiber



Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

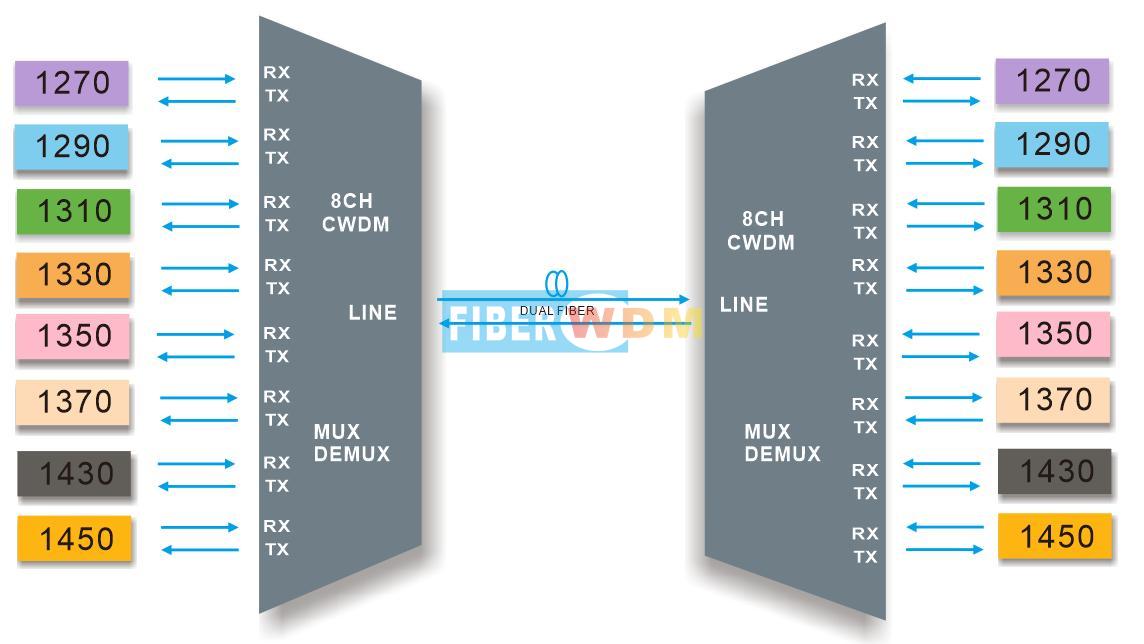

Line Link

 8CH CWDM MUX DEMUX Dual Fiber

8CH CWDM MUX DEMUXDual fiber transmission

    8 Channels CWDM MUX DEMUX,support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.


Product Specification



Wavelength


8 channels 1270-1450nm

(Skip 1390/1410nm)


Channel Spacing

20nm

Channel Passband

±6.5nm

Technology

TFF (Thin Film Filter)

Insertion Loss

Regular :≤ 2.4dB

Link Loss

≤ 2.4dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

LGX BOX  0.5KG

4Slot 1u Rack 3.5KG

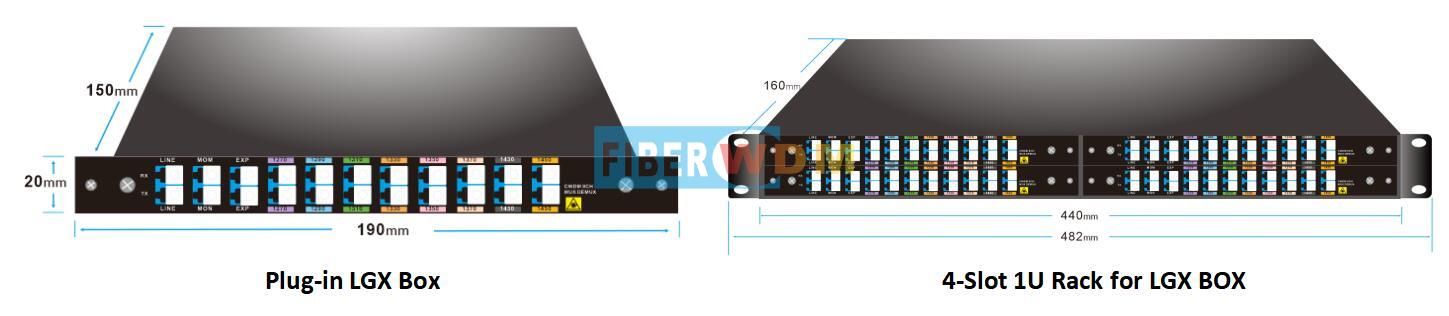

Dimensions (HxWxD)

LGX BOX  190*150*20mm

2Slot 1u Rack 44*440*160mm

Note: Specified with connectors.



Package Information



Order Information



Product No.

Product description

CMD8-LGX01-27S45M

CWDM MUX DEMUX 8CH (1270nm~1450nm)(Skip 1390/1410nm)with Monitor and EXP Port, Dual fiber, LC/UPC , Plug-in LGX Box

1U02-4LGX

19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm

Note:We Support Customized Design, please contact us by email.
