Dual Fiber 8CH 1470nm~1610nm CWDM MUX DEMUX With 1310nm and Monitor Port

  • CWDM MUX DEMUX,Multiplexing up to 8 Channels on Dual Fiber
  • Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
  • Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
  • Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
  • Applied to Metro, Regional CWDM Networks
  • Product Detail


Dual Fiber8CH 1470nm~1610nm CWDM MUX DEMUX With 1310nm and Monitor Port,LC/UPC, 1U Rack



The 8ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1470nm to 1610nm and with 1310nm port, and it is passive CWDM device, support 9 channels difference business in two optical fiber for point-to-point transmission.



It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

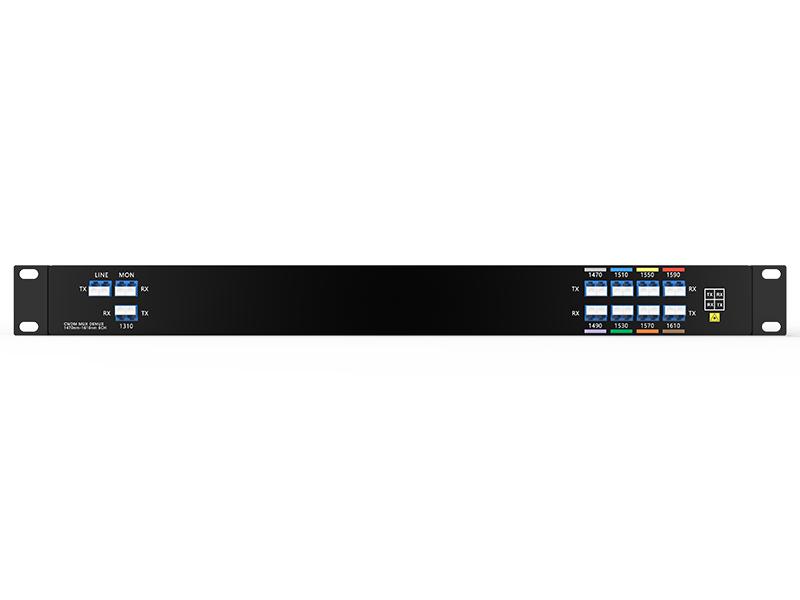

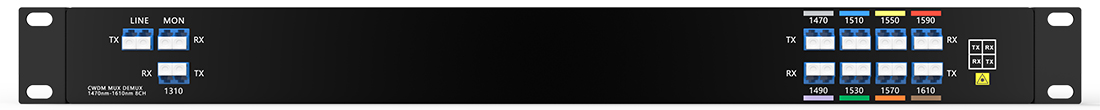

Product Panel


8CH CWDM MUX DEMUX Dual Fiber

8CH CWDM MUX DEMUX Dual Fiber




  • 1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forexisting legacy traffic.
  • Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

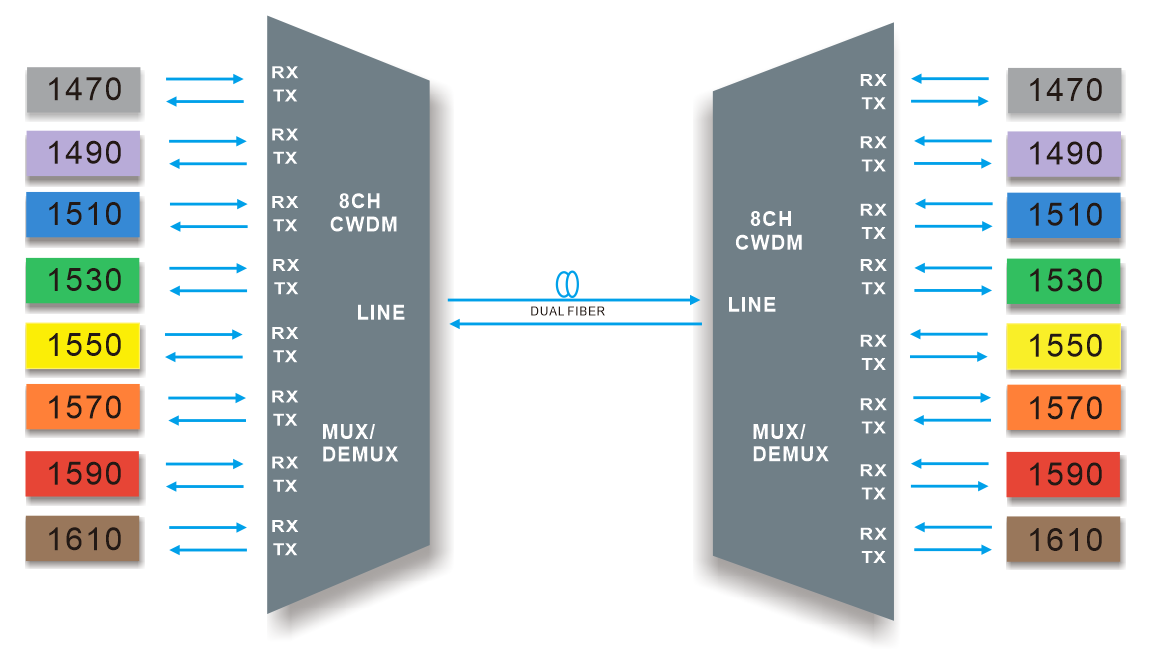

Line Link

  8CH CWDMMUX DEMUX Dual fiber transmission

 8CH CWDM MUX DEMUX Dual fiber transmission



8 Channels CWDM MUX DEMUX,support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.



Product Specification



Wavelength

8 channels 1470-1610nm

Channel Spacing

20nm

Channel Passband

±6.5nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤ 2.7dB

Link Loss

≤3.0dB

1310nm Port Pass Band Width

1260nm~1360nm

Insertion Loss @ 1310 port

≤0.8dB

Insertion Loss @ 1% Mon

≤ 26dB

Center Wavelength Accuracy

±0.05nm

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

1.5KG

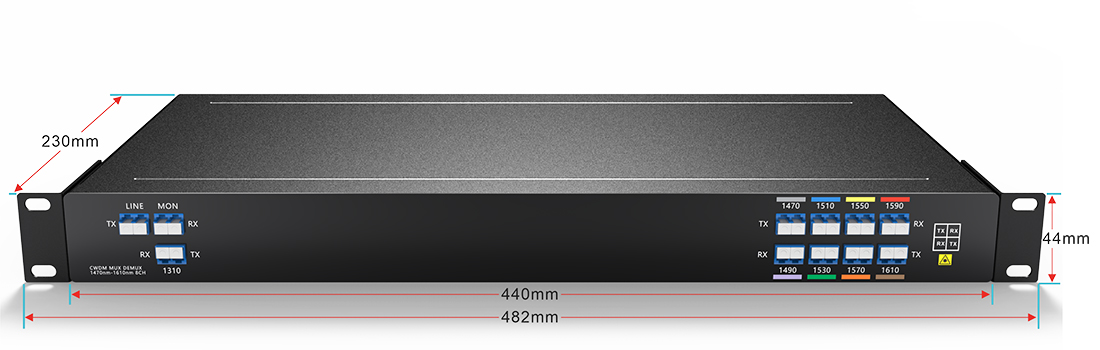

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information




 8CH CWDM MUX DEMUX 19” Inch 1U Rack



Order Information



Product No.

Product description

CMD8-1U01-4761-31M

CWDM MUX DEMUX 8CH 1470nm~1610nm With 1310nm and Monitor Port, Dual fiber, LC/UPC , 1U Rack

CMD8-1U01-XXXX

CWDM MUX DEMUX 8CH 1XX0nm~1XX0nm , Dual fiber, LC/UPC , 1U Rack (Customized)

Note:We Support Customized Design, please contact us by email.
