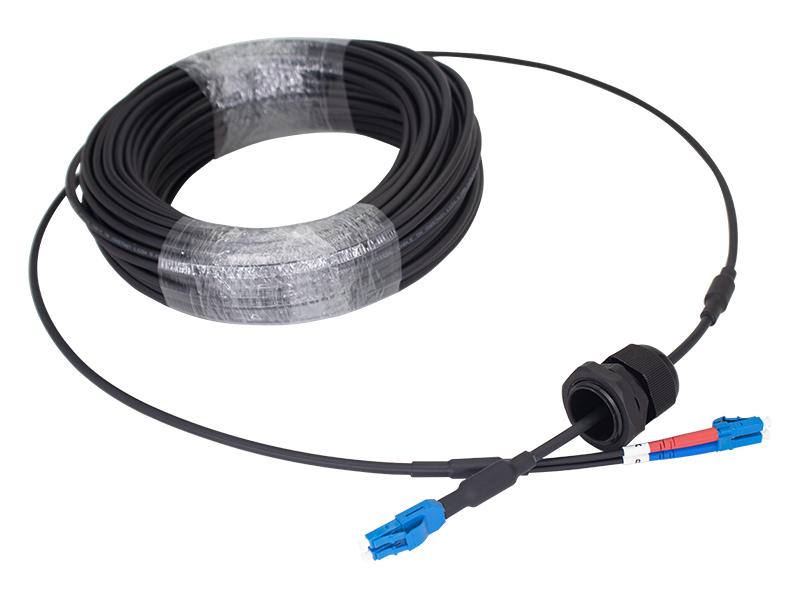

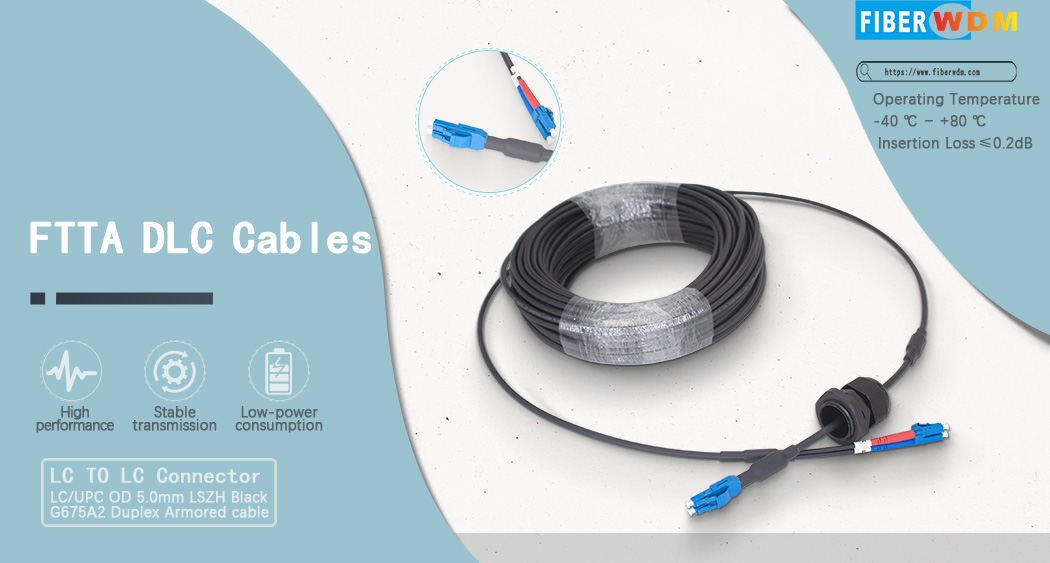

No.

Element

Qty/Unit

Requirements

1

Connector

2 Pcs

LC/UPC Dulpex SM 2.0mm Connector

2

Break Out Cable (A)

2 Pcs

OD 2.0mm Black simplex cable tube

3

Hot shrink sleeve

1 Pcs

adhensive hot shrink sleeve

4

Cable

1Pcs

OD 5.0mm LSZH Black G675A2 Duplex Armored cable

5

Hot shrink sleeve

1 Pcs

adhensive hot shrink sleeve

6

Break Out Cable (B)

2Pcs

OD 2.0mm Black simplex cable tube

7

Connector

2Pcs

LC/UPC Dulpex SM 2.0mm Connector

8

Identifier

2 Pcs

A/B White Identifier

9

Identifier

2 Pcs

A/B White Identifier

Fiber Chart crossed

From side A

From side B

A

B

B

A

#

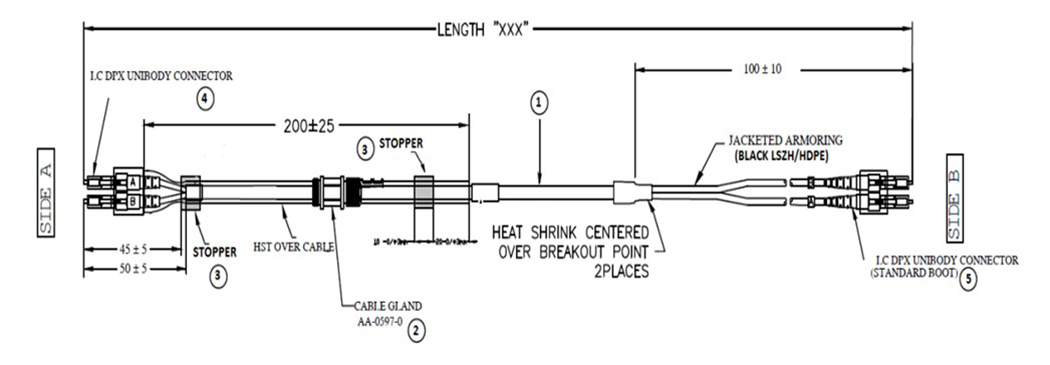

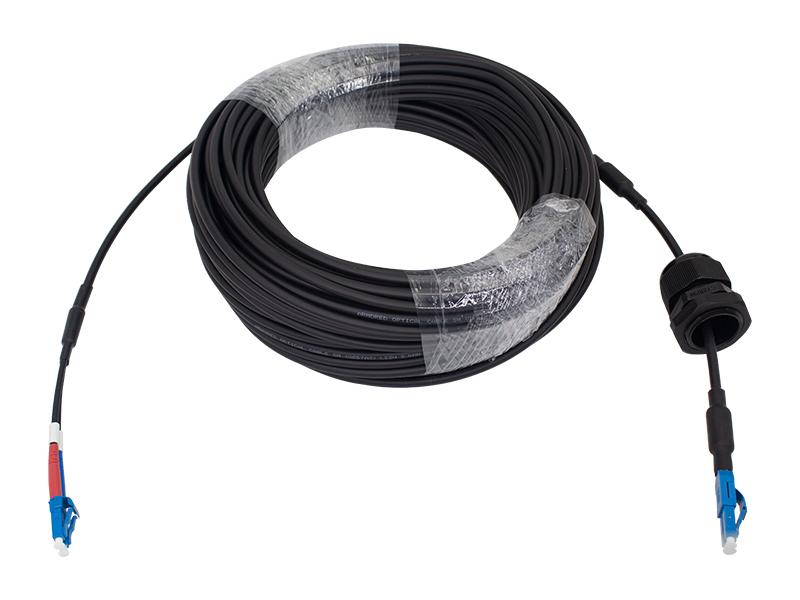

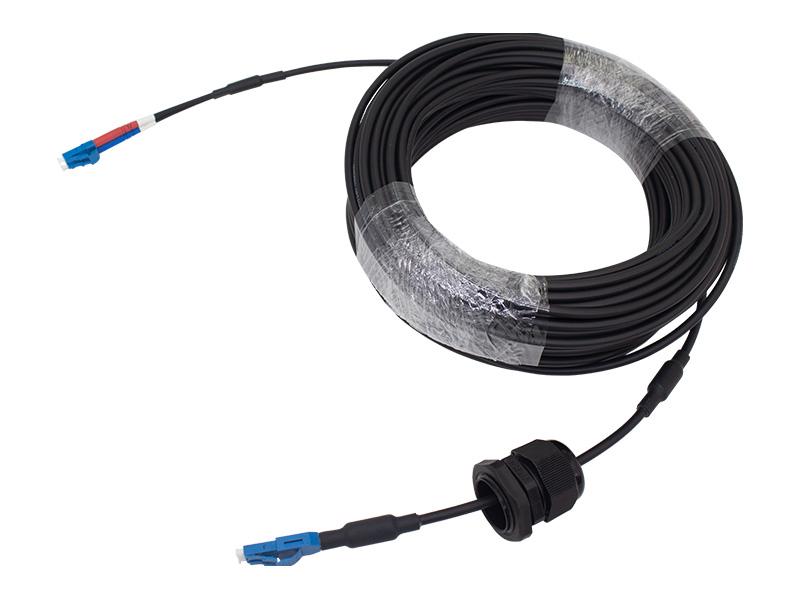

Item Description

QTY

1

Flexible armored cable

1

2

Gland (Ceragon p/n AA-0597-0)

1

3

Stopper. OD- 11.5±0.3mm

2

4

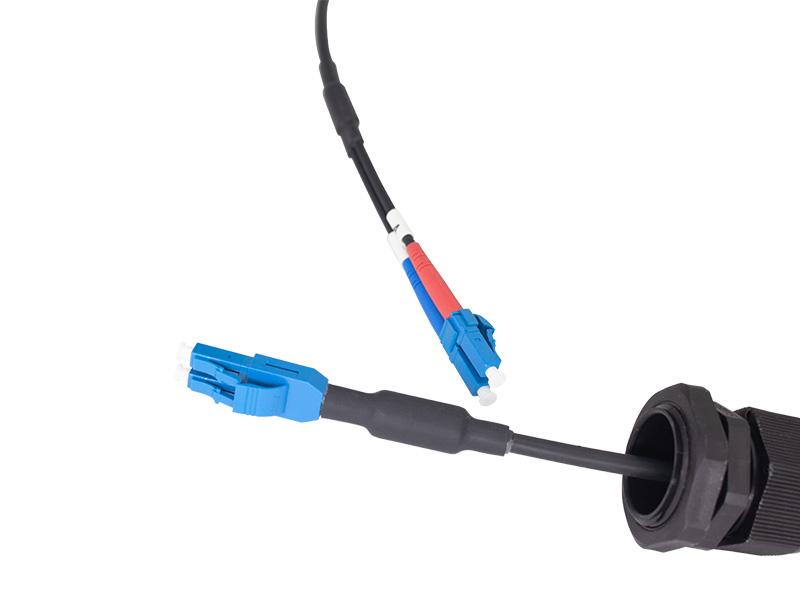

Micro LC Duplex Unibody connector - gland side

1

5

Standard LC Duplex Unibody connector - non-gland side

1

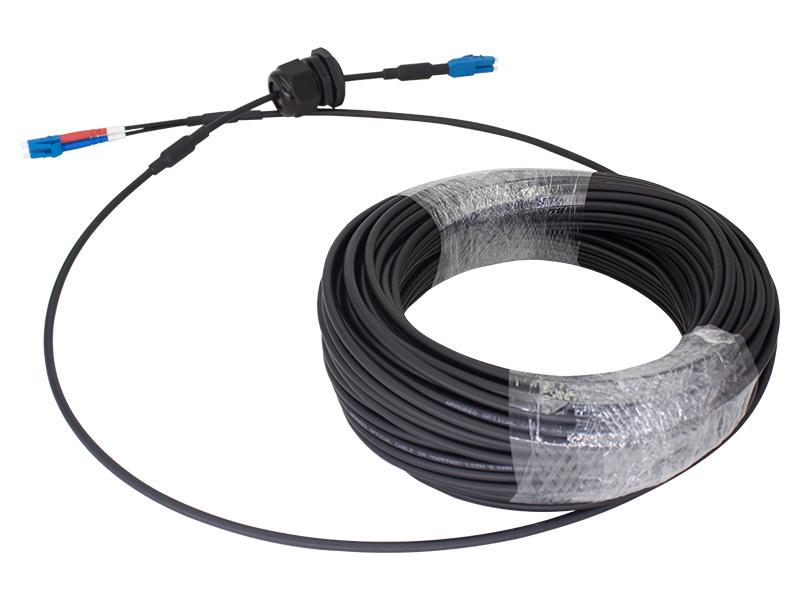

Technical Parameters:

Out Diameter

Weight

(MM)

(MM)

(KG)/KM

short term

long term

short term

long term

short term

long term

（℃）

5.0±0.2

0.9

40.00

1200

500

2000

1000

20D

10D

-20+75

Item

Parameter

Fiber Type

9/125 um

Core Diameter

9 um

Core Non-Circularity

≤1.0 %

Cladding Diameter

125.0±0.7um

Cladding Non-Circularity

≤0.7 %

Coating Diameter

245±5 um

Coating-Cladding Concentricity Error

≤12.0um

Coating Non-Circularity

≤6.0um

Core-Cladding Concentricity Error

≤0.5um

Attenuation @1310nm

≤0.35dB/km

Attenuation @1550nm

≤0.21dB/km

PMD

≤0.1[ps／km]

Mode field diameter (MFD)@1310nm

8.4-9.2um

Mode field diameter (MFD)@1550nm

9.3-10.3um

Effective group index of refraction (Neff)@1310nm

1.466

Effective group index of refraction (Neff)@1550nm

1.467

Point discontinuities@1310nm

≤0.5db

Point discontinuities@1550nm

≤0.5db

Macro-bend induced attenuation

10 turns around a mandrel of 15 mm radius@1550nm

≤0.03db

1 turns around a mandrel of 10mm radius@1550nm

≤0.1db

1 turns around a mandrel of7.5 mm radius@1550nm

≤0.2db

Item

Parameter

Connector Type

LC/UPC-LC/UPC

Insertion Loss

≤0.2dB

Return Loss

≤50dB

Fiber Mode

SM/G657A2

Operating Wave Length

1310nm, 1550nm

Test Wave Length

1310nm, 1550nm

Repeatably

≤0.1

Interchangeability

≤0.2dB

Durability

≤0.2dB

Fiber Length

1m, 2m…any length optional.

Tolerance

+100nm / -0mm @ L=1~10m

+200nm / -0mm @ L=10~50m

+500nm / -0mm @ L＞50m

Operating Temperature

-40℃~ +80℃

Storage Temperature

-40℃~ +60℃

Installation Temperature

-20℃~ +60℃

Item

Parameter

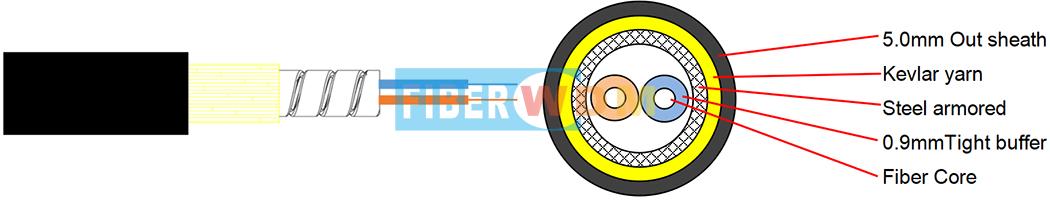

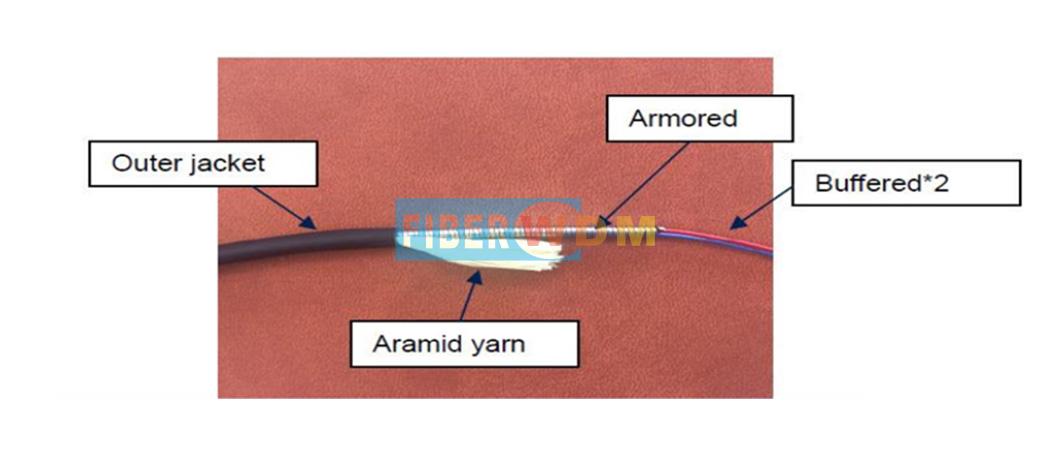

Cable Core

2

Diameter

5.0mm Armored (outside with LSZH)

0.9mm tight buffer

Weight

40g/M

Tensile Strength

1000N (short term)

500N (long term)

Crush Load

2000N/100mm (short term)

1000N/100mm (long term)

Bending Radius

20D mm（Static）

10D mm（Dynamic）
