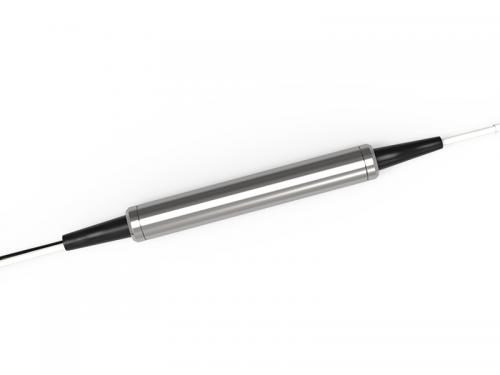

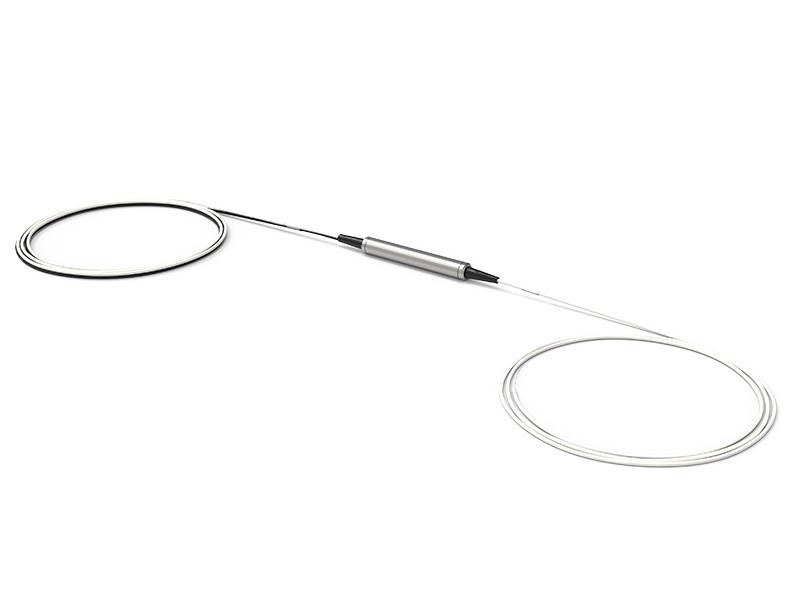

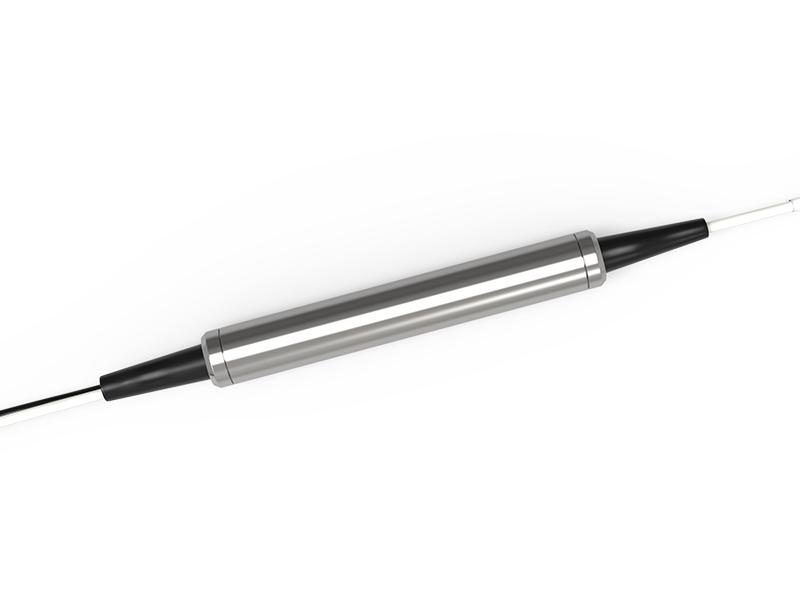

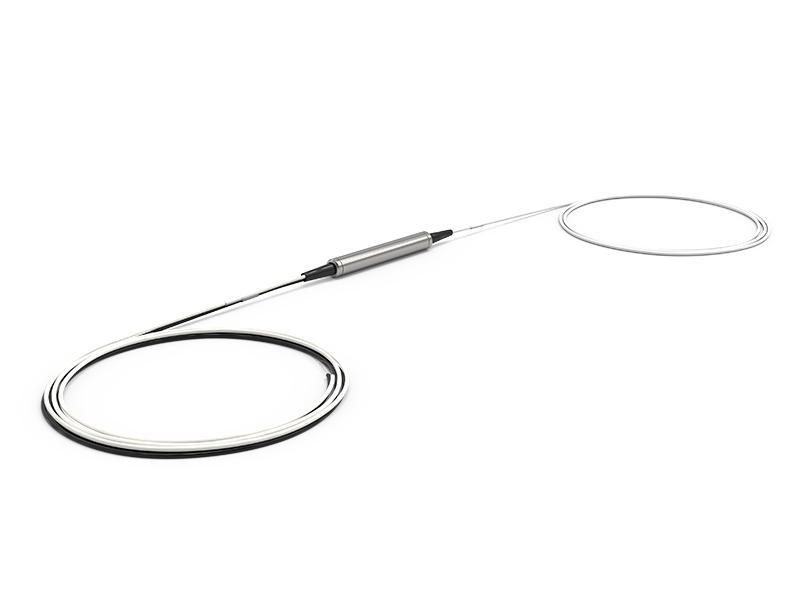

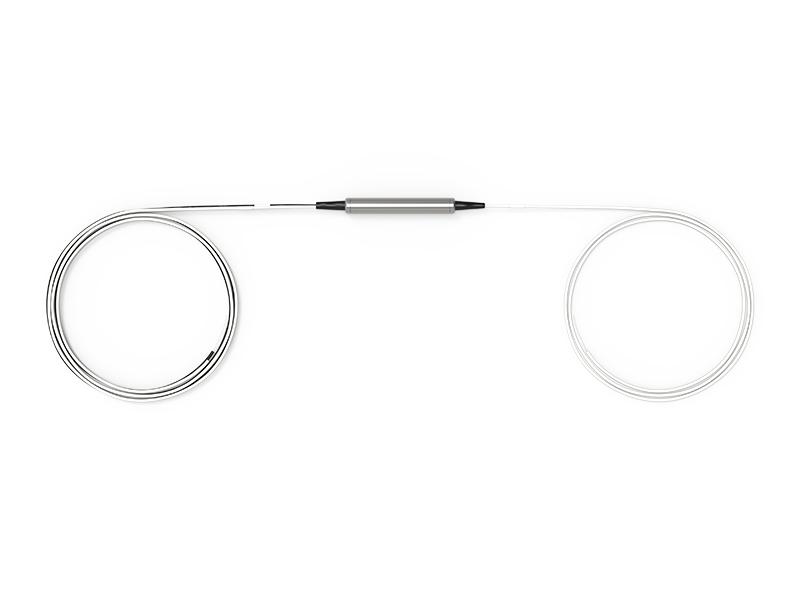

3port 100GHz High Power DWDM C-BAND ITU Component

Feature

• Low Insertion loss
• Wide Pass Band
• High Channel Isolation
• High Stability and Reliability
• Epoxy Free Optical Path

Application

• WDM Network
• Telecommunication
• Metro Network
• Access System

arameter

DWDM Device

Operating Wavelength

C-band

Insertion Loss

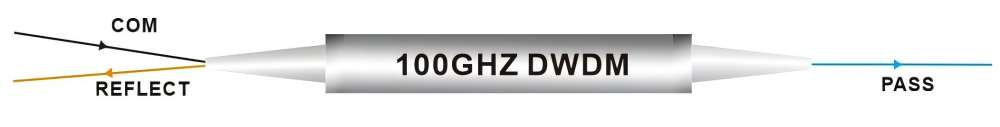

Pass port

≤1.5dB

Reflect port

≤0.8dB

Isolation

Pass port

≥ 25dB

Reflect port

≥ 12dB

Optical Return Loss

≥ 40dB

Optical Power Handling

≥ 5W

Operating Temperature

-40 to +80℃

Storage Temperature

-40 to +85℃

Fiber Type/length

G657 A1, bare fiber, 1+/-0.1m

Connector Type

None

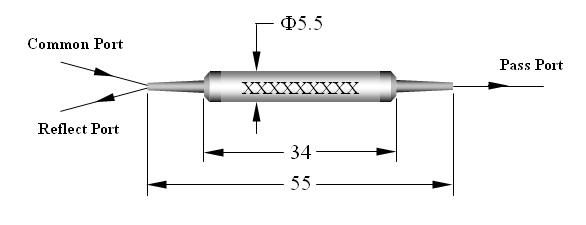

Packaging Dimension

 Φ5.5 x 35mm (for bare fiber)

RD-HPD

- Package

-Connector Type

U/A

-Channel Plan

-Fiber Type

-Fiber Length

S: Steel

0: No connector

U: UPC

C: C-BAND

25: 250um Fiber

005: 0.5+/-0.1m

G:Glass

1: LC

A: APC

C21

90: 900um Fiber

01: 1.0+/-0.1m

2: SC

C22

others

3: FC

...

4: Others
