DWDM R B filter DWDM ITU Component

  • DWDM R B Filter, DWDM C-Band.
  • Low insertion loss
  • High channel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability
  • Product Detail

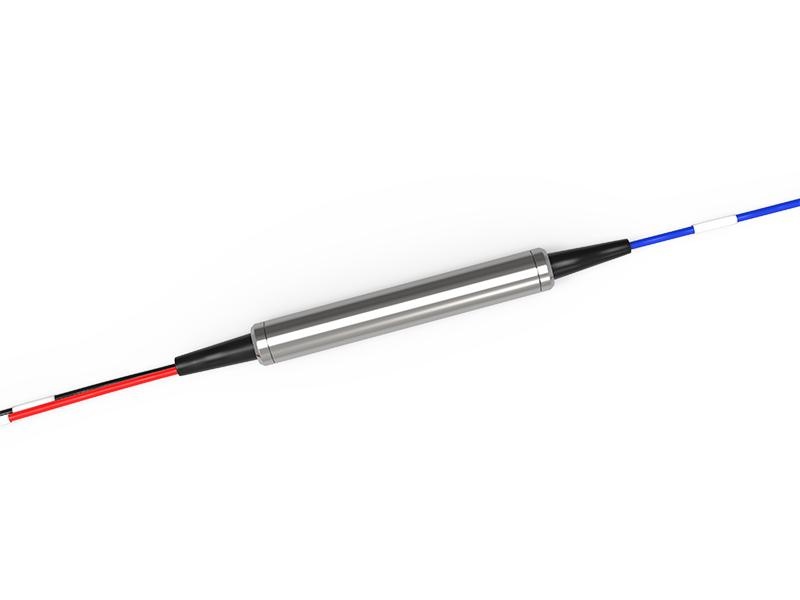

DWDM R B filter, Red and Blue band Component



FIBERWDM 1x2 DWDM Red/Blue Band Filter is a passive micro optics component based on environmentally stable thin film filter technology. It is mainly used to separate or combine Red band wavelength signals and Blue band wavelength signals in C Band, in single fiber Bi-directional DWDM systems and high power amplification system. The components are characterized with wide passband, low insertion loss, high return loss, excellent environmental stability and high power handling capability.


FIBERWDM provides customized band filters and connectors to meet special control and applications. The filter units are available with steel tubes, 2-slot 1U rack mounts, Pluggable Module, or ABS boxes.



 DWDM R B filter

R/B Type A



DWDM R B filter

R/B Type B



Specifications


Operation waves

RED 1562.23~1546.92nm BLUE 1543.73~1528.77nm

Technology

TFF (Thin Film Filter)

IL@ Pass Band

≤0.6dB

IL@Reflect Band

≤0.8dB

Isolation @ Pass Band

≥30dB

Isolation @ Reflect Band

≥15dB

Directivity

≥50

Return Loss

≥50

Polarization dependent loss

≤0.1dB

Polarization mode dispersion

≤0.1ps

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≥500

Temperature

Operating:-40 to +85℃

Storage:-40 to +85℃

Fiber type

SMF-28e

Package dimension

f∮5.5 xL34mm

*. All the specifications are based on the devices without connector

**.Specifications are subject to change without notice.



Dimensions drawing(mm)



 DWDM R B filter

Order information


RD-

- Package

-Connector Type

U/A

-RB

-Fiber Type

-Fiber Length

-A/B



S: Steel

0: No connector

U: UPC



25: 250um Fiber

005: 0.5+/-0.1m

A: A Type



G:Glass

1: LC

A: APC



90: 900um Fiber

01: 1.0+/-0.1m

B: A Type



others

2: SC





others

others







3: FC















4: Others
