Fiber Patch Cord
Fiber Patch Cord

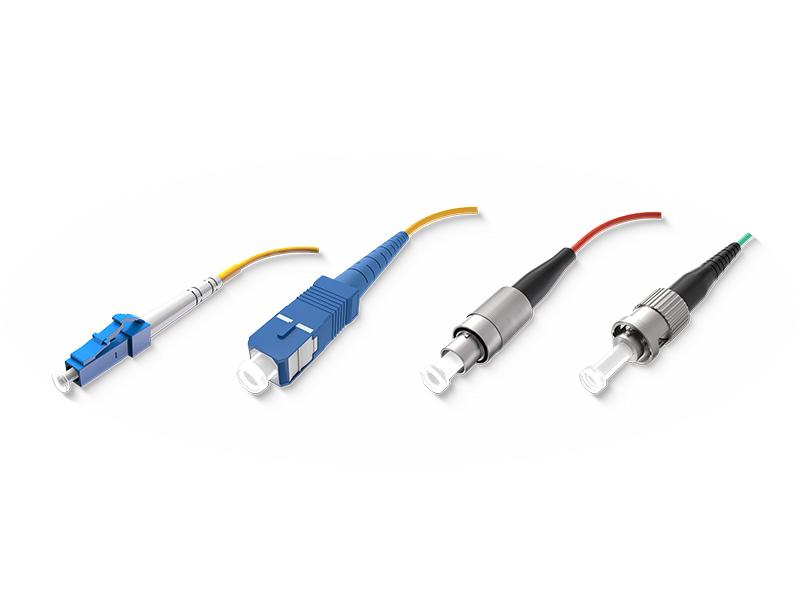

Optical Fiber Patch Cord


  • High dense space
  • Ceramic ferrules connector
  • Low insertion loss
  • High return loss
  • Excellent mechanical endurance
  • High credibility and stability



Inquire now
  • Product Detail

Optical Fiber Patch Cord


Features


  • High dense space
  • Ceramic ferrules connector
  • Low insertion loss
  • High return loss
  • Excellent mechanical endurance
  • High credibility and stability


Applications


  • Telecommunication
  • CATV, FTTH, LAN
  • Fiber sensor
  • Optical transmission system
  • Test equipment




Performance Specifications



Parameter

FC, SC, LC

ST, MU

MTRJ

SM

MM

SM

MM

SM

MM

UPC

APC

UPC

UPC

UPC

UPC

UPC

Operating Wavelength (nm)

 1310/1550

850/1300

1310/1550

850/1300

1310/1550

850/1300

Diameter

0.9mm, 2.0mm, 3.0mm

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

≥ 60

≥ 35

≥ 50

≥ 35

≥ 50

≥ 35

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Plug Times (times)

≥ 1000

Tensil Strength (N)

≥ 100

Durability (dB)

≤ 0.2

Fiber

Corning SMF-28E

Operating Temperature (℃)

-40 ~ +75

Storage Temperature (℃)

-40 ~ +85
