40CH DWDM MUX DEMUX Card

  • IL<3.5dB , 100GHZ DWDM AAWG Technology
  • Multiplexing of 40 Channels over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Support Metro, Regional and Long Haul DWDM Networks

  • Product Detail

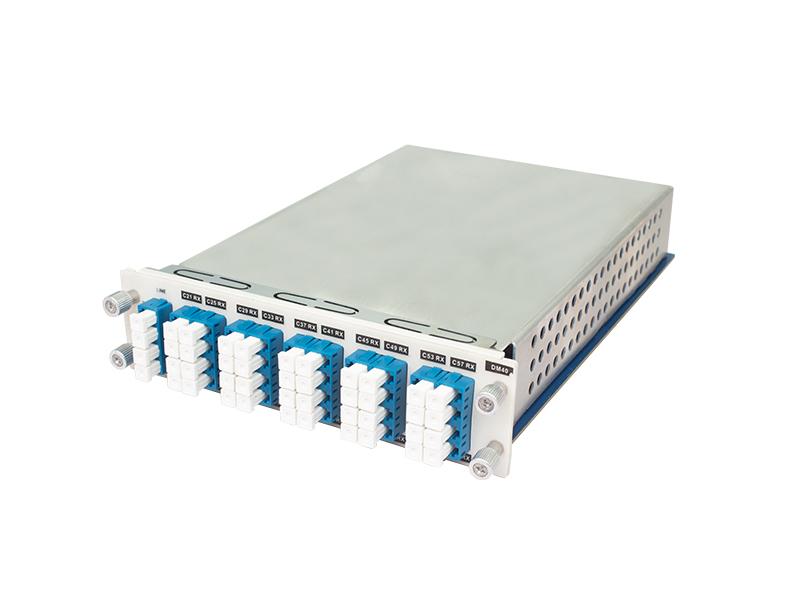

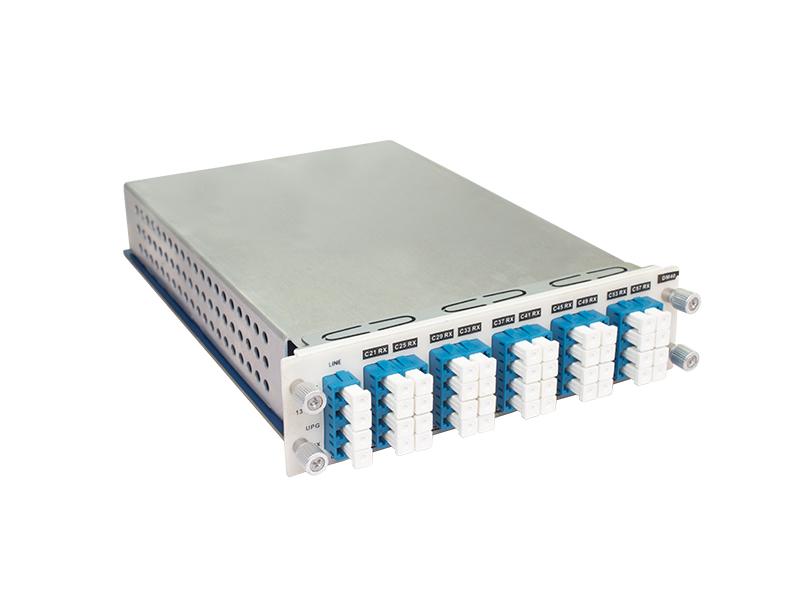

40CH DWDM MUX DEMUX Card



40CH DWDM MUX / DEMUX Card launched by FIBEERWDM, is mainly used in the DWDM system to complete 40 optical wavelength multiplexing and demultiplexing functions in the C-band range, which can multiplex different wavelengths of light into one. Multiple optical channels multiplexed on the same fiber are separated by wavelength on the fiber. It is based on waveguide grating technology on silicon substrates and features a unique heatless package design for precise channel coupling, low insertion loss, high channel isolation and high stability for 40- or 80-wave high-capacity DWDM systems.

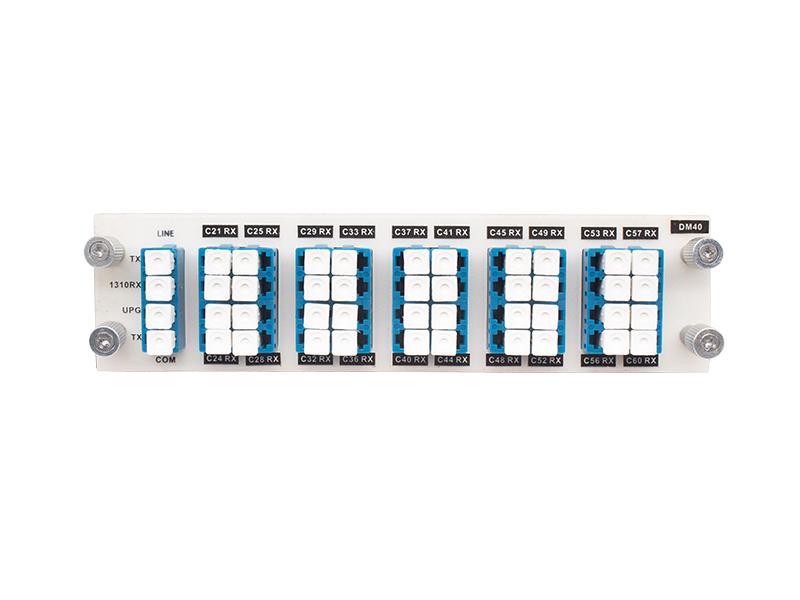

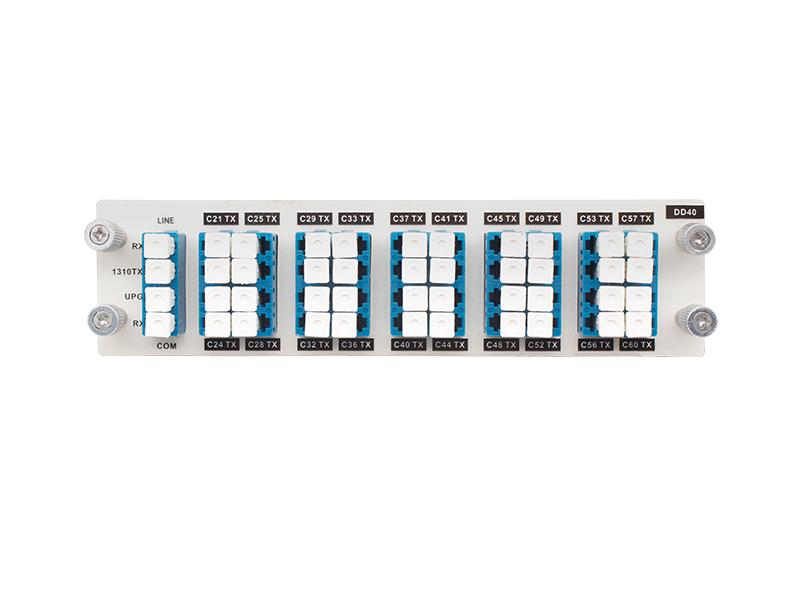

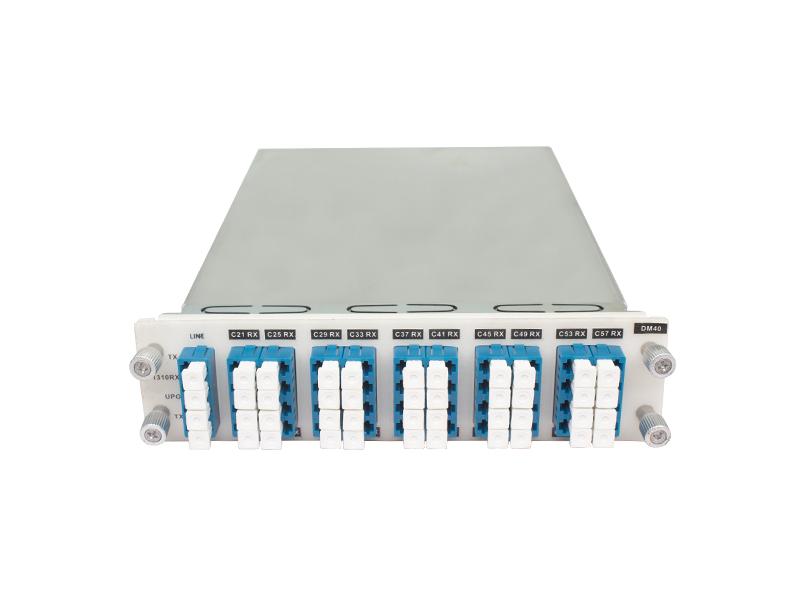

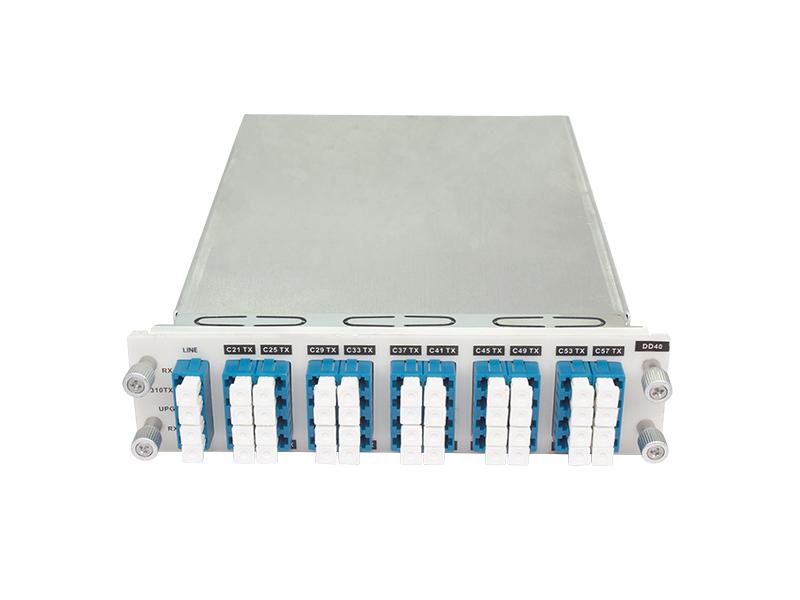

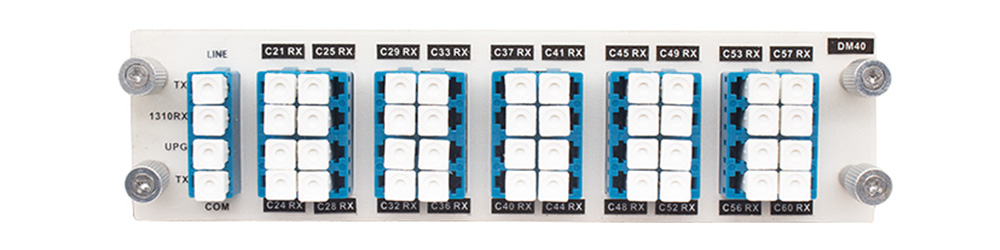

Product diagram



 40CH DWDM MUX DEMUX



Product specification



Function

Note

Optical channel number

40 channel, support C band (C_EVEN), (C_ODD)

Channel spacing

0.8nm (100GHz)

Channel frequency

±12.5 GHz

Wavelength accuracy

≤0.05nm

Channel insertion loss

≤5.5dB

-1dB bandwidth

≤0.34dB

-3dB bandwidth

≤0.51dB

Adjacent channel isolation ratio

≥25dB

Non-adjacent channel isolation ratio

≥30dB

Total isolation

≥23dB

Flatness

≤1.5dB

Return loss

≥45dB

Directivity

≥50dB

Occupied slot number

Support OTN1000 series chassis, occupy 2 slot

Optical interface

LC/UPC

Extend function

Support C band(C_EVEN)40 channel and(C_ODD)40 channel through Interleaver extend to 80 channel

Max power consumption

3W

MTBF

>100000 hours
