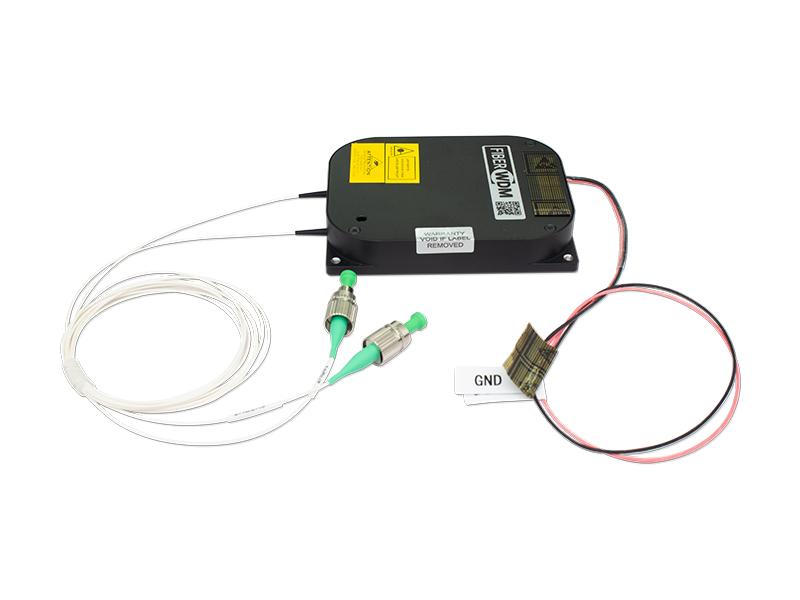

High-Power EDFA Fiber Amplifier 23dBm



RD-EDFA-M3-C1-N-23dBm-09SM-1m-FC/APC



The EDFA from Fiberwdm is a high-performance fiber amplifier designed for optical communication systems. It operates at a wavelength range of 1527-1565 nm, delivering an output optical power of up to 23 dBm with a noise figure of ≤5.5 dB and a return loss of ≥45 dB, ensuring efficient signal amplification. With an operating temperature range of -10℃ to +60℃, it is suitable for various environmental conditions. Equipped with an RS232 interface and multiple alarm functions, it facilitates easy monitoring and maintenance, making it an ideal choice for long-distance transmission and high-bandwidth applications.


Optical Specifications：

Parameter

Min

Typ.

Max

Unit

Operating Wavelength

1527

1550.12

1565

nm

Input Optical Power

 -15 -5 5

dBm

Output Optical Power

 13 23

23

dBm

Noise Figure@Pin=-5dBm，Pout=23dBm

 - - 5.5

dB

Polarization Correlation Gain

 - -

0.5

dB

Polarization Mode Dispersion

 - -

0.5

 ps

Input Return Loss

 45 - -

dB

Output Return Loss

 45 - -

dB

Operating Mode

APC、ACC


Working Environment：

Parameter Min Typ. Max Unit

Working Temperature

 -10

+25

+60

℃

Storage Temperature

 -40 - +80

℃

Relative Humidity

 0 - 90

%


Electrical Specifications：

Parameter Min Typ. Max Unit

Power Supply

+4.75

+5

+5.25

V

Power Consumption

 -

8

W


Connector Type：

Communication: RS232 26-pin pitch 2.0mm connector. PIN Assignment as below.

PIN

Designation

Symbol

Level

Description
1

VCC_3.3V

P

 -

3.3V power supply
2

VCC_3.3V

P

 -

3.3V power supply
3

GND

P

 -

Power ground
4

GND

P

 -

Power ground
5

NC

F

 -

Not connected
6

NC

F

 -

Not connected
7

NC

F

 -

Not connected
8

NC

F

 -

Not connected
9

Output_Alarm

O

LVTTL

Output power alarm
10

Input_Alarm

O

LVTTL

Input power alarm
11

PumpTem_Alarm

O

LVTTL

Pump temperature alarm
12

Pump_CurrentAlarm

O

LVTTL

Pump current alarm
13

NC

F

 -

Not connected
14

ModuleTem_Alarm

 O

LVTTL

Module temperature

alarm
15

NC

F

 -

Not connected
16

NC

F

 -

Not connected
17

NC

F

 -

Not connected
18

Reset

I

 -

External reset input
19

GND

P

 -

Power ground
20

GND

P

 -

Power ground
21

RXD

I

RS232

Serial data input
22

TXD

O

RS232

Serial data output
23

GND

P

 -

Power ground
24

GND

P

 -

Power ground
25

VCC_3.3V

P

 -

3.3V power supply
26

VCC_3.3V

P

 -

3.3V power supply

Note1: P: power supply; I: input; O: output; F: overhang.

Note2: Alarm message is available when all output alarm pins are low.

Note3: External reset input is active low.

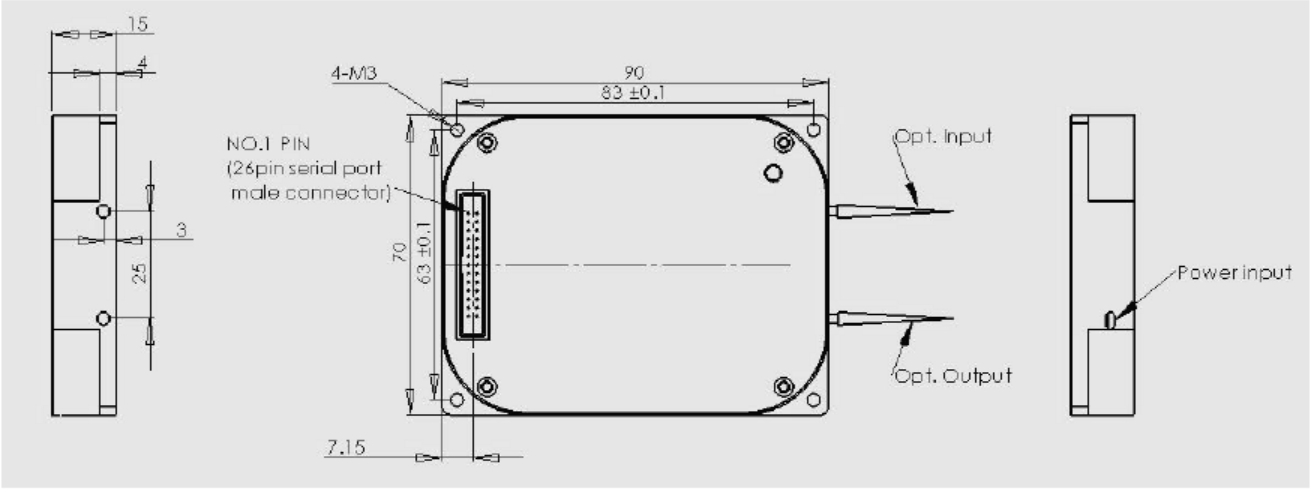

Mechanical Structure:

EDFA Optical Amplifier



Pigtail:

Items

Specifications

Fiber Color

White

Fiber Type

G657A 900mm tube

Pigtail Length

1000±10mm

Connector Type

FC/APC
