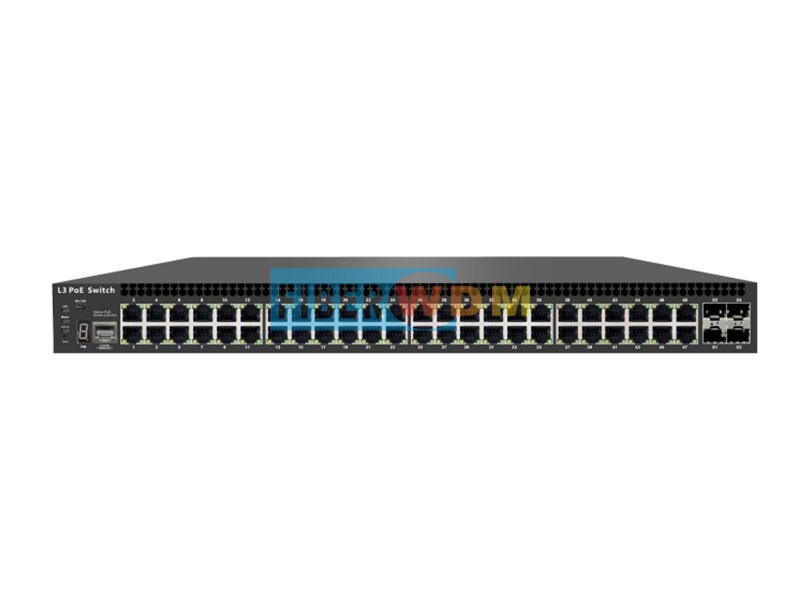

10 Gigabit Uplink Gigabit Managed POE Switch FW5700-48GP-4TF


48 * 10/100/1000Mbps RJ45 ports+4 * 10 Gigabit SFP+ports


FW5700-48GP-4TF is a three-layer management POE switch. 48 10/100/1000M adaptive ports and 4 10 Gigabit SFP+ports are provided to provide sufficient bandwidth for convergence and core data exchange. Users can select appropriate 10 Gigabit ports to flexibly meet network requirements. The product adopts a new generation of high-performance hardware and software platform, supports three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, is easy to manage and maintain, meets users' networking requirements for network equipment that is easy to manage, high security, and low-cost, and is suitable for campus, hotels, and enterprise campus network access, convergence, and core multiple application scenarios.



  • Product Detail


10 Gigabit Uplink Gigabit Managed POE Switch

FW5700-48GP-4TF







Product Features



48 * 10/100/1000Mbps RJ45 ports+4 * 10 Gigabit SFP+ports



FW5700-48GP-4TF is a three-layer management POE switch. 48 10/100/1000M adaptive ports and 4 10 Gigabit SFP+ports are provided to provide sufficient bandwidth for convergence and core data exchange. Users can select appropriate 10 Gigabit ports to flexibly meet network requirements. The product adopts a new generation of high-performance hardware and software platform, supports three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, is easy to manage and maintain, meets users' networking requirements for network equipment that is easy to manage, high security, and low-cost, and is suitable for campus, hotels, and enterprise campus network access, convergence, and core multiple application scenarios.




  • 6kv port lightning protection: the full port supports 6KV lightning protection, PSE short circuit protection, PoE overload, power over temperature protection, overvoltage protection, surge current protection and other protection features.


  • Advanced hardware architecture: On the 1U box switch, 48 gigabit+4 gigabit high port density is realized, equipped with high-performance ARMA55 CPU, which can meet the application requirements of various complex scenarios and greatly improve the network data processing speed.


  • Business processing capability: support 802.1Q VLAN, MAC VLAN, IP VLAN, and users can flexibly divide VLANs as required; Support RIP dynamic routing protocol, solve the routing problem of small and medium-sized networks after dividing subnets, and simplify network configuration.


  • Security mechanism: It supports IEEE 802.1x, Radius, Tacacs+, etc., and can provide users with a complete security authentication mechanism.


  • Reliability protection: support STP, RSTP and MSTP protocols, eliminate the two-layer loop and realize link backup.


  • POE power supply function: support 802.3af/at standard, built-in high-power power supply, meet the requirements of security monitoring, wireless coverage, IP phone and other POE scenarios.


  • Management and maintenance: Support Console, Telnet, SSH and other management methods.










Product Details


 Product Model



FW5700-48GP-4TF



 Network Interface




  • 24 10/100/1000M RJ45 ports (POE)
  • 4* 10 Gigabit SFP+optical ports
  • 1 Console port




 Performance Specifications




  • MAC address table: 16K
  • Backplane bandwidth: 176Gbps
  • Packet forwarding rate: 130.9Mpps
  • Port cache: 12Mb
  • Forwarding mode: store and forward




 Power Support




  • Maximum output power: 30W
  • Voltage input: 100-240V DC




LED Indicator




  • 1 SYS indicator light
  • 1 Power indicator
  • 48 PoE indicators
  • 52 Link/Act indicators




 Environmental Specifications




  • Working temperature: 0-40 ℃
  • Storage temperature: - 40-70 ℃
  • Storage humidity: 5% - 90% (non condensing)




Network Protocol




  • IEEE802.3、IEEE802.3i、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3ad、IEEE802.3x、IEEE802.1p、IEEE802.1q、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.3af、IEEE802.3at




 Management




  • L3




 Size(W*D*H)




  • 440*44*320mm

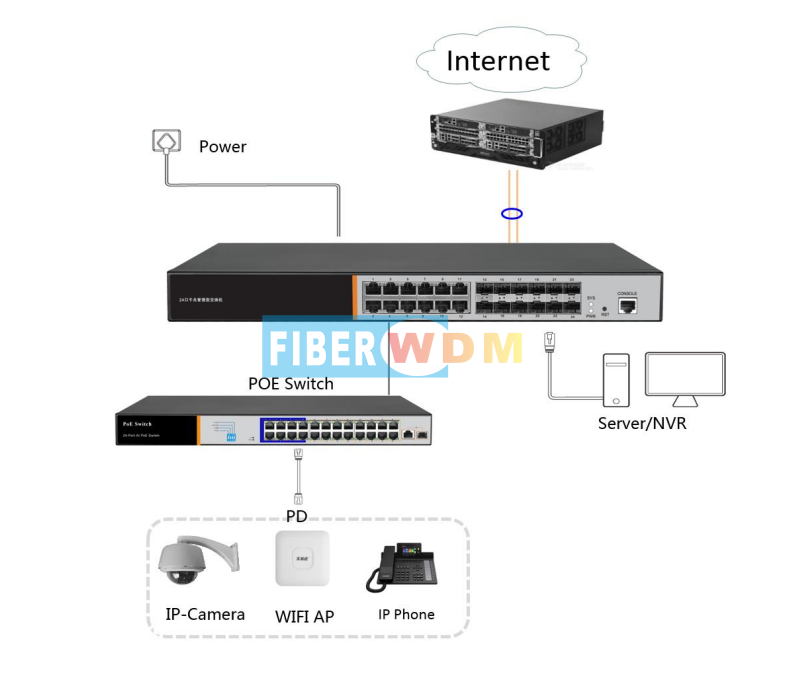

Application Collocation
