4-Optical 24-Electric Gigabit Management Switch FW4024G



24 * 10/100/1000Mbps RJ45 ports+4 * Gigabit SFP ports


FW4024G is a full gigabit three-layer network management switch. The product uses a new generation of high-performance hardware and software platform, provides flexible, cost-effective full gigabit access and uplink ports, supports three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, is easy to manage and maintain, and meets users' requirements for easy management, high security, and low-cost networking of network equipment. It is suitable for campus Network access, convergence and core application scenarios in hotels and enterprise parks.



  • Product Detail

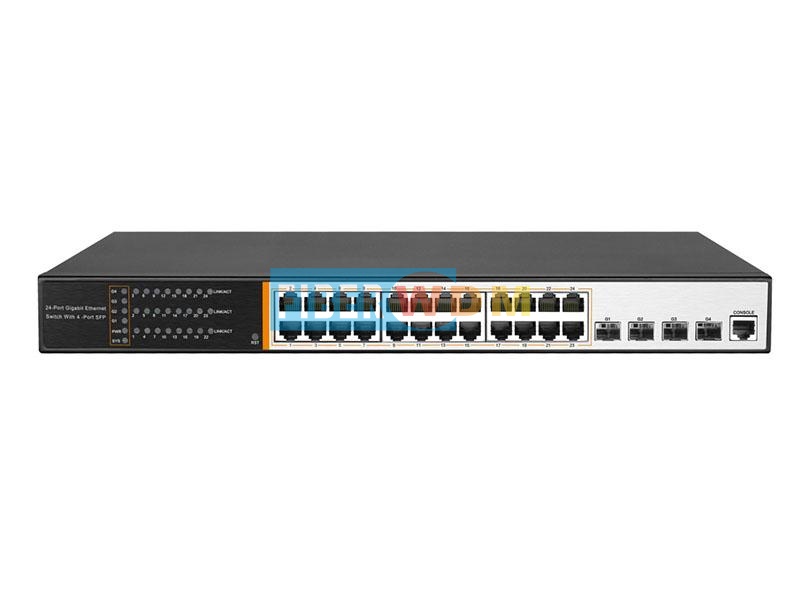

28 Ports 4-Optical 24-Electric Gigabit Management  Switch

FW4024G







Product Features



24 * 10/100/1000Mbps RJ45 ports+4 * Gigabit SFP ports



FW4024G is a full gigabit three-layer network management switch. The product uses a new generation of high-performance hardware and software platform, provides flexible, cost-effective full gigabit access and uplink ports, supports three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, is easy to manage and maintain, and meets users' requirements for easy management, high security, and low-cost networking of network equipment. It is suitable for campus Network access, convergence and core application scenarios in hotels and enterprise parks.




  • 6kv port lightning protection: full port supports 6KV lightning protection.


  • Advanced hardware architecture: Realtek high-performance switching chip is used to meet the application requirements of various complex scenarios, greatly improve the network data processing speed, and ensure data transmission is not stuck.


  • Business processing capability: support RIP dynamic routing protocol, solve the routing problem of small and medium-sized networks after dividing subnets, and simplify network configuration; It supports static routing protocols. You can manually configure routing entries to achieve communication between different network segments.


  • Security mechanism: provide port isolation in the same VLAN, DHCP Snooping, IP+MAC+port binding and other security features to further ensure user data security.


  • Reliability protection: support STP, RSTP and MSTP protocols, eliminate the two-layer loop and realize link backup.


  • POE power supply function: support 802.3af/at standard, built-in high-power power supply, meet the requirements of security monitoring, wireless coverage, IP phone and other POE scenarios.


  • Management and maintenance: support SNMP V1/V2/V3, and facilitate the management of equipment through the network management platform.










Product Details


 Product Model



FW4024G



 Network Interface




  • 24 10/100/1000M RJ45 ports
  • 4 gigabit SFP optical ports
  • 1 Console port




 Performance Specifications




  • MAC address table: 16K
  • Backplane bandwidth: 56Gbps
  • Packet forwarding rate: 41.7Mpps
  • Port cache: 12Mb
  • Forwarding mode: store and forward




 Power Support




  • Voltage input: 100-240V DC




 LED Indicator




  • 1 SYS indicator light
  • 1 Power indicator
  • 28 Link/Act indicators




 Environmental Specifications




  • Working temperature: 0-40 ℃
  • Storage temperature: - 40-70 ℃
  • Storage humidity: 5% - 90% (non condensing)




 Network Protocol




  • IEEE802.3、IEEE802.3i、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3ad、IEEE802.3x、IEEE802.1p、IEEE802.1q、IEEE802.1d、IEEE802.1s、IEEE802.1w




 Management




  • L3




 Size(W*D*H)




  • 440*44*320mm

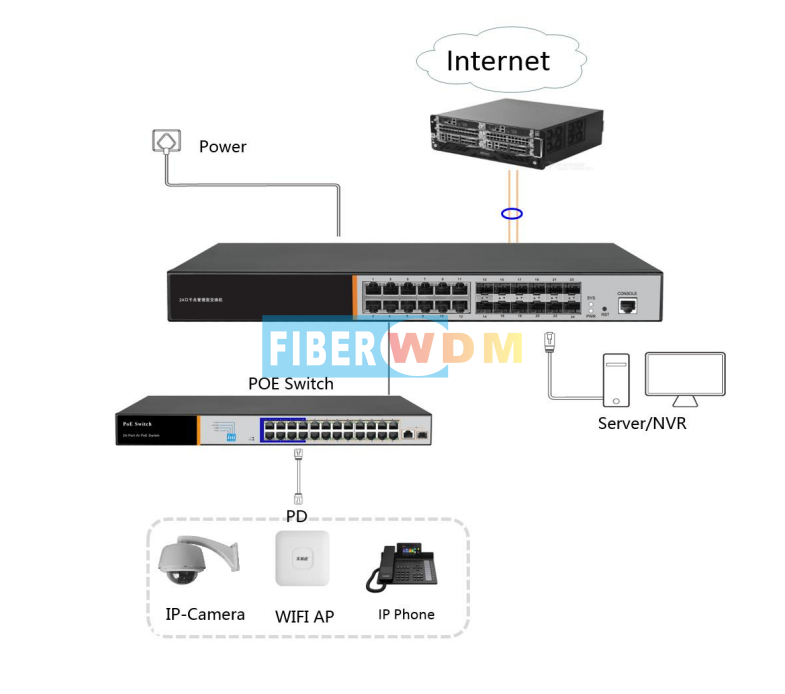

Application Collocation
