Data Center Switch 48x100Ge DSFP ports and 8x400Ge QSFP-DD uplink ports DS610
Data Center Switch 48x100Ge DSFP ports and 8x400Ge QSFP-DD uplink ports DS610 Data Center Switch 48x100Ge DSFP ports and 8x400Ge QSFP-DD uplink ports DS610

Data Center Switch 48x100Ge DSFP ports and 8x400Ge QSFP-DD uplink ports DS610

Product Features


1.Performance

  • Ports: 48 x10/25GE, 8 x 40/100GE
  • 2/3 layer wire speed forwarding
  • 40G/100G port: Supports 4x10G/4x25G mode

2. Data center optimization design
  • Each port supports a virtual output queue
  • Hot swappable power supply with 1+1 redundancy design
  • 4+1 redundantly designed hot-swappable fan modules
  • Easy to install

3. High performance controller
  • x86 architecture COM-e modules
  • Supports 16GB DDR4 memory with ECC
  • Support 256GB SSD solid state drives, M.2 interface (SATA bus)
  • Support for BMC, through which peripherals can be monitored and managed

4. The system supports the monitoring and recording functions of various events
  • Voltage monitoring, support board level voltage monitoring
  • Temperature monitoring
  • Restart reason log





Inquire now Download
  • Product Detail


Data Center Switch 48x100Ge DSFP ports and 8x400Ge QSFP-DD uplink ports DS610


Products Description


The DS610 is a new-generation data center switch. It provides Layer 2 and Layer 3 full-line speed dataexchange and supports 48×100GE ports and 8×400GE uplink ports. The DS410 meets the high performance, high availability, and elastic network requirements of enterprise and cloud computing data center applications. It can be deployed as a top-of-cabinet switch or in a 100GE/400GE distributed backbone network to form a data center network with non-blocking CLOS architecture.


The DS610 provides high reliability hardware design for data center application scenarios, including hot-swappable AC power supply in 1+1 redundancy and fan module in 5+1 redundancy. In addition, it provides forward and backward heat dissipation.

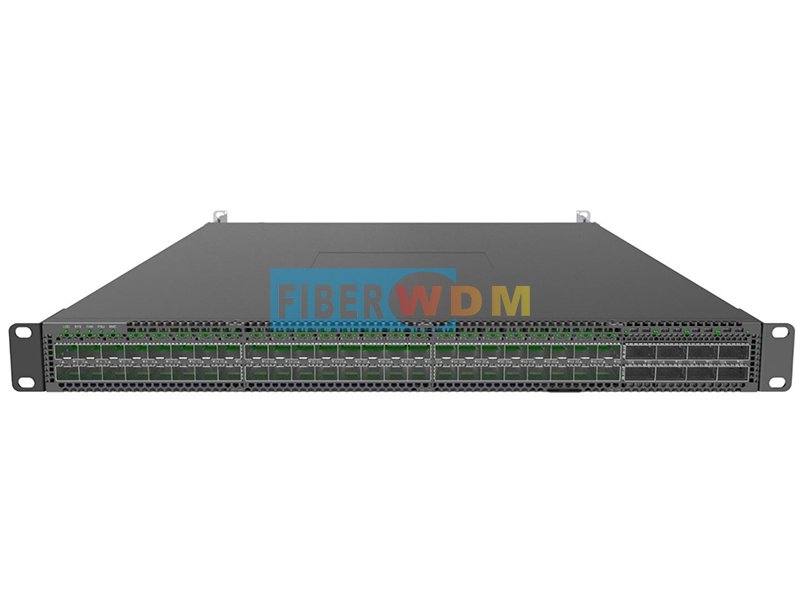

DS610 front view



DS610 rear view


Product Specifications


Features

DS610

Port description

48x100GE DSFP and 8x400GE QSFPDD

Maximum number of 400GbE ports

8 ports

Maximum number of 100GbE ports

48 ports

Green Energy Saving

Support IEEE802.3az/ IEEE802.3bj

Automatic port closing is supported

Support timed port closing

Switching chip

ClounixCLX850080

Swap capacity

8000 Gbps

CPU

Intel Broadwell DE D-1627 4 cores, 2.9GHz

DDR

16GB DDR4 with ECC (dual channel 2*8 GB)

SSD storage

256GB SSD solid state drive

BMC

Support

100/1000Mbps management network port

1 each

RS-232 port

1 each

USB port

1 each

Hot swap power supply

2 (1+1 redundancy)

Hot swappable fan

6 sets (5+1 redundancy)

Heat dissipation mode

Forward back out

Case size mm (width * depth * height)

442 × 630 × 44 IP20 is water and dust resistant

Weight (kg)

10kg


Features

DS610

Power supply type

1300W AC

Input voltage range

100V～240V AC, 50 / 60HZ

Power consumption of the machine

Static: TBD W

Full load: TBD W

Operating temperature range

0℃～45℃

Operating humidity (no condensation)

5%～95%

Product certification

subject to re-certification according to end-customer requirements

Level of protection

Power port: GR-1089, differential mode/common mode 6kV

4K vlans are supported

L2 function

Support for IEEE 802.3ad

Support for static and dynamic link aggregation

Support for Jumbo Frames

PFCS support

LLDP v1/v2 and LLDP MED are supported

Supports MAC address learning and aging

Support for port mirroring

Support port splitting

Support for IPv4/IPv6 dual-stack protocols


L3 function

BGP routing protocol is supported

Support BGP MP and smooth restart

Support for ARP protocol


Features

DS610

QoS

Support for DHCP relay agents

Support for IP decryption (v4/v6)

Support service levels

Support for WRED(ECN)

ACL

Support for IPv4/v6, L2/L3

AAA

TACACS+ support

System

gRPC support

RDMA support

Support Syslog and Sysdump

NTP support

Support for incremental configuration

Support for SONiC to SONiC upgrades

Support for quick restarts

Support for quick restarts

management

Support SNMP

Support for critical resource monitoring
