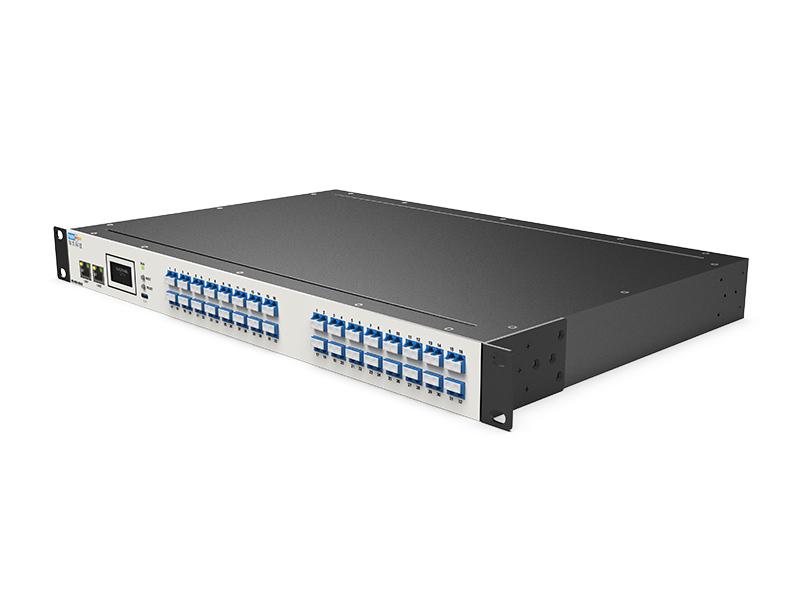

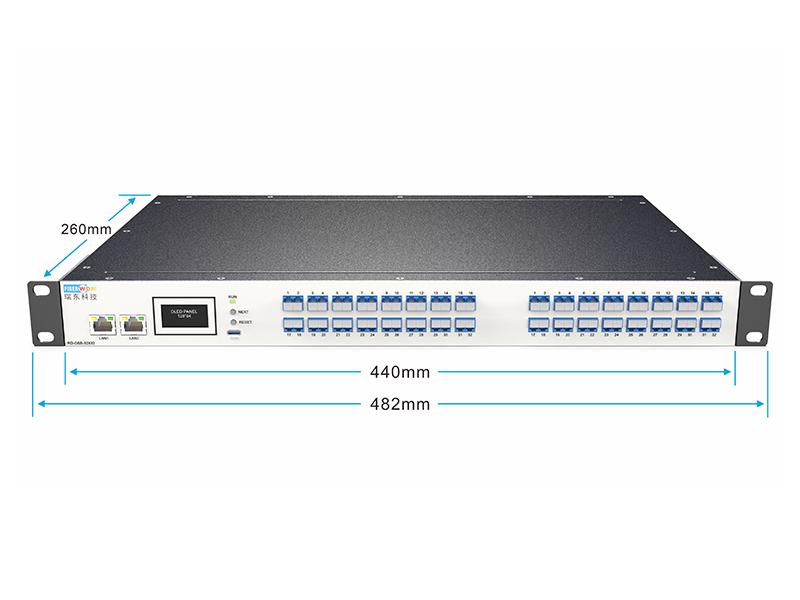

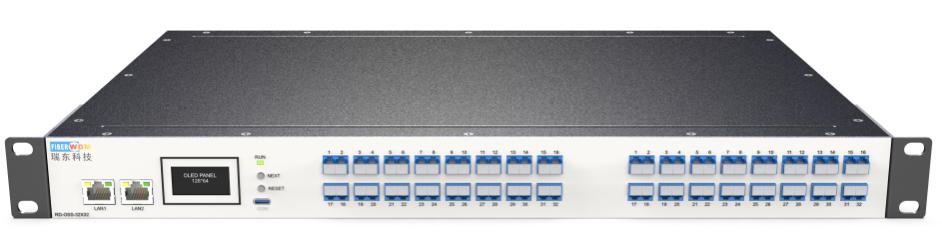

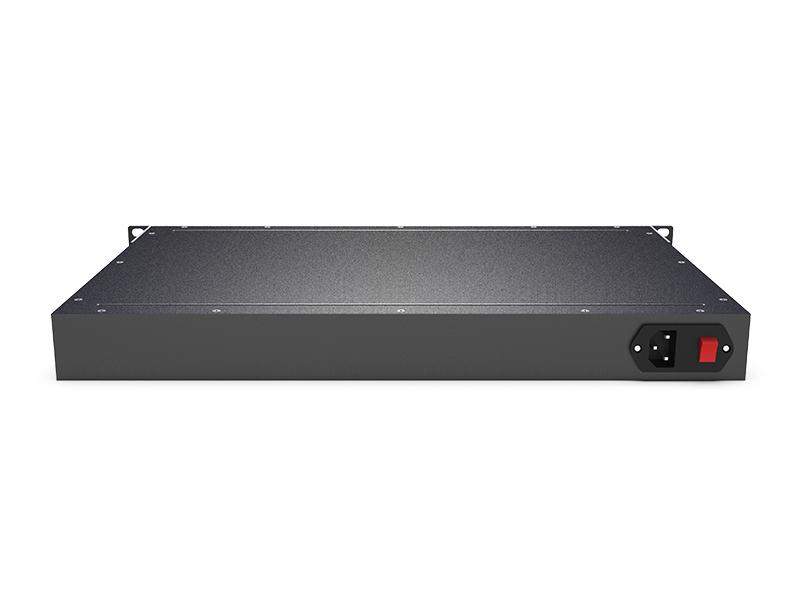

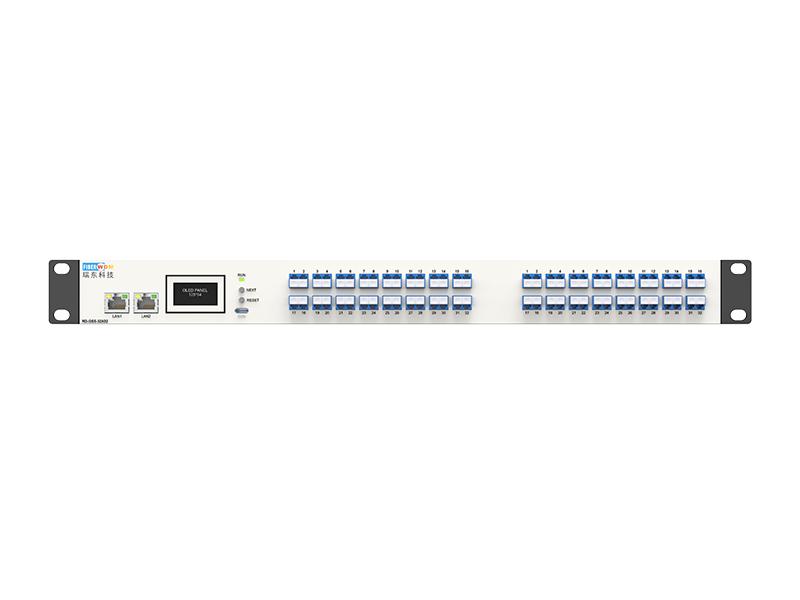

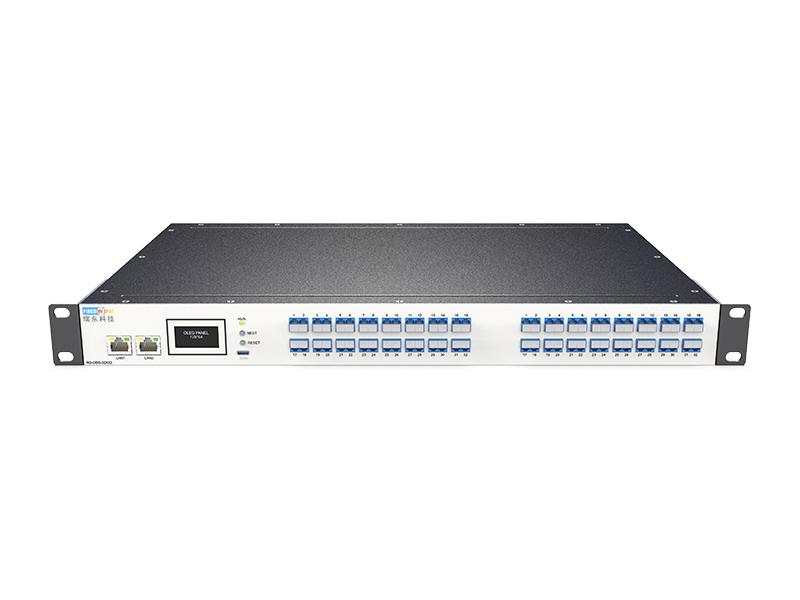

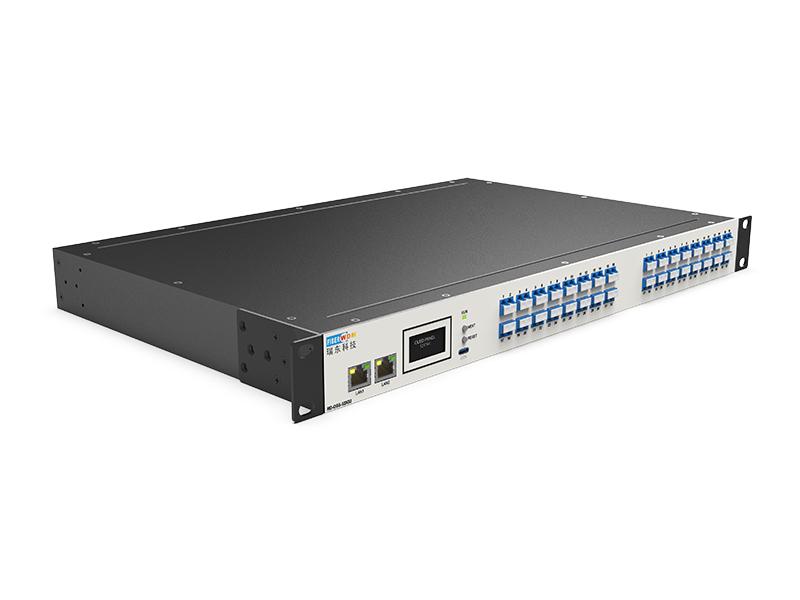

32X32 Fiber Optical Switch 1270-1610nm SM LC/UPC 1U Rack

32X32 Fiber Optical Switch 1270-1610nm SM LC/UPC 1U Rack

FW-OSS-32X32

The FiberWDM ’s MEMS Optical Switch, FW-OSS-32X32, is a high-performance, fully non-blocking and port-configurable all-optical matrix switch powered by series of patented technologies. FW-OSS-32X32 comprises 64 peer fiber ports that can be connected each other one on one freely. With no hardware defined input or output ports , FW-OSS-32X32 can be configured to any combination of symmetric (N×N) or asymmetric (N×M) switch configurations through the GUI and embedded software developed by FiberWDM . Moreover, through Software-defined grouping, all ports can be divided into any feasible counts of groups with any feasible port counts under the only limitation of total port counts. Specifically, each group can be controlled independently. The combination of software control and peer fiber port connectivity brings a new level of flexibility and possibilities for customers to optimize their solutions. FW-OSS-32X32 is a versatile, easy-to - implement and high-performance optical switch which can be used across a range of applications.

FW-OSS-32X32

Key Features

• Non-blocking matrix switch
• Port-configurable
• P2P port connectivity
• Software-defined grouping
• Alternate fiber port protection
• High density switching in a compact chassis
• Exceptional optical stability and repeatability
• User-friendly GUI
• Optional Low-frequency switching modulation

Applications

• Optical signal routing
• Optical link protection
• Automated testing
• Multiple device testing
• High performance computing
• Network monitoring and automatic fault location

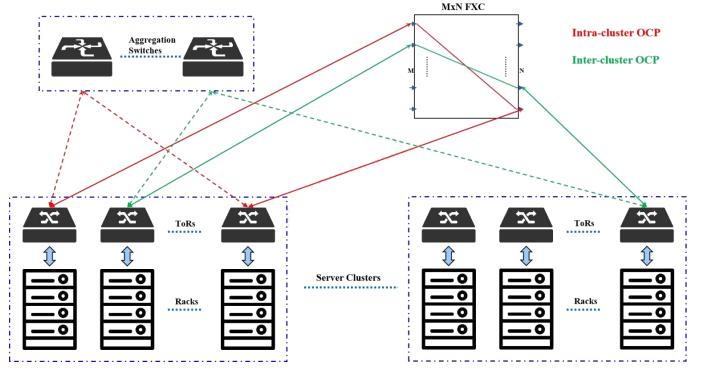

Application - Optical network routing

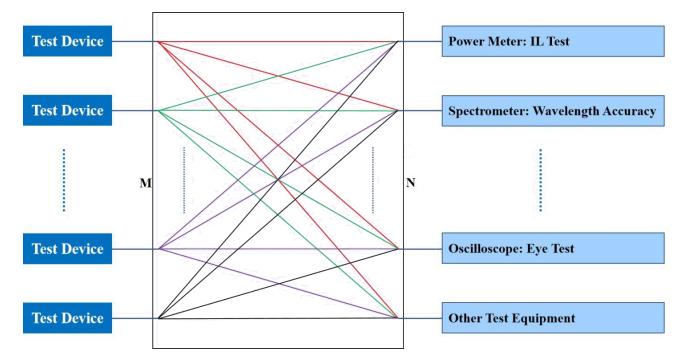

Application - Automation test

Performance Parameters

Note:

1.  Measured with LC/APC connectors.

2. Connector types can be customized with customers’ requirements.

3.  Not to exceed industrial standard of 0.024 kg water per kg of dry air. Under Non-condensing Conditions.
