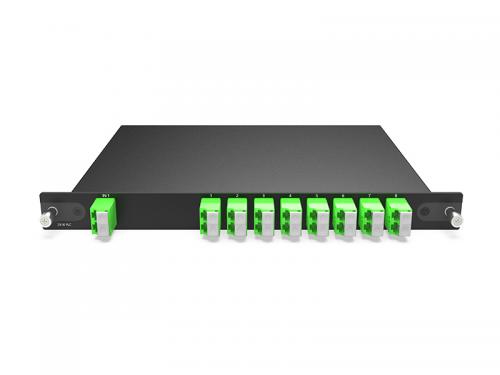

Splitter PLC 2X16 LC/APC Plug-in LGX Box 215*150*20MM

Splitter PLC 2X16 LC/APC Plug-in LGX Box 215*150*20MM

Fiberwdm’s PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64

Product

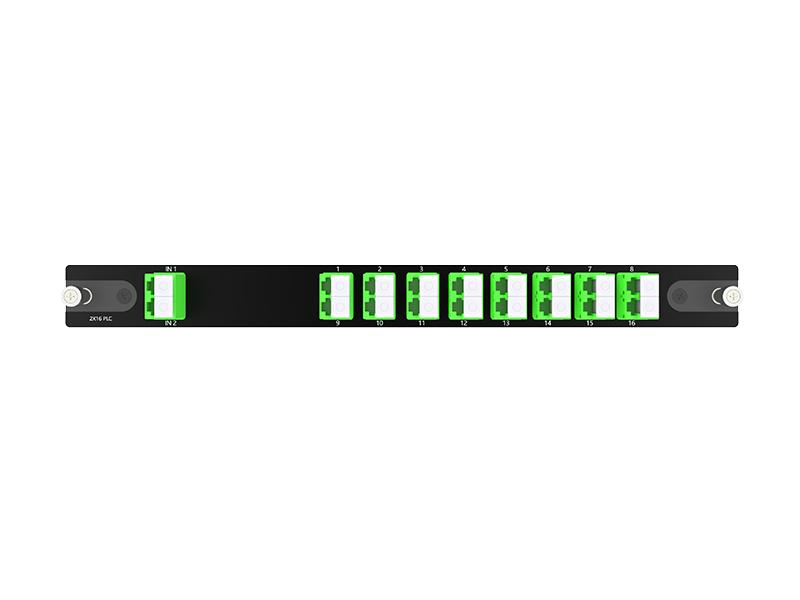

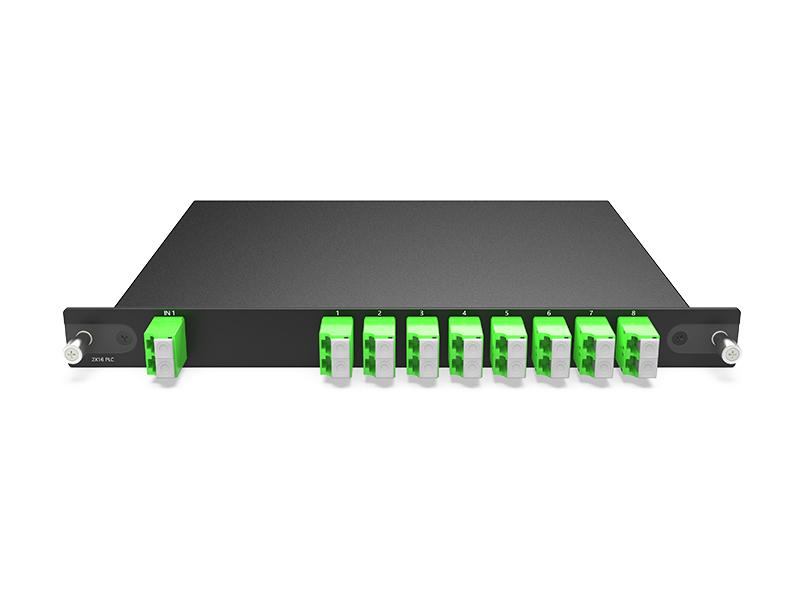

2*16 PLC LC/APC Plug-in LGX Box 215*150*20MM

Features:

• Compact design
• Low insertion loss and low PDL
• High reliability
• High channel counts
• Wide wavelength range
• Large operating temperature range
• Customized packaging and configuration

Applications

• FTTx Systems
• LAN, WAN and Metro Networks
• Analog/Digital Passive Optical Networks
• CATV Networks
• Other applications in fiber optic systems

Compliance

• Telcordia GR-1209-CORE
• Telcordia GR-1221-CORE

1*N PLC Specifications

Notes:  1.Specifications without fiber connectors.

            2.Room temperature test .

2*N PLC Specifications

Notes:  1.Specifications without fiber connectors.

             2.Room temperature test .

Package (mm)

PLC Plug-in LGX Box 215*150*20MM

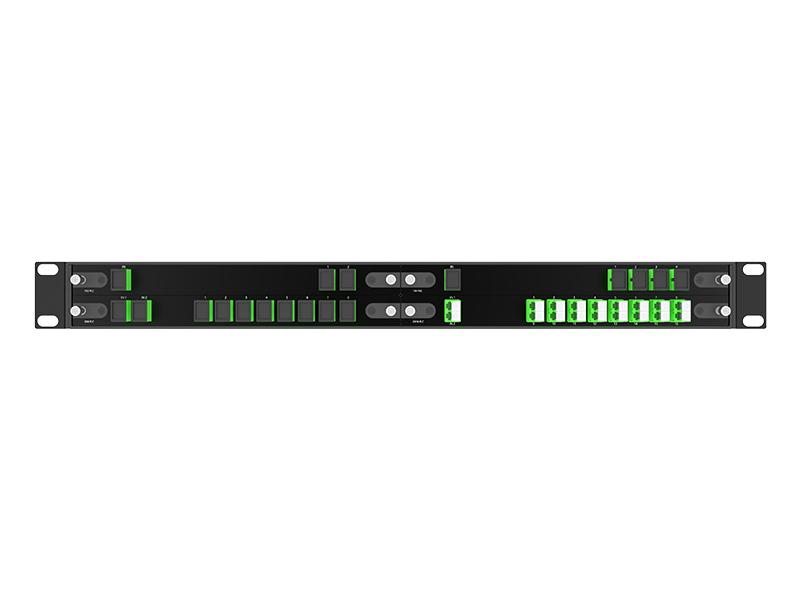

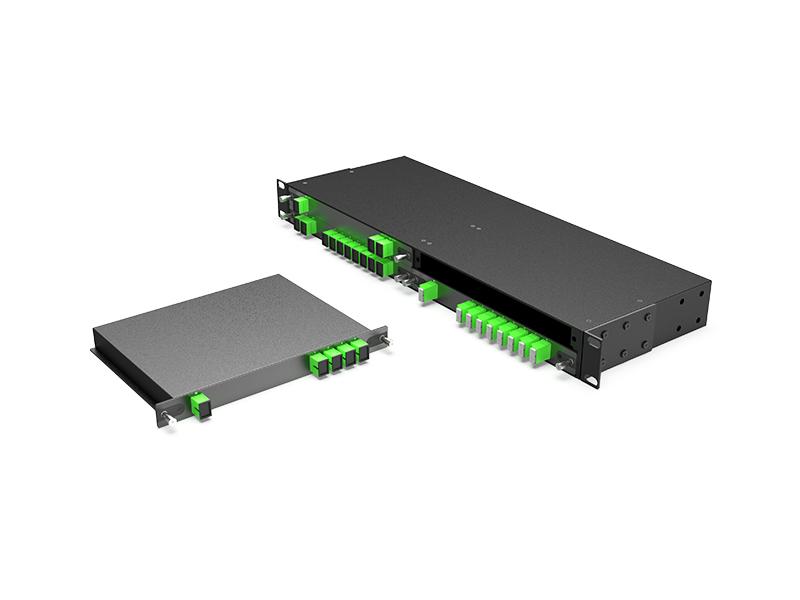

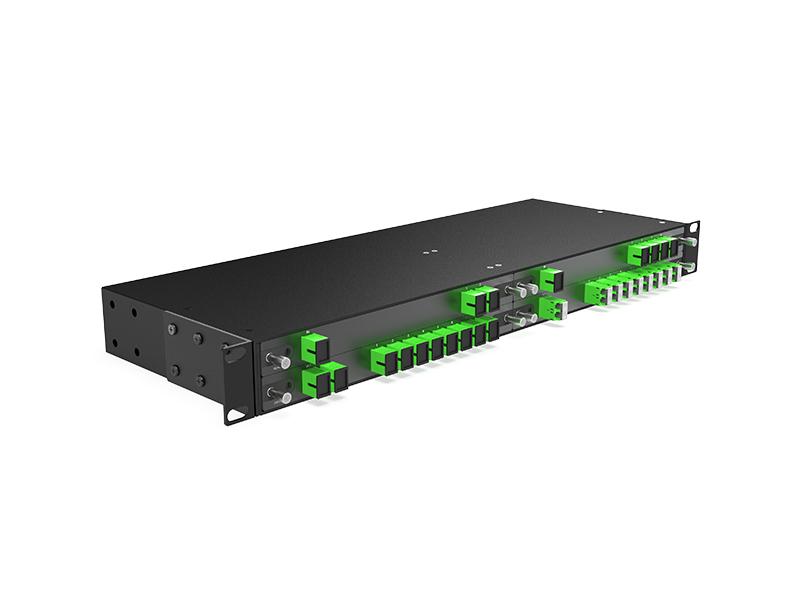

4-Slot 1U Rack for LGX BOX

Order Information

FAQ

Q: What is the lead time for standard and customized configurations?

A: Standard configurations have a lead time of 3–7 working days. Customized configurations (e.g., special port layouts, non-standard fiber types) require 10–20 working days, depending on the complexity of customization.

Q: What is the after-sales guarantee policy for this PLC splitter?

A: Our company provides a 3-month replacement guarantee, a 3-year warranty, and lifetime maintenance service.
