24 Channel 1×2 Optical Switch

24 Channel 1×2 Optical Switch

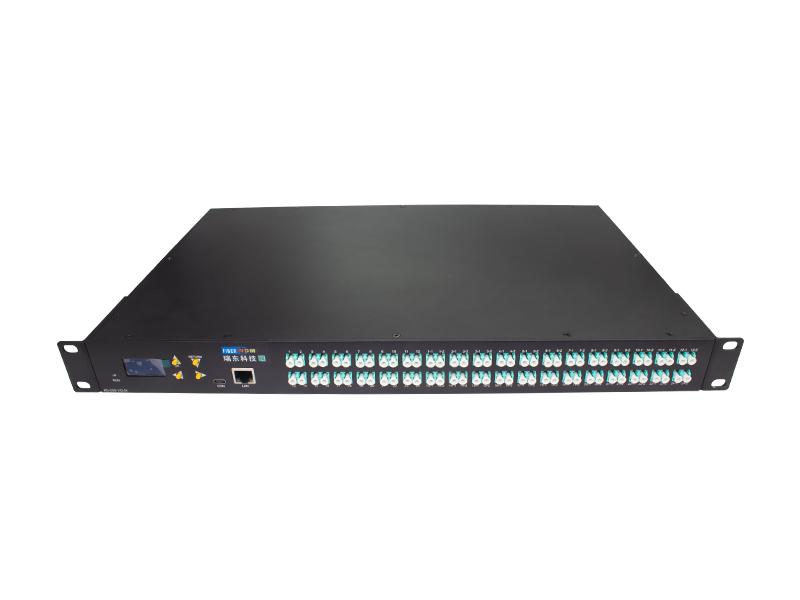

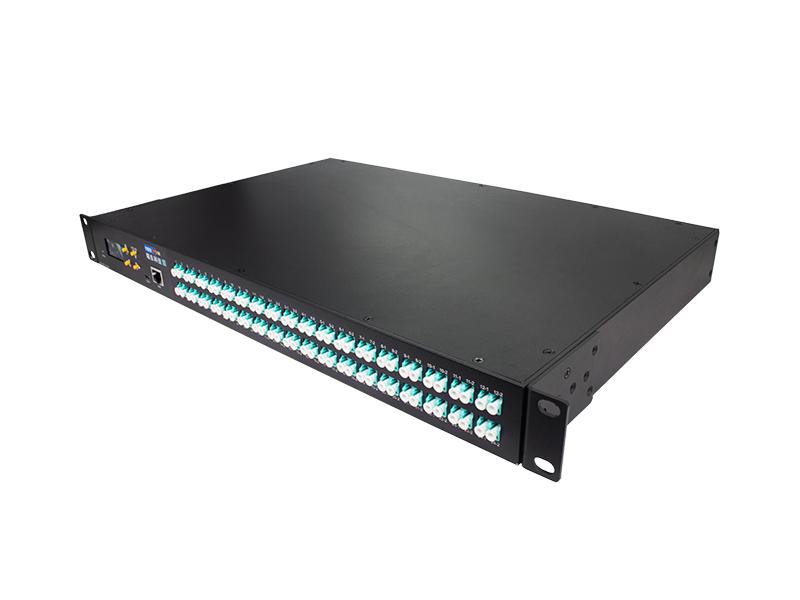

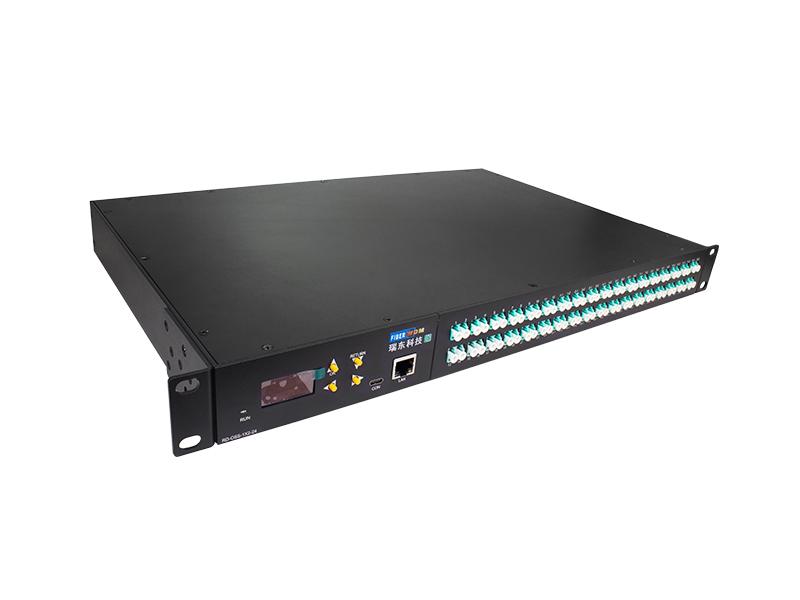

FW-OSS-2X1-24-MM-1U

Features

* Low insertion loss, Fast switching.

* TYPE-C Control and Ethernet RJ45 Management.

*  The serial port adopts TYPE-C female interface.

* Optical path switching can be controlled through buttons, serial ports, and network ports. And it can be operated by locking the keys through instructions.

Specifications

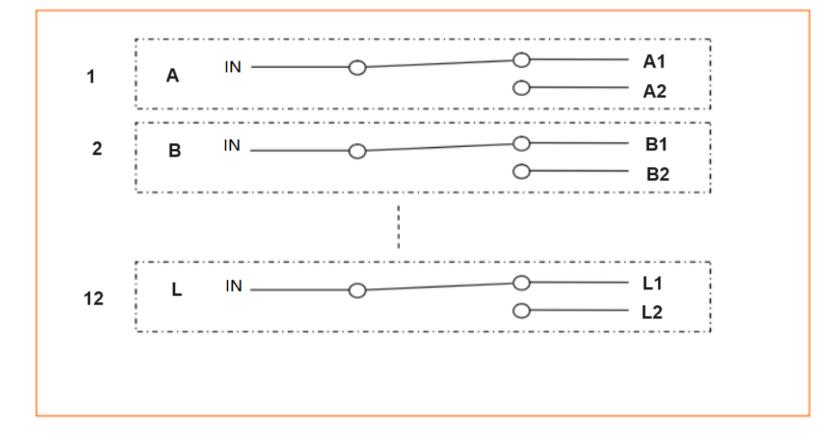

Optical path diagram

Instructions

1.Panel shows

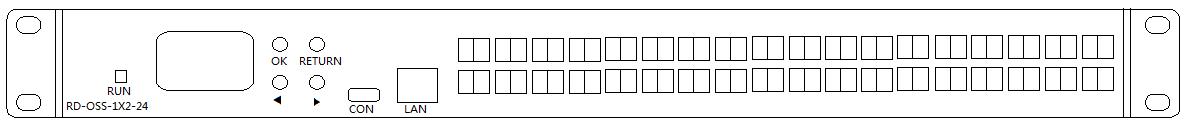

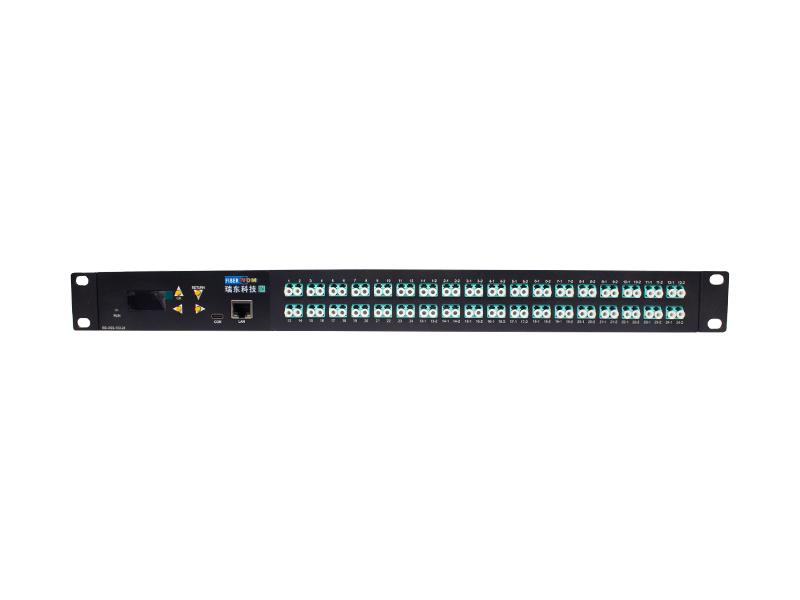

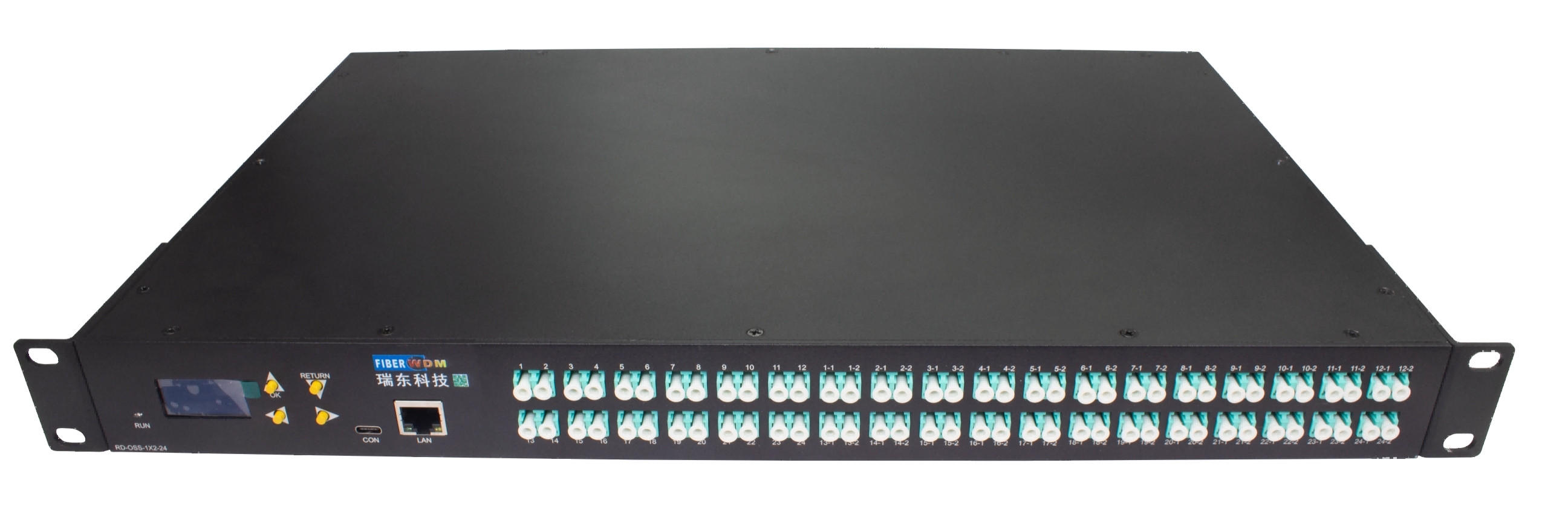

Front panel

(1) RJ45 Ethernet port, TPYE-C serial port: communication interface for device monitoring data.

(2) LCD display: device address, current channel and related information display.

(3) ▲ - Move up key; ▼ - Move down key; Enter - OK key; RETURN - Cancel the key.

(4) Optical interface description: optical interface.

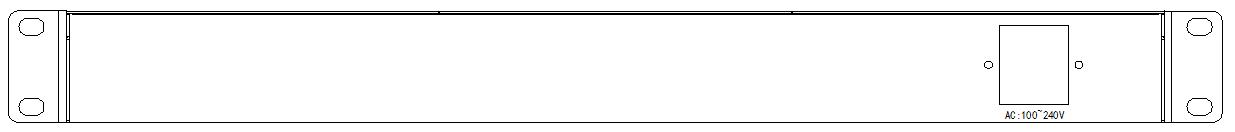

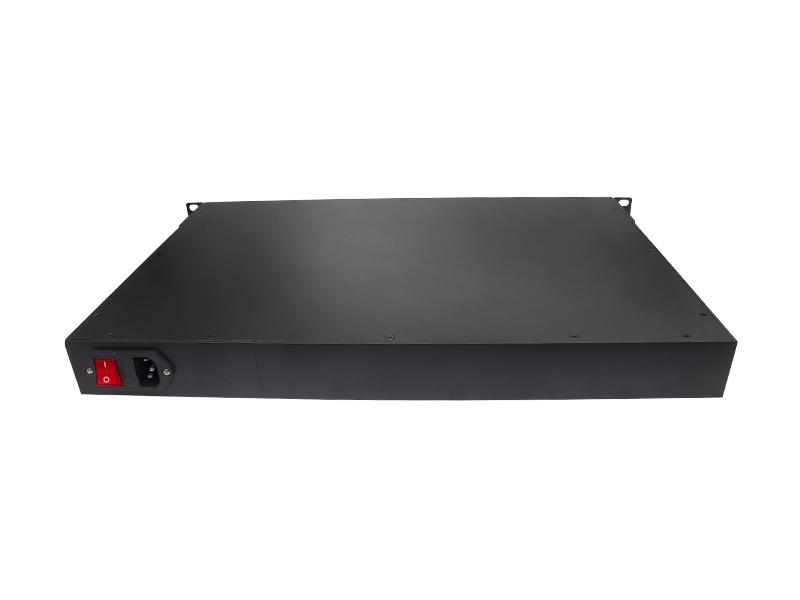

                                            Rear panel

（1）AC power supply interface

Default Setting

* When starting up, the 24 channels are connected by default.

* Device key permission: Allow

* Serial port: 9600 baud, 8 data bits, 1 stop bit, no parity check.

* IP Address: 192.168.1.100; Communication port: 5000

* Network port protocol type: TCP Server , UDP (fixed port: 18888)

       Note: Users have special requirements except.

Description of communication port connections

 (1)TYPE-C interface
