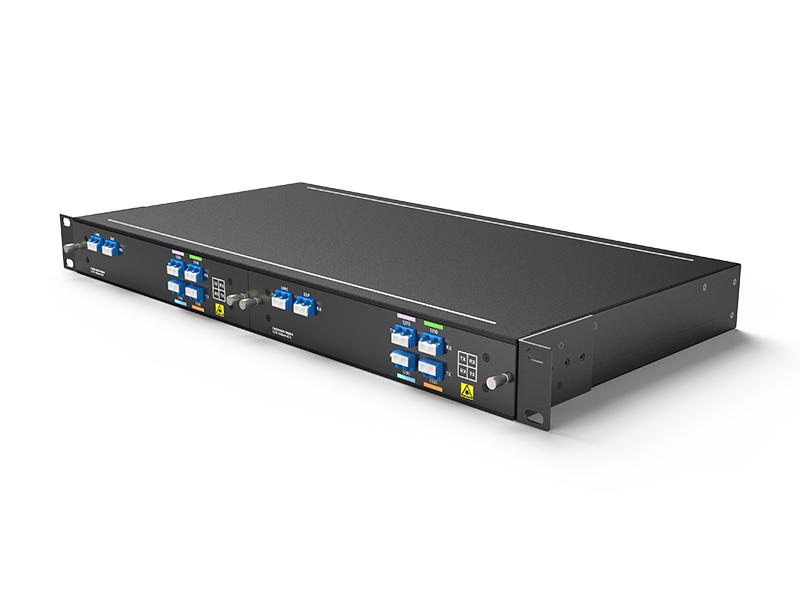

Dual Fiber 4CH 1270-1330nm CWDM MUX DEMUX With EXP, LC/UPC, Plug-in LGX Box and 2slot 1U Rack
The 4ch CWDM MUX DEMUX is designed by FIBERWDM, wavelength from 1270nm to 1330nm, and it is passive CWDM and plug-in LGX box, can plug in 2slot 1u rack, support 4channels 100G in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

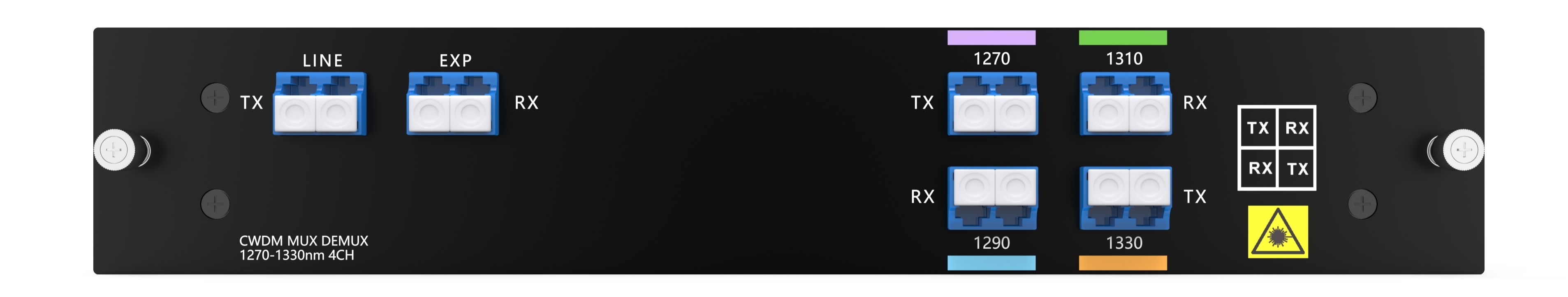

Product Panel
4CH CWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CCWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

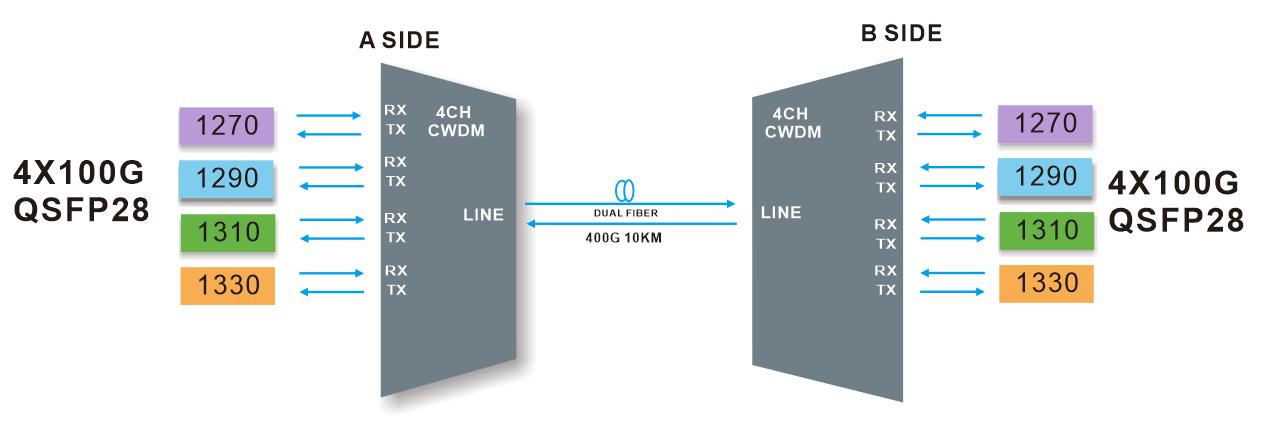

400G Solution: 4CH 100G CWDM MUX DEMUX Dual fiber transmission
The total transmission capacity of 4 channels of 100G signals . These signals, after being multiplexed by a Coarse Wavelength Division Multiplexing (CWDM) multiplexer in the wavelength range of 1270-1310nm, can be transmitted over two fibers, with a transmission distance of up to 10 kilometers.
Product Specification
|
Wavelength |
4channels 1270-1330nm |
Channel Spacing |
20nm |
|
Channel Passband |
±6.5nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
≤1.5dB |
Center Wavelength Accuracy |
±0.05nm |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX BOX 0.5KG 2Slot 1u Rack 1.5KG |

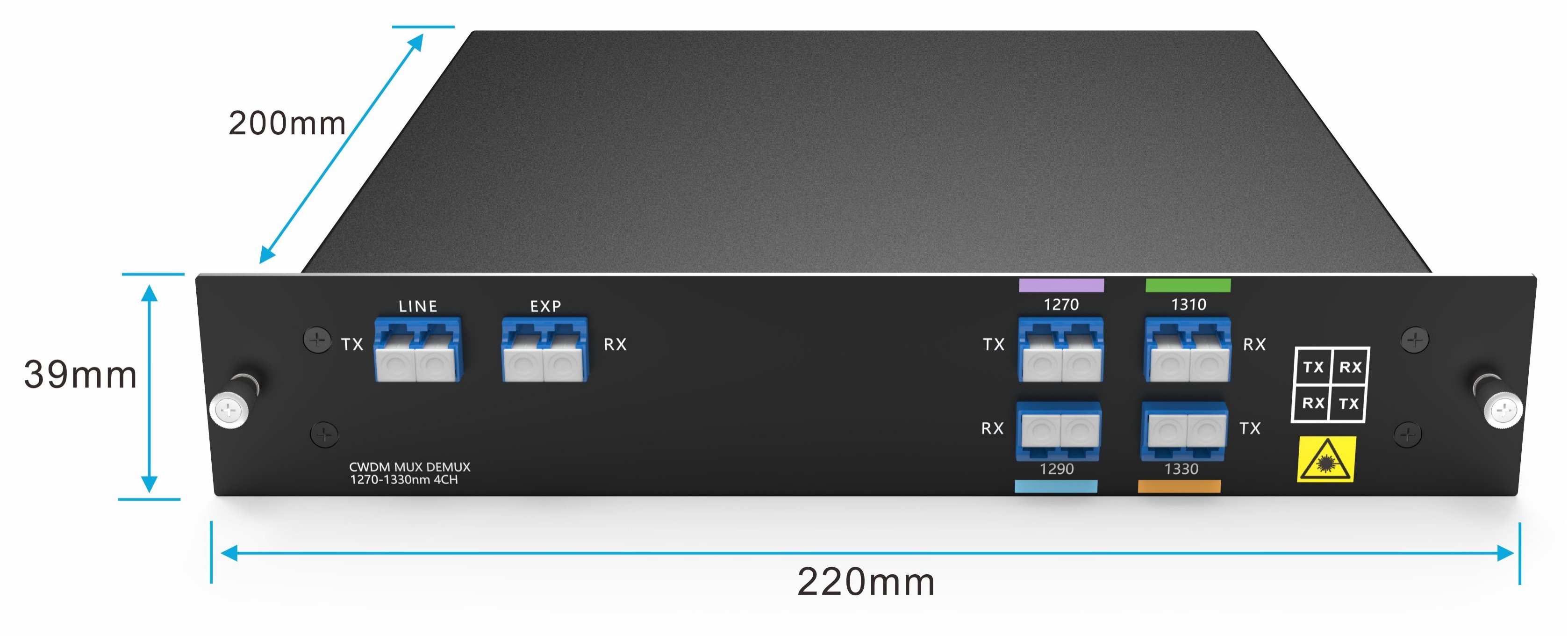

Dimensions (HxWxD) |

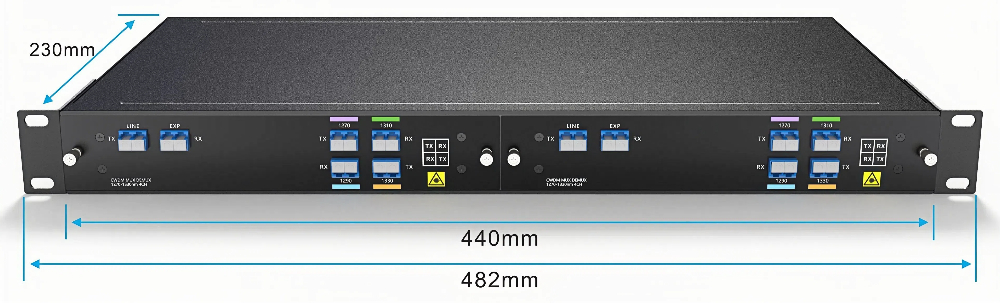

LGX BOX 220*200*39mm 2Slot 1u Rack 44*440*230mm |
Note: Specified with connectors.
Package Information

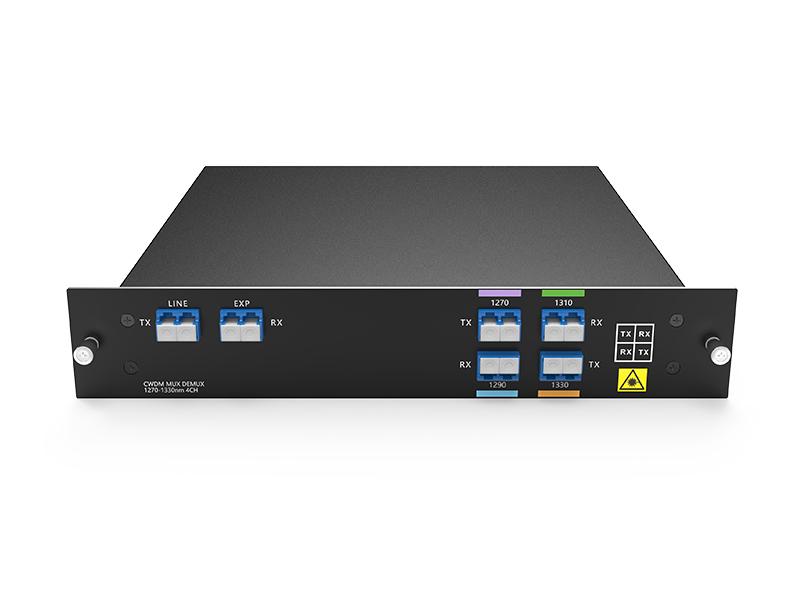

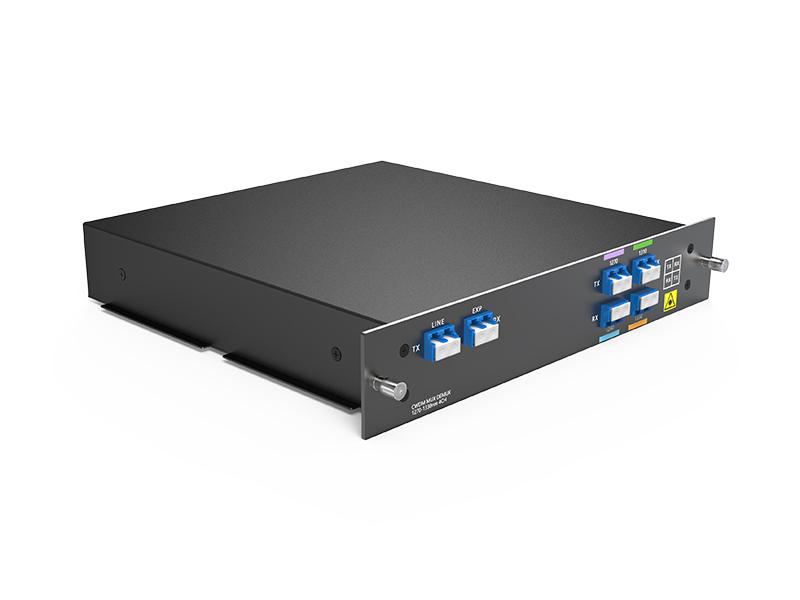

Plug-in LGX Box

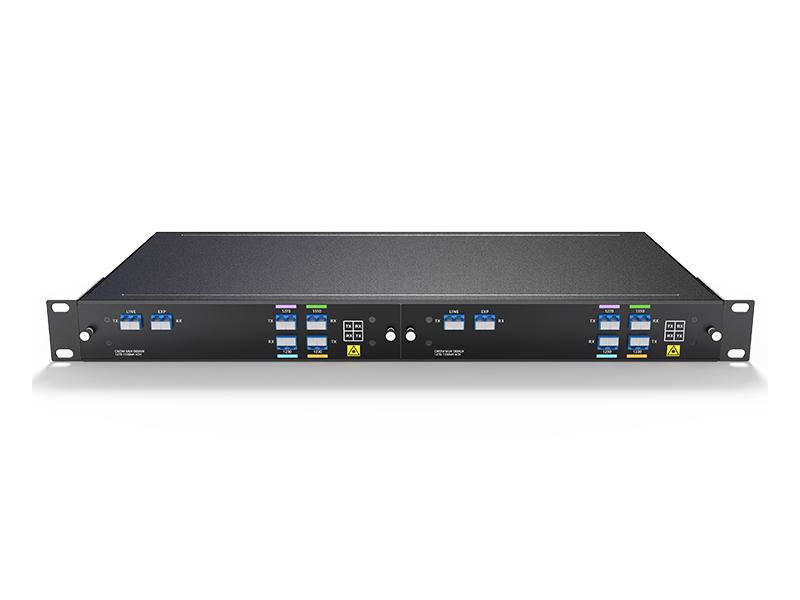

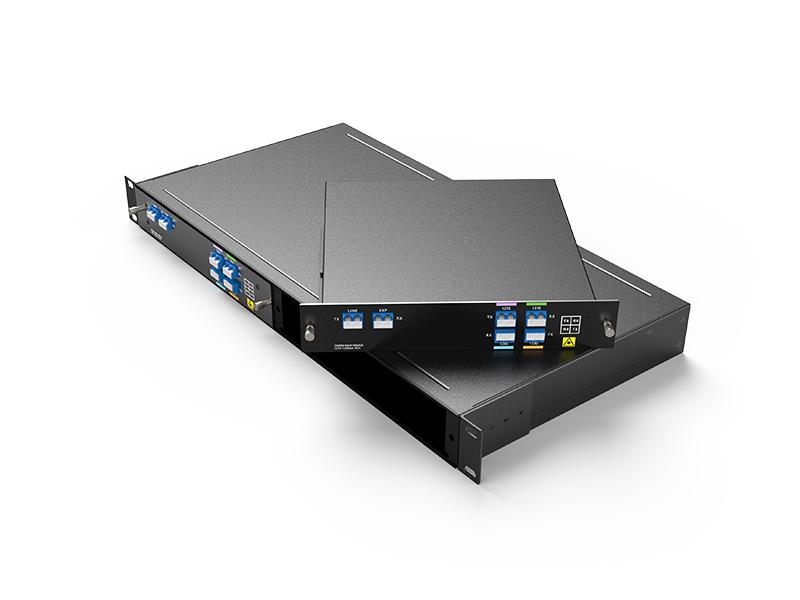

2-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
CMD8-1U01-2733 |
CWDM MUX DEMUX 4CH (1270nm~1330nm) With EXP, Dual fiber, LC/UPC , Plug-in LGX Box |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
|
RQ-100G-LR1-27 |
100G Transceiver QSFP28 1271nm CWDM 10KM DDM |
|
RQ-100G-LR1-29 |
100G Transceiver QSFP28 1291nm CWDM 10KM DDM |
|
RQ-100G-LR1-31 |
100G Transceiver QSFP28 1311nm CWDM 10KM DDM |
|
RQ-100G-LR1-33 |
100G Transceiver QSFP28 1331nm CWDM 10KM DDM |
Note: We Support Customized Design, please contact us by email.
