DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux）modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.
Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
1CH 2Waves DWDM OADM West and East Single fiber 100*80*10mm ABS Box
Features
Applications
Product specification
|
Item |
Unit |
Parameters |
|
Channel Spacing |
GHz |
100GHZ |
|
Wavelength Range |
C- band ITU channels |
|
|
Channel Centers |
nm |
ITU |
|
Channels |
ch |
1CH 2Waves |
|
Passbandwidth |
nm |
≥ +/- 0.13 |
|
Passband Ripple |
dB |
≤ 0.5 |
|
Channel Insertion Loss |
dB |
≤ 1.5 |
|
West TO East(IN to Out) |
dB |
≤ 1.8 |
|
Isolation (adjacent channel) |
dB |
≥30 |
|
Isolation (non-adjacent channel) |
dB |
≥40 |
|
Polarization Dependent Loss |
dB |
≤ 0.2 |
|
Polarization Mode Dispersion |
ps |
≤ 0.2 |
|
Directivity |
dB |
≥ 50 |
|
Return Loss |
dB |
≥ 45 |
|
Optical Power Handling |
mW |
≤ 500 |
|
Operating Temperature Range |
℃ |
-5 to 70 |
|
Storage Temperature Range |
℃ |
-40 to +85 |
|
Fiber Type |
NA |
SMF-28e+ |
|
Package dimensions |
mm |
100*80*10mm ABS |
|
Connector |
SC/UPC or other |
Notes: 1) FIBERWDM Support Customized Design, please contact us by email sales@fiberwdm.com
2) If you want to order, please email and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

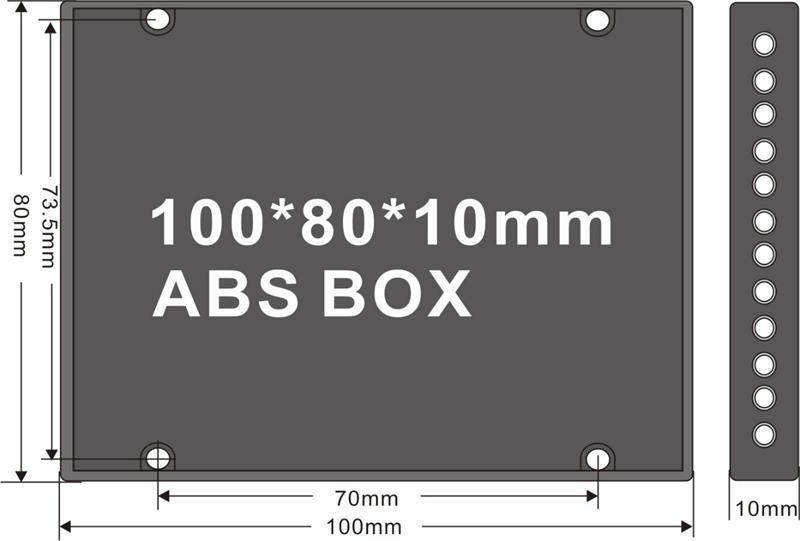

Package Information
1) ABS BOX 100*80*10mm
Product Information

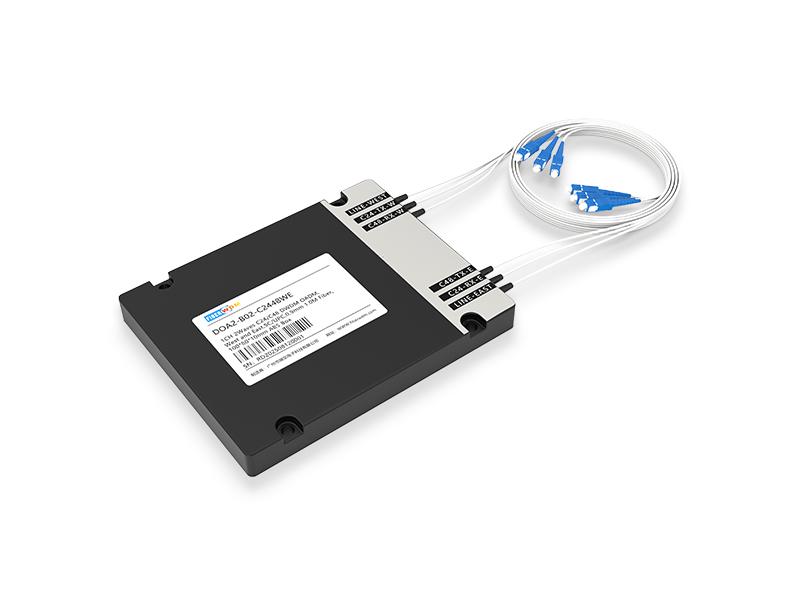

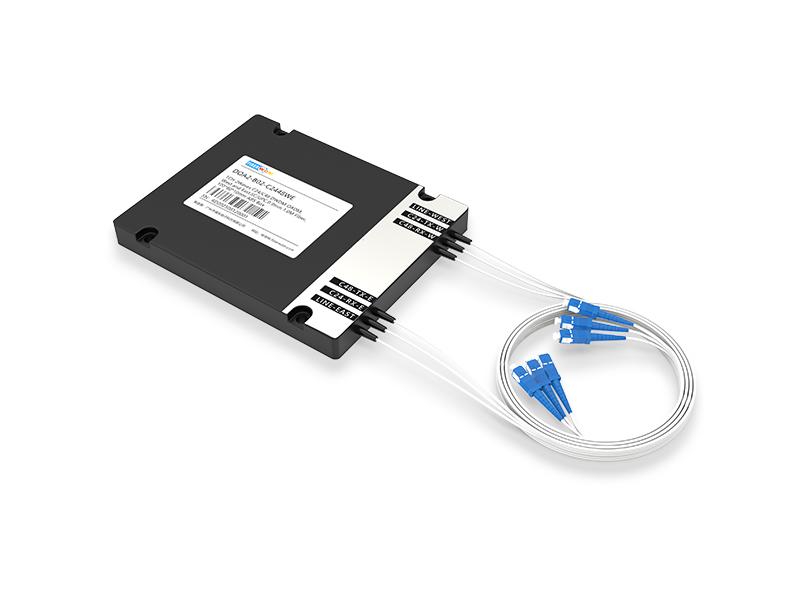

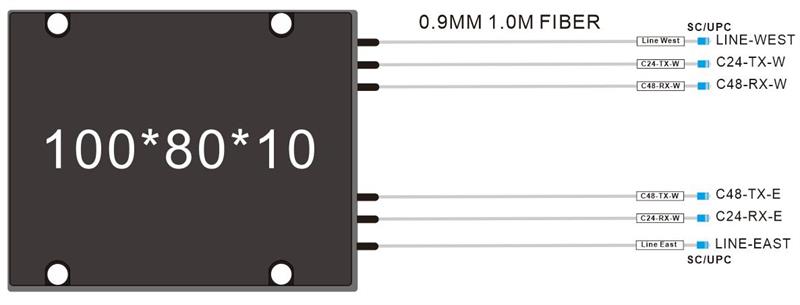

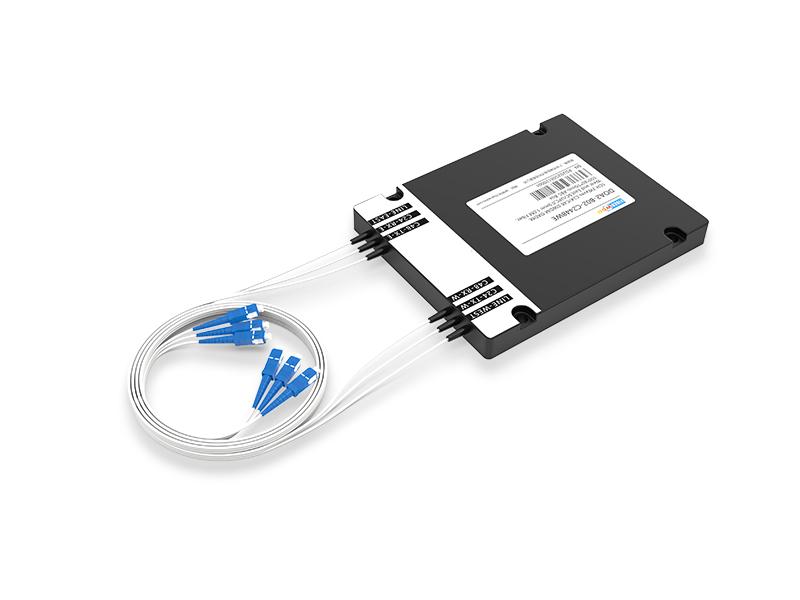

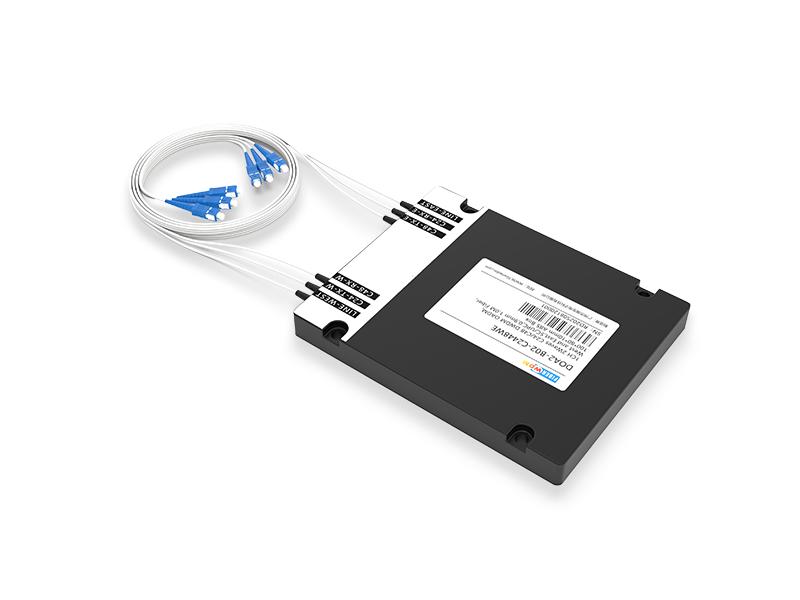

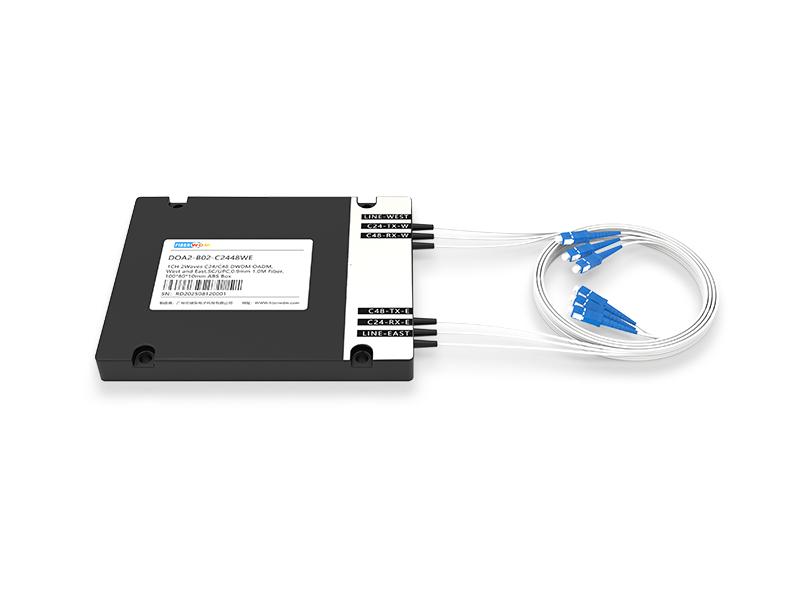

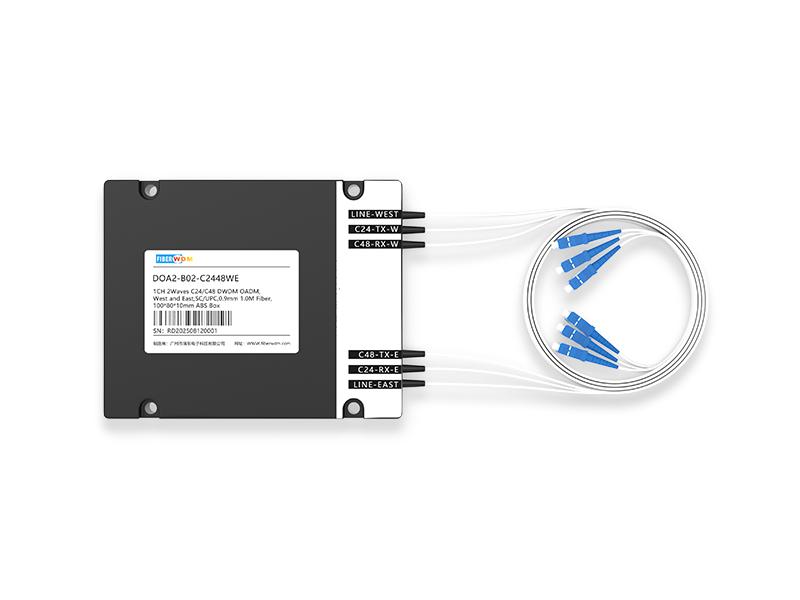

1)Product No.: DOA2-B02-C2448WE
Product Specification: 1CH 2Waves C24/C48 DWDM OADM, West and East, SC/UPC, 0.9mm 1.0M Fiber, 100*80*10mm ABS Box

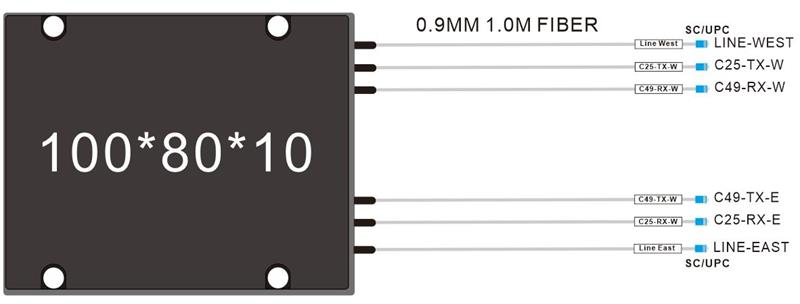

2）Product No.: DOA2-B02-C2549WE
Product Specification: 1CH 2Waves C25/C49 DWDM OADM, West and East, SC/UPC, 0.9mm 1.0M Fiber, 100*80*10mm ABS Box
Note: Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Other λC Wavelength Guide
|
100GHZ DWDM ITU Waves |
|||||
|
ITU Channel Product Code |
Frequency(THz) |
Wavelength |
ITU Channel Product Code |
Frequency(THz) |
Wavelength |
| 17 |
191.7 |
1563.86 |
40 |
194.0 |
1545.32 |
| 18 |
191.8 |
1563.04 |
41 |
194.1 |
1544.52 |
| 19 |
191.9 |
1562.23 |
42 |
194.2 |
1543.73 |
| 20 |
192.0 |
1561.41 |
43 |
194.3 |
1542.93 |
| 21 |
192.1 |
1560.60 |
44 |
194.4 |
1542.14 |
| 22 |
192.2 |
1559.79 |
45 |
194.5 |
1541.34 |
| 23 |
192.3 |
1558.98 |
46 |
194.6 |
1540.55 |
| 24 |
192.4 |
1558.17 |
47 |
194.7 |
1539.76 |
| 25 |
192.5 |
1557.36 |
48 |
194.8 |
1538.97 |
| 26 |
192.6 |
1556.55 |
49 |
194.9 |
1538.19 |
| 27 |
192.7 |
1555.74 |
50 |
195.0 |
1537.40 |
| 28 |
192.8 |
1554.94 |
51 |
195.1 |
1536.61 |
| 29 |
192.9 |
1554.13 |
52 |
195.2 |
1535.82 |
| 30 |
193.0 |
1553.32 |
53 |
195.3 |
1535.04 |
| 31 |
193.1 |
1552.52 |
54 |
195.4 |
1534.25 |
| 32 |
193.2 |
1551.72 |
55 |
195.5 |
1533.46 |
| 33 |
193.3 |
1550.92 |
56 |
195.6 |
1532.68 |
| 34 |
193.4 |
1550.11 |
57 |
195.7 |
1531.89 |
| 35 |
193.5 |
1549.32 |
58 |
195.8 |
1531.12 |
| 36 |
193.6 |
1548.51 |
59 |
195.9 |
1530.33 |
| 37 |
193.7 |
1547.71 |
60 |
196.0 |
1529.55 |
| 38 |
193.8 |
1546.92 |
61 |
196.1 |
1528.77 |
| 39 |
193.9 |
1546.12 |
- | - | |
Note: Support Customized Design, please contact us by email
