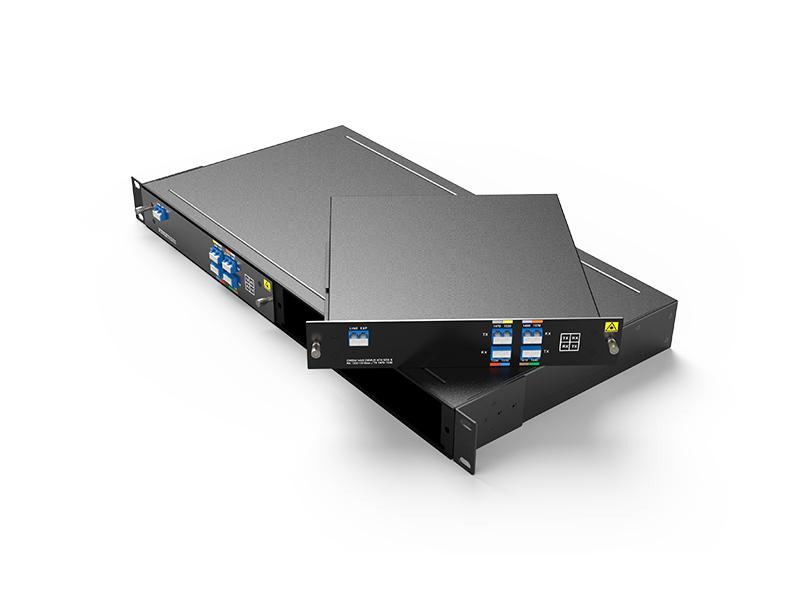

Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack
Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack

Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack

  1. Single-fiber Bidirectional Transmission: Enables 4-channel (8-wavelength) bidirectional transmission over one fiber, supporting 8 types of services.
  2. Dual-direction Wavelength Separation: Independent A/B side wavelength ranges (1470–1530nm/1550–1610nm) eliminate interference.
  3. Passive Design: No power supply required, ensuring low power consumption and easy maintenance.
  4. Flexible Deployment: Plug-in LGX box with 2-slot 1U rack for space-saving and 便捷 installation.
  5. High Reliability: Low insertion loss (≤2.4dB), high return loss (≥45dB), and wide operating temperature range (-40°C to 85°C).
  6. Multi-service Adaptability: Supports 1G/10G Ethernet, SDH/SONET, etc., suitable for broadcast, finance, cloud, and other industries.
  7. Intelligent Monitoring: MON port enables online link monitoring without disrupting traffic.
Inquire now Download
  • Product Detail

Single Fiber 4Channels(8waves) 1470-1610nm CWDM MUX/DEMUX , LC/UPC, Plug-in LGX Box and 2slot 1U Rack



The single fiber 4channels(8 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1470nm to 1530nm/ TX 1550nm to 1610nm, and B side’s waves are: RX 1550nm to 1610nm/ TX 1470nm to 1530nm; it is passive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 8channels difference business in one optical fiber for bi-direction point-to-point transmission.



It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.



Product Panel



Single Fiber 4CH CWDM MUX/ DEMUX

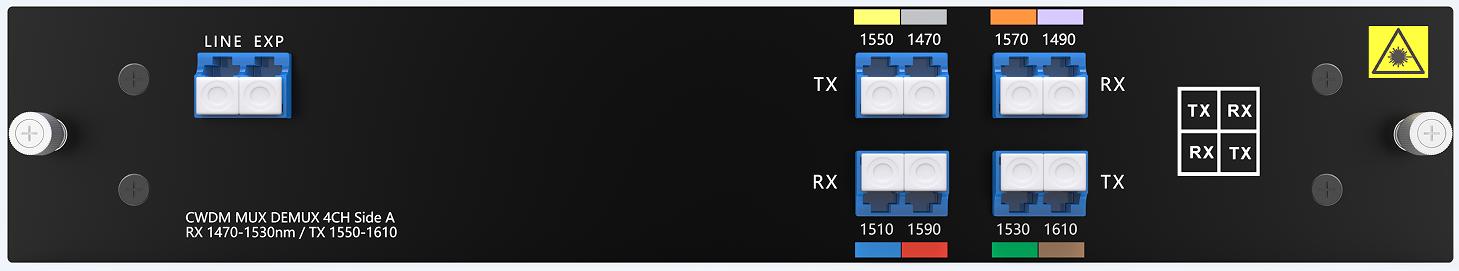

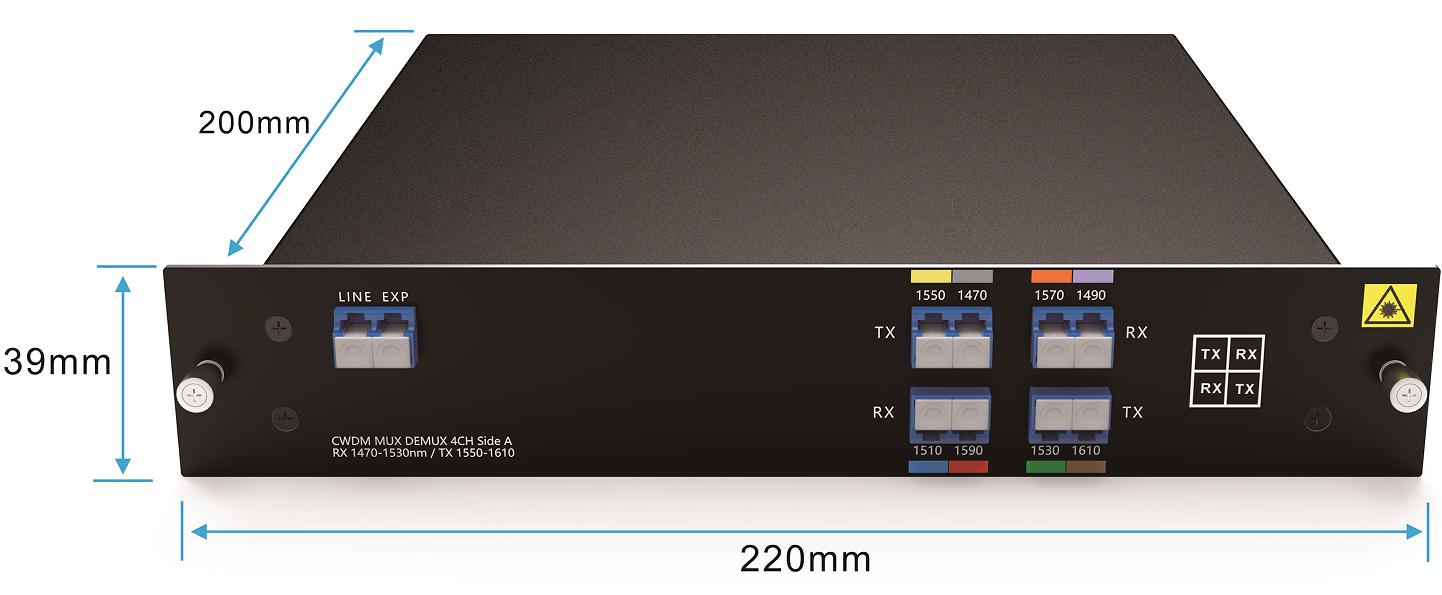

Side A  Single Fiber 4CH CWDM MUX/ DEMUX



Single Fiber 4CH CWDM MUX/ DEMUX

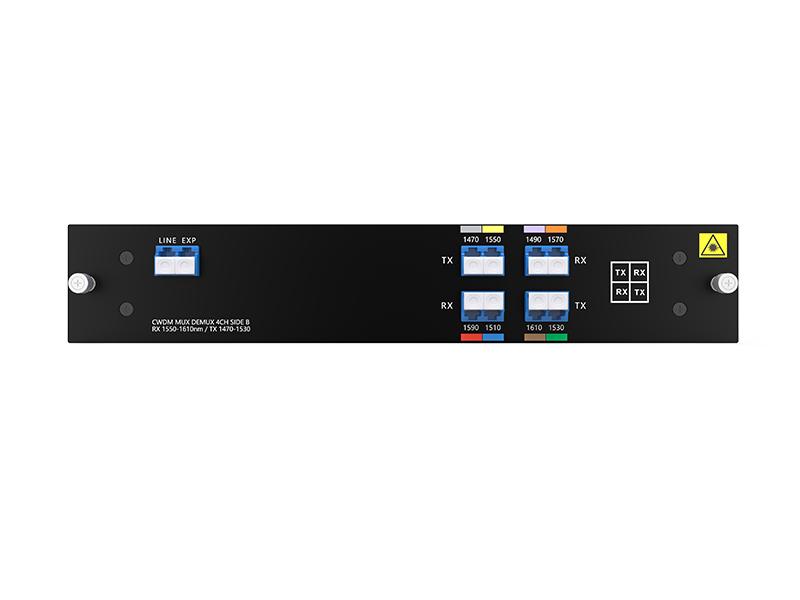

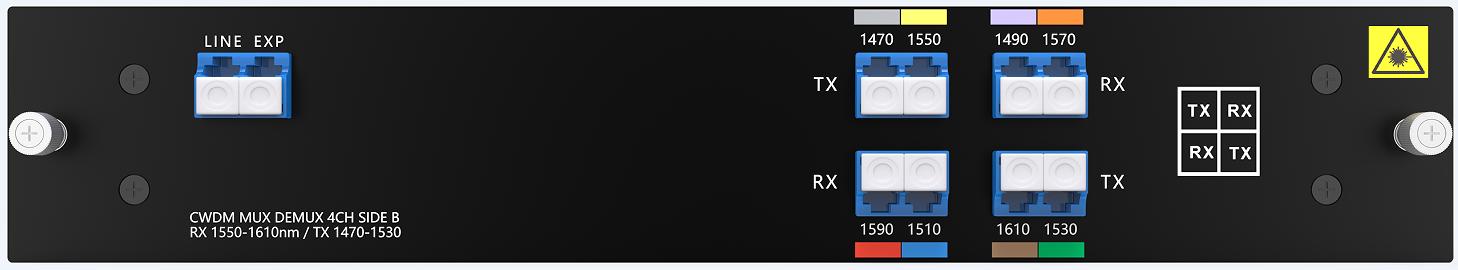

Side B  Single Fiber 4CH CWDM MUX/ DEMUX



Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.



Line Link：

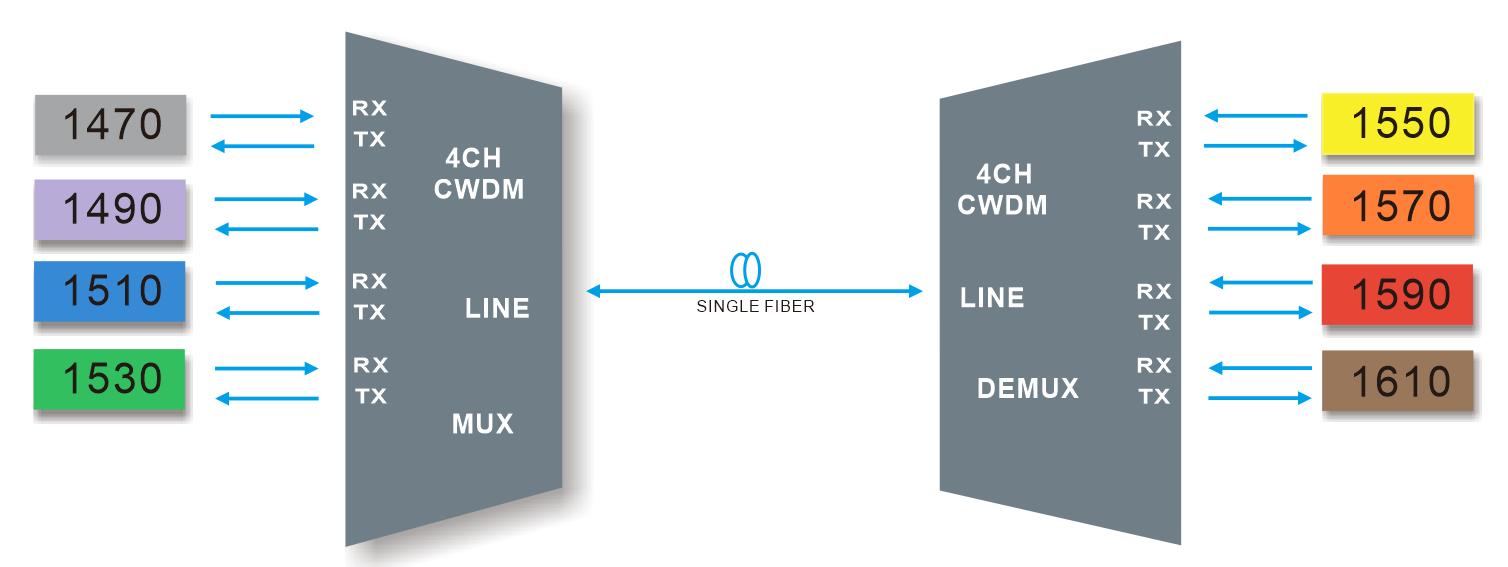

4CH CWDM MUX/ DEMUX Single fiber transmission

4CH CWDM MUX/ DEMUX Single fiber transmission



4Channels (8 waves) CWDM MUX/ DEMUX,should be used in pairs, which transmits and receives different wavelengths, support 4 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.



Product Specification：



Wavelength

1470-1610nm

Channel Spacing

20nm

Channel Passband

±6.5nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤ 2.4dB

Center Wavelength Accuracy

±0.05nm

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥ 45dB

Temperature

Operating -40 to 85°C

Storage  -40 to 85°C

Net Weight

LGX BOX 0.5KG

2Slot 1u Rack 1.5KG

Dimensions (HxWxD)

LGX BOX 190*200*39mm

2Slot 1u Rack 44*440*230mm



Note: Specified with connectors.



Package Information：

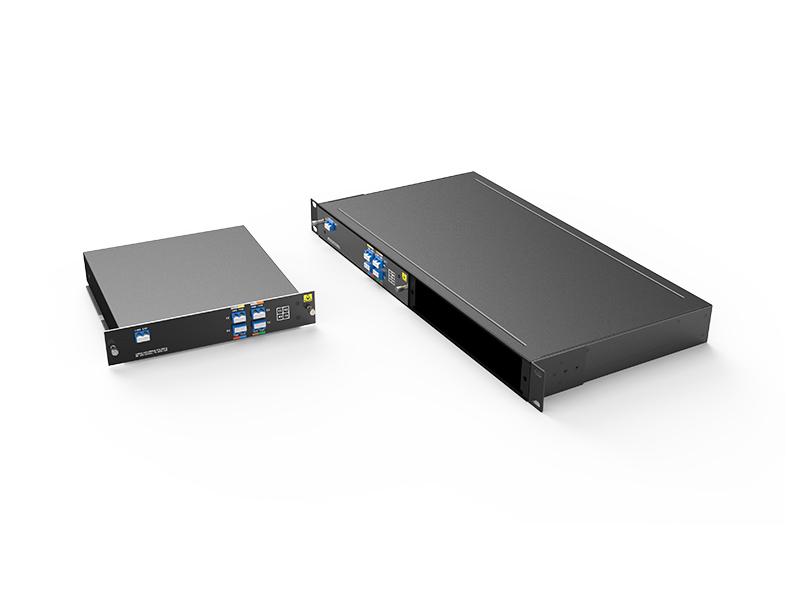

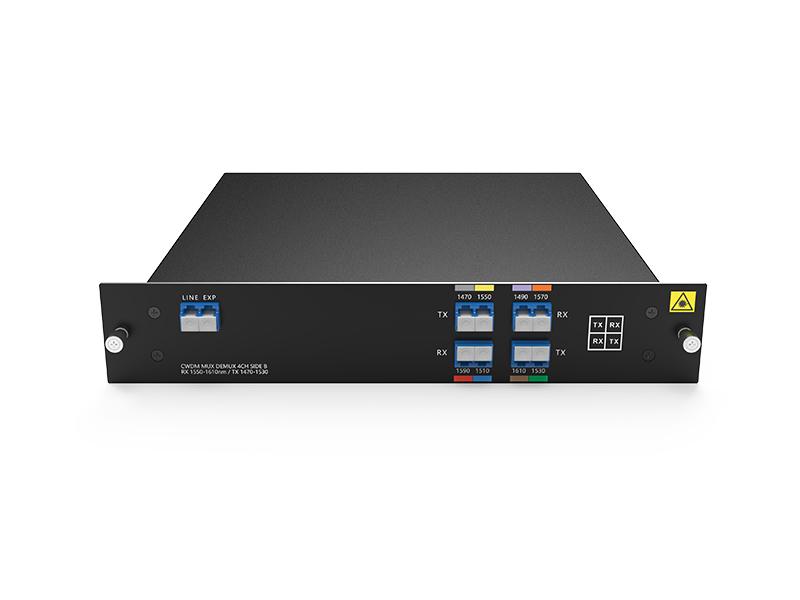

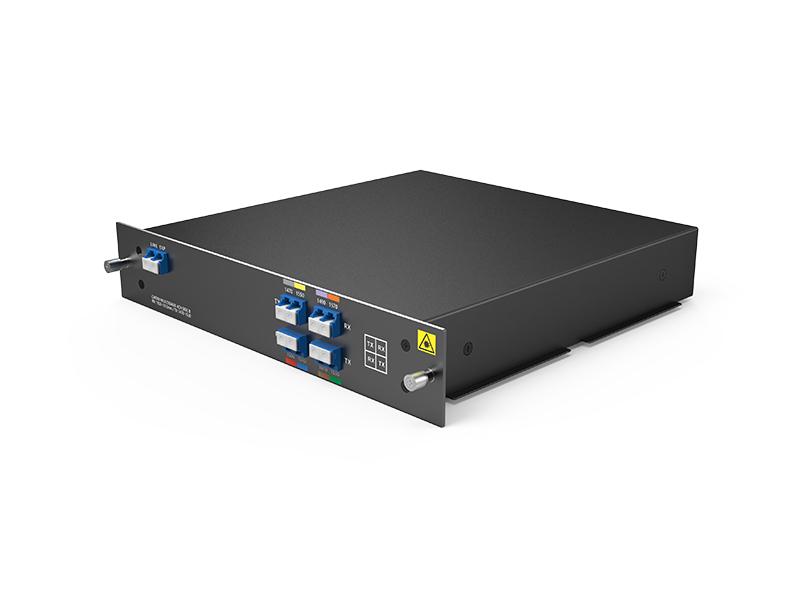

Plug-in LGX Box

Plug-in LGX Box

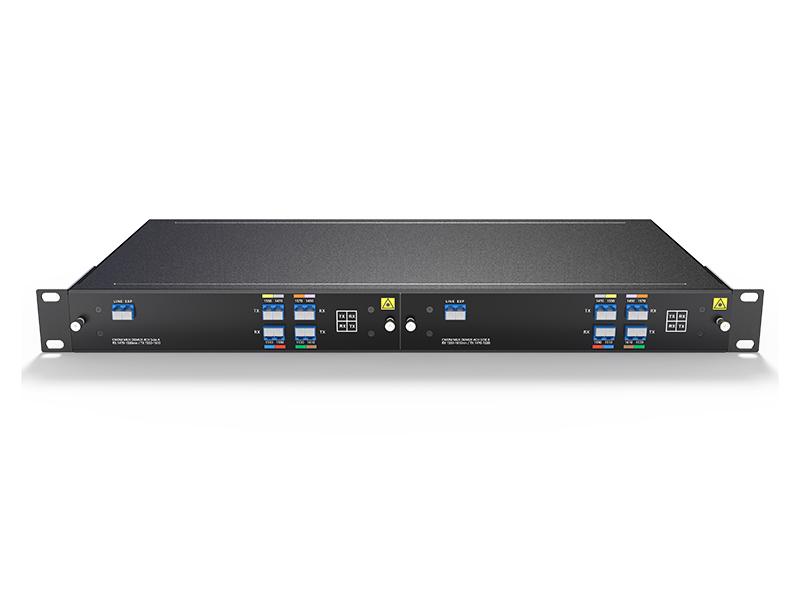

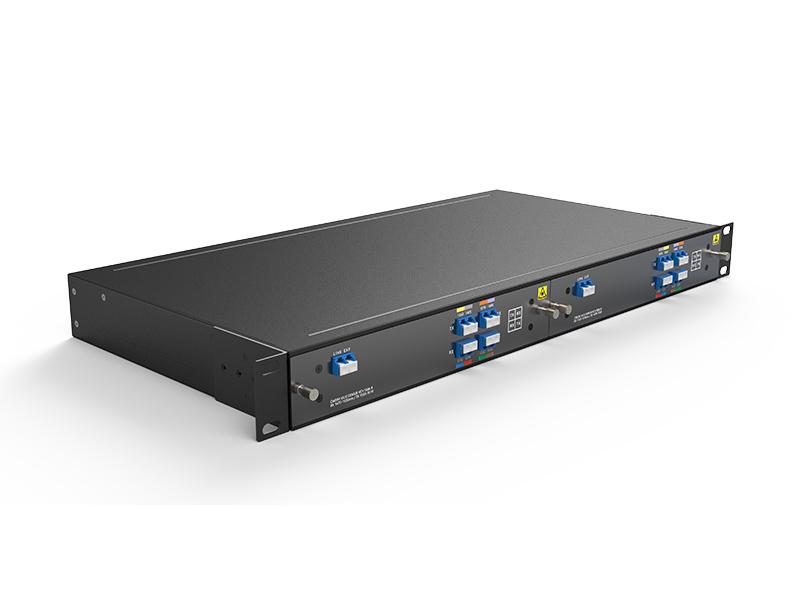

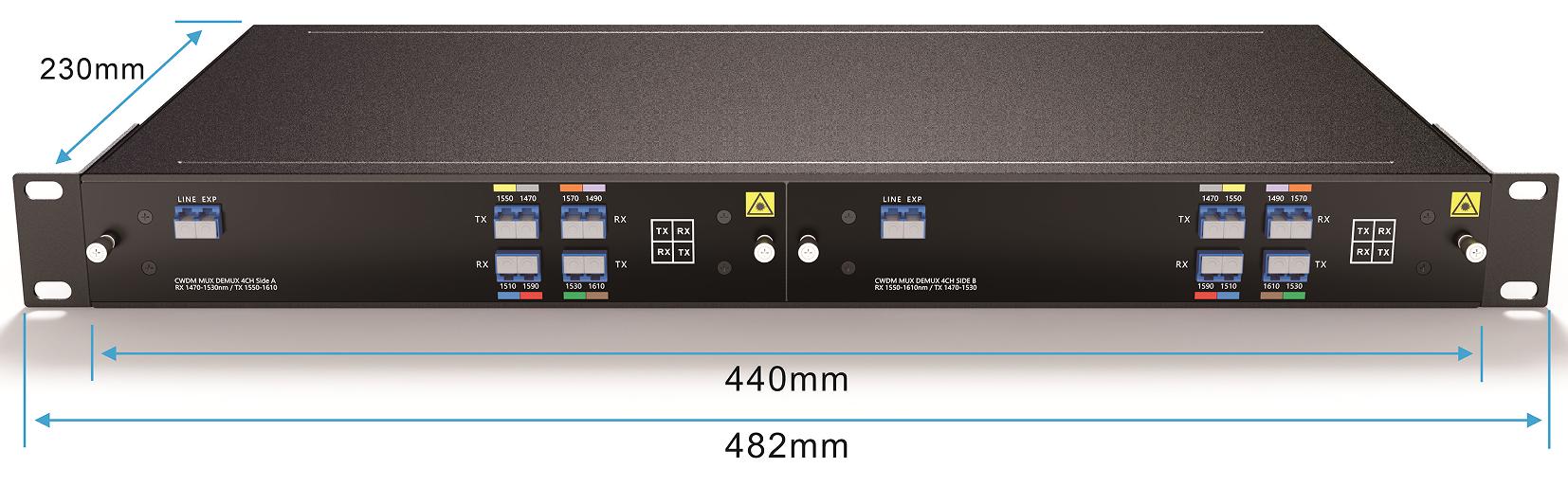

2-Slot 1U Rack for LGX BOX

2-Slot 1U Rack for LGX BOX



Order Information:



Product No.

Product description

CM8-1U01-4761A

CWDM MUX /DEMUX 4CH 8waves(RX1470nm~1530nm/ TX1550nm~1610nm ) , Single fiber, LC/UPC , Plug-in LGX Box Side A

CD8-1U01-4761B

CWDM MUX /DEMUX 4CH 8waves(RX1550nm~1610nm/ TX1470nm~1530nm ) , Single fiber, LC/UPC , Plug-in LGX Box Side B

1U02-2LGX

19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm



Note: We Support Customized Design, please contact us by email.
