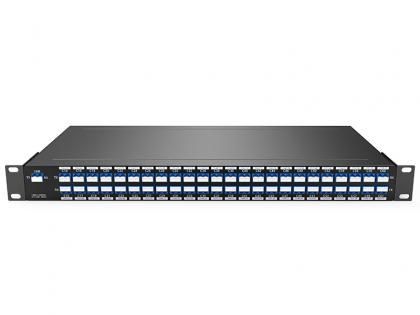

MXN MEMS Optical Switch

Features

  • Proven MEMS durability and reliability
  • Compact Form Factor
  • TTL UART interface
  • Qualified to Telcordia GR-1073-CORE and RoHS

Applications

  • Optical path selection
  • AsAutomatic optical distribution rack

  • Product Detail

M x N MEMS Optical Switch OXC



M x N MEMS Optical switch is used in optical cross-connect, OXC application. It’s also called Matric Optical Switch. It allows channel selections between M input fibers and N output fibers.



FIBERWDM’s MEMS Modular Single-Mode OXC is based on industry proven, long-life, reliable MEMS 1xN optical switch components. Each MxN OXC consists of M 1xn OSW and N 1xm OSW.



Product Configurations



Note:  M*N requires less than 1024.



Optical Specifications



PARAMETER

VALUE

UNIT

NOTE

Wavelength

1290~1330

1525~1568

1600-1650

nm

Or customer specify

Test Wavelength

1310/1550/1625 or 1650

nm



MxN

8x8/8x16/16x16/16x32



M*N≤1024

Insertion Loss

4x4

≤1.4 @S

dB

@CWL,23°C

Without Connectors



@S: 13 or 15 or 16

@D: 13&15 or 15&16



(if with connectors or support @D, IL increased by 0.4dB)

4x8

≤1.6 @S

8x8

≤1.8 @S

8x16

≤1.9 @S

12x12

≤2.0 @S

16x16

≤2.0 @S

16x32

≤2.3 @S

24x24

≤2.5 @S

Return Loss

≥45

dB

Or customer specify

Repeatability

≤0.1

dB



Crosstalk

≥50

dB

Or customer specify

Polarization Dependence Loss

≤0.4

dB



Wavelength Dependence Loss

≤0.6

dB

@CWL±20nm, 23°C

Temperature Dependence Loss

≤0.8

dB



Switch Time

≤15 @16x16

≤25 @24x24

ms

A set of configuration link

Eg: M1-N12

Durability

≥1x109

cycle



Maximum optical Power

≤500

mW





Electrical and Mechanical Specifications



PARAMETER

VALUE

UNIT

NOTE

Switch Mode

Non-latching





Control Voltage

12

V

Module

Dimension

150×150×20 @8x8

200x180x18 @16x16

200x180x18 @8x24

312x180x30 @24x24

mm

Module



Environmental conditions



PARAMETER

VALUE

UNIT

NOTE

Operation Temperature

-5~65

°C



Storage Temperature

-40~85

°C



Operation Humidity

5~95

%RH



Storage Humidity

5~95

%RH





Pigtail and connector type/length



PARAMETER

VALUE

UNIT

NOTE

Fiber Type

G657A2 or G657B3 250um bare fiber





Fiber Pigtail(All Ports)

250um fiber or 900um loose tube





Fiber Length(All Ports)

1.00±0.05

m

Or customer specify

Optical Connector(All port)

None



Or customer specify



MECHANICAL DRAWINGS



8x8 OXC MEMS Optical Swtich
8x8 OXC MEMS Optical Swtich

8x8 OXC MEMS Optical Swtich



16x16 OXC MEMS Optical Swtich
16x16 OXC MEMS Optical Swtich

16x16 OXC MEMS Optical Swtich


24x 24 OXC MEMS Optical Swtich

24x 24 OXMEMS Optical Swtich

Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Variable Optical Attenuator MEMS Variable Optical Attenuator VOA
Product Features Low insertion loss Low polarization dependent Compact size Available in both normally open and normally closed states Excellent reliability Product Application Power Management Receiver protective Channel Balance Instrumentation

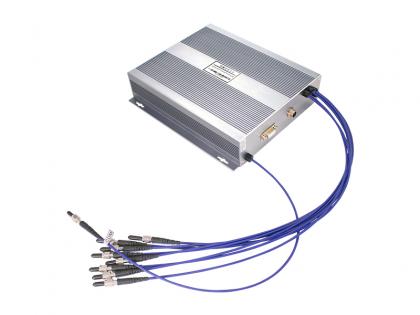

MEMS Fiber Optical Switch 1XN MEMS Optical Switch
Features Proven MEMS durability and reliability Compact Form Factor Fast switching time Qualified to Telcordia GR-1073-CORE and RoHS Applications Opticalsignal switching androuting Optical network protection and restoration Optical path monitoring (Workingwith OTDR or OCM) Instrumentation resource sharing
1X12 MEMS Fiber Optical Switch,PM Fiber Module PM (Polarization-maintaining) 1X12 MEMS Fiber Optical Switch 1550nm 0.9MM 0.5M PM Fiber FC/APC 158x150x29nm Module
Features   Proven MEMS durability and reliability Compact Form Factor Fast switching time Qualified to Telcordia GR-1073-CORE and RoHS UART/TTL or UART/RS232 control interface

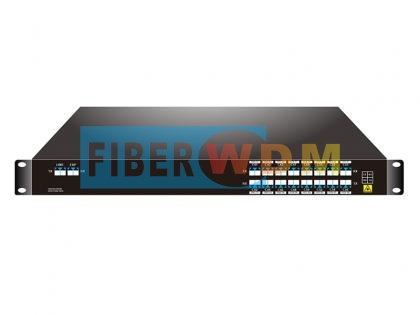

Optical Transport System FW6600 Optical Transport System FW6600
Product Features Flexible networking with a compact footprint and strong scalability. Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards. Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video. Supports maximum single-channel rates of 100G, 200G, 400G. Supports various networking configurations, including point-to-point, point-to-multipoint, and ring topologies, with options for single-fiber or dual-fiber bidirectional transmission. Supports interoperability with client devices from different vendors, including single-mode (1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes. Supports SNMP-based unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface). Supports 1+1 hot-swappable redundant power backup with options for both AC and DC power sources.
1550nm SOA Optical Pulse Modulation Module 1550nm SOA Optical Pulse Modulation Module
The pulse modulation module developed by FiberWDM. is a narrow-pulse modulation module using a semiconductor electro-optic modulator as the core conversion device. It is externally triggered and modulated through an SMA interface for the input modulation signal. The internal modulation drive circuit modulates the electro-optic switch. The module features fast rise time, high pulse extinction ratio, good stability, and ease of use, making it an ideal alternative to traditional electro-optic and acousto-optic modulators in various fiber-optic sensing applications.

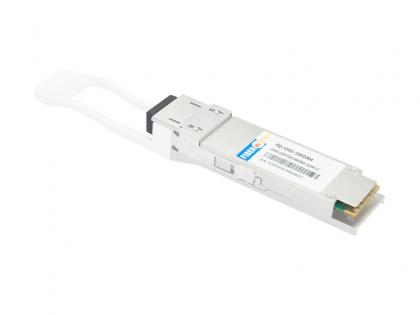

100G QSFP28 O-Band DWDM 25KM  SM LC Transceiver 100G QSFP28 O-Band DWDM 25KM SM LC Transceiver
