In the wave of digitalization, high-speed data transmission and processing have become the core driving forces behind technological development. As a key carrier of information transmission, optical communication technology continues to evolve to meet the explosive growth in bandwidth demand. Among these advancements, the LPO optical module has emerged with unique technological advantages, standing out as a breakthrough technology in the field of optical communication.
I. Definition of LPO Optical Module
LPO stands for Linear-drive Pluggable Optics, which is translated as "线性驱动可插拔光模块" in Chinese. Its core features lie in the combination of linear drive technology and pluggable characteristics.
- Pluggable characteristics: Similar to USB devices, it supports flexible plug-and-play, greatly improving the convenience of equipment installation, maintenance, and upgrades, while significantly reducing operational costs and downtime in scenarios such as data centers.
- Linear drive technology: This is the core difference between LPO and traditional optical modules. Traditional optical modules rely on DSP (Digital Signal Processing) chips for signal processing, which suffer from high power consumption and high costs. In contrast, LPO optical modules abandon DSP chips and adopt linear analog technology to directly drive optoelectronic devices, simplifying the signal processing and optimizing energy efficiency.
II. Working Principle of LPO Optical Module

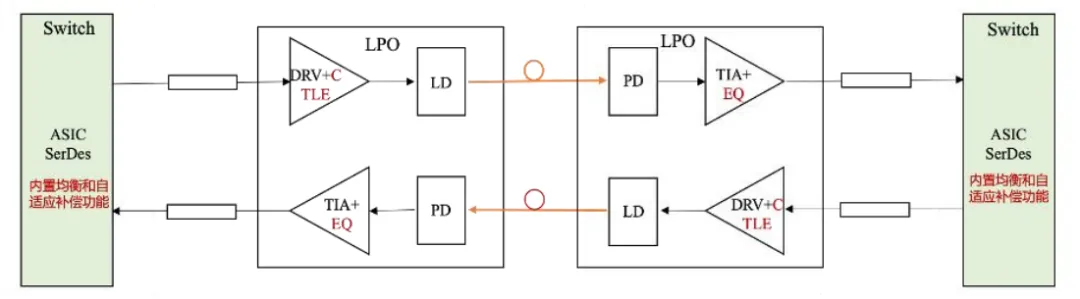

The core function of an LPO optical module is to realize efficient conversion between electrical and optical signals, with its working process centered on "simplified processing":
- Transmitting end: After receiving an electrical signal, it is processed by a high-linearity Driver chip with CTLE (Continuous Time Linear Equalization) function to compensate for high-frequency attenuation during transmission. Then, the laser is directly driven to convert the electrical signal into an optical signal, which is sent through an optical fiber.
- Receiving end: The optical detector converts the received optical signal into a weak electrical signal, which is amplified and equalized by a TIA (Transimpedance Amplifier) with EQ (Equalization) function. After restoring the signal integrity, it is transmitted to the terminal equipment.
The entire process replaces the traditionally complex DSP processing with simple signal compensation, significantly reducing power consumption and costs while ensuring transmission quality.
III. Technical Advantages of LPO Optical Module
Compared with traditional optical modules, the advantages of LPO are concentrated in three dimensions: "low consumption, low cost, and high efficiency":
- Low power consumption: After removing the DSP chip, the power consumption of a 400G LPO module can be reduced to below 4W, which is about 50% lower than traditional solutions, directly reducing electricity bills and cooling costs in data centers.
- Low cost: Eliminating the high-cost DSP chip reduces material costs by 15-20%. At the same time, the simplified structure also lowers manufacturing costs, laying the foundation for large-scale applications.
- Low latency: By skipping the DSP processing link, the delay is reduced from the nanosecond level to the sub-nanosecond level, a reduction of more than 30%, perfectly meeting the strict real-time requirements of AI training, high-frequency trading, and other scenarios.
- Compatibility and flexibility: It retains the traditional pluggable package, enabling seamless compatibility with existing network hardware. Moreover, it supports data rates from 100G to 800G and even higher, adapting to diverse scenario needs.
IV. Application Scenarios of LPO Optical Module
With its unique technical advantages, LPO optical modules show strong competitiveness in the following scenarios:
- Data center internal interconnection: In short-distance scenarios of 100 meters to 2 kilometers, its low power consumption and low cost can efficiently meet the connection needs between servers and switches, improving the overall operational efficiency of data centers.
- AI computing power clusters: The low-latency feature precisely matches the intensive communication patterns in AI training, ensuring fast data transmission in 10,000-card-level clusters, avoiding network bottlenecks, and enhancing the overall computing power performance of the cluster.
V. Challenges and Countermeasures of LPO Optical Module
Despite its significant advantages, LPO optical modules still need to overcome the following bottlenecks:
- Transmission distance limitation: Due to the lack of DSP processing, the communication distance is limited, and it is currently mainly applicable to medium and short distances. Countermeasures include: adopting silicon photonics integration technology and advanced packaging processes to improve signal stability, and introducing intelligent compensation algorithms to optimize transmission performance.
- High precision requirements for craftsmanship: Strict requirements for the matching accuracy of optical devices and circuit parameters necessitate enterprises to improve precision manufacturing capabilities and strengthen cooperation across the industrial chain to unify standards.
- Standardization issues: The lack of unified industry standards affects the compatibility and interoperability of products from different manufacturers. Currently, industry associations and standardization organizations are accelerating the formulation of relevant technical specifications to promote industrialization.
VI. Future Development Trends of LPO Optical Module
With technological iteration, the development direction of LPO optical modules is gradually becoming clear:
- Continuous technological innovation: Developing higher-performance optical devices, optimizing circuit design and compensation algorithms, and integrating emerging technologies such as AI to realize intelligent management and adaptive adjustment of modules.
- Expansion of application fields: Extending from data centers and AI clusters to 5G communication, high-performance computing, intelligent transportation, and other fields, helping various industries achieve digital transformation.
- Multi-technical collaboration: Forming complementary advantages with technologies such as CPO (Co-packaged Optics) and coherent optical communication to build full-scenario optical communication solutions covering short, medium, and long distances, meeting diversified transmission needs.
By simplifying technology to balance performance and cost, LPO optical modules are reshaping the technical landscape of the optical communication field. With the gradual resolution of existing challenges, they are expected to become the core solution for high-speed short-distance communication in the future, providing key support for the development of the digital economy.
