Features:
Splitter PLC 1X2 SC/APC Plug-in LGX Box 215*150*20MM
Fiberwdm’s PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64
Product

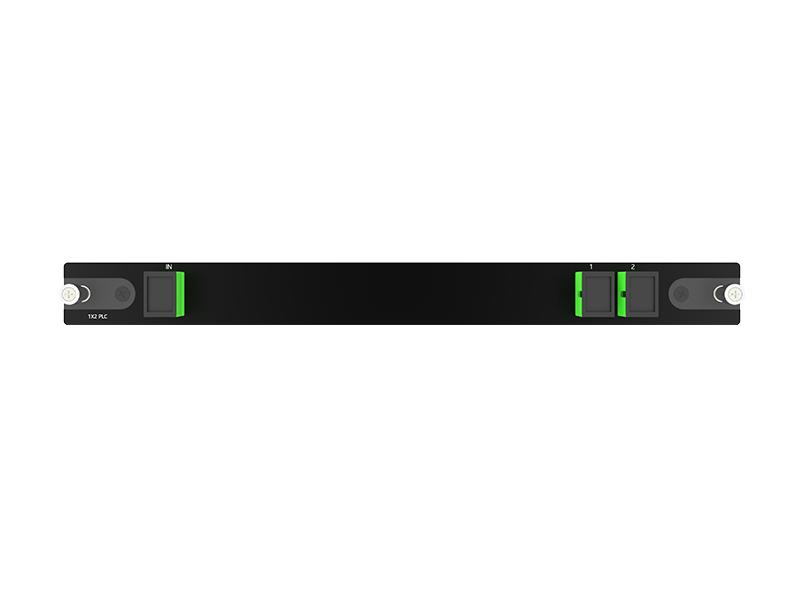

1*2 PLC SC/APC Plug-in LGX Box 215*150*20MM
Features:
Applications
Compliance
1*N PLC Specifications
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | |
| Fiber Type | SMF-28e or customer specified | ||||
| Operating Wavelength (nm) | 1260～1650 | ||||
| Insertion Loss | Typical | 3.7 | 6.8 | 10.0 | 13.0 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | |
| Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 |
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max | 0.5 | 0.5 | 0.5 | 0.8 |
| Operating Temperature (°C) | -40~85 | ||||
| Storage Temperature (°C) | -40~85 | ||||
| LGX Box Packaging Size (mm) | 215*150*20MM | ||||
| 19’’ Rack mount Package(mm) | 1U, 440*160*44 | ||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
2*N PLC Specifications
| Port Configuration | 2×2 | 2×4 | 2×8 | 2×16 | |
| Fiber Type | SMF-28e or customer specified | ||||
| Operating Wavelength (nm) | 1260～1650 | ||||
| Insertion Loss | Typical | 3.8 | 7.4 | 10.8 | 14.2 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | |
| Loss Uniformity (dB) | Max | 1.0 | 1.4 | 1.5 | 2.0 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 |
|
Temperature Dependent Loss (-40～85°C) (dB) |
Max | 0.5 | 0.5 | 0.5 | 0.8 |
| Operating Temperature (°C) | -40~85 | ||||
| Storage Temperature (°C) | -40~85 | ||||
| Packaging Size (mm) | 215*150*20MM | ||||
| 19’’ Rack mount Package (mm) | 1U, 440*160*44 | ||||
Notes: 1.Specifications without fiber connectors.
2.Room temperature test .
Package (mm)
PLC Plug-in LGX Box 215*150*20MM
4-Slot 1U Rack for LGX BOX
Order Information
| Part No. | Specifications |
| 1P2-LGX02A | 1x2 PLC SC/APC Plug-in LGX Box 215*150*20MM |
FAQ
Q: What are the main application scenarios?
A: Suitable for FTTx systems (e.g., Fiber-to-the-Home, Fiber-to-the-Building), LAN/WAN/Metro Networks, Analog/Digital Passive Optical Networks (PON), CATV Networks, and other fiber optic communication systems.
Q: Is it compatible with fiber optic equipment (e.g., OLT, ONU) from other brands?
A: Yes. The product complies with industry universal standards (Telcordia GR series) and uses standard SC/APC connectors and SMF-28e fiber. It is fully compatible with mainstream fiber optic equipment brands (e.g., Huawei, ZTE, Cisco) as long as the interface and fiber type match.
Q: What is the after-sales guarantee policy for this PLC splitter?
A: Our company provides a 3-month replacement guarantee, a 3-year warranty, and lifetime maintenance service.
