100G DWDM QSFP28 Transmission Solution

With the increasing of network data flow, like Cloud Service, Metro Network, 100G transmission has begun to be widely used. And in long distance transmission, like <80km point to point, the fiber source are rare, if you just have one core fiber, want to transfer many channels 100G data, and want to save cost, please email us,sales@fiberwdm.com , we can provide the solutions for you.

Here has one application for reference:

8 channels 100G DWDM QSFP28 Single fiber, 60km distance transmission solution

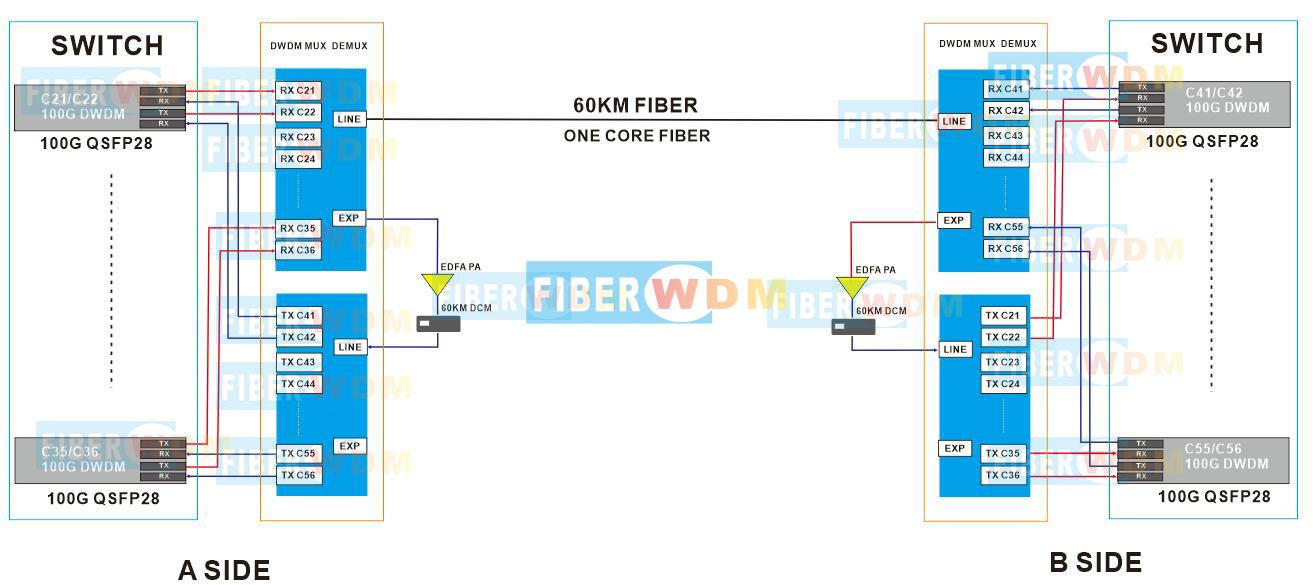

At present, the traditional 100G/200G coherent optical DWDM CFP/CFP2 transmission solution is expensive and has a long lead time, for save cost, we use 100G DWDM QSFP28 non-coherent transmission solution. The application diagram is as follows:

Advantages of this program:

1) The 100G DWDM QSFP28 PAM4 incoherent optical transceiver module is directly embedded on the switch, eliminating the need for intermediate conversion boards and active devices, and saving considerable costs.

2) Support 8X100G Ethernet business transmission in one core fiber, point to point 60km distance.

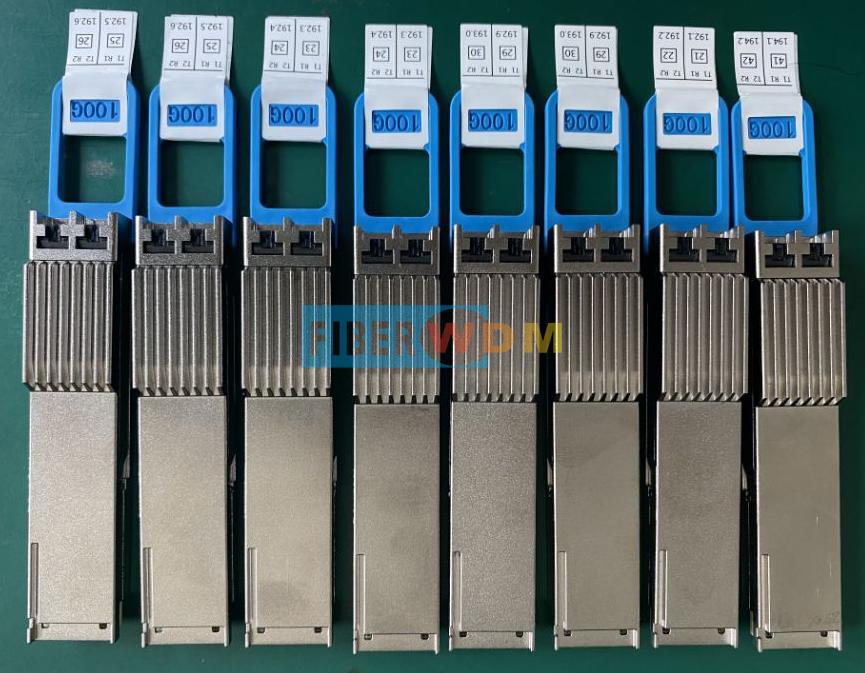

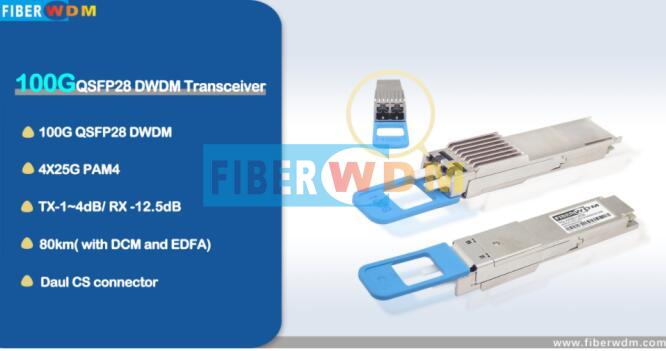

100G DWDM QSFP28 Transceiver

Application videos can be viewed on our website:
