PLC 1U Rack



Fiberwdm’s PLC are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. The PLC devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40℃ to +85℃. The PLC devices have standard configurations of 1*4, 1*8, 1*16 and 1*32 configurations, as well as customized structures of 2*8, 2*16, 2*32 and 2*64



Product



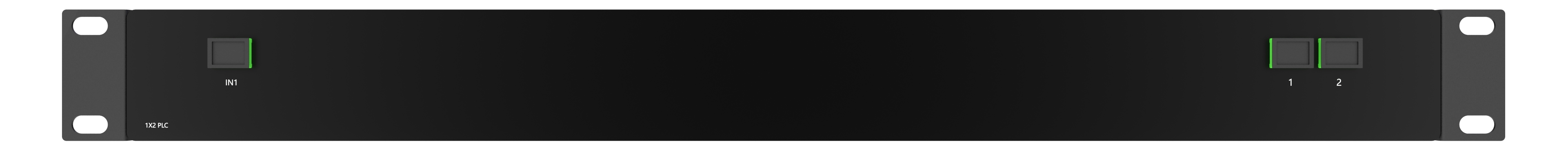

1*2 PLC SC/APC 1U Rack

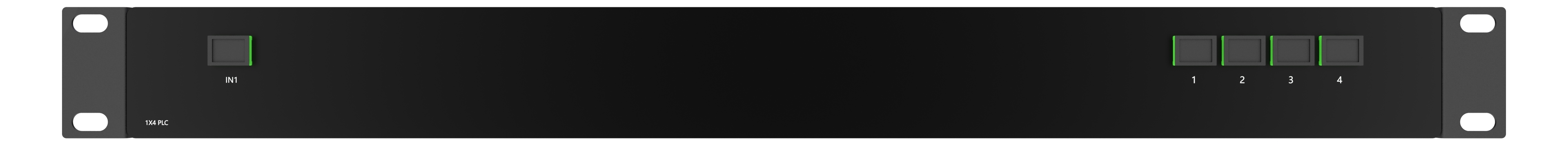

1*4 PLC SC/APC 1U Rack

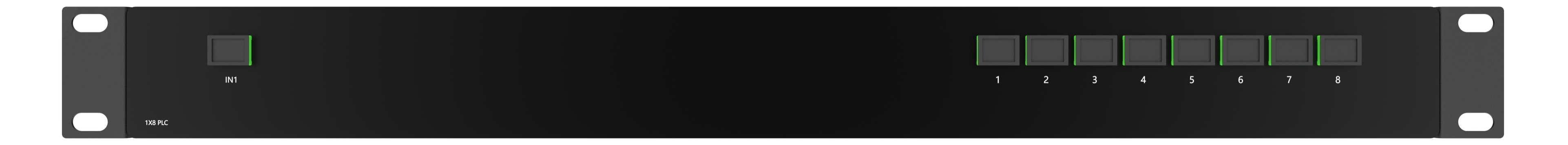

1*8 PLC SC/APC 1U Rack

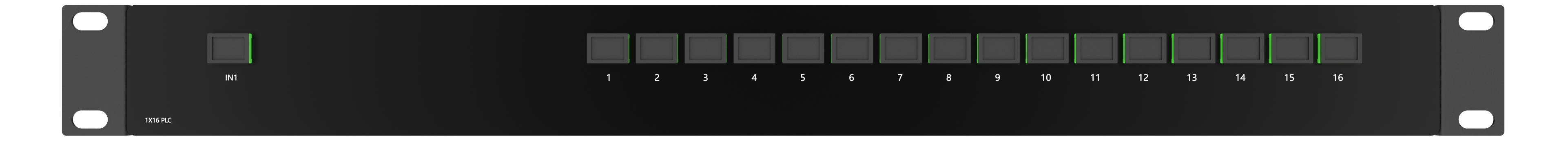

1*16 PLC SC/APC 1U Rack

1*16 PLC SC/APC 1U Rack

1*64 PLC LC/APC 1U Rack

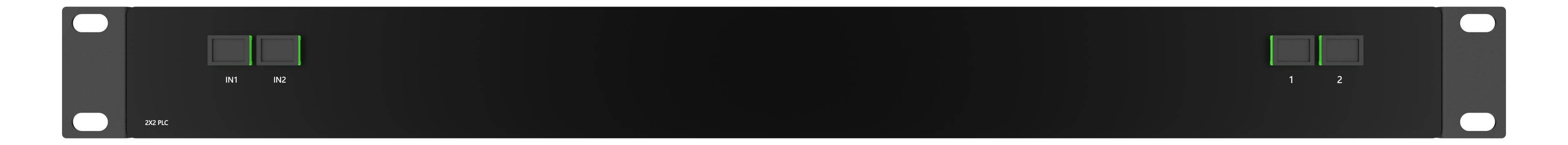

2*2 PLC SC/APC 1U Rack

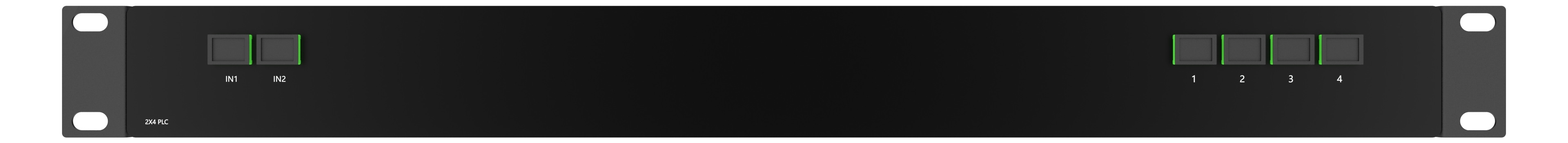

2*4 PLC SC/APC 1U Rack

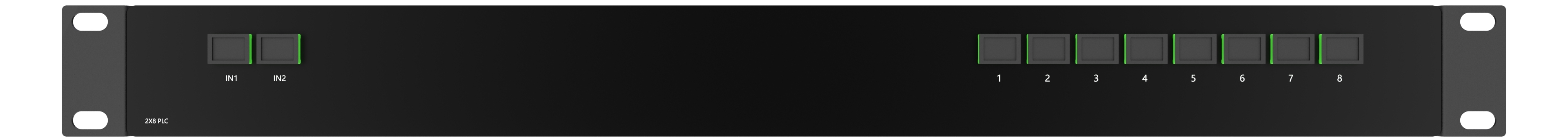

2*8 PLC SC/APC 1U Rack

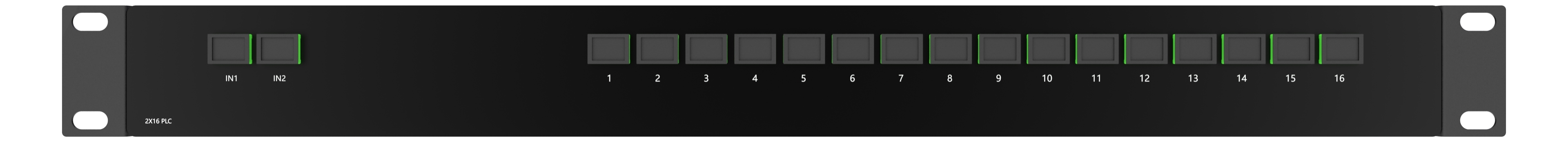

2*16 PLC SC/APC 1U Rack

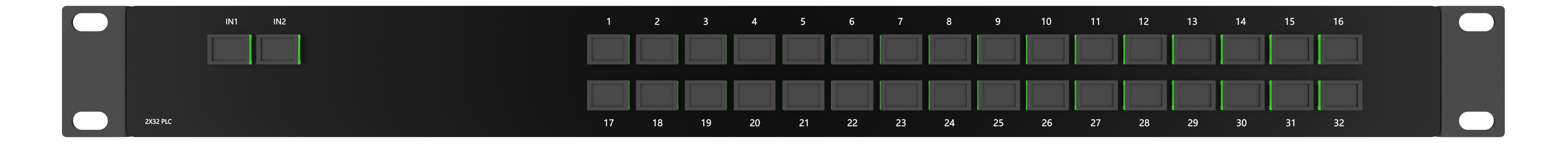

2*32 PLC SC/APC 1U Rack

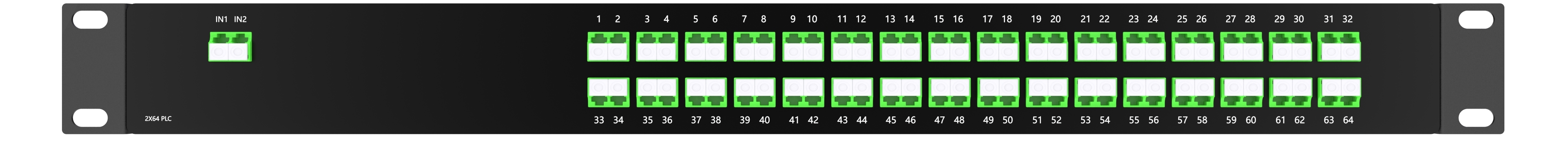

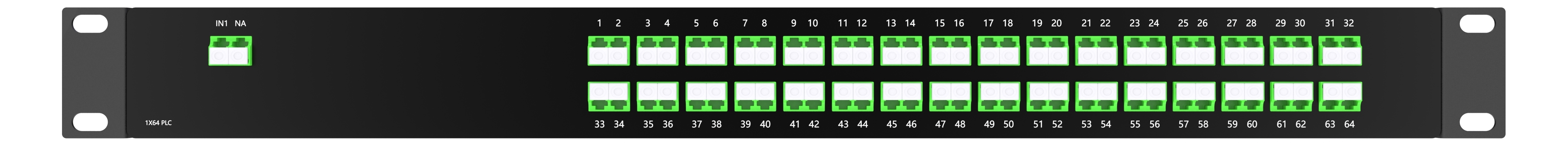

2*64 PLC LC/APC 1U Rack



Features:



  • Compact design
  • Low insertion loss and low PDL
  • High reliability
  • High channel counts
  • Wide wavelength range
  • Large operating temperature range
  • Customized packaging and configuration



Applications



  • FTTx Systems
  • LAN, WAN and Metro Networks
  • Analog/Digital Passive Optical Networks
  • CATV Networks
  • Other applications in fiber optic systems



Compliance



  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE



1*N PLC Specifications



Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Fiber Type SMF-28e or customer specified
Operating Wavelength (nm) 1260～1650
Insertion Loss  Typical 3.7 6.8 10.0 13.0 16.0 19.5
Max 4.0 7.2 10.5 13.5 16.9 21.0
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8

Temperature Dependent Loss

(-40～85°C) (dB)

Max

 0.5 0.5 0.5 0.8 0.8 1.0

Operating Temperature (°C)

 -40~85

Storage Temperature (°C)

 -40~85

Packaging Size (mm)

 40×4×4 40×4×4 40×4×4 40×4×4 50×7×4 60×12×4

19’’ Rack mount Package(mm)

 1U, 440*200*44

Notes:  1.Specifications without fiber connectors.

             2.Room temperature test .



2*N PLC Specifications



Port Configuration 2×2 2×4 2×8 2×16 2×32 2×64
Fiber Type SMF-28e or customer specified
Operating Wavelength (nm) 1260～1650
Insertion Loss  Typical 3.8 7.4 10.8 14.2 17.0 21.0
Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) Max 1.0 1.4 1.5 2.0 2.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
Polarization Dependent Loss(dB) Max 0.2 0.2 0.4 0.4 0.4 0.5
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.8 0.8 0.8 0.8 0.8 1.0

Temperature Dependent Loss

(-40～85°C) (dB)		 Max 0.5 0.5 0.8 0.8 0.8 1.0
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Size (mm) 40×4×4 40×4×4 50×4×4 50×4×4 60×7×4
19’’ Rack mount Package (mm) 1U, 440*200*44

Notes:  1.Specifications without fiber connectors.

            2.Room temperature test .

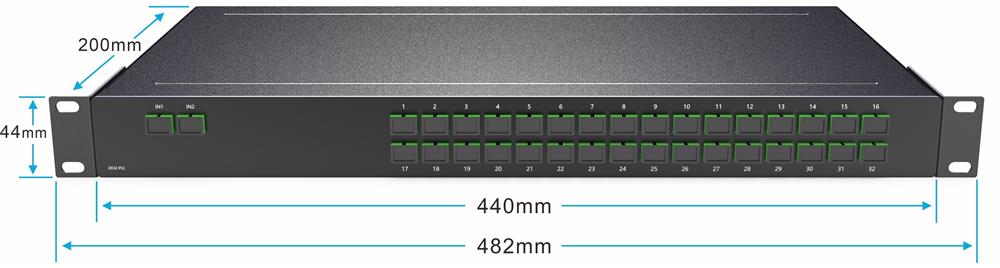

Package (mm)



Order Information



Part No. Specifications
1P2-1U02A 1x2 PLC SC/APC 1U Rack 440*200*44mm
1P4-1U02A 1x4 PLC SC/APC 1U Rack 440*200*44mm
1P8-1U02A 1x8 PLC SC/APC 1U Rack 440*200*44mm
1P16-1U02A 1x16 PLC SC/APC 1U Rack 440*200*44mm
1P32-1U02A 1x32 PLC SC/APC 1U Rack 440*200*44mm
1P64-1U01A 1x64 PLC LC/APC 1U Rack 440*200*44mm
2P2-1U02A 2x2 PLC SC/APC 1U Rack 440*200*44mm
2P4-1U02A 2x4 PLC SC/APC 1U Rack 440*200*44mm
2P8-1U02A 2x8 PLC SC/APC 1U Rack 440*200*44mm
2P16-1U02A 2x16 PLC SC/APC 1U Rack 440*200*44mm
2P32-1U02A 2x32 PLC SC/APC 1U Rack 440*200*44mm
2P64-1U01A 2x64 PLC LC/APC 1U Rack 440*200*44mm
