Point-to-point Networking Photoplex Segment Protection

Feb 01, 2023

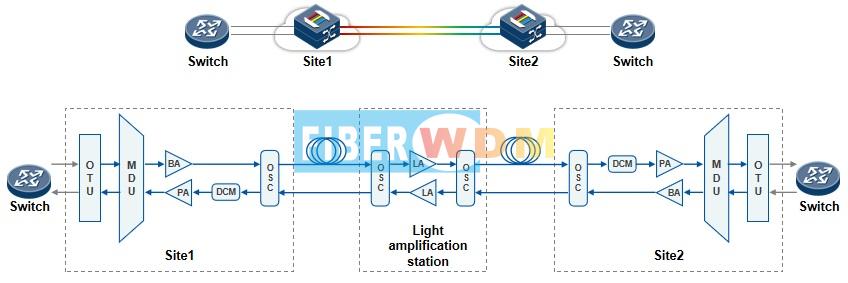

Schematic diagram of networking





  • The two stations use 2-core optical fiber to build a point-to-point transmission network, which can support the maximum 25.6T transmission capacity (400G * 64 waves), which greatly saves optical fiber resources


  • Ultra-long distance transmission can be realized by configoptical layer units such as BA, LA, PA and DCM (incoherent transmission application)


  • OSC can realize the signal communication of each station, and the whole network can be managed by single station access

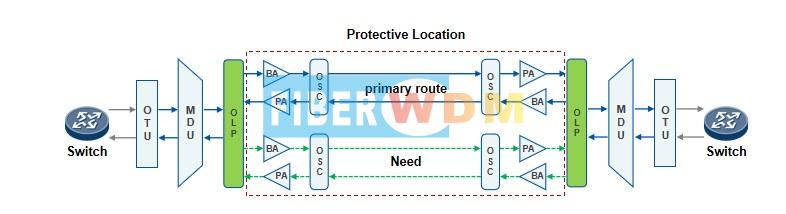

Photoplex segment 1 + 1 protection(OMSP)





  • Protect the whole transmission section, including optical cable and optical discharge


  • The multiplexing section no-light signal is used as the criterion to trigger the inversion. When the performance of the main route is degraded or no light, the system is automatically switched to the standby line. Since the APS protocol is not required, the protection exchange is stable and fast


  • Often used in the point-to-point, high level of protection scenarios
