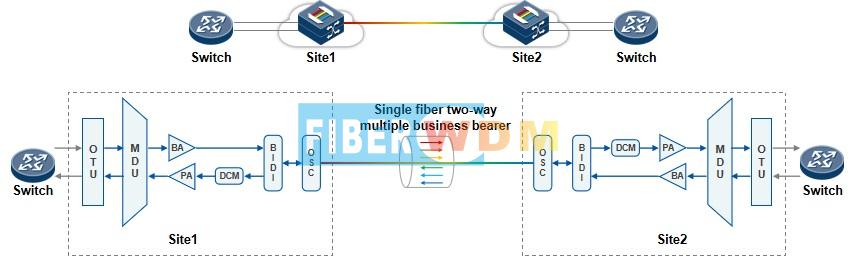

Schematic diagram of networking

• The two stations use one-core optical fiber to build a point-to-point transmission network, which can support the maximum 12.8T transmission capacity (400G * 32 waves), which greatly saves optical fiber resources

• Single fiber two-way technology, save the optical fiber rental cost of 50%

• By uring BA, LA, PA, DCM (incoherent transmission application) and other optical layer units can realize ultra-long distance transmission

• OSC can realize the signal communication of each station, and the whole network can be managed by single station access
