100G wave division transmission solution

(Fiberwdm All rights Reserved)

Key words:100G Multiplex Transmission，100G wavelength-division transmission，Coherent optical transmission，O-band，C-band， 200G DCO

100G wavelength-division transmission technology is a high-speed optical transmission technology, which uses wavelength-division multiplexing (WDM) technology to achieve multi-wavelength optical signal transmission on a single fiber, thus greatly improving the transmission capacity of the fiber. The following are some solutions of Fiberwdm on 100G wavelength division transmission.

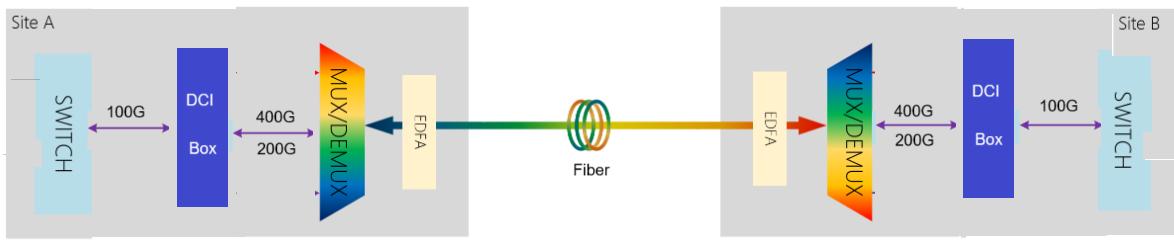

DCI 400G/200G coherent optical transmission solution:

Project description:

Customer side: QSFP28 100G, supporting SR4/LR4

Line side: CFP2 400G or 200G coherent optical DWDM DCO optical module

                Support 2*100G(QSFP28) TO 1*200G(CFP2)

                Support 4*100G(QSFP28) TO 1*400G(CFP2)

                Suitable for 100G long distance transmission

Maximum capacity: 64*400G or 96*200G

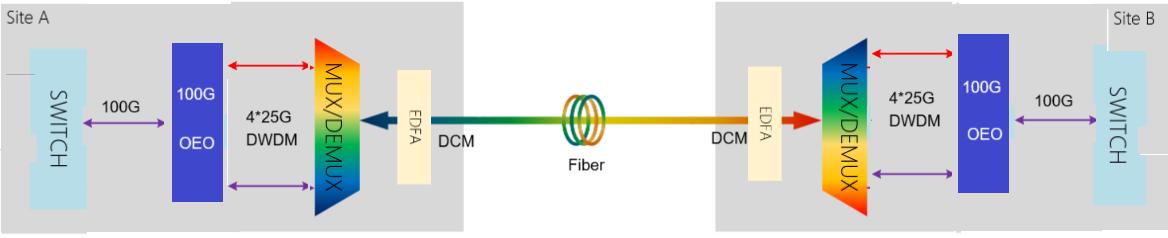

100G TO 4*25G transmission solution:

Project description:

Customer side: QSFP28 100G, supporting SR4/LR4

Line side: 25G DWDM optical module

                It is suitable for 100G transmission within 80KM

                DCM and EDFA optical amplifiers are required

Maximum capacity: 24*100G (double fiber) or 12*100G (single fiber)

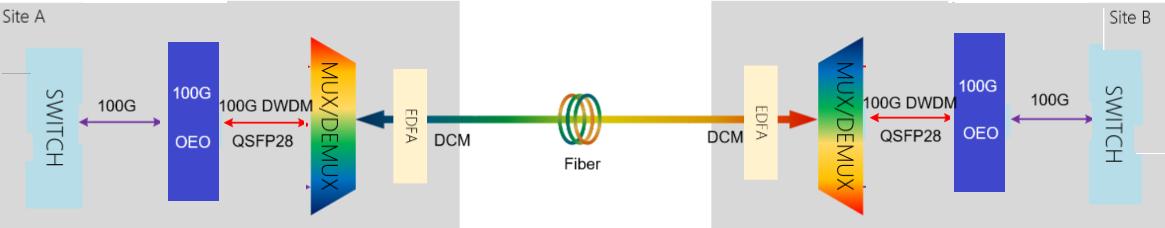

QSFP28 100G DWDM C-band optical module solution:

Project description:

Customer side: QSFP28 100G, supporting SR4/LR4

Line side: QSFP28 100G DWDM optical module;

                 QSFP28 100G DWDM optical module can be directly connected to the switch, can not use 100G OEO board

                 It is suitable for 100G transmission within 80KM

                TDCM and EDFA optical amplifiers are required

                There are currently 2 types of QSFP28 100G DWDM optical modules:

                Dual-wavelength CS interface optical module, occupying two DWDM wavelengths, C-band 100GHz, maximum transmission capacity of 20*100G

                Single-wavelength LC interface optical module, C-band 100GHz, maximum transmission capacity 40 x 100G

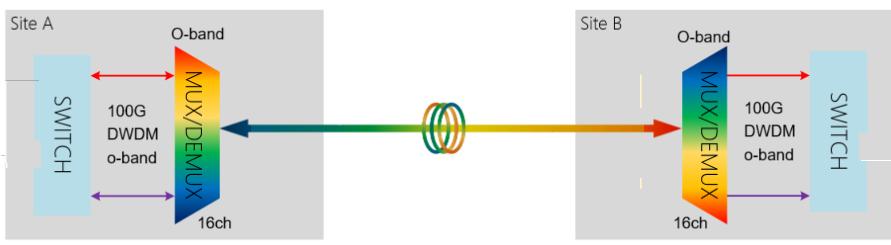

QSFP28 100G DWDM O-band optical module solution:

Project description:

The QSFP28 100G O-band DWDM optical module can directly connect to the switch.

The maximum transmission distance is 40KM

Maximum transmission capacity 16*100G (dual fiber)

Fiberwdm has many years of manufacturing experience in optical communication industry, independent research and development and production of wavelength division transmission equipment, fully used in data center, power optical transmission, financial bank data center interconnection and other fields, products cover: CWDM, DWDM, DCI Box(400G,200G), EDFA,OLP, Raman amplifier and other full-system optical transmission subsystems can meet the needs of dual-fiber transmission, single-fiber transmission, long-distance transmission, ring network transmission and various application scenarios.
