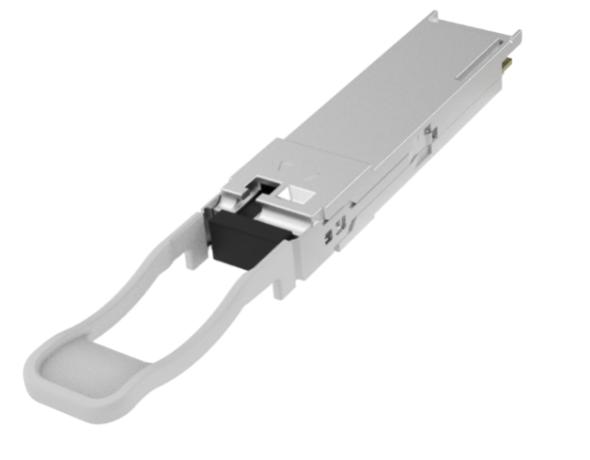

QSFP28 100G BIDI ZR4 80KM Optical Module

(Fiberwdm All rights Reserved)

Key words：QSFP28 100G BIDI，100G BiDi Single-Fiber Module，100G Single-Fiber 80km Optical Module

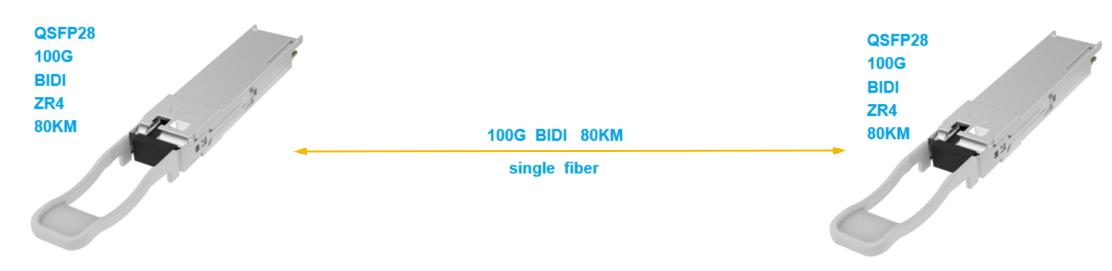

QSFP28 100G BIDI ZR4 80KM optical module, extending the transmission distance to 80 km, using a single core fiber to achieve upstream and downstream two-way data transmission.

Features of the product:

1. LWDM WDM technology is adopted

The product has built-in LWDM wavelength division multiplexer, which realizes bidirectional transmission through wavelength multiplexing of different wavelengths upstream and downstream using a single fiber. By reducing the use of optical fiber, the procurement cost and rental cost of optical fiber can be reduced, so as to achieve cost-effective network construction.

2.Achieve high-quality long-distance transmission

By integrating a high-output power laser at the transmitter and an optical semiconductor amplifier (SOA) at the receiver, the 30dB link budget required for 80km transmission is ensured, resulting in high-quality transmission. In addition, the product supports not only Ethernet signal rate (103Gb/s), but also OTU4 signal rate (111.8Gb/s) products.

3. It is possible to connect with existing devices

The electrical interface is the same as the traditional 100G QSFP28 product, 4X25G NRZ, and meets the specifications of 5.5W or lower power consumption, so existing QSFP28 ports can be easily introduced.

The launch of this product further improves the product line of QSFP28 100G BIDI single-fiber bidirectional optical module, and Guangzhou Ruidong Technology can provide customers with complete 100G BIDI optical module products.

1)  QSFP28 100G BIDI 10KM Optical Module

     P/N : RQ-100GBD10-2733/RQ-100GBD10-3327
     product specifications ：QSFP28 100G SM BIDI  LR1 10KM  1*LC  1270/1330

2)  QSFP28 100G BIDI 20KM Optical Module

     P/N : RQ-100GBD20-2931/RQ-100GBD10-3129

     product specifications：QSFP28 100G SM BIDI  LR1 20KM  1*LC  1290/1310

3)  QSFP28 100G BIDI 20KM Optical Module

   P/N : RQ-100GBD20-2831/RQ-100GBD10-3128
   product specifications：QSFP28 100G SM BIDI  LR4 LWDM4 20KM  1*LC  1280/1310

4)  QSFP28 100G BIDI 30KM Optical Module

     P/N : RQ-100GBD30-0409/RQ-100GBD30-0904

     product specifications：QSFP28 100G SM BIDI  ER1  30KM  1*LC  1304/1309

5)  QSFP28 100G BIDI 40KM Optical Module

     P/N : RQ-100GBD40-0409/RQ-100GBD40-0904

     product specifications：QSFP28 100G SM BIDI  ER1  40KM  1*LC  1304/1309

6)  QSFP28 100G BIDI 80KM Optical Module

      P/N : RQ-100GBD80-A/RQ-100GBD80-B

      product specifications：QSFP28 100G SM BIDI  ZR4 LWDM4  80KM  1*LC

7)  QSFP28 100G SR BIDI  Optical Module
      P/N : RQ-100GSRBD

      product specifications：QSFP28 100G MM SR BIDI  850/900  2*LC
