241118  DAC QSFP56 200G TO 2X100G QSFP56

(Fiberwdm All rights Reserved)

Key words：DAC, AOC,  QSFP56, 200G , 200G TO 2X100G

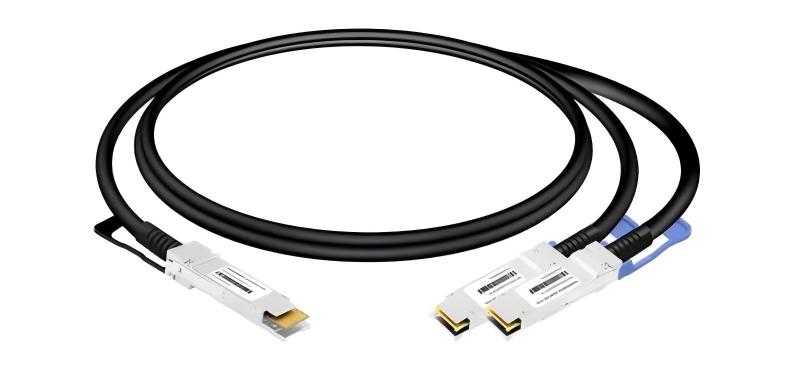

High-speed cable DAC Cable
200Gbps QSFP56 To 2x 100G QSFP56

Product Features

• Compliant with SFF-8636、SFF-8402
• Compliant with IEEE802.3bj&IEEE802.3 cd
• Support I2C two - line string interface, easy to control
• Support for hot plugging
• Low crosstalk

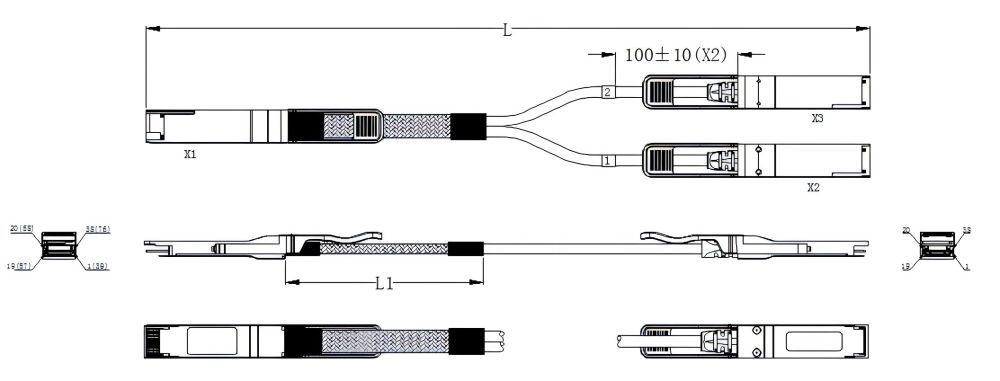

Outline drawing

Product model and specification description:
DAC-200G56-2x100G56-05M
DAC 200G QSFP50 TO 2X100G QSFP56 0.5M

DAC-200G56-2x100G56-1M
DAC 200G QSFP50 TO 2X100G QSFP56 1M

DAC-200G56-2x100G56-2M
DAC 200G QSFP50 TO 2X100G QSFP56 2M

DAC-200G56-2x100G56-3M
DAC 200G QSFP50 TO 2X100G QSFP56 3M

Fiberwdm provides the high price of 800 g / 400 g / 200 g / 100 g/g / 40 25 g / 10 g optical mode and DAC/AOC cable and DCI high-speed optical interconnects, the solution for the data center and edge of cloud computing, high performance computing, artificial intelligence application scenarios such as to provide the best products and services, Able to meet the needs of different customers
